Wi-Fi Power Point Controller
Model Number: HE214036
INSTRUCTION MANUAL
After Sales Support - Help Desk
Telephone:
1300 663 907
Internet:
www.winplus.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HE214036 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Bauhn HE214036

Summary of Contents for Bauhn HE214036

  • Page 1 Wi-Fi Power Point Controller Model Number: HE214036 INSTRUCTION MANUAL After Sales Support - Help Desk Telephone: 1300 663 907 Internet: www.winplus.com.au...

  • Page 2: Warranty

    Description goes here Wi-Fi Power Point Controller Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion.

  • Page 3: Table Of Contents

    Contents Warranty Contents Welcome General Safety Instructions Product Features Parts List / Technical Specifications Product Setup Product Operation Timers & Schedules Troubleshooting Guide FAQ’S Repair and Refurbished Goods or Parts Notice After Sales Support - Help Desk Telephone: 1300 663 907 Internet: www.winplus.com.au...

  • Page 4: Welcome

    Welcome Congratulations on choosing to buy a BAUHN® product. By doing so you now have the assurance and peace of mind that comes with purchasing a product made by one of the leading manufacturers. All products brought to you by BAUHN® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty.

  • Page 5: General Safety Instructions

    General Safety Instructions Read this manual thoroughly before first use and keep it in a safe place for future reference, along with the warranty card, purchase receipt and carton. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to.

  • Page 6: Product Features

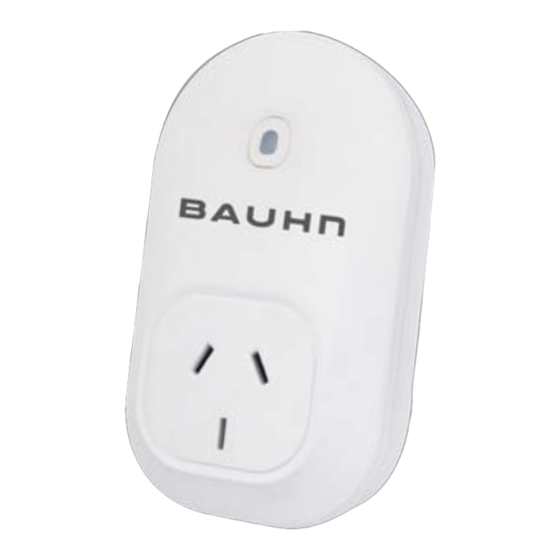

    Product Features Operating button LED indicator RATING: AC 240V 10A TOTAL LOAD MUST NOT EXCEED 2400W Socket • Control the Wi-Fi Power Point Controller from anywhere, using your iOS / Android device* • Check the current status of your Wi-Fi Power Point Controller from anywhere, using your iOS / Android device* •...

  • Page 7: Parts List / Technical Specifications

    Parts List • Wi-Fi Power Point Controller • Getting Started Guide • Warranty Card • Warranty Stickers • Instruction Manual Technical Specifications Voltage: 240V AC 50HZ Max load current: 10A Total load must not exceed 2400W Working temperature: 0-50°C Network: 802.11, b/g/n Security: WPA-PSK / WPA2-PSK / WPA / WPA2 / WEP / WPS2 / WAPI Encryption Type: WEP / TKIP / AES After Sales Support - Help Desk...

  • Page 8: Product Setup

    Product Setup Before you can use your Wi-Fi Power Point Controller, it must be set up using your Android/iOS device. Initial setup must be performed using your home Wi-Fi network. Once it has been set up you can control your power outlet via Wi-Fi/3G/4G. Important: A current mobile service plan is required for correct operation over 3G &...
  • Page 9 Connecting the Wi-Fi Power Point Controller to your Wi-Fi network Initial setup must be performed using your home Wi-Fi network. Ensure your iOS / Android device is connected to your home Wi-Fi network. Refer to your device manual for further details on connecting your device to Wi-Fi.
  • Page 10 Your wireless network name (SSID) is shown in the smart setup screen below is an empty field to enter your Wi-Fi network password. Enter your password into this box SSID After Sales Support - Help Desk Telephone: 1300 663 907 Internet: www.winplus.com.au...
  • Page 11 Insert the Wi-Fi Power Point Controller into the power socket. Turn on the power outlet. The Power Point Controller will begin to flash red rapidly to indicate it has enter pairing mode. After Sales Support - Help Desk Telephone: 1300 663 907 Internet: www.winplus.com.au...
  • Page 12 While the light is flashing rapidly, select the Setup New Socket button in the SmartPoint App to begin the pairing process. Once paired, you will see a ‘Config successful’ message. If you do not see this message repeat step 7 or refer to the FAQ at the back of the manual for more information.
  • Page 13 Once configuration is complete, press Back, then press Devices. Press the on-screen power button to check that your Wi-Fi Power Point Controller is now operating. Connect the appliance you wish to control to the socket of the Wi-Fi Power Point Controller. SSID After Sales Support - Help Desk Telephone:...
  • Page 14 Customise your Wi-Fi Power Point Controller The Bauhn Wi-Fi Power Point Controller can be customised to allow you to easily tell the difference between multiple controllers connected to your network. Open the SmartPoint App, and select Customise from the main screen.
  • Page 15 To change the name of the Wi-Fi Power Point Controller, click the name field, and modify the text. When you have finished, press done. Select the graphic you wish to be displayed for this Wi-Fi Power Point Controller by clicking on the icons. Press Confirm to save your changes, and return to the Customise menu.
  • Page 16 Locking your Wi-Fi Power Point You can lock the Wi-Fi Power Point to prevent new users from discovering the Power Point over your local network. Open the SmartPoint App, and select Customise from the main screen. Select the Wi-Fi Power Point Controller you wish to modify, and you will see the current name and current graphic icon displayed.

  • Page 17: Product Operation

    Product Operation Switching On and Off To control your Wi-Fi Power Point Controller simply follow the below instructions. Open the SmartPoint App, and select Devices from the main screen. Select the device you wish to control, then press the power button to toggle between on and off state.
  • Page 18 Check the Current Status of Your Appliance Open the SmartPoint App, and select Devices from the main screen. Select the device you wish to control, refer below. Offline (unreachable) On/Off/Offline status status shown with for selected device broken chain On status shown with Off status shown with coloured icon grey icon...

  • Page 19: Timers & Schedules

    Timers and Schedules Your Wi-Fi Power Point Controller can be used to manage your device power using automatic timers and schedules. Setting the Automatic Timer Connect your iOS Android device to the Wi-Fi network. Open the SmartPoint App, and select Rules from the main screen. Select Timing from the menu at the top of the screen, then select the rule you wish to modify or create a new rule by pressing Add.
  • Page 20 Time – Select the time you wish the action to be performed. Devices – Select the on/off status you wish for each of your connected Wi-Fi Power Point Controllers at this time. Once you have finished making changes, click Save to return to the Rules menu.
  • Page 21 Using the Countdown Timer Connect your mobile to a Wi-Fi or 3G/4G network. Open the SmartPoint App, and select Rules from the main screen. Select Countdown from the menu at the top of the screen, then select the Wi-Fi Power Point Controller you wish to control. You have the option to select a preset time period (A), or create your own time period (B) using the hour : min : sec selector.
  • Page 22 Set the triggering condition: a. After creation – The countdown timer begins as soon as you press save, and will operate once only. b. Once opened – The countdown timer begins every time the Wi-Fi Power Point Controller is operated. For example, if you switch on, the countdown timer will switch off after the time period has passed, i.e.
  • Page 23 Controlling your Wi-Fi Power Point Controller from a Second iOS / Android Device Once you have set up a Wi-Fi Power Point Controller a second iOS or Android device can discover it over your home Wi-Fi network and also control it remotely. Ensure your iOS / Android device is connected to your home Wi-Fi network.
  • Page 24 Select the Search socket button on your iOS / Android device. The App will begin to search for the Wi-Fi Power Point Controllers currently connected to your home Wi-Fi network. SSID After Sales Support - Help Desk Telephone: 1300 663 907 Internet: www.winplus.com.au...
  • Page 25 Once searching is complete, press Back, then click Devices. You should now see all the Wi-Fi Power Point Controllers connected to your Wi-Fi network. Note: If you have set the Wi-Fi Power Point Controller to locked mode it will not be discoverable by other devices. Refer to page 16 for further information.
  • Page 26 Deleting a Device from the SmartPoint App Open the SmartPoint controller App on your iOS / Android device. Click the Customise icon at the bottom of the screen, then select the Wi-Fi Power Point Controller you wish to delete. Select Delete from the top right corner of the screen. Press OK to confirm you wish to delete the Wi-Fi Power Point Controller.

  • Page 27: Troubleshooting Guide

    Troubleshooting Guide If you are having trouble connecting to your router try the following: Check other devices are able to connect to your router. If not, try resetting your router. The network may have disconnected during the configuration process. Try to configure again.

  • Page 28: Faq's

    Cannot connect to Router using Smart Setup In some instances you may have trouble pairing the socket to your router after using the Smart Setup Option. Follow the below steps if the indicator light never stops flashing red after you perform the Smart Setup or you are unable to connect to your router.

  • Page 29: Frequently Asked Questions

    Frequently Asked Questions Question Answer How can you tell if the Wi-Fi Power If you are successfully paired the light on the Point Controller is successfully Wi-Fi Power Point Controller will stay lit. paired with my router? What if I change or update my You will need to reconfigure your Wi-Fi Power router? Point Controller to work with your new router, by...
  • Page 30 Frequently Asked Questions Question Answer Can I control multiple Wi-Fi Power Yes, you can add up to 150 Wi-Fi Power Point Point Controllers? Controllers to your home network. Note: The number of devices that can be connected to your home network depends on your router / modem.

  • Page 31: Repair And Refurbished Goods Or Parts Notice

    Description goes here Wi-Fi Power Point Controller The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.
