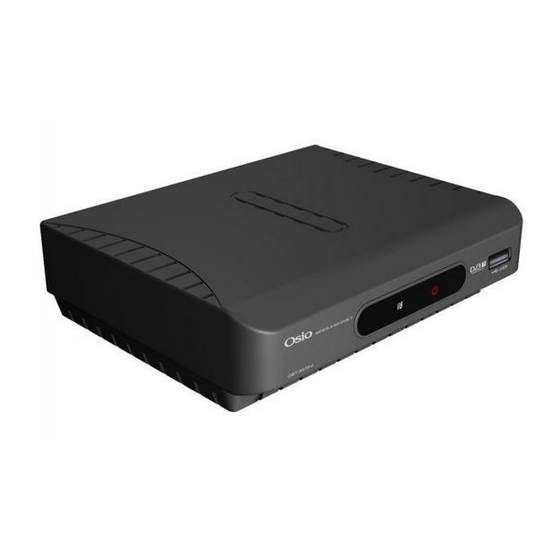

OSIO OST-5072U User Manual
  1. Manuals
  2. Brands
  3. OSIO Manuals
  4. TV Receiver
  5. OST-5072U
  6. User manual

OSIO OST-5072U User Manual

Mpeg-4 sd dvb-t
Hide thumbs
Table of Contents

Advertisement

Quick Links

OST-5072U

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OST-5072U and is the answer not in the manual?

Questions and answers

Summary of Contents for OSIO OST-5072U

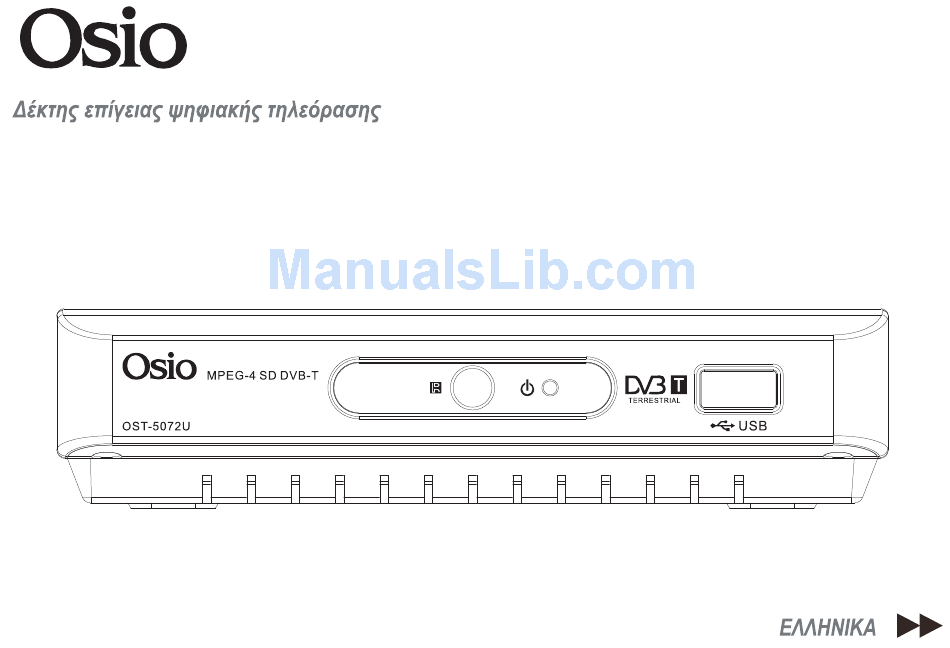

  • Page 1 OST-5072U...
  • Page 4 Σε απόσταση 6 μέτρων το πολύ...
  • Page 6 sleep Aspect...
  • Page 10 5.1.5.2 Επεξεργασία Στο μενού «Επεξεργασία καναλιών», πιέστε το [Πράσινο] πλήκτρο και στη συνέχεια το πλήκτρο [Επάνω/Κάτω] για να μετακινήσετε την επισήμανση. Πιέστε [ΟΚ] για να ανοίξετε το παράθυρο «Μετονομασία». Εμφανίζεται ένα παράθυρο, ως εξής: 1.Πιέστε [Κίτρινο] πλήκτρο για να επιλέξετε κεφαλαία ή όχι. 2.Πιέστε...
  • Page 16 14/01/2010...
  • Page 17 14/01/2010...
  • Page 19 την τελευταία διάδραση με το χρήστη/ ή αλλαγή ενός καναλιού. Εμφανίζεται μήνυμα 2 λεπτά πριν τη μετάβαση στην κατάσταση αναμονής (standby). 8 Eργαλεία Πιέστε το πλήκτρο [ΟΚ] ή [Δεξιά] για είσοδο στα «Εργαλεία». Εάν είναι ενεργοποιημένο το κλείδωμα του μενού, θα εμφανιστεί ένα παράθυρο...
  • Page 22 Πλήκτρο EPG: Αλλαγή δίσκου Πλήκτρο 2: Υπάρχουν τέσσερις επιλογές ταξινόμησης (ανατρέξτε στην ενότητα 5.1.5.1). Πιέστε το πλήκτρο [Κανάλι Επάνω/ Κανάλι Κάτω] για να μετακινήσετε την επισήμανση και πιέστε [ΟΚ] για επιβεβαίωση της επιλογής σας.
  • Page 25 10.1.3 Μετονομασία 1. Πιέστε το [Κόκκινο] πλήκτρο για να μετονομάσετε το επισημασμένο πρόγραμμα. Θα εμφανιστεί το παράθυρο «Μετονομασία». 2. Πιέστε το [Κίτρινο] πλήκτρο για εναλλαγή μεταξύ κεφαλαίων και πεζών. 3. Πιέστε το [Κόκκινο] πλήκτρο γοα διαγραφή του χαρακτήρα στον οποίο βρίσκεται...
  • Page 26 Πιέστε το Κόκκινο πλήκτρο "Μορφοποίηση Δίσκου". Μπορείτε να πιέσετε 10.3.1 Χρονική Μετατόπιση το πλήκτρο [Αριστερά] ή [Δεξιά] για να επιλέξετε μεταξύ των τύπων: NTFS και FAT. Πιέστε το Πράσινο πλήκτρο για ρυθμίσετε την "Ψηφιακή Εγγραφή Video". Οι διαθέσιμες επιλογές είναι: REC&TMS, Record (Εγγραφή), Timeshift (Χρονική...
  • Page 27 να εκτελέσετε παύση, ταχεία προώθηση, ταχεία αναπαραγωγή, ταχεία αναστροφή, αργή αναστροφή. 14/01 10.3.2 Εγγραφή 1. Πιέστε το πλήκτρο εγγραφής (Rec) για να ξεκινήσετε την εγγραφή. 2. Πιέστε και πάλι το πλήκτρο εγγραφής (Rec) για να ρυθμίσετε και να θέσετε τη χρονική διάρκεια της εγγραφής. 3.
  • Page 30 19/11/2004 19/11...
  • Page 32 3327...
  • Page 33 MP3/ JPEG/ BMP MP4: Divx4.5.6; Maximal 1280x720 30fps; ΠΡΟΓΡΑΜΜΑ ΑΝΑΠΑΡΑΓΩΓΗΣ (defined video codec) ΠΟΛΥΜΕΣΩΝ AVI: Max L3.1 1280x720 30fps; (defined video codec)
  • Page 34 ΠΑΡΟΧΗ ΙΣΧΥΟΣ ~220-240V 50/60Hz ΤΑΣH ΕΙΣΟΔΟΥ ΜΑΧ. 0.5 W ΚΑΤΑΝΑΛΩΣΗ ΙΣΧΥΟΣ ΚΑΤΑΝΑΛΩΣΗ ΙΣΧΥΟΣ ΣΕ ΜΑΧ. 5W ( USB Max Load: DC 5V, 300mA) ΚΑΤΑΣΤΑΣΗ ΑΝΑΜΟΝΗΣ...

  • Page 35: User Manual

    USER MANUAL OST-5072U...

  • Page 36: Table Of Contents

    CONTENIDO Quick Installation 1.SAFETY INFORMATION............... 2.INTRODUCTION................... 3.SYSTEM CONNECTION............... BASIC OPERATIONS 4.WELCOME PAGE ................5.EDIT CHANNEL..................6.INSTALLATION..................9-11 7.SYSTEM SETUP .................. 11-15 8.TOOLS ....................15-17 9.GAME....................10.REC..................... 18-21 11.HOTKEY....................21-25...

  • Page 37: Safety Information

    USING THE SET TOP BOX SAFETY INFORMATION...
  • Page 39 Power IR Receiver RF IN RF LOOP through TV SCART...
  • Page 40 Sleep Aspect...

  • Page 41: System Connection

    System Connection...

  • Page 42: Basic Operations

    Basic Operations 4. Welcome Page 1 Press [Up/Down] key to select menu pages among When turn on the power for the first time, the Edit Channel, Installation, System Setup, Tools, Game, welcome page will be shown as below: and REC. 2 Press [OK] or [Right] key to enter the “Edit Channel”.
  • Page 43 Basic Operations 1 Move the highlight by pressing [Channel Up/Channel 5.1.2 Lock Down] key then press [OK] key to preview the 1 Press [Red] key to enter the lock mode. current highlighted program in the preview window. 2 Press [Up/Down] key to move the highlight, and press 2 By pressing [Page Up/Page Down] key to execute [OK] key to display a dialogue to ask you to input the Page Up/Page down function.

  • Page 44: Radio Channel List

    Basic Operations 2 By pressing [Up/ down] key to move the selected channel to the position that you want to place. Press [OK] key to confirm your decision. 5.1.5 Edit 1 Press [Blue] key to open “Edit” menu. 2 Press [Exit] to exit “Edit Channel” menu. If you have 1 Press [Yellow] key to switch whether capital or not.

  • Page 45: Installation

    Basic Operations 5.3 Delete All 1 Press [Up/Down] key to select menu pages among Auto scan, Channel scan, Aerial adjustment, LCN. Press [OK] key, it will pop up a warning message 2 Press [OK] or [Right] key to enter the “Installation”. If to inquire you whether delete all services or not .

  • Page 46: Channel Scan

    Basic Operations 6.2 Channel Scan When entering to “Channel Scan” menu, a channel scan menu will be shown as below: 1 There are two choices of “Scan Mode,” by channel or by frequency. If you scan by channel, “Scan Band” and “Ch No” 6.3 Aerial Adjustment are available to be adjusted.

  • Page 47: System Setup

    Basic Operations 6.4 LCN LCN: To toggle the LCN mode On/Off 1 Language: press [Volume Up/ Volume Down] key to select menu languages, the selections of languages include:English, French, German, Spanish, Portuguese, Russian, Polish, Italian, Greek български 7. System Setup 2 First Audio: Some channels have more than one When entering to “System Setup”...

  • Page 48: Local Time Setting

    Basic Operations one subtitle for choosing.With this function, a user The following options are provided: can set the specified subtitle language. If the playing 4:3 PS/4:3 LB/16:9/AUTO. Auto means system won’t do any aspect ratio switching. channel has the same subtitle language as the “Subtitle 3 Video Out: setting the TV video output mode.

  • Page 49: Parental Lock

    Basic Operations 7.5 Parental Lock 5 “Date” and “Time” items: Valid only when the setting of “GMT Usage” is “Off”. By pressing Press [OK] key on “Parental Lock” item, a dialogue [Left/Right] keys to moving highlight and the number will be pop up to ask for the password (“0000” for keys for inpout.

  • Page 50: Osd Setting

    Basic Operations correct, the screen will show up a message of “Saving Data, Please Wait…” After finishing saving and drawing back to “System Setup” menu, the revising is completed. 4 Press [Exit] key to draw back from the “Parental Lock” menu. 7.7 Favortie 7.6 OSD Setting When entering the “Favorite”...

  • Page 51: Tools

    Basic Operations 1 Press [Yellow] key to switch whether capital or not. In “Tools” menu: 2 Press [Red] key to delete the char on the cursor. 1 Press [Up/Down] key to select menu pages among 3 Press [Blue] key to save the modificationm, Information Load factory setting S/W Upgrade by OTA, Upgrade by USB, USB device, Remove USB 7.8 Auto Standby...

  • Page 52: Upgrade By Usb

    Basic Operations 2. Main Code: the user can only upgrade part of the main code. Please confirm the upgrading file format is “mcd*.bin” Radio Back: the user can upgrade the background logo. Please confirm the associated file name of the upgrading file to be as “*.m2v”...
  • Page 53 Basic Operations After that, the user can play the image or music by choosing the files. If here is no file in the directory, an operation window “This type of play list doesnot exist” will be shown. INFO: Set up slide show of images. Blue Key: To rotate among the 3 repeat modes provided as below: key operations:...

  • Page 54: Game

    Basic Operations Blue Key: Delete all files by blue Key, with a remind 2 Press [OK] or [Right] key to enter the “REC”. If Menu “Are you sure to save?” Lock is “On”, it will display a dialogue for user to key in 8.5 Remove USB device safely password.
  • Page 55 Basic Operations 10.1.2 Delete 10.2 Disk Information 1 Press [Blue] key to make a delete mark on the 1 Move the highlight to “DVR HDD Information” and press highlight program. [OK] key. It will display “DVR HDD information” as below: 2 If you want to cancel the delete operation, press [Blue] key again to cancel the delete mark.
  • Page 56 Basic Operations 10.3.1 Timeshift 10.3.2 Record 14/01 1. Press record key to start recording 1 Press [PAUSE] key to see time shift OSD as below: 2 You can press [Left/Right] to move the slide to 2. Press record key again to set and adjust recoring duration left or right.

  • Page 57: Hotkey

    Basic Operations 3 Mode: Left/Right/Stereo/Mono 11. Hotkey 11.1 Power 1 Press [Power] Key can enter the Standby state 2 In Standby state, press [Power] Key again can call back the unit and go on play the previous channel 3 User can also disconnect the device’s main power to end the Standby state.
  • Page 58 Basic Operations and press [OK] key to select favorite channels. 5 Press [Exit] key to exit the current window. Pressing [Page Up/Page Down] keys can implement the Frequently Asked Question Q: Why the screen displays “No Favorite Channel”, after “Page up/Page down” function pressing [Favorite] key? A: It is because that you haven’t set any channels as “favorite channel”.
  • Page 59 Basic Operations 2 Press [OK] key in each item can see more detail information and press [Red] key to cancel 3 Press [Red] key in EPG menu can display “Time Bar” Menu. In “Time Bar” menu, you can press 19/11/2004 [Left/Right] to select “back/current time/last program or –0:30/next program or +0:30/-2:00/+2:00/last day /next day”.

  • Page 60: Channel List

    Basic Operations 1 Press [TEXT] key in full screen, you can open teletext page on the channel which has teletext information. 2 If the channel has no teletext information, it will show “No Data” on the screen. 19/11 11.13 Menu 1 Press [MENU] key can open the menu, exit the current menu to last menu or close the window.
  • Page 61 Basic Operations 2 Press [PAUSE] key again, the screen’s picture will skip over to the current playing picture, and the sound of the channel will correspond playing. 3 In playing mode, press [Pause] key, the picture will be paused, but the sound of the channel will still continues.
  • Page 62 3327...
  • Page 63 MPEG-1 MPEG-2 MP@ML VIDEO PROFILE MPEG-4 AVC/H.264 HP@L3 AND LEVEL MAX. 15Mbit/s@MPEG2 MP@ML MAX. 12.5Mbit/s@H26.4/AVC MP3/JPEG/BMP MP4: Divx4.5.6; Maximal 1280x720 30fps; (defined video codec) AVI: Max L3.1 1280x720 30fps; (defined video codec)
  • Page 64 ~220-240V 50/60Hz STANDBY CONSUMPIION MAX.0.5W ( USB Max Load: DC 5V, 300mA)
