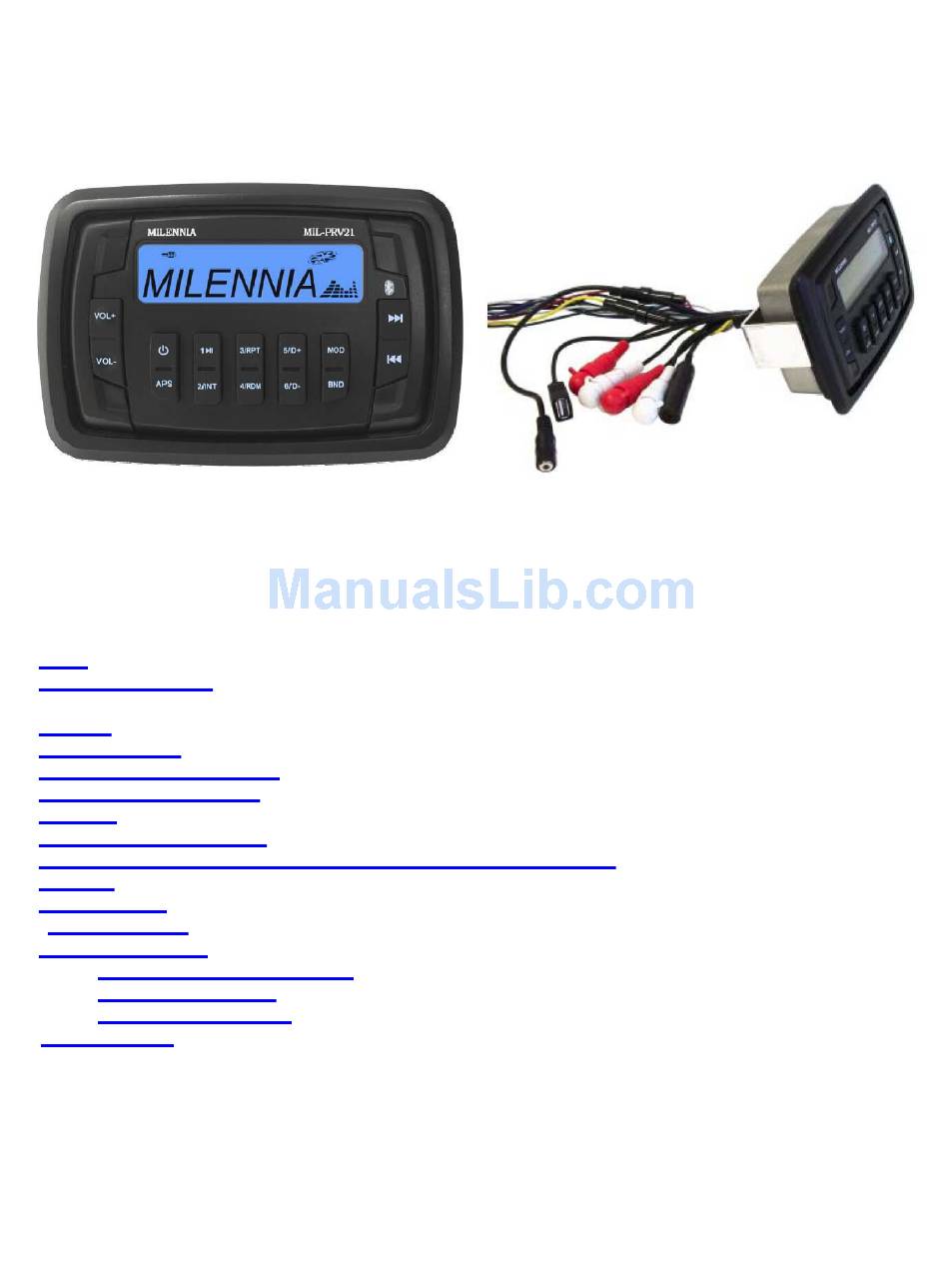

- Page 1 Milennia PRV21 Troubleshooting Guide Prospec Electronics of South Carolina, Inc. 1.0. Wiring 2.0. Compatible Accessories 3.0. List of common issues 3.1. No power 3.2. Intermittent Power 3.3. Buttons/controls not responding 3.4. Wireless Remote not Working 3.5. USB issues 3.6. Poor reception or no reception 3.7.
- Page 2 1.0. Wiring Follow the wiring diagram below. • The red ACC wire is designed as the trigger to turn the radio on. It recommended that this wire is connected to an on/off switch for purposes of lowering the current draw on the battery while the radio is not in use. •...
- Page 3 2.0. Compatible Accessories See our website for the following add on accessories: • SEAMINI2 – AUX input extension with protective outlet housing • SEAUSBMINI – AUX input and USB input extension with protective housing • MIL-IDOCK – multimedia device protective storage drawer •...
- Page 4 3.2 Intermittent Power 3.2.1 Powers on and off constantly • Check voltage under load. At least 11V must be maintained consistently to operate the radio normally. • If voltage cannot be maintained, load test the battery or power supply. • Check all connections for corrosion, looseness, or other condition that can produce a bad ground.
- Page 5 3.5.3.3 Only drives formatted to FAT are supported. Most flash drives come this way standard. 3.5.3.4 Some flash drives com preloaded with proprietary software or other media organizational software that will prevent the PRV21 from reading the contents. Best practice is to completely format the drive to erase all contents before loading music files.
- Page 6 3.7 No audio, speaker audio is unevenly distributed or some speakers not working • Check Balance settings. To access and adjust these settings, press the SEL button to access the system settings. Quickly press the SEL button again and again until the desired setting is displayed. Use the volume buttons to adjust. Center the fade and balance adjustments between front/rear and left/right.
-
Page 7: Ipod/Iphone Pairing
4.0 Bluetooth Connections 4.1 Common Devices and Connections Bluetooth Connections -Smartphones must be an A2DP enabled device in order to stream audio and Bluetooth 2.0 or newer. 4.1.1 iPod/iPhone Pairing Instructions • Switch PRV-21 to Bluetooth mode. • Go to settings on the iPod/iPhone and make sure Bluetooth is on. •... - Page 8 5.0 Reset Procedure With the radio plugged in and powered off, press preset 4, 3, 1, 2 in that order. The radio will then display “RESET” and power off.
