Summary of Contents for Dash cams Online Crystal Clear DCO991

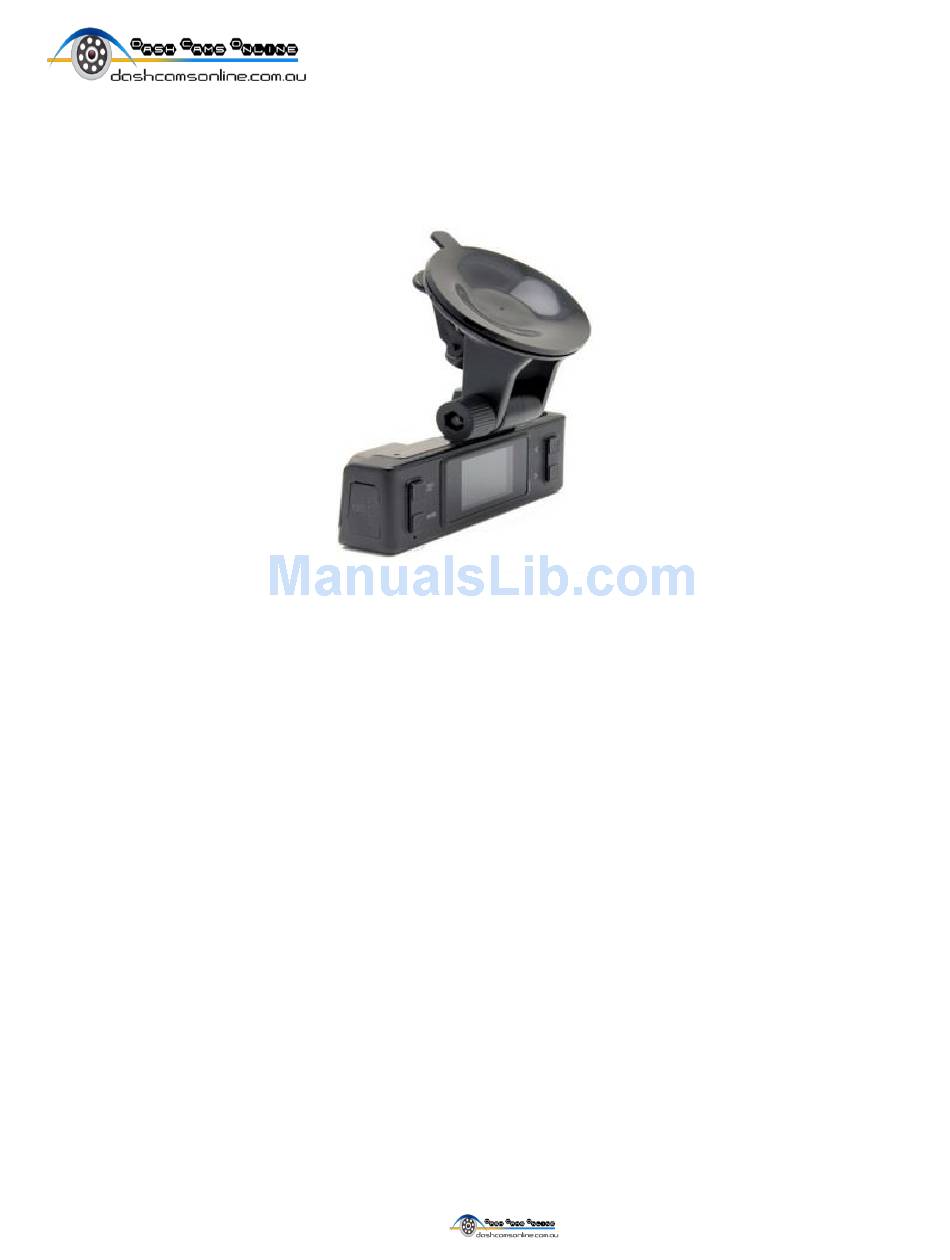

- Page 1 Crystal Clear User Manual For DCO991 http://www.dashcamsonline.com.au DCO991 Setup Guide Rev C P a g e...
-
Page 2: Table Of Contents
Contents Overview .................... Error! Bookmark not defined. Specification ............................ 3 Features ............................4 Key Function ............................ 5 Battery and charging ........................6 Operation ............................6 Menu Options ..........................7 Instructions for Viewing Crystal Clear Video Files With GPS Trackback .......... 9 DCO991 Setup Guide Rev C P a g e... -
Page 3: Overview
Getting Started —————————————————————— Please charge the device via wall or USB for at least 12 hours before use. If the battery does not have full charge the unit may not function optimally. Overview —————————————————————— The Crystal Clear is a high definition dash mounted video recording device integrated with in built GPS tracking and accelerometer readings. -
Page 4: Features
Features —————————————————————— 120 degree ultra wide angle lens. 1920x1080P FULL HD high quality resolution. H.264 video compression technology. 5 mega pixels CMOS Sensor 4X digital zoom 1.5 inch LCD Direct HDMI transfer 1080p 30fps / 720p 60fps ... -
Page 5: Key Function
Key Function —————————————————————— MODE: Switches between the video, camera, playback and options MENU: Lock files so they are not written over from cyclic record menu items. In the reviewing condition, for browsing images, adjust the volume. POWER: Press to switch on the camera when off. Pressing while in recording mode will turn on the LED light. -
Page 6: Battery And Charging
Battery and charging —————————————————————— This device uses a miniUSB cable to charge. This may be from the 12V/24V cigarette lighter port in your vehicle or also from a computer using a USB port or a common phone/digital camera charger with the same plug. When using the device in the car it is recommended to use the car charger at all times as recording in 1080p drains a lot of power. -
Page 7: Menu Options
Menu Options —————————————————————— Video recording quality: Choose the resolution you wish to record in. It is recommended you record in 1920x1080 however you may also choose from also: 1440x1080 30p, 1280x720 30p, 848x480 60p, 848x480 30p, 640 x480 30p, 320x240120p, 320x240 30p. Circulating video recording: Circulating recording allows you to record for an indefinite amount of time. - Page 8 Reset all options back to factory settings. Night Mode: If insufficient light is present at time of recording enabling night mode will increase the lens sensitivity to light. Light source frequency: Depending on the electrical frequency of the power source, you may see horizontal lines/static.
-
Page 9: Instructions For Viewing Crystal Clear Video Files With Gps Trackback
Instructions for Viewing Crystal Clear Video Files With GPS Trackback —————————————————————— This manual has been written for users of Windows OS. If you wish to view the standalone video footage without GPS playback we recommend viewing the videos using VLC player. VLC can be downloaded for free from http://www.videolan.org/vlc/. - Page 10 Save the File in a location easily accessible as this will be your regular viewing program. 2. Open and make sure the following settings are enabled. DCO991 Setup Guide Rev C 10 | P a g e...
- Page 11 DCO991 Setup Guide Rev C 11 | P a g e...
- Page 12 3. Access the video and GPS data in the DCIM and GPS folders respectively by connecting the Crystal Clear with your PC using the USB cable provided. 4. Open the storage device and locate the folders DCIM and GPS. We recommend making a copy on your local storage drive in the above case (C:) Select both folders and drag them into the empty white space in the bottom right...
- Page 13 DCO991 Setup Guide Rev C 13 | P a g e...
- Page 14 If the video files have been grouped (only one video file is being displayed), Click the following button to degroup. Please note this is not applicable if you have only one video file saved onto the memory card. The selected video is now ready to be played by clicking DCO991 Setup Guide Rev C 14 | P a g e...
- Page 15 NOTE: If you are experiencing your map to still show the incorrect location for example Try unchecking the Flip/Reflect Y (Latitude) as per the previous instruction. Uncheck this option DCO991 Setup Guide Rev C 15 | P a g e...
