Boca BocaVision STB121 Owner's Manual

Network devices with citrix ica support
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

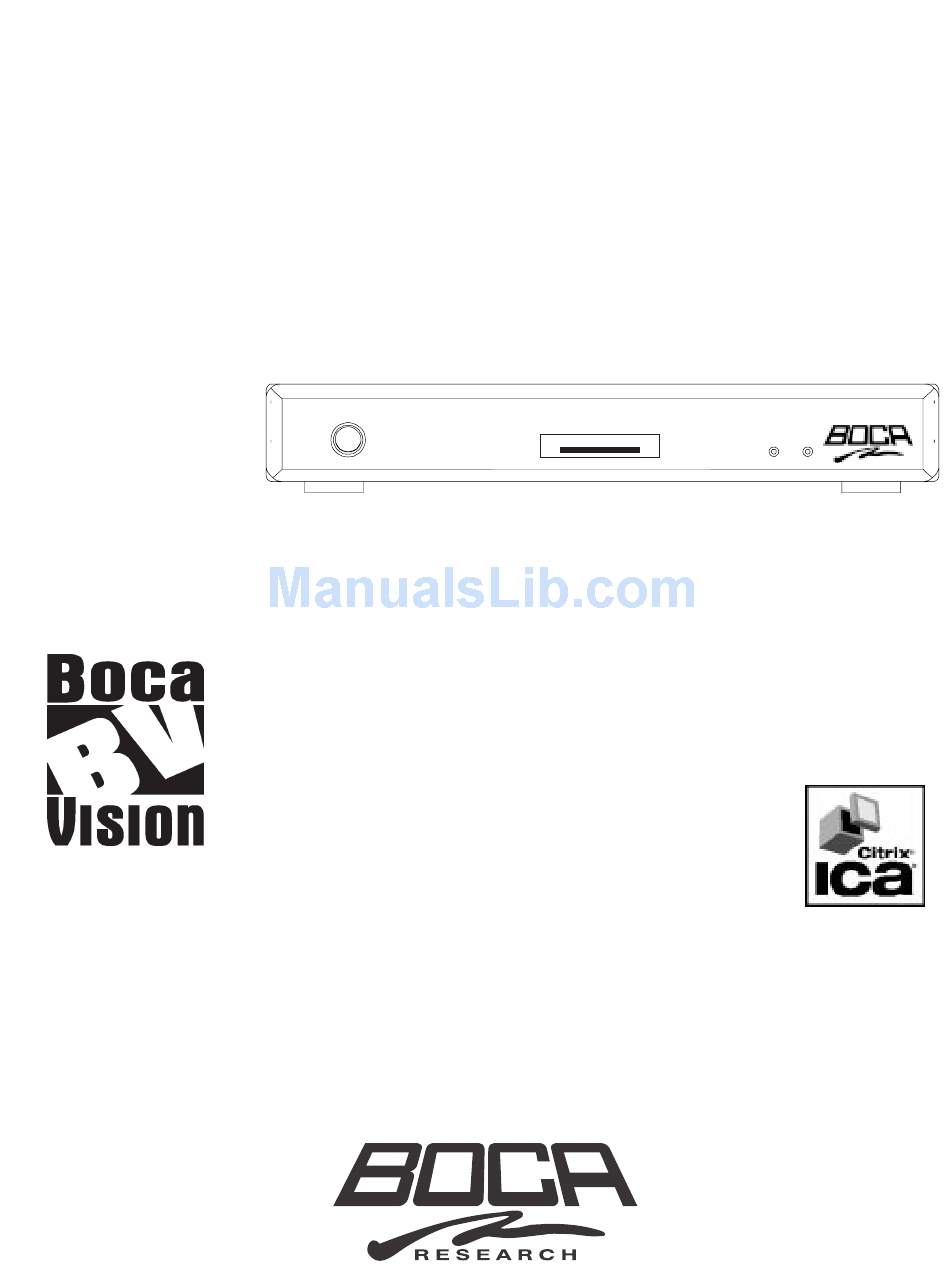

BocaVision
Network Devices
OWNER’S MANUAL
Model:
with Citrix ICA
®
STB121
Support
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BocaVision STB121 and is the answer not in the manual?

Questions and answers

Related Manuals for Boca BocaVision STB121

Summary of Contents for Boca BocaVision STB121

  • Page 1 BocaVision ® Network Devices OWNER’S MANUAL Model: STB121 with Citrix ICA Support ®...
  • Page 2 PCs, networks, and/or the Internet. Boca provides hardware products augmented with software for use in the corporate, consumer, and small office/home office marketplaces, and sells these products worldwide. Products are designed and manufactured in the U.S.A.
  • Page 3 NOTE: FCC regulations state that unauthorized changes to this product could void your authority to operate it. WARNING: Any changes to this unit, not approved by Boca Research, Inc. may void your warranty.

  • Page 4: Radio Interference

    REGULATORY COMPLIANCE INFORMATION Your BocaVision unit is registered with the Federal Communications Commission and complies with parts 15B and 68, FCC Rules and Regulations. 1. NOTIFICATION TO THE LOCAL TELEPHONE COMPANY On the bottom of this equipment is a label indicating, among other information, the FCC Registration number and Ringer Equivalence Number (REN) for the equipment.

  • Page 5: Table Of Contents

    Contents Introduction ............6 Browser User Interface ......... 29 Summary of Features ..........6 Browser Toolbars ..........29 Getting Started ..........7 Main Toolbar ............29 What’s in the Box? ............ 7 Go To ..............29 Connectors and LEDs ........8 Secondary Toolbar ..........30 History ..............

  • Page 6: Introduction

    Introduction Welcome... • RCA right/left audio channels Our thanks for purchasing the Boca • S-Video output ® Research, Inc. BocaVision Network • Parallel port Device. Designed as a television • PS/2 keyboard port • PS/2 mouse port accessory or desktop Network access •...

  • Page 7: Getting Started

    Getting Started What’s in the Box? • S-Video cable Before making connections, review the list below to ensure your package is complete. • Network Device • Telephone line splitter • Wireless keyboard/batteries CLEAR POWER FUNC CTRL PRINT RELOAD SAVE GO TO SEARCH SEND MAIL...

  • Page 8: Connectors And Leds

    Connectors and LEDs Connectors and LEDs FRONT VIEW IR Receiver Smart card Slot Status LEDs LED1—Power (GREEN) LED2—Connect (RED) REAR VIEW: Telephone jack (RJ-11). Attach one end of the supplied telephone cable to this jack and the other end to your phone outlet.

  • Page 9: Connections

    Connections Connections A. Television and VCR Connecting the Unit Connect one end of the supplied RCA-type A/V cable to the BocaVision unit as identified and the other end to the A/V IN jacks on your TV or VCR. Before you can access the Internet, you Make sure you match colors.

  • Page 10: Connecting To A Tv Or Vcr Without A/V Jacks

    Connections Connecting to a TV or VCR without Audio/Video Jacks ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ 1. Set the channel switch on the RF TELEPHONE A/V Cable modulator (not supplied) (Radio POWER CABLE CORD...

  • Page 11: Connecting To A Tv With S-Video

    Connections Connecting to a TV with an S-VIDEO Jack NOTE: Connection to S-VIDEO may offer improved video display. To enhance audio performance, you may want to ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○...

  • Page 12: Connecting To A Tv/Vcr With A/V Jacks

    Connections Connecting to a TV or VCR with Audio/Video Jacks ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ TEL. POWER CABLE CABLE CORD 1. Connect one end of the supplied RCA-type A/V cable to the unit as identified and other end to the A/V IN jacks on your VCR or TV.

  • Page 13: Connecting To A Wireless Keyboard

    Connections Connecting a Wireless Keyboard Keyboard Functions and Features Your wireless keyboard installation is fast and easy, as described below. Arrows and ENTER / OK. Use the arrows to highlight items on the menu screens, and when Inserting the batteries surfing the web.
  • Page 14 Connections and loads the preceding page. MAIL. Reserved for future applications. SAVE. Reserved for future applications. MENU. Brings up the Main menu, or the Toolbar when you’re surfing the web. SEARCH. Reserved for future applications. PAGE UP and PAGE DOWN. Scroll up and SEND.

  • Page 15: Connecting To A Ps/2-Compatible Keyboard

    Connections Connecting a Standard (Wired) PS/2 Compatible Keyboard ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ Using a PS/2-Compatible Keyboard You can connect a PS/2-type keyboard to the unit. As with the wireless keyboard, you will be able to type information and responses into various text boxes which appear on the WEB pages.

  • Page 16: Connecting A Printer To The Parallel Port

    Connections Connecting a Printer to the DB-25 Parallel Port You will need a 25-pin to 25-pin parallel cable or the equivalent. ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ 1. Connect the male end to the port labelled PRINTER on the unit.

  • Page 17: Specifications

    Specifications Specifications Connectors— Dimensions— • Internal 33.6Kbps Internet modem Width: 11.75” (29.85cm) • Smart card slot Length: 10.125” (25.72cm) • Parallel port allowing connection of printer Height: 1.625” (3.18cm) to the unit Weight: 2.50lbs. (1.13kg) • Keyboard and Mouse ports. •...

  • Page 18: Network Software

    Network Software Network Software Introduction This portion of the owner’s manual describes the interface for Internet access. Before you begin, please have the following information readily available: • Your Internet Service Provider (ISP) local phone number • Your User name (logon name) •...

  • Page 19: Smart Card

    Start-Up Sequence Smart card Before powering the unit on, make sure the smart card is properly inserted (logo-side up) in the slot on the front. The card must be properly inserted for the unit to work. 1. Locate the smart card included in the documentation package. It should look similar to the illustration shown here.

  • Page 20: Smart Card Screens

    Network Software Choose Continue to return to the Ready to Go screen. Choose Options to display the main options screen (as described in Options section, pages 35-37). These options include settings for text size and scaling, setting up your printer, adjusting the display, turning sounds on and off, and dialing and call-waiting options.

  • Page 21: Change Isp Details

    Start-Up Sequence NOTE: Record your PIN number here for future reference. Choose Change ISP to display the Change ISP details screen where you may input ISP account information. IMPORTANT: A home URL must be entered (ex. http://www.bocaresearch.com) Examples of web-based Email sites: mailcity.com hotmail.com rocketmail.com yahoomail.com...

  • Page 22: Change Pin

    Network Software DO NOT CHANGE IMPORTANT: Do not change the Default Modem Dial Script. If you should erase it inadvertently, the full script is: “\nATZ\n” “OK\nAT&C1&D1&K3W2\n” “OK\nATDT\n” “CONNECT\n\n” “\n\n” and must be typed in exactly as shown here. Choose Confirm to save the information and then display the Ready to Go screen. Choose Cancel to return to the Ready to Go screen.

  • Page 23: Invalid New Pin

    Start-Up Sequence Invalid New PIN If you enter two different PINs on either the Change PIN screen or the Unblock PIN screen, then following message appears: Clicking Try Again returns you to the previous screen. Check for smart card Clicking ‘Connect’ on the Welcome screen checks for the presence of a valid smart card. Smart card Not Inserted On selecting the ‘Connect’...

  • Page 24: Smart Card Not Valid

    Network Software Smart card Not Valid If the smart card is not authorized for use with unit, the following message appears. Removing the smart card returns you to the Welcome screen. Smart card Damaged If the smart card is authorized but is damaged, i.e., only part of the information on the card can be read, the following message appears.

  • Page 25: Check For Valid Pin

    Enter ‘1234’ as the default PIN number. NOTE: If your PIN is invalid, you will have to call Boca Research for a valid PIN: 561-241-8088 If you enter a correct PIN and click Confirm, then the Connect to Screen appears, otherwise the Invalid PIN screen appears.

  • Page 26: Dialing Sequence

    Network Software If you enter an invalid PIN 16 times in a row, then the following screen appears. If the smart card is not PIN protected or a correct PIN is entered then the Ready to Go screen will be displayed where you may choose Connect. Choose Connect to start the dialing sequence.

  • Page 27: Dialing Screens

    Start-Up Sequence Dialing Screens This section describes modem status messages that appear during the connection to your ISP. This is either when you first connect to your ISP or when the line has been dropped due to modem inactivity and a reconnection is initiated. Modem Status Screens The modem activity screens appear as in the example below.
  • Page 28 Network Software If the line to the ISP is busy then the following message will appear: Choose Try Again to re-attempt the dialing process. Choose Cancel to quit the dialing process. If any other problem occurs while trying to connect to the ISP the following message will appear: Choose Try Again to re-attempt the dialing process.

  • Page 29: Browser User Interface

    Browser User Interface Browser User Interface This section provides details of the Web Browser user interface. Browser Toolbars Main Toolbar The main toolbar appears when you connect to the ISP. You can toggle the toolbar on and off by pressing the Menu button on the remote handset or keyboard. Choose Home To go to the home page specified during setup.

  • Page 30: Secondary Toolbar

    Network Software Secondary Toolbar The secondary toolbar appears when you select More… from the Browser main toolbar Choose History To display the history page. Choose Favs To display the Favorites list. Choose Save To save the current page to the list of favorites. Choose Options To display the options pages.

  • Page 31: Favorites

    Browser User Interface Favorites The Favorites page appears when you select Favs from the second toolbar. Clicking on any of the titles in the list causes to the Browser to retrieve and then display the requested page. Clicking the Delete Favorites button displays the following page. Check the boxes of the pages you wish to remove and then click the Delete button.

  • Page 32: Options

    Network Software Options The main options page appears when you select Options from the secondary toolbar. This page is described in detail in the Options section. Print The Print pop-up appears in the center of the screen when you select Print from the secondary toolbar or press print on the keyboard.

  • Page 33: Toolbar Buttons

    Browser User Interface Toolbar Buttons Each of the toolbar buttons has two states: unhighlighted and highlighted. Progress Indicator While the indicator is moving, indicating that data is being transferred, you can stop the transfer by highlighting the indicator and pressing OK. If the indicator is not moving, highlighting it and pressing OK will reload the web page.

  • Page 34: Secure Socket Layer (Ssl) Indicator

    Network Software Secure Socket Layer (SSL) Indicator The appearance of the SSL icon indicates a secure connection. The icon appears above the up and down arrows on the toolbar. Web Page Password Challenge Some web pages, e.g., http://www.timeout.co.uk/TO/Info/ require a password screen. Example Image Map Cursor When you highlight an image map and press OK to navigate over the map, the image map...

  • Page 35: Option Screens

    Option Screens Option Screens The Options screen appears when you select Options from (1) the secondary toolbar., (2) the Welcome Screen, or (3) Dial failed screen. The option pages allow you to configure the system for your personal use. Text Options This screen allows you to configure the text size and whether web pages should be horizontally scaled to fit the screen.

  • Page 36: Printing Options

    Network Software Printing Options This screen allows you to configure the use of a printer (see codes on p. 43), choose whether you require color or black/white printing, and select the paper size you will use. Screen Positioning Options This screen allows you to center the display on your television set. Choose Arrows To move the image in the direction of the arrow.

  • Page 37: Screen Positioning Options

    Option Screens Telephone Options This screen allows you to set up your dialing options, including pulse/tone dialing, obtaining an outside line, and waiting for the second dial tone. Call Waiting Options This screen allows you to disable the call waiting feature of your phone system.

  • Page 38: Ica Support

    ICA Support Support ® The BocaVision Network Device can now extend your network access to include Windows- ® based applications and data across the Web. By incorporating Citrix’s ICA Webclient for the Web, BocaVision provides remote users with access to business-critical applications residing centrally on a Citrix WinFrame or MetaFrame server.
  • Page 39 ICA User Support Launch with a URL NOTE: Connection to a WinFrame server can only be established by dialing into an ISP first, or by dialing into an RAS server residing somewhere on the same network as the WinFrame server. You may establish a direct ICA ®...
  • Page 40 ICA User Support Example: ica:?address=nc-nt or ica://nc-nt/ would log on to the server whose name was nc-nt irrespective of what was in the AppSrv file. Launch with ICA file The most flexible way of starting a connection is with an ICA file. An ICA file is a text file that when fetched by the NC browser automatically starts up the ICA client and contains the details of what server to connect to and can be used to override default values.

  • Page 41: Troubleshooting

    • Make sure the TV is set to the correct input channel (normally “3”). This is usually your Video, AV, AUX, L1, or L2. Lost or damaged smart card. • Call Boca Research Technical Support for assistance. Forgotten PIN number. (561-241-8088) Connecting sequence fails.
  • Page 42 Troubleshooting Troubleshooting (contd) Problem Suggested Solution When using a TV to view a When using a TV, the edges of the screen are lost Windows application, the due to the overscan mode used by BocaVision. To application’s title bar and counteract this effect, the ICA client needs to be edges go off the screen.

  • Page 43: Compatible Printers

    Compatible Printers Printer Codes FX-286 ..........4 IBM/Lexmark FX-80 ..........3 4019 LaserPrinter E ......11 Brother FX-85 ..........4 4029-010 LaserPrinter ..... 11 HJ-100i ..........1 FX-86 ..........4 4029-020 LaserPrinter ..... 11 HJ-400 ..........11 GX-80 ..........3 4029-030 LaserPrinter .....

  • Page 44: Accessories

    Part no. 8507 • T-splitter: Part no. 8528 • S-Video Cable: Part no. 8532 To order these items, contact your distributor. For a list of local distributors, contact Boca Research, Inc. 1601 Clint Moore Road Boca Raton, Florida 33437-2841 (561) 241-8088...

  • Page 45: Limited Warranty

    A dated copy of option to replace any defective part(s) with new the sales slip must be included with the returned part(s) or, at the option of Boca Research, with merchandise. serviceable used parts that are equivalent to new parts in performance.

  • Page 46: Servicing Your Product

    UPS. covered under the Boca Research, Inc. Limited Warranty. 4. Certain parts will not be covered under the Boca Research, Inc. Limited Warranty. Dealer installed parts are warranted by the dealer. Parts which you have installed yourself are covered only by...

  • Page 47: How To Get Technical Assistance

    CompuServe : : : : : CompuServe CompuServe without permission in writing from Boca Research, GO BOCA GO BOCA Inc. Boca Research is not liable for any damages GO BOCA GO BOCA GO BOCA resulting from technical or editorial errors or Internet...
  • Page 48 Manual Part # 9337-01 07/98...
