Summary of Contents for Bauhn PA39085

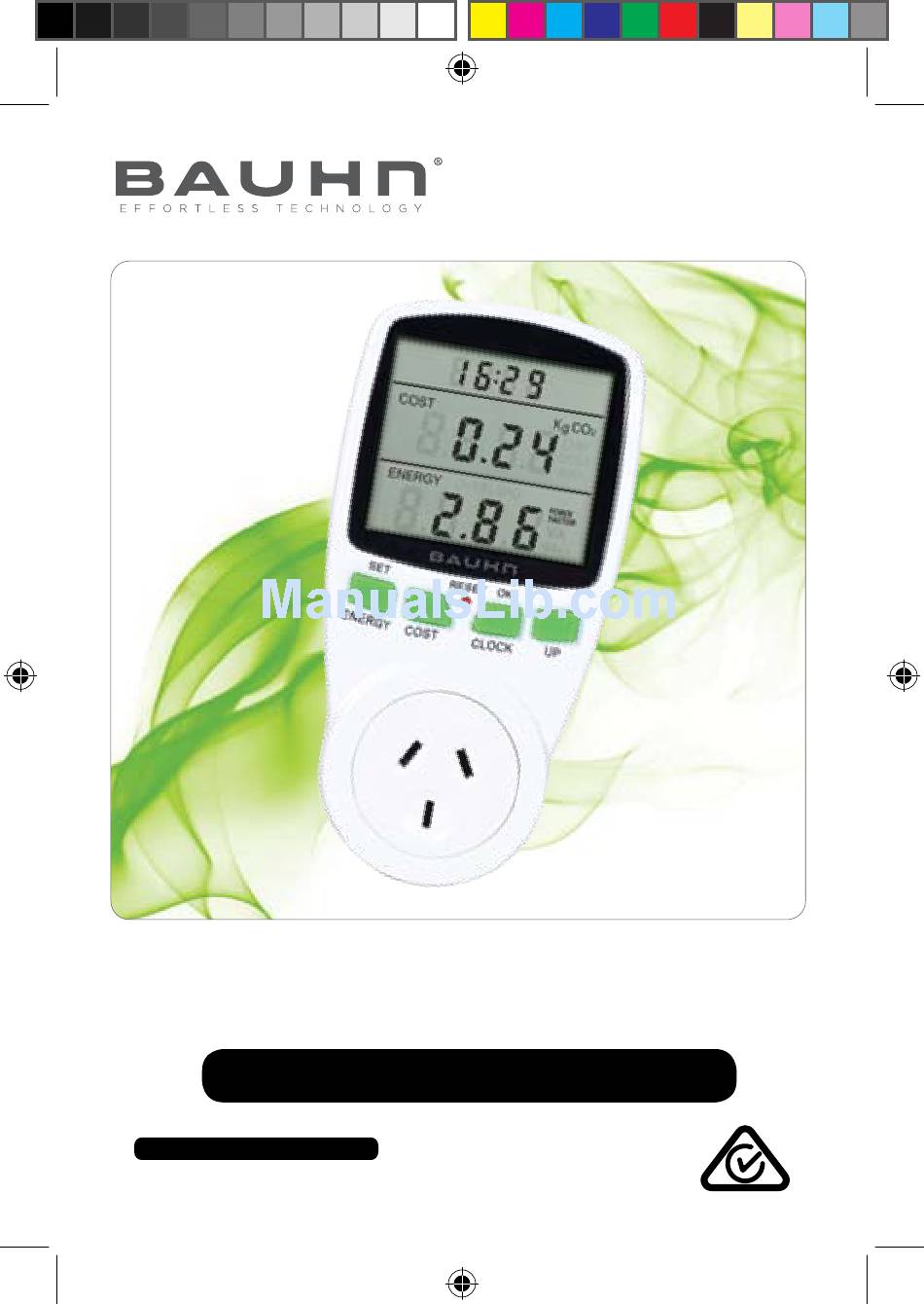

- Page 1 Power Meter Model Number: PA39085 INSTRUCTION MANUAL After Sales Support - Help Desk Telephone: 1300 663 907 Internet: www.winplus.com.au...
-
Page 2: Warranty
Description goes here Power Meter Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws. -
Page 3: Table Of Contents
Contents Warranty Contents Welcome General Safety Instructions Product Features Parts List / Technical Specifications Product Setup Product Operation FAQ’S Repair and Refurbished Goods or Parts Notice After Sales Support - Help Desk Telephone: 1300 663 907 Internet: www.winplus.com.au... -
Page 4: Welcome
Welcome Congratulations on choosing to buy a BAUHN® product. By doing so you now have the assurance and peace of mind that comes with purchasing a product made by one of the leading manufacturers. All products brought to you by BAUHN® are manufactured to the highest standards of performance and safety and, as part of our philosophy of customer service and satisfaction, are backed by our comprehensive 1 Year Warranty. -
Page 5: General Safety Instructions
General Safety Instructions Read this manual thoroughly before first use and keep it in a safe place for future reference, along with the warranty card, purchase receipt and carton. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. -
Page 6: Product Features
Product Features e week Reading the Display The Timer on the top of the LCD screen displays the total time the appliance has been measured using the Power Meter. It will begin in minutes and seconds. After one hour has elapsed the display will change to hours and minutes of use. -
Page 7: Parts List / Technical Specifications
LCD Display Reset Button Energy / Set Mode UP Button Clock / OK Button Cost Functions Power Socket Technical Specifications Normal operation voltage: 240V AC 50Hz Load current: 10A (Max) Timing display range: 0 second - 9999 days Power display range: 0.000 - 9999W Voltage display range: 0.000 - 9999V Current display range: 0.000 - 9999A Frequency display range: 0.000 - 9999Hz... -
Page 8: Product Setup
Product Setup Connecting Appliances Remove the clear tab at the rear of the product, to activate the internal batteries. Plug the power meter into the mains socket. Plug the appliance you wish to monitor into the front socket of the power meter. - Page 9 Setting the Tariff (cost per kWh) Press the COST button for 3 seconds to enter cost mode. There are 4 currencies that you can choose to have your charges display (money symbol); £ (pound); $ (dollar) or € (euro). Press the UP button to cycle through the symbols and press OK to confirm your selection.
- Page 10 Setting the Overload Alert Threshold The Bauhn Power Meter is equipped with an overload alert feature to help identify power spikes or surges. When the set threshold is exceeded, “OVERLOAD” will flash next to ENERGY on the display. Follow the below instructions to set the overload alert threshold.
-
Page 11: Product Operation
Operation Monitoring the Cost of Operating the Appliance By default, accrued cost is shown on the centre line of the main menu screen. Accrued cost is calculated as a total of the energy consumed through the energy meter. Further details about the true cost of operating your appliance can be found by pressing the “COST”... - Page 12 Monitoring the Current Energy Consumption By default, current power consumption in watts is shown on the bottom line of the main menu screen. Further details about the current power consumption can be found by pressing the ENERGY button repeatedly to cycle through the following information: •...
- Page 13 Resetting the Power Meter Locate the red RESET button on the front of the energy monitor. Use a pen or a pencil to push down on the reset button for a few seconds. The screen will go blank. Release the RESET button – all settings will be the factory default settings.
-
Page 14: Frequently Asked Questions
How can I find out the cost of my See your most current power bill or electricity in kWh? contact your electricity supplier. Can I use the Bauhn Power Meter with Yes, the Power Meter will measure all a Power Board? devices including Power Boards up to 2400W, 10A. -
Page 15: Faq's
Description goes here Power Meter The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.
Need help?
Do you have a question about the PA39085 and is the answer not in the manual?
Questions and answers
what kind of battery does the Power meter PA39085 use?
The Bauhn Power Meter PA39085 uses 2 x LR44 batteries.
