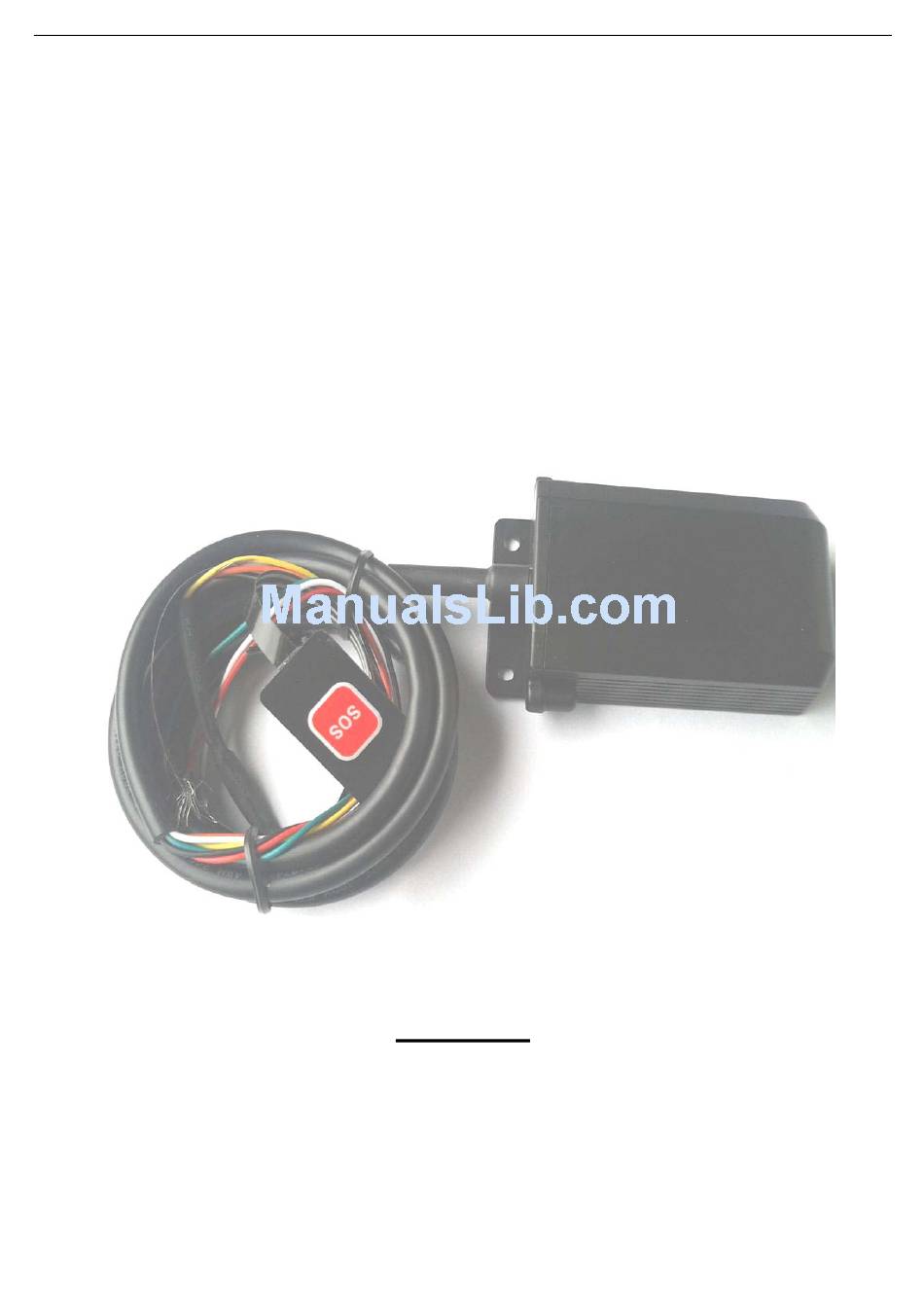

XT-009 Gps tracker user manual
GSM / GPRS / GPS
VEHICLE TRACKER
XT-009
Preface
Thank you for purchasing our GPS vehicle tracker. This manual shows how to operate the device
smoothly and correctly. Please read this manual carefully before using it. Please note that specification
and information are subject to changes without prior notice in this manual. Any change will be
integrated in the latest release. The manufacturer assumes no responsibility for any errors or
omissions in this document.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XT-009 and is the answer not in the manual?

Questions and answers

Summary of Contents for Xenun XT-009

  • Page 1 XT-009 Gps tracker user manual GSM / GPRS / GPS VEHICLE TRACKER XT-009 Preface Thank you for purchasing our GPS vehicle tracker. This manual shows how to operate the device smoothly and correctly. Please read this manual carefully before using it. Please note that specification and information are subject to changes without prior notice in this manual.

  • Page 2: Table Of Contents

    XT-009 Gps tracker user manual Index 1. Function Summary----------------------------------------------------------------------------3 2. Application-------------------------------------------------------------------------------------3 3. Hardware Description-------------------------------------------------------------------------3 3.1 Outside ------------------------------------------------------------------------------------3 3.2 Internal mainboard ----------------------------------------------------------------------4 4. Wire connection ------------------------------------------------------------------------------5 5. Specifications----------------------------------------------------------------------------------6 6. Battery and SIM Card installation-----------------------------------------------------------6 7. Startup-----------------------------------------------------------------------------------------6 Usage------------------------------------------------------------------------------------------6 9. Tracker mode----------------------------------------------------------------------------------7 9.1 Initialization------------------------------------------------------------------------------7 9.2 Change the password-------------------------------------------------------------------7...

  • Page 3: Function Summary

    XT-009 Gps tracker user manual Overview of function SMS/GPRS sending data Movement/ Geofence/ Speed/ Low battery alarm ACC alarm SOS alarm Remote cut-off electricity &oil function Impact alarm (with collision and acceseleration sensor) Voice monitoring Main power disconnect alarm Micro SD card for saving GPRS data...

  • Page 4: Internal Mainboard

    XT-009 Gps tracker user manual 3.2 Internal mainboard SD card SIM card 4. Wires connection White connects with Relay Green connects with ACC Black: -12V Red: +12V...

  • Page 5: Specifications

    XT-009 Gps tracker user manual 5. Specification Content specs Dimention 73*46*24(mm) Weight Network GSM/GPRS Band 850/900/1800/1900Mhz GPS chipest SIRF3 chip GPS sensitivity -159dBm GPS accuracy 5-10m Cold status 45s Start-up time Warm status 35s Hot status 1s DC6-36V input External power supply Battery 3.7V 1200mAh battery...

  • Page 6: Battery And Sim Card Installation

    XT-009 Gps tracker user manual Close the screws Connect the battery 7.Startup Put the SIM card and SD card in right place,connect the battery with tracker or connect the tracker with car/motorcycle battery 6-36V. it will turn on automatically. the red light will be on if connect with vehicle battery 6-36V, it will be off if disconnect.

  • Page 7: Tracker Mode

    XT-009 Gps tracker user manual 9. Tracking mode 9.1 Initialization Send begin+password to the tracker, it will reply begin ok to initialize all settings. TO:13188888888 From:13188888888 begin123456 begin ok 9.2 Change password Send SMS password+old password+space+new password, it will reply password OK.

  • Page 8: Sms Format

    XT-009 Gps tracker user manual 9.4 SMS format SMS format from the tracker: Lat: 22.566901 long: 114.051258 speed: 0.00 14/08/09 06.54 F:3.85V,1,Signal:F imei:354776031555474 05 43.5 460 01 2533 720B lat:[latitude] long:[longitude] speed:[speed] [date] [time] F:[battery voltage]V,[charging status],Signal:[GPS signal status] [alarm message]* imei:[imei...

  • Page 9: Auto Tracking

    XT-009 Gps tracker user manual Send SMS t030s***n+password to the unit, it will reply SMS heaps of times Cancel: Send notn+password to delete the “ auto tracking ” Remark: the interval must not be less than 5s. 9.6 Tlimit function Set up: Send SMS tlimit123456 50 , it will reply “tlimit ok”...

  • Page 10: Movement Alarm

    XT-009 Gps tracker user manual 9.8 Movement alarm This function is using for the owner to get alarm when the tracker moves out of setting distance. Setup: Send SMS move+password+distance to the unit to set the movement alert,it will reply move ok.(the moving distance is from 200mto 6000 meters)

  • Page 11: Imei Checking

    XT-009 Gps tracker user manual From:13188888888 lat: 22.566923 long: 114.051331 speed: 0.00 28/11/10 03:33 F:4.32V,0, Signal:F speed imei:359587011016261 05 41.5 460 01 2533 720B Remark: It is recommended that the speed alarm is set at 30-200km/h 9.10 IMEI check Send SMS” imei+password: to the unit,it will reply imei350001122222222 ok.

  • Page 12: Sos Button

    XT-009 Gps tracker user manual 9.13 SOS button If you press SOS button for 3 seconds, tracker will send SOS SMS to all authorized numbers. Alert SMS format: From:13188888888 lat: 22.566923 long: 114.051331 speed: 90.00 28/11/10 03:33 F:4.32V,0, Signal:F help me imei:359587011016261 05 41.5 460 01 2533 720B 9.14 SMS LINK...

  • Page 13: Message Center

    XT-009 Gps tracker user manual 9.17 SMS Center Setup: Send SMS adminsms+password+space+cell phone number to setup the SMS center. The tracker will reply Geo-info & authorized number to sms center number even if the admin numbers call or sending command to the tracker Cancel: Send SMS noadminsms+password to cancel the SMS center.

  • Page 14: Acc Status Alert

    XT-009 Gps tracker user manual Signal:F ACCstart imei:359587011016261 05 41.5 460 01 2533 720B Alarm format：lat: 22.566923 long: 114.051331 speed: 90.00 28/11/10 03:33 F:4.32V,0, Signal:F ACCstop imei:359587011016261 05 41.5 460 01 2533 720B (Note: each time when the ACC status changed it’ll send alarm ) 9.22.

  • Page 15: Monitor Mode

    XT-009 Gps tracker user manual 10. Monitoring mode Setup: Send SMS : monitor+password it will reply “monitor OK” When you call tracker, you can hear voices and sounds around tracker. Cancel: Send SMS :tracker+password it will reply “tracker OK” Transfer to tracking mode .

  • Page 16: Gprs Setting

    XT-009 Gps tracker user manual GPRS format: [serial number],[authorized number],[GPRMC],[type of fix GPS],[message],imei:[imei number],[number satellites],[altitude],[battery status],[charging status],[Length], [crc16],[MCC],[MNC],[LAC],[CellID] [serial number] GPS date+GPS time [authorized Tracker authorized number number] [GPRMC] Nmea GPS info string [type of fix GPS] “F” GPS fix, “L” no GPS fix...

  • Page 17: Notes

    XT-009 Gps tracker user manual 12. Cautions Comply with instructions for use will extend the product life cycle. • Keep the unit dry. Any liquid as rain, moisture, etc, may destroy or damage electronic mainboard. • Don’t use or store tracker in dusty places.
