MQ600 quadcopter Guide Manual
DISTRIBUTORE UFFICIALE PER L'ITALIA
- 1 -

Advertisement

Table of Contents
loading

Summary of Contents for Hobby MQ600

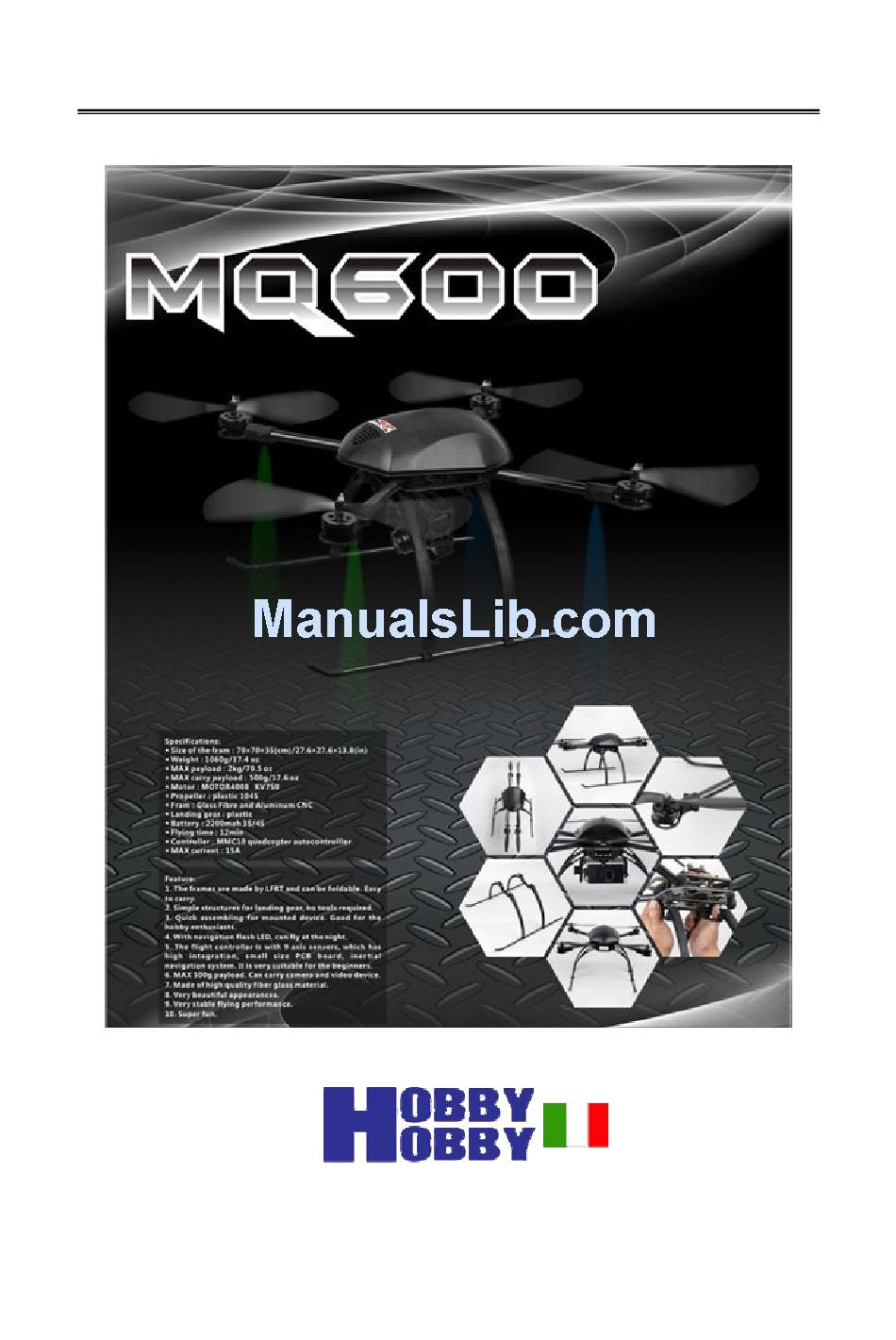

  • Page 1 MQ600 quadcopter Guide Manual DISTRIBUTORE UFFICIALE PER L’ITALIA - 1 -...

  • Page 2: Table Of Contents

    MQ600 quadcopter Guide Manual Guide List 1. Foreword ..................... 3 ..................3 Important Statement 3. Safety Precautions ..................3 3.1. Far away from Obstacles and the Crowd ........... 3 3.2. Avoid bad weather conditions in flight ..........3 3.3. Far away from Heat and Strong Radiation ........3 3.4.

  • Page 3: Foreword

    3.1.Far away from Obstacles and the Crowd 3.1. 3.1. 3.1. Make sure to fly the MQ600 in the wide place. Fly it Far away from Obstacles and the Crowds, high building, high voltage tower. 3.2.Avoid bad weather conditions in flight 3.2.

  • Page 4: Proper Use Of The Copter

    3.5.Proper Operation Specification 3.5. 3.5. 3.5. MQ600 is only for the adults more than 14 years old. The beginners should be guided by experience pilot. Use this product in good spirit condition Far away from rotation motors and propellers. Only fly it in good communication signal condition and fully charged battery.
  • Page 5 MQ600 quadcopter Guide Manual 4x Motor fastner Plastic Fig: Spare parts Item Q07 No.1 fuselage fastner Plastic Fig: Spare parts Item Q08 No.2 fuselage fastner Plastic Fig: Spare parts Item Q09 4x Landing gear fastner Plastic Fig: Spare parts Item Q10...

  • Page 6: Mq600 Install Steps

    MQ600 quadcopter Guide Manual To fly the quadcopter, the customers need to purchase the radio system and battery by themselves. We recommend the battery 11.4V 2200mAh. MQ600 Install Steps MQ600 Install Steps steps: 1: Open the package and take out the spare parts.
  • Page 7 MQ600 quadcopter Guide Manual 2 Assemble the landing gear 3. Take out the canopy and install the receiver Notes: The system default setting is FUTABA definition connection. As showing in the figure, it is connected with WFLY 6CH 2.4G receiver. If...
  • Page 8 MQ600 quadcopter Guide Manual Fig 1 Do not power on the ESC when connecting with receiver. Otherwise the motor will run. Please refer to the Fig 1, if connect with another brand receiver Connect the receiver to the flight controller board by the servo lines. Fix the receiver Symbol "- "...
  • Page 9 MQ600 quadcopter Guide Manual Connect the aileron channel of receiver with 1 channel of the flight controller Connect the elevate channel of receiver with 2 channel of the flight controller Connect the throttle channel of receiver with 3 channel of the flight...
  • Page 10 MQ600 quadcopter Guide Manual 5. Assemble the propellers Firstly, set the propellers according to the rotation direction of picture shown in Fig 2 ( Fig 2 ) See the MQ600 below - 10 -...
  • Page 11 MQ600 quadcopter Guide Manual Set the gasket Install the screws Check the correspondence connection between the ESC and brushless motor after installation Connect each ESC with the corresponding motors with the No. See picture below - 11 -...

  • Page 12: Operation Specification

    MQ600 quadcopter Guide Manual No.1 ESC should connect with No.1 Motor. Be sure that the No.1 Motor runs clockwise. No.2 ESC should connect with No.2 Motor. Be sure that the No.2 Motor runs counter-clockwise. No.3 ESC should connect with No.3 Motor. Be sure that the No.3 Motor runs clockwise.

  • Page 13: Check On Power

    MQ600 quadcopter Guide Manual Check whether 4 motors rotates in correct directions, #1,#3 clockwise, #2,#4 counter clockwise. Check whether the directions of the blades are corresponding to the motors. #1,#3 clockwise, #2,#4 counter clockwise. Fix them with the motor shaft Check whether the motors are assembly firmly, and nothing inside of motors 6.2.

  • Page 14: Flying Practice

    MQ600 quadcopter Guide Manual up, until the quadcopter take off. Turn off Pull the throttle to the lowest position when motors run, push the rudder to the left, the motors will decelerate until to stop. Motors should only be turn off after landing.
  • Page 15 MQ600 quadcopter Guide Manual 6.5. Flight Practice It's easy to fly MQ600 for hobbies. Please practise in large, keep far away from the flight and never try to touch the rotating propellers. Throttle Control Practice After all checking, power on MQ600 and turn on motors, practice it with low throttle in a low height, which is less than 1m.

  • Page 16: Extra Camera Mount & Specifications

    MQ600 quadcopter Guide Manual . Feedback MMC Hobby ( TQ TECH ) www.MMCHobby.com Email: MMC@MMCHobby.com www.tq-tech.net.cn Email: tq-susan@tq-tech.net Tel: +86 (0)755 33124263 Fax: +86 (0)755 25874329 March, 2012 - 16 -...
