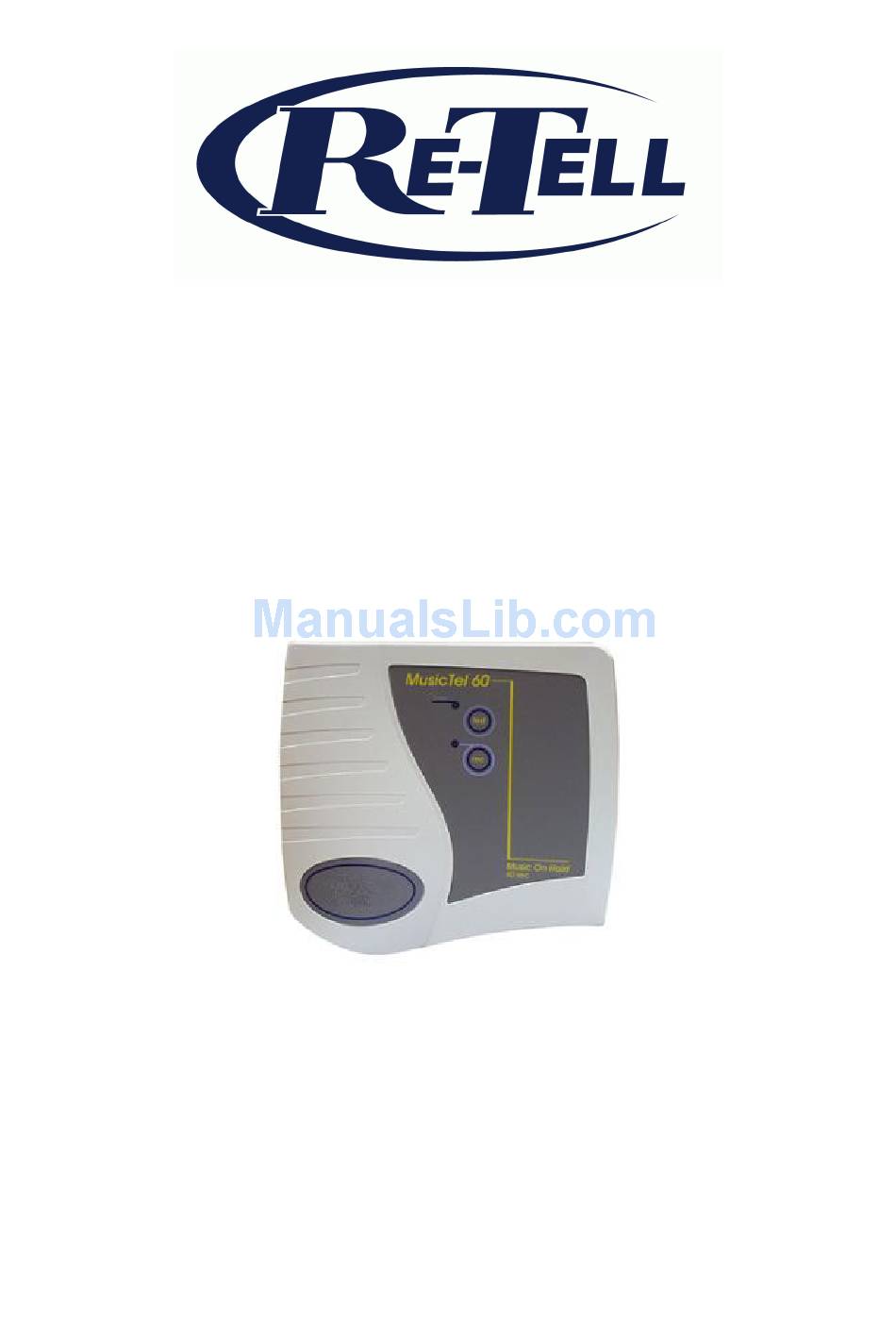

- Page 1 MusicTel-60 Music on-Hold SYSTEM Installation Manual...
- Page 2 ABOUT RETELL ..............................6 INTRODUCTION The Retell MusicTel-60 is a digital music on-hold player. It has no mechanically moving parts. Retell MusicTel-60 allows 60 or 240 seconds of stored music in a non-volatile memory. Recording is performed by connecting the Retell MusicTel- 60 to an external audio device.
- Page 3 DESCRIPTION Physical Description The functional components of the Retell MusicTel-60 are located on its connection panel. The LED's and buttons are located on the front panel. test button recording button Figure 2. Retell MusicTel-60 Front Panel RJ-11 Audio Volume Level...
-
Page 4: Physical Installation
The Retell MusicTel-60 is delivered with pre-recorded music. New music can be recorded before mounting the Retell MusicTel-60 on the wall and before connecting it to the PBX. If no new music is to be recorded, proceed with the installation as described below in Physical Installation. -
Page 5: Specifications
AUDIO Figure 6. Recording Cable Audio Cable RJ-11 (Retell MusicTel-60) pin 3,4 – Audio Out. The audio cable is connected to the Retell MusicTel-60 and to the PBX (MoH socket or defined connection). RJ 11 RJ 11 (MusicTel-60) (P BX) Figure 7. -
Page 6: Technical Specifications
Jumper Configuration By default, the Retell MusicTel-60 Output Impedance is configured to 600 . Some PBX types require the Retell MusicTel- 60 Output Impedance to be configured to 8 (please refer to your PBX Specifications). To configure the Retell MusicTel- 60 Output Impedance: 1. - Page 7 GUARANTEE Retell undertakes to repair or replace (at Retell’s option) the equipment supplied that develops a fault within 1 year of the date of purchase subject to the following conditions: 1. The equipment has not been subject to misuse, liquid damage, accidental breakage, neglect or any other use other than for the purposes of recording conversations or memo’s 2.
- Page 8 Retell Ltd 53 Thames Street, Sunbury on Thames Middlesex TW16 5QH England Tel: +44 (0)1932 779755 Fax: +44 (0)1932 780383 Email: sales@retell.co.uk www.retellrecorders.co.uk © Retell 2007 Retell Ltd 53 Thames Street, © Retell 2007 Sunbury on Thames Middlesex TW16 5QH England Tel: +44 (0)1932 779755 Fax: +44 (0)1932 780383...
