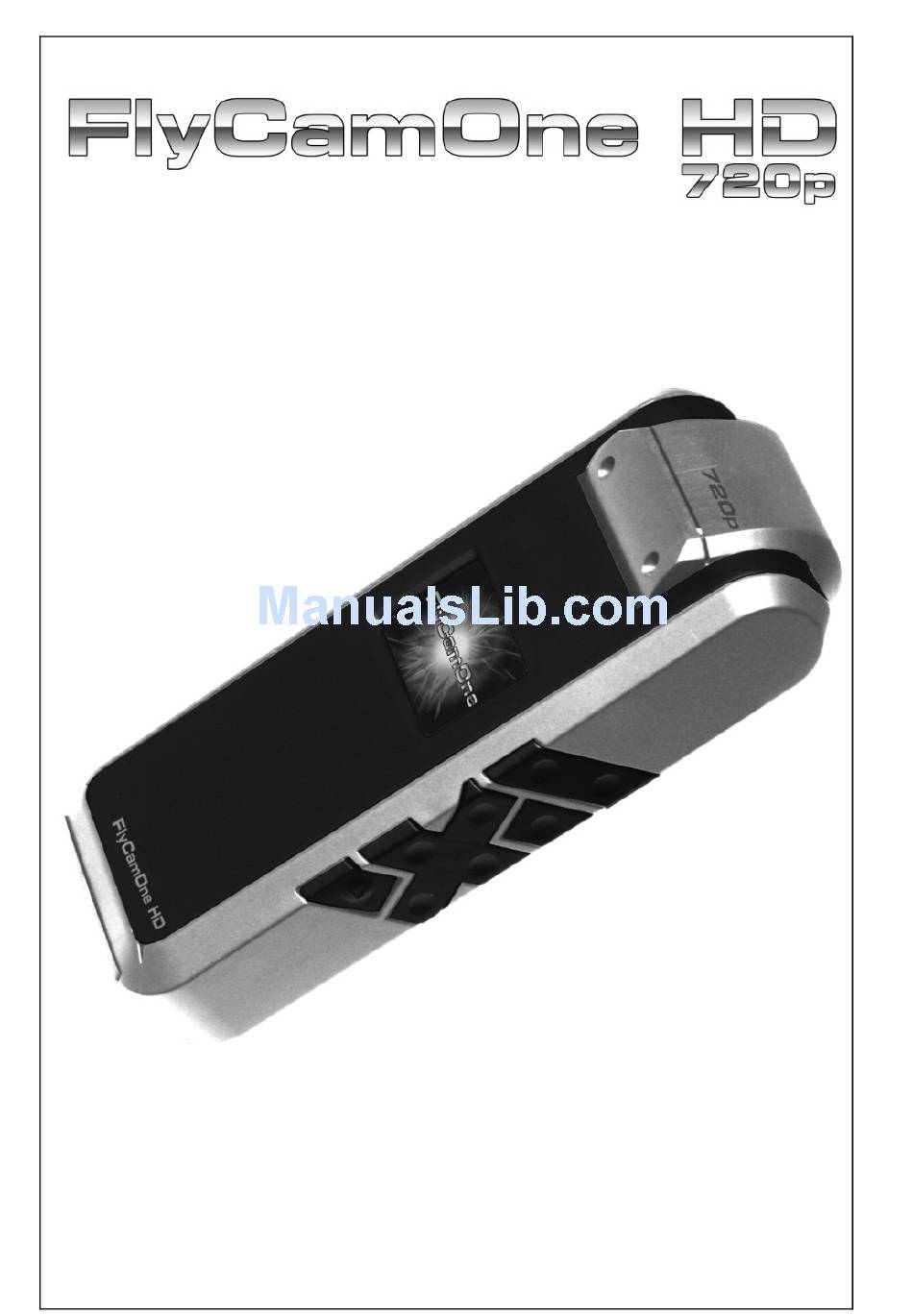

- Page 1 Manual Vers. 1.01 "FlyCamOne", “CarCamOne” and the “CarCamOne” Logo are registered trademarks of ACME the game company, Germany © copyright 2010 by ACME the game company GmbH...
-
Page 2: Safety Advice
Safety advice WARNING: SERVICE & SUPPORT Follow these instruction to prevent damage of ACME the game company GmbH the unit: DO NOT USE UNPROTECTED IF RAIN OR Industriestr. 10a WATER. PREVENT CONTACT WITH ANY KIND OF LIQUIDS 33397 Rietberg ... - Page 3 Content of the Box Please make sure set is complete before starting FlyCamOne HD 720p Docking Station Tripod Mount Handle Bar Mount Belt Clip USB-Cable 10Pin – RCA Cable Manual...
-
Page 4: Battery Charging
ACME will not be responsible in any case for any consequential or direct problems that will lead to a loss of recorded or edited data. Furthermore ACME will not guarantee the content in case the recording or saving is not working properly. The above limitations are as well valid in case the unit has been repaired. -
Page 5: Functional Diagram
Functional diagram 180° pivot able head 1”/ 25,4mm Display Zoom Release/OK Button Control Menu (M) Button Port-Cover On/Off Switch Power/Charging LED Eyelet 10-Pin ComPort Mini USB 2.0 Micro SDHC Card Slot Fixing Slots Battery case 180° pivot able head Lens The 10-Pin com port has following setup: - AV-Out - 5V IN... -
Page 6: Compatible Memory Cards
- "Left" and "Right" as well as the button "M" do have a double key mapping. Press those for 3 seconds to get the second command. Start the Camera On/Off Press the button at the left side of the cam to start the camera. FlyCamOne will be displayed at the beginning. -
Page 7: Mode Selection
Mode selection The camera starts in external mode that can be used directly for recording. Use the cross pad’s „up“and „down“buttons to change the mode. Select the mode with the cross pads, confirming by pressing Video “Start”. For details in the selected mode go further on pressing Photo the “M“button. - Page 8 Permanent recording inside a car In case you want to use the FlycamOne HD as a CarCamOne HD please use the CarCamOne cable (optional available, Art.: CCHD02) and the sucking pad (FCHD28) Slide in a micro SD card with minimum 8GB of space into the camera.
-
Page 9: Using The Camera As A Webcam
Now you can use the camera - note that you need a microphone for audio transmission. As an accessory, we offer the FlyCamOne HD Docking Station (Art.-No.: FCHD13), which loads the camera and transfers data to the computer. The docking station is equipped with a 10pin port and a mini USB port. -
Page 10: Video Recording
Video recording When switching on the camera you can start recording immediately pressing the "Start" button. To stop press the button again. Release button Never remove the SD card or battery when "START" the cam is recording or still saving - displayed by a rotating circle! Photo shooting Use the cross pad to get to the photo mode. - Page 11 Different type of mount The line-Up of the FlyCamOne contains different type of fixing systems The tripod adaptor fixes the camera to every standard tripod. (Art-No.: FCHD25) The pendulum mount can be screwed or glued to a RC model - it enables the pan movement by a servo. The pendulum function can be locked - but is mandatory when fixed to a sport kite (Kite Surfing).
- Page 12 Exchange the frame set Individualizise your Cam! Different colors of frame sets will make your FlyCamOne a unique camera. Loose the safty string first. Then unscrew the bottom part’s four screws and remove the bottom. At take off the side panels. Assamble the new frame in reverse order, but bind the safty string at the left side before fixing the left frame part.
-
Page 13: Technical Data
Technical Data Power 5V (USB / 10Pin Port) 3,7V (LiPo battery 600mAh) Consumption 320mAh Size 95 x 52 x 21mm Weight 53g incl. Battery Battery 3,7V 600mAh LiPo Format MPeg4 Sensor 5MPix CMOS Lens 55° exchangeable Zoom 4times digital Screen 1“/ 2,54mm OLED Microphone AV-Out... - Page 14 FlyCamOne HD Accessories Catalog Please note: The CarCamOne high definition shares accessories of the FlyCamOne HD 720p marked with "720" Items marked with “1080” only cannot be used with the FlyCamOne HD 720p! Find more details at www.FlycamOne.com FlyCamOne HD 5.8GHz Receiver with 63,5mm/2,5 inch FlyCamOne HD Screen Compatible ...
