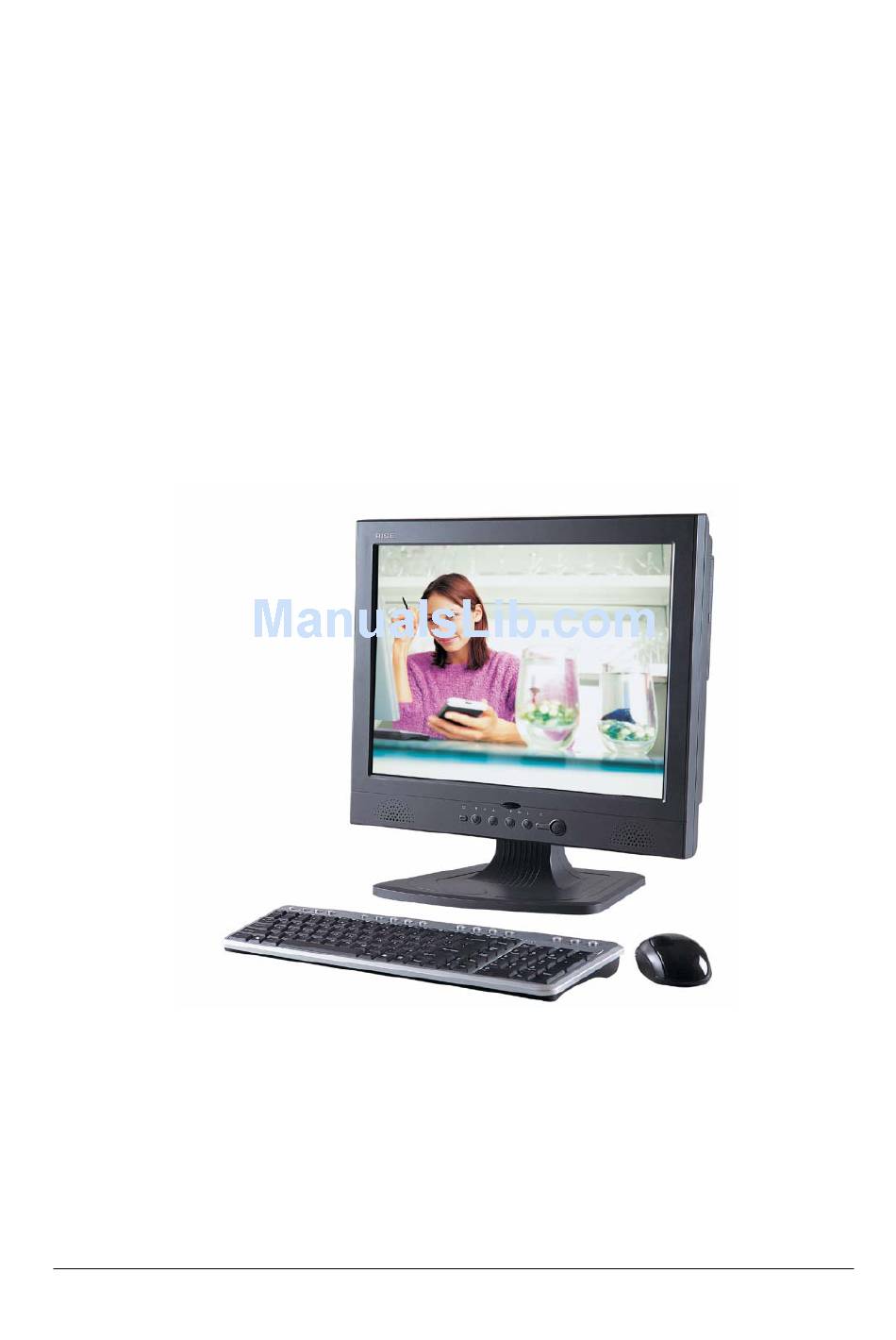

- Page 1 All-In-One 17” TFT-LCD Panel PC RS-2917 series User’s Guide Version: A1.0 Users guide, Ver : A1.0 Sep, 2007 V 1.0...
-
Page 2: Registered Trademark
Notice Copyright The copyright of this user’s guide belongs to any authorized company. and is protected by copyright law. This means partial or full duplication of this document (electronically, mechanically or otherwise) is prohibited without the permission of the authorized company. The contents may be modified without notice for the improvement of design, function, and reliability. -
Page 3: Caution
Caution For safe and proper installation and use of this product, please read this guide carefully. Even though this product is equipped with a safety device to prevent users from getting injured, please follow the instructions carefully. Caution during installation Install on an even and stable place to prevent product damage and injury. - Page 4 When this product will be idle for an extended period of time, unplug the power cord to prevent damage stemming from power surges. When unplugging the power cord, pull by the plug, not the wire. Do not place this product in a place where the temperature is over 60 C (140 F) and ventilation is poor.
-
Page 5: Table Of Contents
Table of contents N o t i c e ............... . . Copyright ....................ii Registered Trademark ................iii The Permissible level (Class B) of electromagnetic waves ....ii... - Page 6 A p p e n d i x 3 . P r o d u c t w a r r a n t y ......... 3 3 V 1.0...
- Page 7 V 1.0...
-
Page 8: Chapter 1. Introduction
Chapter 1. Introduction Congratulations on your purchase of the All-In-One 17” TFT-LCD Panel Product features LCD-PC is the all-in-one PC that combines a 17” TFT-LCD monitor and a desktop computer, offering an ultra light weight of 10Kg and a modern design that suits any working conditions. LCD-PC is so user-friendly that anyone can use it without difficulty because it has all major components in its all-in-one main body. -
Page 9: Unpacking
Unpacking This product is packaged with cardboard paper for safe delivery. If there is a defect or missing part, contact the agency where you purchased the product. The box should contain the following items. 17” TFT-LCD monitor all-in-one PC main body 60W AC/DC power adapter AC power cord Users Guide (This document) -
Page 10: Other Peripherals
Other peripherals This PC supports the following peripheral devices PS/2 Keyboard and Mouse Printer (LPT1) Four serial communication port (1 RS232/RS422/RS485) Four USB devices (compatible with USB 2.0) External speakers/headphones External microphones External audio devices External monitors [For reference] What is USB? USB is a high-speed serial bus standard for the connection of peripheral devices that reduces the use of valuable system resources. -
Page 11: Chapter 2. About The Computer
Chapter 2. About the computer This chapter will briefly outline the computer exterior, buttons, LED indicator devices, and additional input/output connection devices. The front of the main body (control panel) Remote Control Window Power button : Turns the computer on and off. Buttons for adjusting the screen contrast Up( )/Down( ) : Adjusts the contrast of the TFT-LCD display. -
Page 12: The Rear Panel Of The Computer (Input/Output Connections)
The rear panel of the computer (Input/output connections) The following picture shows connectors that are for input/output conne ctions located at the rear of the main body. Here we provide a brief ex planation about the name and function of each connection port. Icon Connections PS/2 mouse connection... - Page 13 Install Power Adapter Step: 1. Insert power cord into power adapter 2. Insert power adapter cable into “Power Adapter Input” of rear panel 3. Insert power cord into AC power socket V 1.0...
-
Page 14: Jumper Setting
Jumper Setting : CF Socket Master/Slave select : (JCFSEL1) and BIOS setting. JCFSEL1 1-2 short CF is Master IDE 1 2-3 short (default) CF is Slave BIOS Setting When use CF card, please press [Ctrl] +[Alt] + [Del] into BIOS setup and move to [Integrated Peripherals] =>... - Page 15 LVDS Voltage Adjust : (JP2) 1-2 short (default) 2-3 short +3.3V +5V for 17” Panel +3.3V for 15” Panel Inverter Voltage Switch : (J2) 1-2 short (default) Power on 1-2 open Power off This jumper pin can control panel power on or off. Internal USB Jumper Pin : (USB1 / USB2) V 1.0...
- Page 16 COM4 Select for RS232/485/422 : (JCSEL1 / JCSEL2) JCSEL1 JCSEL2 JCSEL1 RS232 RS485 RS422 JCSEL2 RS232 RS485 RS422 9-11 9-11 8-10 10-12 10-12 V 1.0...
-
Page 17: The Left Side Of The Main Body (Card Reader Panel)
The Left Side of the main body (card reader panel) CF / MD MS / SM / SD / MMC Item Connections Indicates the card reader is working, LED Color : Green. Card Reader : CF/MD 1. Compact Flash (CF) Interface, Type I & Type II 2. -
Page 18: Chapter 3 . S T A R T I N G U P T H E C O M P U T E R F O R T H E F I R S T T I M
Chapter 3. Starting up the computer for the first time This chapter will show you how to register a user ID for Windows and for this computer, and how to set up additional drivers and applications step by step. For Windows XP Home Edition Step 0: Windows XP and basic driver pre-setup This product is pre-setup with the latest driver file for Windows XP Home Edition, basic specifications and other optional specifications... -
Page 19: Step 1: To Set Up The Computer
Step 1: To set up the computer To set up the computer that is pre-setup with Microsoft Windows XP Home Edition in step 0: 1. Connect the mouse and keyboard that come with the main body and turn on the power of the main body. The following “Microsoft Windows Start”... -
Page 20: Step 2: The Installation Of Drivers For Other Peripherals
If you chose DSL or cable modem connections, the below dialog box will pop up. Follow the instructions to continue the network connection setup. 8. When you are finished with the Internet connection setup, a dialog box reading, “Are you going to receive verification service?” will be displayed. -
Page 21: Step 3: The Installation Of Software For Other Peripherals
Step 3: The installation of software for other peripherals Skip this step if you do not use other peripherals and go to step 4. For efficient use of other peripherals (printers, serial communication devices, USB devices, and game consoles/ MIDI devices), install the appropriate software (e.g. -
Page 22: Chapter 4 . U S I N G T H E C O M P U T E
Chapter 4. Using the computer In this chapter, we will give a brief explanation about the use of the computer To Use Windows XP Home Edition To use basic Microsoft Windows XP Home Edition programs and applications that are available with this OS, refer to the user’s guide (booklet), or the ‘Help and Support Center’. -
Page 23: Using Other Applications
Send your feedback to Microsoft Using other applications To use other applications obtained or purchased separately, refer to the user’s guide of each application provided by the software manufacturer. Partitioning the hard disk For user’s convenience, the hard disk built into this product is divided into two partitions (drive C and drive D). -
Page 24: Chapter 5 . C H A N G I N G T H E S E T U
Chapter 5. Changing the setup This chapter will briefly outline how to change the setup to suits each user using BIOS CMOS setup utility programs. This chapter also covers how to upgrade your computer system. BIOS CMOS setup utility This PC adopts BIOS based on Phoenix Technology’s latest Award BIOS 6.0 version. - Page 25 3. After a while, the following Award BIOS CMOS setup utility main menu will appear. Phoenix – AwardBIOS CMOS Setup Utility ► Standard CMOS Features ► Frequency/Voltage Control ► Advanced BIOS Features ► Load Fail-Safe Defaults ► Advanced Chipset Features ►...
-
Page 26: Menu Descriptions
The Award BIOS CMOS setup utility offers the following 12 menus. Menu Menu descriptions Standard CMOS Features You can check basic specifications of the computer and change the settings. Advanced BIOS Features You can set up advanced features that are capable of upgrading the system and the booting order. - Page 27 4. To change the CMOS settings using the keyboard. The keys used to modify CMOS settings and their functions are as follows. Features How to use the keyboard To use ‘Help’ Press the <F1> key. To shift headings in ‘Menu/Topics’ Use the arrow keys.
-
Page 28: System Upgrades
System upgrades Hardware upgrades In order to maintain this product’s normal operation and the user’s safety, we do not provide warranty services when users upgrade the system on their own. If you disassemble the computer, it may cause system damage or electrical shock. Please contact one of our sales agencies or customer support centers to upgrade the CPU, hard disk, or memory. - Page 29 Or when the power is turned off in the middle of refreshing, it becomes impossible to boot the computer. Therefore, if your computer is working well with the current BIOS file, avoid upgrading BIOS. How to upgrade BIOS using the BIOS flash utility program for Windows: 1.
- Page 30 3. Update BIOS following the instructions displayed on the execution screen and restart the system to reflect the updated BIOS. V 1.0...
-
Page 31: Chapter 6 . R E I N S T A L L I N G T H E O
Chapter 6. Reinstalling the OS Should serious irreparable problems occur, users must reinstall a Windows operating system. This chapter will explain how to do that. To reinstall the OS, you will need the Microsoft Windows installation CD and the Master CD that comes with this product. Please have these at hand before attempting to reinstall the OS. - Page 32 [Caution] In most cases, it is necessary to restart the computer after installing drivers or utilities using the Master CD. [For reference] When the video driver is installed, click [Start]-[Control panel]-[Appearance and themes]-[Display] to bring up the “Display Registration Information” screen and choose the desired color quality or screen resolution from the [setting] tab.
-
Page 33: Appendix 1 . T R O U B L E S H O O T I N
Appendix 1. Troubleshooting The table below is an outline of general problems that may occur during the use of the PC along with suggested solutions. If any of these problems should occur, proceed with the instructions in the table below or refer to the ‘Troubleshooting”... - Page 34 The monitor appears Adjust the screen contrast using the buttons on the blank or the screen is front panel of the computer monitor. Should problems too dark. persist, contact the Customer Support Center. Mouse is not working. 1. Check if the mouse is properly connected to the PS/2 port located at the rear of the monitor.
- Page 35 the power cord. If you turn on the computer this time, ‘scan disc’ will automatically be carried out. If this symptom should repeat, contact the Customer Support Center. computer 1. This may be caused by an error in a program. Press suddenly freezes wile <Ctrl>+<Alt>+<Del>...
-
Page 36: Appendix 2 . P R O D U C T S P E C I F I C A T I O N S A N D S Y S T E M D I A G R A
Appendix 2. Product specifications and system diagram HARDWARE VIA Eden and C7 Processor : Eden : 400/500/600/800 Mhz and 1/1.2Ghz : 1/1.5/1.6/1.8/2.0Ghz processor Chipset VIA CN700 VIA VT8237R+ (SATA2 support) System Memory DIMM x 2 (up to 2GB) DDRII 400/533 System BIOS Award BIOS : ACPI 1.0b &... - Page 37 Three Serial RS-232C ports ( COM 1~3 is RS232, COM 4 is RS232/RS422/RS485 One DB-25F Parallel port Microphone in / Speaker out / Line in One RJ-45 Ethernet connector Four USB port (USB v2.0 compliant, four internal USB jumper pin) One VGA Out Touch screen (optional) NETWORKING &...
- Page 38 PHYSICAL CHARACTERISTICS Weight: 10 kg (Main Body only) Height: 455 mm Width: 425 mm Depth : 260 mm WARRANTY 1 year warranty standard MODEL CONFIGURATION Model DDR SDRAM / HDD ODD / OS V 1.0...
- Page 39 VIA Eden / C7 Process SiSM661FX & 963 Chipset SiS M661FX VIA CN700 (Internal Garphic Engine SiS 315) IDE 2 3.5” HDD IDE 1 IDE 1 (master/slave) CF Card SiS 963 VIA VT8237R+ (South Bridge) 10/100/1000 Mbps V 1.0...
-
Page 40: Product Warranty
Appendix 3. Product warranty About the product warranty 1. Keep the product warranty document and complete it with the necessary information when you make the purchase. 2. We do our best to provide the best quality assurance. 3. Even within the warranty period, charges can be applied for those services, which are charge-based. - Page 41 Problems resulting from trouble with the power source Recommendations and caution Position this product away from direct sunlight or magnetic waves. If those factors are unavoidable, find ways to protect the product. Please equip with (A.V.R) or (Power Conditioner) with enough capacity for a stable operation.
- Page 42 Model Name (RS-2917)
