Warranty statement.

Sound Projections Six Year Limited Warranty.
The Freedom FR-4 is warranted to be free of defects in materials and workman-
ship for a period of 6 years from the date of original purchase, subject to the fol-
lowing conditions:
•
This warranty excludes defects caused by normal wear, abuse, shipping
damage or failure to use product in accordance with instructions. All
warranty service must be performed or authorized by Sound Projections.
Any service or modifications performed without authorization from Sound
Projections may void this warranty.
•
The lead acid rechargeable battery in the FR-4 model is warranted for a
period of 2 years.
•
Wireless microphone and CD/MP3 player options are warranted for a
period of two years.
•
Prior to returning your system for repair and/or warranty service, please
contact our customer service department at the address below for a
Return Authorization (RA) number.
Sound Projections
1815 W. 205th Street, Suite 103
Torrance, California 90501
(310) 618-9619
www.soundprojections.com
560-0034 Rev A, FR-4, 08/14

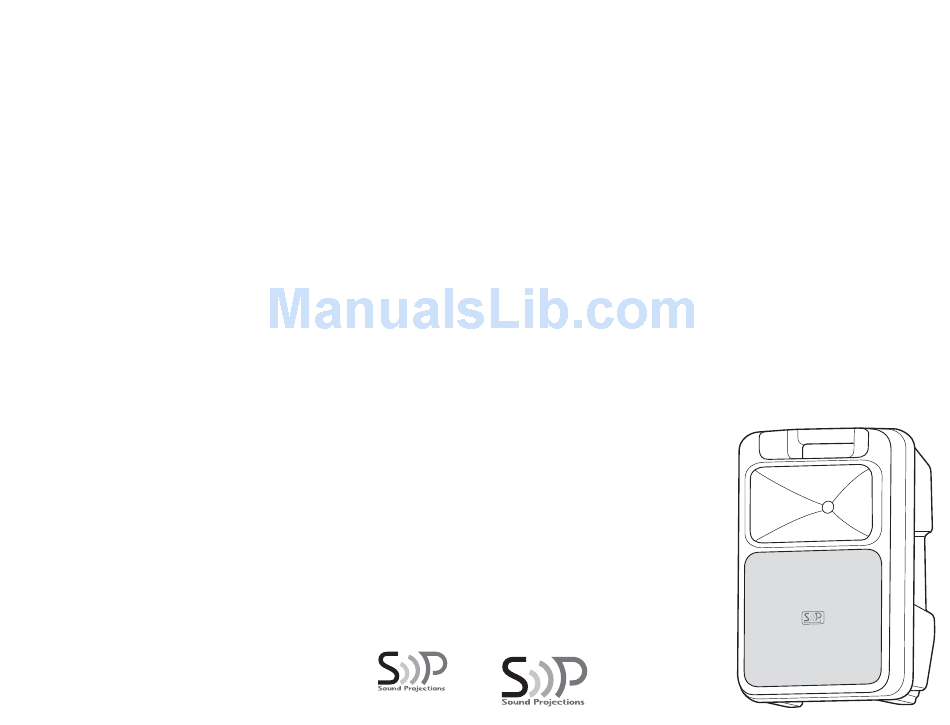

User Guide
Freedom FR-4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Freedom FR-4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Sound Projections Freedom FR-4

  • Page 1: Warranty Statement

    User Guide Sound Projections Six Year Limited Warranty. The Freedom FR-4 is warranted to be free of defects in materials and workman- Freedom FR-4 ship for a period of 6 years from the date of original purchase, subject to the fol- lowing conditions: •...
  • Page 2 Welcome This page left intentionally blank. Congratulations on purchasing a portable sound system from Sound Projections. Our products combine superior design with quality components and rugged construction. We’re proud of the products we manufacture, and appreciate the confidence you’ve shown by choosing us.

  • Page 3: Important Safeguards

    Specifications for FR-4. Important safeguards Rated power output ..........100 watts Max SPL ..............123 dB ‘loud’ mode CAUTION AVIS ................115 dB ‘normal’ mode RISK OF ELECTRIC SHOCK DO NOT OPEN RISQUE DE CHOC ELECTRIQUE Frequency response ..........70 Hz - 15 kHz NE PAS OUVRIR Wireless system (optional) ........

  • Page 4: Getting Started

    Whether you’re a first-time user or an experienced presentation profes- Warning! Replace fuse with same type and sional, the Freedom FR-4 was designed with you in mind. Easy to use rating as indicated on panel. and loaded with features, you’ll need only a few minutes to set up and begin operation.

  • Page 5: Using Talkover

    Using talkover. Note: See separate instructions for operation of the CD/MP3 player. Press the red button to use the “talkover” feature, which automatically lowers the vol- 3. Turn the power switch ON ume of all other inputs (including optional CD) when speaking on the microphone. (plug in power cord for AC operation).

  • Page 6: Choosing An Input

    Choosing an input. Wireless system set-up. Each transmitter and receiver pair must be the same channel. The Shure wireless system uses transmitter setup to synchronize the transmitter and receiver channels. Note: transmitting devices such as cellular phones may interfere with wireless audio transmissions. Keep transmitters and receiv- ers away from these and other potential sources of interference.
  • Page 7 Operating the body-pack mic/transmitter. Indicator LED for Power and battery status tape/cd tape Power switch: Toggles power on or off. 4-Pin Microphone Input Jack. line out input output Group Button: Changes group Setting LED Display: Displays group and channel setting. Channel Button: Changes channel setting.
  • Page 8 Operating the handheld wireless mic/transmitter. Wireless system operation. The Freedom FR-4 is available with single or dual built-in Shure wireless receivers. The instructions on the following pages describe how to set-up and operate the receiver units and wireless transmitters. Operating the optional wireless mic system.
