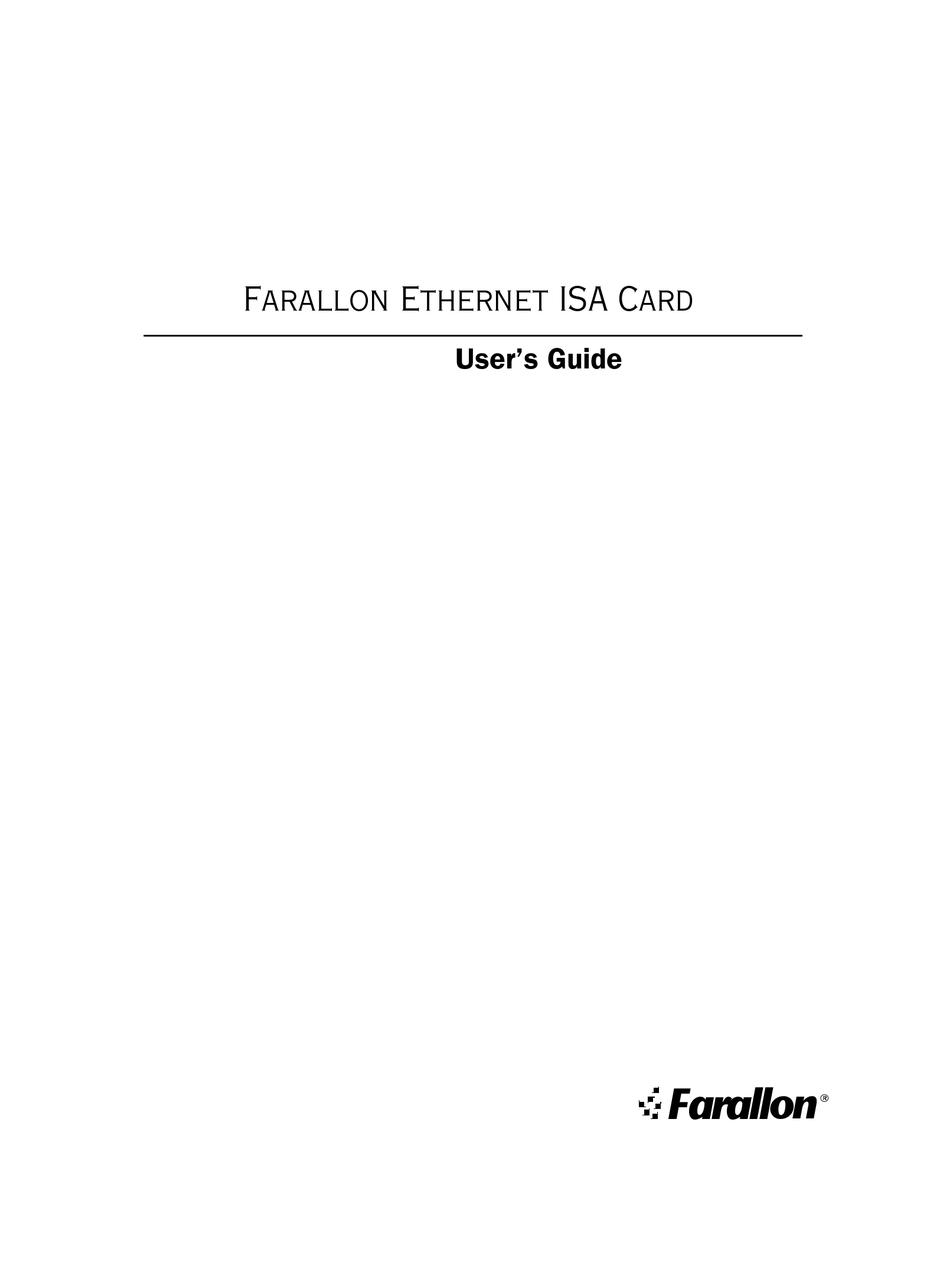

  • Page 1 Farallon Ethernet ISA Card User’s Guide ar all ...
  • Page 2 This manual and any associated artwork, software, and product designs are copyrighted with all rights reserved. Under the copyright laws this manual, artwork, software, and product designs may not be copied, in whole or part, without the written consent of Farallon. Under the law, copying includes translation to another language or format.

  • Page 3: Table Of Contents

    Chapter 1 — Getting Started ............5 Hardware Overview ..............5 Features & Benefits ..............6 Card Configuration ..............6 Chapter 2 — Installation...............7 Card Installation .................7 Driver Installation ..............8 Appendix A — Jumper Configuration ..........9 Appendix B — Technical Specification ........13 Farallon Technical Support............15 Warranties and Notices...
  • Page 4 Contents...

  • Page 5: Chapter 1 - Getting Started

    Getting Started ARDWARE VERVIEW The Farallon Ethernet ISA Card is a Plug & Play Ethernet card that features the most advanced NE2000 compatible adapter design. The card also supports the full duplex operation that makes your 10Mbps local area network to become 20 Mbps when used with an Ethernet Switch, such as Farallon’s Starlet Switch 10/100.

  • Page 6: Features & Benefits

    Chapter 1 & B EATURES ENEFITS Conforms to Plug and Play specification Full duplex design to double the performance to 20 Mbps when used with an Ethernet Switch Auto-setup IRQ and I/O address even in non Plug & Play system Supports 8 IRQs and 16 I/O address Compliance with IEEE802.3 CSMA/CD, Ethernet standard Supports Microsoft Windows 3.1, 95/98 and NT...

  • Page 7: Chapter 2 - Installation

    1. Turn off the computer and remove its cover. 2. Insert the card into an ISA slot. 3. Secure the card to the computer chassis and replace the computer cover. 4. Connect the Farallon Ethernet ISA Card to the network.

  • Page 8: Driver Installation

    Chapter 2 RIVER NSTALLATION Farallon offers two ways to install the necessary driver for use with the Ethernet ISA Card: 1. You can use the NE2000 drivers provided by the Network operating system. Simply follow the directions provided on the screen after the card is recognized.

  • Page 9: Appendix A - Jumper Configuration

    Note: You only need to set the jumper when the card is in jumper mode. The Farallon Ethernet ISA Card can be configured using either jumper settings or software. Please refer to the table below for detail description of jumper usage.
  • Page 10 Appendix A Note: Default is Jumperless/PnP Mode. Table 1: JP1 BROM Address 4 3 2 1 0 BROM BASE SIZE 0 0 0 0 0 DISABLE NONE 0 1 0 0 0 C0000H,32K 0 1 0 0 1 C8000H,32K 0 1 0 1 0 D0000H,32K 0 1 0 1 1 D8000H,32K 0 1 1 0 0 C0000H,64K 0 1 1 0 1 D0000H,64K...
  • Page 11 Jumper Configuration Table 2: JP2 0-3 (I/O BASE) 3 2 1 0 I/O BASE 0 0 0 0 300H 0 0 0 1 320H 0 0 1 0 340H 0 0 1 1 360H 1 0 0 0 380H 1 0 0 1 3A0H 1 0 1 0 3C0H 1 0 1 1 3E0H 0 1 0 0 200H...
  • Page 12 Table 3: JP3 0-2 (IRQ) 2 1 0 IRQ 0 0 0 2 (9) 0 0 1 3 0 1 0 4 0 1 1 5 1 0 0 10 1 0 1 11 1 1 0 12 1 1 1 15 Table 4: JP4 Jumper Mode 0 0 PnP 1 1 JUMP...

  • Page 13: Appendix B - Technical Specification

    Appendix B Technical Specifcation Table 5: Technical Specification Topology Star Connector Supported RJ45 Standard IEEE802.3 Transmission Rate 10Mbps or 20Mbps Hardware IBM PC/XT/AT and compatibles IRQ Line 2(9), 3, 4, 5, 10, 11,12,15 I/O Address 200H, 220H, 240H, 260H, 280H, 2A0H, 2C0H, 2E0H, 300H, 320H, 340H, 360H, 380H, 3A0H, 3C0H, 3E0H.
  • Page 14 Appendix B...

  • Page 15: Farallon Technical Support

    Farallon Technical Support Farallon is committed to providing its customers with reliable products and excellent technical support. Please take a moment now to fill out the registration card enclosed in your package so that we can notify you about any updated product information.
  • Page 16 ANADA If you are not located in the United States or Canada, you can get service locally by contacting your nearest Farallon reseller or dis- tributor. For a worldwide list of our distributors, see our Internet information resources or contact Farallon directly.

  • Page 17: Warranties And Notices

    “stand-alone” or delivered as part of a hardware product. Farallon’s entire liability and your sole remedy under this warranty during the warranty period is that Farallon shall, at its option, either repair the Product or refund the original purchase price of the Product.
  • Page 18 (30) days for a full refund, or (b) you may write to Farallon with a request to modify any term of this License. Please allow six (6) weeks for a response.
  • Page 19 Any waiver or amendment of any provision of this License shall be effective only if in writing and signed by you and an officer of Farallon. No distributor, dealer, or employee (other than an officer) of Farallon is authorized to change or amend any terms of this License.
  • Page 20 INCLUDING ANY LOST PROFITS OR LOST DATA ARISING OUT OF THE USE OR INABILITY TO USE THE SOFTWARE OR ANY DATA SUPPLIED WITH IT, EVEN IF FARALLON OR ANYONE ELSE HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY.
