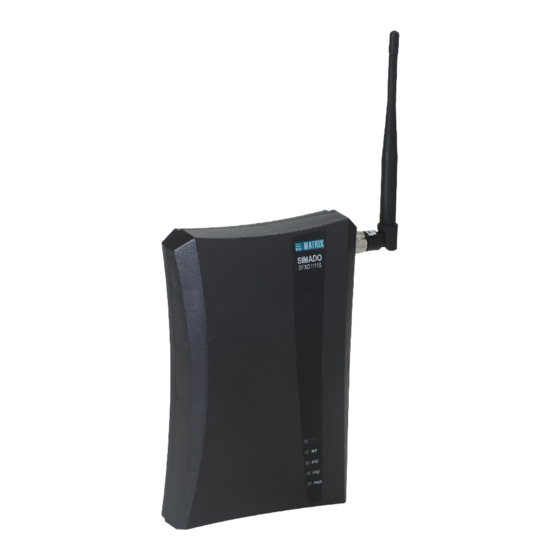

Simado GFXD1111S Quick Start Manual

Fixed cellular terminal and router with data port

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Download this manual

SIMADO GFXD1111S

Quick Start

Table of Contents

Need help?

Do you have a question about the GFXD1111S and is the answer not in the manual?

Questions and answers

Summary of Contents for Simado GFXD1111S

Page 1 SIMADO GFXD1111S Quick Start...
Page 3 SIMADO GFXD1111S SIMADO GFXD1111S SIMADO GFXD1111S SIMADO GFXD1111S SIMADO GFXD1111S Fixed Cellular Terminal and Router with Data Port Quick Start...
Page 4 GFXD1111S, please refer 'SIMADO GFXD1111S System Manual' provided to you on the CD-ROM. Either GSM or CDMA module can be installed in the Mobile Port of GFXD1111S as per the requirement of the user. Therefore, the Mobile Port can be either GSM or CDMA.
Page 5 These LEDs indicate the status of the ports, various events occurring on the ports and also the error conditions. Ready Network Power Applications of SIMADO GFXD1111S SIMADO GFXD1111S finds its applications in corporate business establishments, STD/PCO booth, SOHO etc… Various applications of SIMADO GFXD1111S are as shown below:...
Page 6 Case 1: SIMADO GFXD1111S as Stand-alone (Mobile-FXO Mode) Port Port PSTN FSK/DTMF RJ-11 Telephone Instrument GSM/ GSM/ CDMA CDMA Network GFXD1111S Case 2: SIMADO GFXD1111S as Stand-alone (Mobile-FXS Mode) PSTN Port Port RJ-11 GSM/ GSM/ CDMA CDMA Network GFXD1111S Case 3: SIMADO GFXD1111S connected to PCO Machine...
Page 7 Case 4: SIMADO GFXD1111S interfaced with FXO Port of PBX (Mobile-FXO Mode) Port Port PSTN RJ-11 GSM/ GSM/ CDMA CDMA Network GFXD1111S Case 5: SIMADO GFXD1111S interfaced with FXO Port of PBX (Mobile-FXS Mode) Port Port PSTN RJ-11 GSM/ GSM/...
Page 8: Before You Start
Case 7: SIMADO GFXD1111S interfaced with FXS Port of PBX (Mobile-FXS Mode) Port Port PSTN RJ-11 RJ-11 GSM/ GSM/ CDMA CDMA GFXD1111S Before You Start Verify Package Contents: Before installing SIMADO GFXD1111S, verify the package contents. The Sales Kit of SIMADO GFXD1111 contains:...
Page 9: Installing Simado Gfxd1111S
A Warranty Card set Make sure that all the above mentioned components are present when you open the Sales Kit of SIMADO GFXD1111S. In case any of the part is missing or damaged, contact the vendor from whom you have purchased the system.
Page 10 Check the strength of the nail. • Hang SIMADO GFXD1111S on the wall. Connecting SIMADO GFXD1111S: SIMADO GFXD1111S can be used as stand-alone system as well as it can also be interfaced with the PBX. Follow the steps given below to connect GFXD1111: •...
Page 11: Switching On Simado Gfxd1111S
• Connect Power Socket of GFXD1111S to the DC Jack using 12V DC Power Adaptor provided to you and switch ON the power supply. Switching ON SIMADO GFXD1111S After connecting the system as shown above, switch ON the power supply.
Page 12: Programming Simado Gfxd1111S
(Refer 'Programming GFXD1111S through COM Port' in the System Manual for more details) Programming through FXS Port In SIMADO GFXD1111S, programming can be done at two levels viz. System Engineer Level and System Administrator level: System Engineer Level At this level, System engineer does the programming.
Page 13 Dial 00-#* to exit the programming mode. SE can reset SA password from the SE mode. For more details, please refer System Security (Passwords) feature in the System Manual. (Refer 'Programming GFXD1111S through FXS Port' in the System Manual for more details) Programming through Mobile Port To program the system using Mobile Port, follow the steps given below: •...
Page 14 After typing the message send it to the SIM Card number installed in GFXD1111S. • When GFXD1111S receives this SMS, it will execute the commands in the SMS and thus configure the system. (Refer 'Programming GFXD1111S using SMS' in the System Manual for more...
Page 15 SIM PIN will not be accepted by the GSM module at power on. • Remove SIM card from the mobile instrument and insert it in GFXD1111S. • Switch on the system and change the default SIM PIN after GFXD1111S attains normal working position.
Page 16 By default, Day is 1 i.e. Sunday. Step 4: Mobile Network selection At each power-ON, the SIM inserted in GFXD1111S will start searching for the network and will register automatically with the available network. However, GFXD1111S enables you to select the network to register your SIM manually also.
Page 17 (Refer 'Mobile Network Selection' feature in System Manual for more details) You can check the strength of network signals on the LCD of telephone instrument connected to the FXS port of GFXD1111S. Use following command to display the Signal Strength:...
Page 18 Flag Meaning Disable Enable By default, CLIR is disabled. (Refer 'Port Parameters-Mobile' feature in System Manual for more details) Enable/Disable the notification of incoming SMS: Use following command to enable/disable the notification of incoming SMS: 203-Flag-#* Where, Flag Meaning Disable Enable By default, the notification of incoming SMS is disabled.
Page 19 Transmit Gain Meaning Very Low Normal High Very High By default, Transmit Gain is 3. Use following command to default the transmit gain of the mobile port: 272-0-#* Step 6: Port Parameters-FXO Enable/Disable FXO Port: Use following command to enable/disable the FXO Port: 211-Code-#* Where, Code...
Page 20: Disconnect Supervision
By default, Pause Timer is 2 seconds for the FXO Port. Example: If number string to be dialed out on the FXO port is PPP234 and pause timer is programmed as 3 seconds then GFXD1111S will dial out digit 2 after P+P+P seconds i.e. 3+3+3=9 seconds.
Page 21 Where, Disconnect Signal Meaning None Battery Revrsal Open Loop Disconnect By default, Disconnect Signal is Battery Reversal. Use following command to program Open Loop Disconnect Timer on the FXO Port: 219-Open Loop Disconnect Timer-#* Where, Open Loop Disconnect Timer is from 001 to 999 ms. By default, it is 200 ms.
Page 22: Code Meaning
Step 7: Port Parameters-FXS CLI Type Use following command to program the CLI type for the FXS port: 222-CLI Type-#* Where, CLI Type Meaning None DTMF (Number, Ring) ITU-T V.23 FSK Bellcore FSK DTMF ('D', Number, 'C', Ring) By default, CLI type is 3. CLI type 'None' is selected when the telephone instrument connected to the FXS port does not have the LCD to display the number or user does not want to detect the CLI.
Page 23 (Refer 'Port Parameters-FXS' in System Manual for more details) Step 8: Call Progress Tones and Ring Type SIMADO GFXD1111S gives flexibility to the SE to match the frequency and cadences of the rings and call progress tones supported by the gateway to that of the country standard in which it is installed.
Page 24 480+620 0.5on 0.5off 480+620 0.25on 0.25off Select the country in which SIMADO GFXD1111S is installed. In above table, * refers to modulation of two frequencies (f1 and f2) and + refers to addition of two frequencies. Cont. is abbreviation for continuous.
Page 25 Step 9: Reinstate the Default Settings GFXD1111S is supplied with a pre-defined set of variables like Mobile Port Parameters, FXS Port Parameters, SIM PIN, Call Divert, Call Progress Tones etc. If the default setting suits your requirement then you may not even need to program the system, as the system is designed to work efficiently with the default settings.
Page 26 GFXD1111S will restart as soon as command to load the default configuration is issued. Ensure that the SIMADO GFXD1111S is set to Speech + SMS mode, when command to restore the default configuration is issued else the system will not be defaulted.
Page 27 Can I use the SIM PIN protection in SIMADO GFXD1111S? Ans: Yes, you can enable the SIM PIN protection in SIMADO GFXD1111S. When this feature is enabled, the network will ask the user to enter SIM PIN at every Power On. (Refer 'SIM PIN' for more details) Q.4.
Page 28 PSTN exchange and results in significant saving in call costs. You can also connect SIMADO GFXD1111S with FXS port of EPABX. Q.10. CDMA module is installed in my GFXD1111S. Whether I will be able to use all the features in the same way as when GSM module is installed?
Page 29: Automatic Number Translation
Automatic Number Translation To program dialed string for Mobile port 291-Number Index-Dialed String/Substring-#* To clear dialed string for Mobile port 291-Number Index-#* To program substitute string for Mobile port 292-Number Index-Substitute String/Substring-#* To clear substitute string for Mobile port 292-Number Index-#* To program dialed string for FXO 293-Number Index-Dialed String/Substring-#*...
Page 30: Emergency Number Dialing
Date and Time To set date and time parameters 251-DD-M M -YY-HH-M M -#* To program the day 252-Day-#* Emergency Number Dialing To program the emergency number 151-Index-Emergency Number-#* To clear the Emergency Number at an index 151-Index-#* To assign destination port for the 152-Index-Destination Port-#* Emergency Number Hotline...
Page 31: Mobile Network Selection
Metering on FXS Port To program metering pulse type 223-Code-#* To program the pulse w idth 12/16KHz 501-Pulse Width-#* Mobile-FXO Mode To set Mobile Port-Routing Type 101-Routing Type-#* To program Mobile Port-Destination Number 102-Destination Number-#* string To clear Mobile Port-Destination Number 102-#* string To set FXO Port-Routing Type...
Page 32 Database1 (for Mobile Port) To program an area code 531-Area Code Index-Area Code-#* To program normal pulse rate for pulse rate 534-Pulse Rate Type-Normal Pulse Rate-#* type To program concessional rate for pulse 535-Pulse Rate Type-Concessional Pulse Rate-#* rate type To delete an entry from pulse rate table 536-Pulse Rate Type-#* To delete all entries from pulse rate table...
Page 33: Port Parameters-Fxo
Port Parameters-FXO To enable/disable FXO port 211-Code-#* To program the dial type of the FXO 212-Code-#* To program the CLI type for the FXO 214-CLI Type-#* To program ring cadence off timer for FXO 215-Ring Cadence OFF Timer-#* To program the pause timer 217-Pause Timer-#* To program answ er supervision to be 213-Answer Supervision Signal-#*...
Page 34: Port Parameters-Mobile
Port Parameters-Mobile To enable/disable Mobile Port 201-Flag-#* To enable/disable the CLIR on the Mobile 202-Flag-#* Port To enable/disable the notification of IC SMS 203-Flag-#* To enable/disable the location Information 205-Flag-#* Identification on Mobile To program the receive gain of the Mobile 271-Receive Gain-#* Port To set default the receive gain of the Mobile...
Page 35: System Parameters
SIM PIN To change the SIM PIN 113-New SIM PIN-#* To register/set personal unlock key 114-PUK Number-SIM PIN-#* Software Version and Revision Display To know the sof tw are version and revision 109-#* System Parameters To set configuration type of the system 100-Configuration Type-#* To program the first digit w ait timer 240-Duration-#*...
