Summary of Contents for NZXT Hush

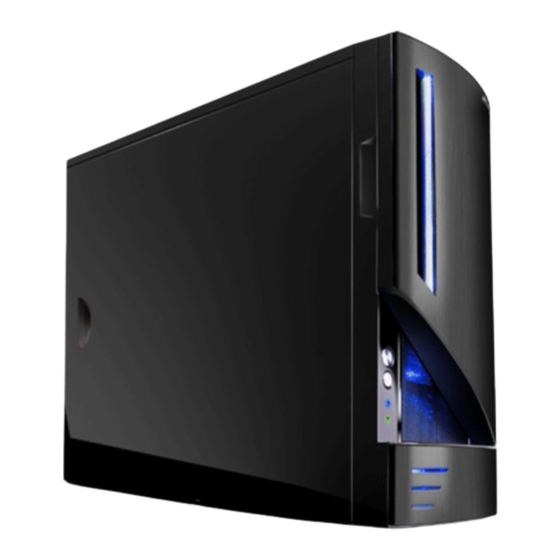

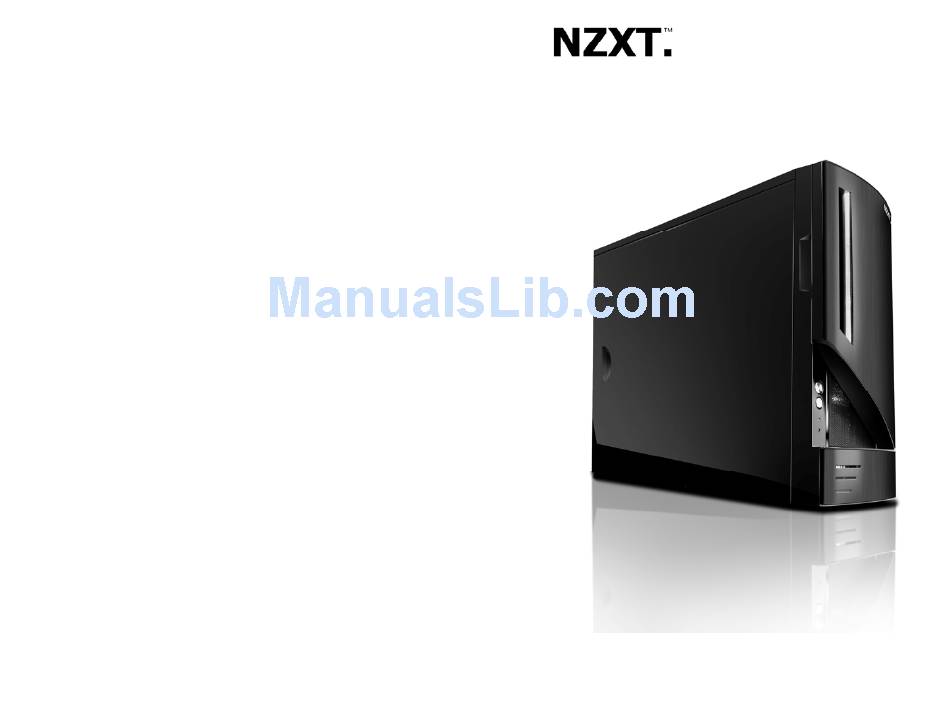

- Page 1 Hush User’s manual...
- Page 3 Dear Valued Customers, Thank you for purchasing our product. With the booming of the gaming market and computer cases, NZXT would like to differentiate ourselves from other case companies by continuously providing innovative next generation cases. With every product, we hope to break more boundaries and limits.
- Page 4 Hush Specifications Features Standard dual 120mm fans Silent dampening foam reduces noise levels inside case Rubber padding on hard drive, fans and power supply Steel Chassis Screwless design for 5.25” and 3.5” devices Brushed aluminum or polished aluminum finish USB 2.0, Firewire 1394, and HD Audio support...
-
Page 5: Before Beginning
Thank you. Removing the side panel The NZXT Hush side panels needs to be removed when installing devices. Please follow the steps below to remove the side panel. 1. Unscrew the side panel with a screwdriver Unscrewing the side panel... -
Page 6: Motherboard Installation
2. Pull the side panel to release it Releasing the side panel Motherboard Installation The NZXT Hush supports the following motherboard: ATX, FLEX ATX, MINI ATX, and MICRO ATX. The Index for the standoff holes are as follows. ( Imprinted on the motherboard tray are serial... -
Page 7: Installation
The Power LED located on the front panel should power on blue. (Blue/White, +/-) 5. Connect the two four pin Molex connector to the power supply in order to power the two 120mm fans NZXT. 5... - Page 8 4-pin 120mm front fan molex connector USB Installation 1. The USB is located of the right side of your front panel 2. Refer to your motherboard manual and match the labels on the USB port connectors with your motherboard in order to install. NZXT. 6...
- Page 9 Rear Left Channel Audio Signal out_L BLINE Line R-RET Rear Right Channel Audio Signal out_R ASUS© Motherboard Pin Assignment 5.25” & 3.5” Drive Installation The NZXT Hush uses a screwless system to install the 5.25” and 3.5” devices. NZXT. 7...
- Page 10 Please follow the directions below to install the 5.25 and 3.5” devices: 1. Remove both the left and right side panels. 2. Remove the plastic bay cover 3. Insert the 5.25” device into the front panel 4. Match the holes on the 5.25” device with the case NZXT. 8...
- Page 11 5. Attach the screwless mechanism and turn in the direction indicated on the device to lock. Repeat this step for both sides of the drive bay. Below are photos of the screwless usage for 5.25” and 3.5” external and internal devices. NZXT. 9...
- Page 12 Screwless for 3.5” external device. Screwless for 3.5” internal device ( ie Hard drives ) NZXT. 10...
-
Page 13: Support And Service
Thank you again for purchasing an NZXT case. If you have any more comments or questions. Please visit our website or send us an email. NZXT Website: www.nzxt.com Feedback: designer@nzxt.com...
