Page 1: Operating Instructions
Operating Instructions Rev D... - Page 2 Zephyr Operating Instructions important safeguards Zephyr by Dry & Store is for household use. When using electrical products, especially when children ® are present, basic safety precautions should always be followed, including: read all instructions before using - To reduce the risk of electrocution: danger • Do not use while bathing.
- Page 3 Each day the red line will get a little longer (fast at the start, slower as it approaches the end), and at the end of two months, the timer window will be completely red. Replace it with a new Dry-Brik at that time, and deposit the depleted Dry-Brik in household refuse. 3. Place the activated Dry-Brik in Zephyr (Figure 4). 4. Connect the AC adapter: Plug the AC adapter into a non-switched electrical outlet, then fi t the small circular plug into the rear of the unit. NOTE: Instructions for the optional rechargeable metal canister desiccant can be found on page 5. Operating Your Zephyr 1. Wipe excess moisture and earwax from your hearing aids before placing them in the front of the drying tray. You may leave the batteries in, but open the battery cover to allow for air circulation.
- Page 4 2. Check the Timestrip on the Dry-Brik before each use. If the thin timer window is completely red, the Dry-Brik should be replaced. 3. Close the lid and press the button on the right side of the unit. The green indicator will illuminate for the duration of the eight-hour cycle, after which the unit will turn off automatically. Zephyr can also be turned off by pressing the button a second time. Best results come from an entire Zephyr cycle, but drying will occur from periods as short as one hour. Using Zephyr with Cochlear Implant Equipment Behind-the-ear processors and other implant hardware must be kept dry to function properly. Regular Zephyr use can also make a significant difference in zinc-air battery life, especially in hot and humid weather. (Individual results may vary.) Leave zinc-air batteries in the processor (where applicable) but remove the battery cover. Place the processor, headpiece and cable in the front compartment and follow the instructions for use to the left. General Product Care Do not operate Zephyr in high-humidity locations such as a bathroom. Keep the lid closed at all times, because the effectiveness of the Dry-Brik will be reduced due to moisture adsorption from the surrounding air. Clean surfaces with a soft cloth. Never use strong cleaning agents or abrasives. Do not spray any liquid into the tray.
-
Page 5: Power Supply

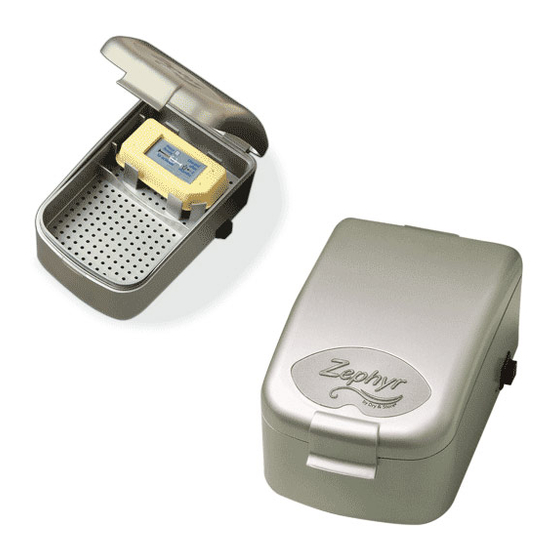

Zephyr by Dry & Store ® Physical Properties • Outside dimensions are 5.9" x 3.6" x 2.8" (150 mm x 92 mm x 72 mm). • The drying tray has two compartments: the forward drying area measures 3.2" x 2.6" x 1.0" (80 mm x 65 mm x 24 mm), and a small Dry-Brik compartment is in the rear of the tray. ® • Weight as shipped is approximately 1 lb, 4 oz (582 g). Power Supply Input: 100-240 volts AC, 50/60 Hz, 1.0A max. Output: 24 VDC at 15W max. Zephyr power supplies are interchangeable with Dry & Store Global and are CE Marked. They are certified to ETL, UL, and CSA ® standards, and carry GS (Germany), PSE/JET (Japan), C-Tick (Australia/New Zealand), and SABS (South Africa) certifications. Operating Features • Ball-bearing fan continuously circulates warm, dry air for the entire operating cycle, causing moisture to move out of the hearing instruments by diffusion. A desiccant in the airflow path strips the moisture out of the air, ensuring continuous dry operation. - Page 6 Zephyr by Dry & Store is protected by U.S. Patents D536,491 and 5,852,879. ® Ear Technology Corporation P.O. Box 1017 Johnson City, TN 37605-1017 info@dryandstore.com www.dryandstore.com © Ear Technology Corporation, 2008 Group 1, REV D 09/08...
