Summary of Contents for a-gear P1004T EPON

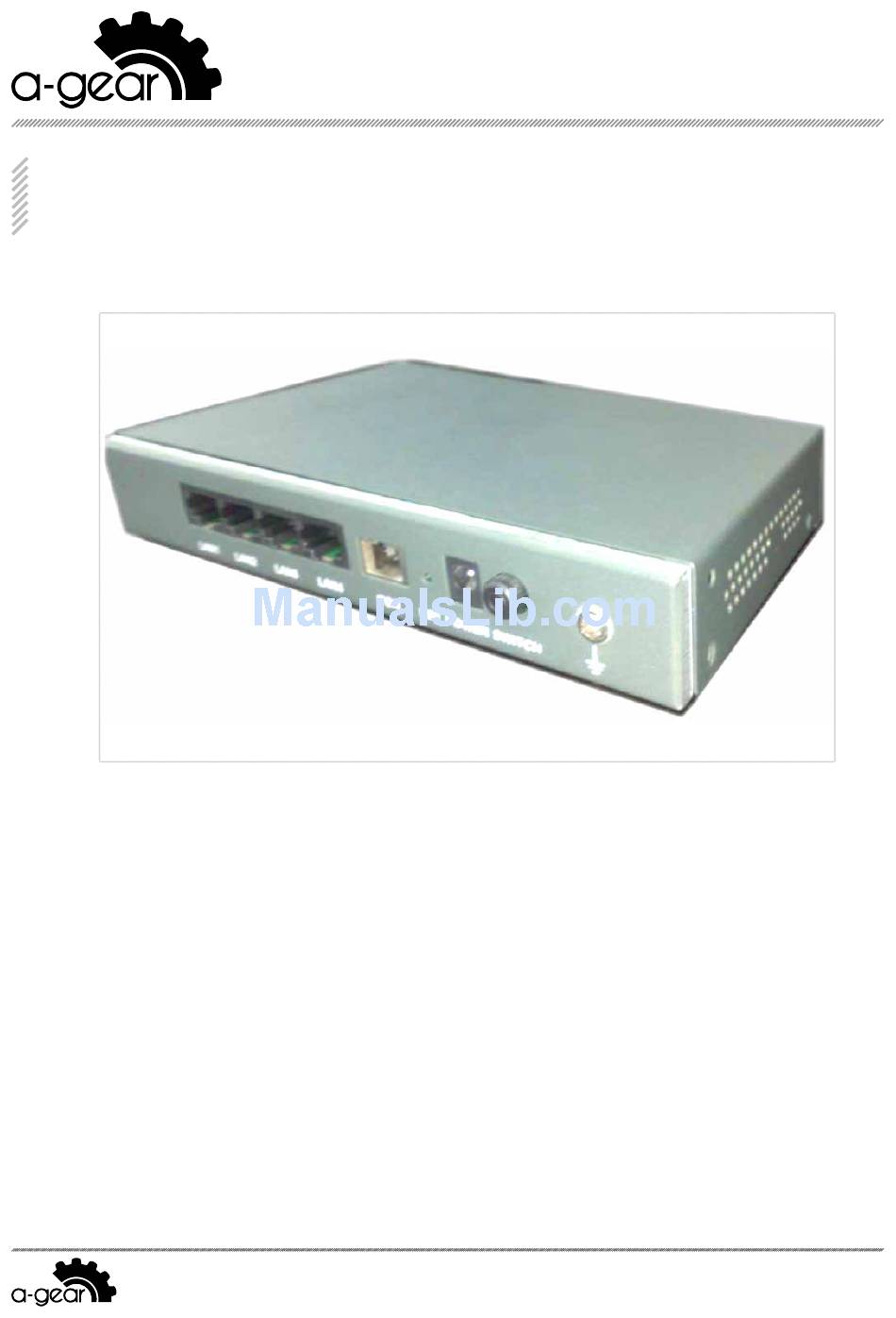

- Page 1 A-GEAR P1004T EPON Optical Network Unit (ONU) datasheet A-GEAR World Wide Manufacturing Hardware Installation Manual A-GEAR P1004T EPON Optical Network Unit (ONU) a-gear.net Раge 1 of 13...
-
Page 2: Table Of Contents
3. Installation of A-GEAR P1004T EPON 3.1. A-GEAR P1004T EPON Installation Flow ......3.2. EPON access device installation ...... -
Page 3: Access Device
A-GEAR World Wide Manufacturing Acc es s Device This chapter mainly describes and introduces overall characteristics and parameters of A-GEAR P1004T EPON access device so that readers can get an overall understanding about A-GEAR P1004T EPON. 1.1. D e s c r i pt io n of o u t l i n e i n s t a n dard co n f ig u ratio n A-GEAR P1004T EPON interface consists of the following parts: 4 100-MB RJ45 ports, 1 GEPON optical port, 1 Power port, 1 switch, 1 Reset and 1 ground point. - Page 4 Figure 1-2. Back Panel View of A-GEAR P1004T EPON. Table 1-3. Description of LEDs on Back Panel of A-GEAR P1004T EPON L E D l am p c o d e Q ua n t it y Co l or...
-
Page 5: Characteristic Parameters Of A-Gear P1004T Epon System
A-GEAR P1004T EPON Optical Network Unit (ONU) datasheet A-GEAR World Wide Manufacturing 1.2. C ha r a c te r i s ti c p a r a m e te r s o f A- GEA R P 10 0 4 T E P ON Syste m IEEE Std 802.3-2005 IEEE Std 802.1D-2004 IEEE... -
Page 6: Installation Preparation
When you need to re-start A-GEAR P1004T EPON, please turn on power switch again 3~5 seconds after it is switched off. Please do not violently impact A-GEAR P1004T EPON or drop it from a high place, which may damage internal hardware of .EPON access device. -
Page 7: General Requirements For Location
A-GEAR P1004T EPON Optical Network Unit (ONU) datasheet A-GEAR World Wide Manufacturing • cause short circuit or damage to the elements. • Before operation on the equipment, cut off DC power supply. • Improper connection between equipment and power sockets may cause hazard. -
Page 8: Rack Configuration
I ns ta l l at i on to o l s a n d e q u ip m e nt Tools and equipment required for installation of A-GEAR P1004T EPON are not included in standard configuration of A-GEAR P1004T EPON. User needs to prepare them by himself. -
Page 9: Installation Of A-Gear P1004T Epon
Ins t a l l th e e qu i pm e n t o n t he d e s kto p A-GEAR P1004T EPON may be directly placed on smooth, flat and safe desktop. Note: Do not place too heavy object (1Kg) on the top of the EPON access device, otherwise it will be damaged. -
Page 10: Connecting Ports
Figure 3-1. RJ-45 Connector. As all of the four 10/100Base-Tx ports of A-GEAR P1004T EPON support MDI/MDIX self- recognition function of the cable, when connecting A-GEAR P1004T EPON with other Ethernet terminals, either Class V direct network cable or Class V cross network cable may be used, which facilitates the selection of cable. -
Page 11: Check After Installation
A-GEAR P1004T EPON Optical Network Unit (ONU) datasheet A-GEAR World Wide Manufacturing 3.4. C he c k a f te r i ns t a l l at io n After mechanical installation of EPON access device is completed, please make the following check before starting EPON access device: • If EPON access device is mounted on vertical wall surface, please check the installation... -
Page 12: Close The Equipment
A-GEAR P1004T EPON Optical Network Unit (ONU) datasheet A-GEAR World Wide Manufacturing Disassembly of the equipment may require some tools, which are not included in standard configuration of EPON access device. These tools are as follows: • Cross screwdriver • Anti-static hand ring Pleas open the cover of EPON access device according to the following steps. -
Page 13: Failure In Port, Cable And Link
D e s c r i pt io n of i n di c ato r l a m p s LED indicator lamps indicate the current operation of EPON access device. A-GEAR P1004T EPON indicator lamps and the description are as follows:...
