Hy-Ram K8 LED Operating Instructions Manual

Portable worklight
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

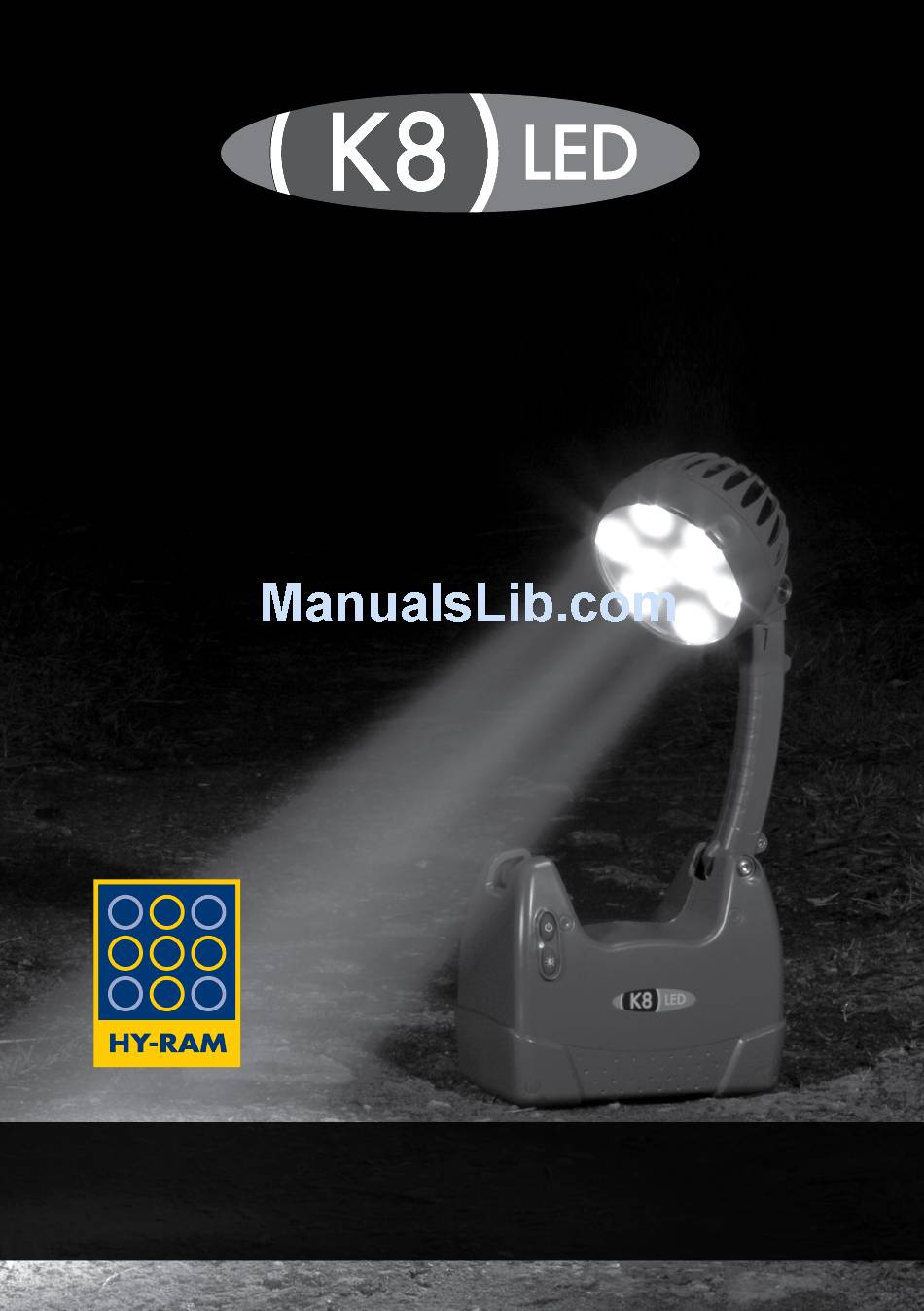

PORTABLE WORKLIGHT
Operating Instructions
www.hyram.com
Thank you for purchasing the all new Supalite K8 LED portable worklight. This product design
represents the latest technology in LED portable lighting and is designed to be virtually
maintenance free and robust enough to deal with the rigors of a harsh work environment.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the K8 LED and is the answer not in the manual?

Questions and answers

Summary of Contents for Hy-Ram K8 LED

  • Page 1 Operating Instructions www.hyram.com Thank you for purchasing the all new Supalite K8 LED portable worklight. This product design represents the latest technology in LED portable lighting and is designed to be virtually maintenance free and robust enough to deal with the rigors of a harsh work environment.

  • Page 2: Operation Quick Start

    Note: always remember to put your K8 LED on charge after use (Whether used for a short period or the full duration) to prolong the life of the high capacity rechargeable battery. This is especially important if you have purchased a sealed lead acid (SLA) battery, as leaving an SLA battery in a discharged state for more than 24 hours has a detrimental effect on its capacity and lifespan.
  • Page 3 2 Your K8 LED is designed so that it can be run and charged at the same time should this be necessary, the onboard charger provides enough power to charge as well as maintain power to the light at the same time.
  • Page 4 The K8 LED can be set up in two basic modes, torch mode and worklight mode. Torch mode: allows the user to carry the unit with the extension arm and head folded down and locked in position.

  • Page 5: Light Management

    this if ever the situation arose. A temperature sensor monitors the LED light engine and adjusts the power output accordingly without a major effect on the light performance. OPERATION - ADVANCED FEATURES To use the unit simply press the button and the light will come on to 100% power/brightness and is ready for use.

  • Page 6: Battery Status Indication

    Construction The K8 LED has been constructed using high quality materials to produce a tough, long lasting product for the professional user. High impact engineering polymers combined with stainless steel fittings ensure the K8 LED is impervious to everyday knocks and bangs.

  • Page 7: Optional Equipment

    In addition, as each command is given the LED on the remote will show the status of the K8 LED battery, the battery status can also be seen without changing a function by pressing the top two buttons on the remote simultaneously.

  • Page 8: Maintenance

    RECYCLING AND THE ENVIRONMENT Your K8 LED contains various parts that need to be recycled at the end of its life span, please contact your original point of purchase for information on correct recycling of this product to help protect the environment.
  • Page 9 To check, remove the K8 from the rack, press the blue buttons on the front face then release them, the two spring terminals should sit up against the grey front of the rack. Contact Hy-Ram Engineering Co. Ltd on 01623 422982 for technical assistance or e-mail enquiries@hyram.com. CONFORMANCE CE Marked.

  • Page 10: Technical Data

    TECHNICAL DATA LAMP TYPE 8 x High Power / Flux SMD LED’s COLOUR TEMPERATURE Nomimal 6500 Kelvin LUMENS OUTPUT AT 100% SETTING >2,500 LUMENS OUTPUT AT 66% SETTING >1,800 LUMENS OUTPUT AT 33% SETTING >1,000 NOMINAL LIFE EXPECTANCY OF LED’S 50,000 Hours BATTERY TYPE SLA * 12V / 9AH SLA battery 108 W/H...

  • Page 11: Optional Extras

    205mm x 125mm x 500mm DIMENSIONS WITH HEAD PACKED DOWN (L x W x H) 288mm x 125mm x 170mm OPTIONAL EXTRAS SLK8LED/MC Supalite K8 LED mains adaptor 100-240V AC (UK plug) SLK8LED/LED Docking charge rack SLK8LED/HND MESH remote control: maximum range 100m...
  • Page 12 • No user serviceable parts inside. Leave servicing to a qualified person. The contents of this manual are subject to change without prior notice. We take no responsibility for errors or admissions. Hy-Ram Engineering Co. Ltd Pelham Street, Mansfield, Nottinghamshire, NG18 2EY Tel. 01623 422982 Fax. 01623 661022 www.hyram.com...
