Operating Instructions
Thermo Scientific Barnstead Pacific-TII
Water Purification System
Art. No.: 50132121 TII 3
Art. No.: 50132123 TII 7
Art. No.: 50132124 TII 12
Art. No.: 50132125 TII 20
Art. No.: 50132127 TII 40
Serial no.: ..........................
These Operating Instructions must be read prior to installing and starting the system!
50132138; 04.12 Information given is not binding. Rights reserved for technical changes.
Art. No.: 50132129 TII 3 UV
Art. No.: 50132131 TII 7 UV
Art. No.: 50132132 TII 12 UV
Art. No.: 50131982 TII 20 UV
Art. No.: 50132133 TII 40 UV
Advertisement
Table of Contents
Summary of Contents for Thermo 50132121 TII 3
-
Page 1: Operating Instructions

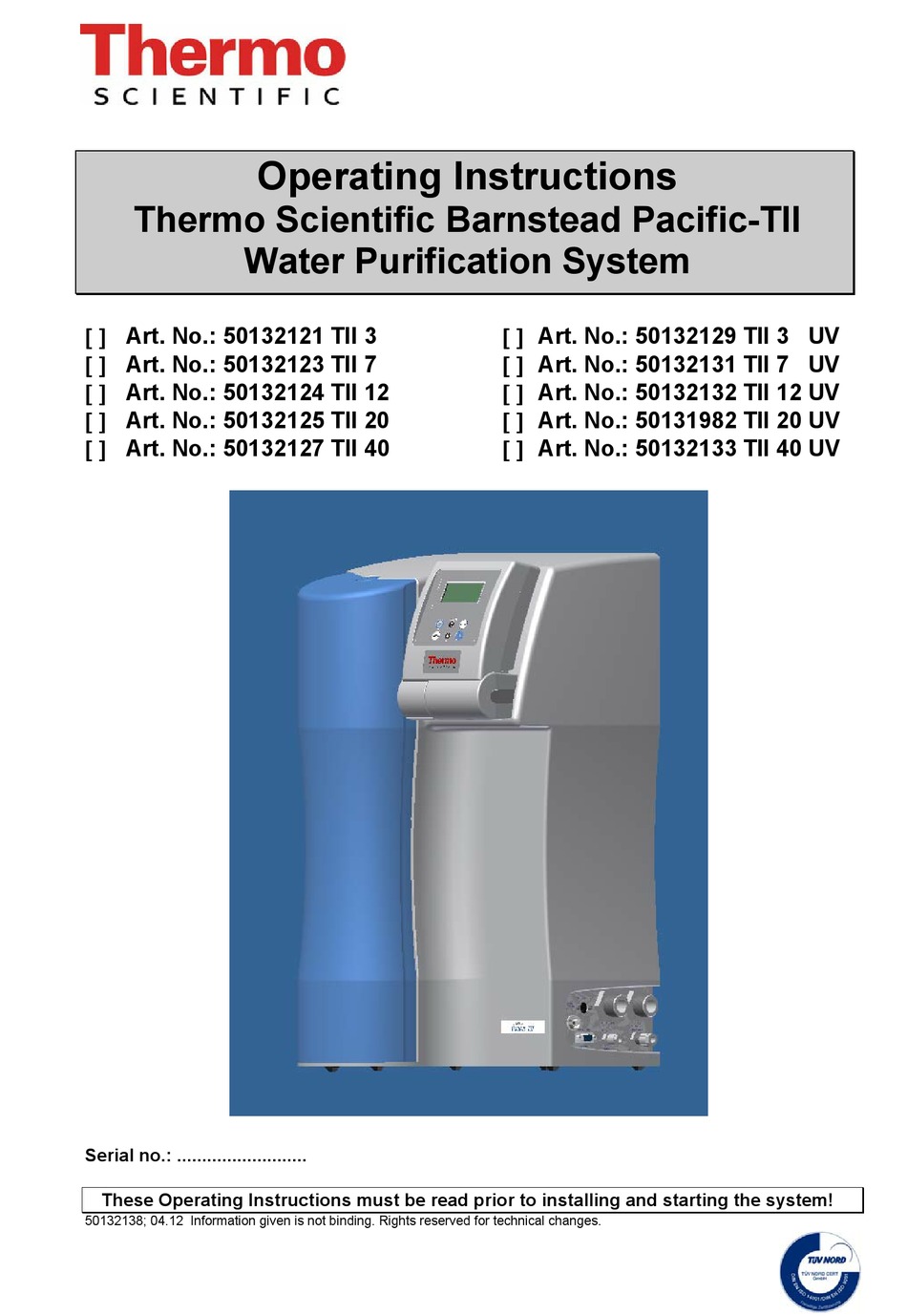

Operating Instructions Thermo Scientific Barnstead Pacific-TII Water Purification System Art. No.: 50132121 TII 3 Art. No.: 50132129 TII 3 UV Art. No.: 50132123 TII 7 Art. No.: 50132131 TII 7 UV Art. No.: 50132124 TII 12 ... - Page 2 Thermo Scientific Barnstead Pacific TII Pure water System EC-Declaration of Conformity in accordance with the EEC machine directive 2006/42/EC, appendix II A We hereby certify that the following described machine in its conception and form put by us into circulation is in accordance with all the relevant essential health and safety requirements of the EC machinery directive 2006/42/EC as amended and the national laws and regulations adopting this directive.
-
Page 3: Preface
Thermo Scientific Barnstead Pacific TII Pure water System Preface Dear Sir or Madam, In deciding to purchase a Pacific TII water purification system, you have selected a high-quality product. Thank you for the trust you have placed in us. Please read carefully through the information given in these Operating Instructions before you begin to install and commission the system. -
Page 4: Table Of Contents
Thermo Scientific Barnstead Pacific TII Pure water System Contents Preface ......................3 1. Contents ....................4 2. Explanatory notes on the operating instructions ........6 3. Transport and Packaging ................ 7 3.1 Examination on receipt ...................... 7 ... - Page 5 Thermo Scientific Barnstead Pacific TII Pure water System 13.2.3 Recirculation time: ....................29 13.2.4 Rinsing time: ......................29 13.2.5 Rinse interval time ....................30 13.2.6 Real time clock: ...................... 30 13.2 7 Sending interval: ..................... 30 13.2.8 Language:....................... 31 13.2.9 Switching units: ....................... 31 ...
-
Page 6: Explanatory Notes On The Operating Instructions
Thermo Scientific Barnstead Pacific TII Pure water System 2. Explanatory notes on the operating instructions EU Mark of Conformity CSA - admission Important operating and/or maintenance instructions! Read the operating instructions with due care . Risk of electric shock! Electrical work on the system is only to be carried out by qualified personnel. -
Page 7: Transport And Packaging
Thermo Scientific Barnstead Pacific TII Pure water System 3. Transport and Packaging Water purification systems are carefully controlled and packed prior to dispatch, but damage could possibly occur during transport. 3.1 Examination on receipt Check the completeness of the goods received against the delivery note. -
Page 8: Extent Of Delivery
Thermo Scientific Barnstead Pacific TII Pure water System 4. Extent of delivery The Pacific-TII system that you have ordered consists of: Pacific TII basic system Article-No. 5013xxxx Filterset Article-No. 09.4011 PVC-connecting hose, 1,5 m Article-No. 18.0042 PE-hose 8/6 x 1, 2m Article-No. -
Page 9: Safety Precautions
Thermo Scientific Barnstead Pacific TII Pure water System 5. Safety precautions For your own safety, please observe the above safety precautions! Pacific TII system is a modularly constructed, pure water system that serves exclusively for the purification of tap water. - Page 10 Thermo Scientific Barnstead Pacific TII Pure water System Never look directly into a switched-on UV-lamp, as UV-light is dangerous to eyesight. The UV-lamp is only to be replaced by authorized person to do this. The guarantee is valid for a period of 12 months.
-
Page 11: Intended Use
Thermo Scientific Barnstead Pacific TII Pure water System 6. Intended use The Pacific TII pure water system is a reaction to the continually increasing requirements that water of pure quality must fulfil, the increasingly strict demands resulting from technological advances and the need for user-friendly systems and complete solutions. -
Page 12: Technical Specifications
Thermo Scientific Barnstead Pacific TII Pure water System 7. Technical specifications The feedwater quality required Source and pre-treatment Tap water, softened or hardness stabilized. Blocking index (SDI) Max. 3 for all types. With higher values, a pre-treatment system (Art. No. 09.4000 or 09.4001) must be installed... - Page 13 Thermo Scientific Barnstead Pacific TII Pure water System Airborne sound emission Sound-pressure level 49 db(A) Electrical connections / external switched mode power supply TII 3-20/ TII 3-20 UV Input voltage AC 100 – 240 V, 50 – 60 Hz, 5 – 3.8 A Output voltage DC 24 V, 3.8 A...
-
Page 14: Flow Chart
Thermo Scientific Barnstead Pacific TII Pure water System 8. Flow chart 8.1 Flow chart, Pacific TII/TII UV tank with pressure pump 8.2 Flow chart, Pacific TII/TII UV tank without pressure pump... -
Page 15: System Description
Thermo Scientific Barnstead Pacific TII Pure water System 8.3 System description A-F1 Prefilter 5 µm + Prevents particles > 5µm from entering the system. hardness stabilizer Serves to stabilize water hardness. A-F1.1 Prefilter 1 µm Prevents particles > 1µm from entering the system. - Page 16 Thermo Scientific Barnstead Pacific TII Pure water System A-F4 Sterile venting filter: Prevents bacteria and particles > 0.2 µm from being drawn into the tank. LIS 100 Level switch Indicates the level in the tank. A-UV2 UV-Disinfection tank: Reduces the content of bacteria in the water and so serves...
-
Page 17: How Pacific Tii Functions
Thermo Scientific Barnstead Pacific TII Pure water System 9. How Pacific TII functions Tap water of max. 6 bar pressure flows into the system. In stand-by mode and during standstill, feedwater solenoid valve V2 is closed. This prevents feedwater from flowing into the system when it is not in operation, and so protects the tank against overflowing. -
Page 18: Installation Location
Thermo Scientific Barnstead Pacific TII Pure water System Your purified water system is equipped with automatic flushing. Flushing is carried out when the system is switched on, when production is stopped, and every 12 hours. Solenoid valve V4 is opened and the strong inflow of water across the reverse osmosis module flushes coarse particles and other contaminants away from the surface of the membranes and carries them with it to drain. -
Page 19: Bringing The System Into Service
Thermo Scientific Barnstead Pacific TII Pure water System 11. Bringing the system into service Use the R ¾“ hose supplied to connect the feedwater inlet connector of the system (labelled „raw water“) to the prefilter outlet. Use a further hose (R ¾“ hose, accessory for the pre-treatment system) to connect the prefilter inlet to the closed water tap. - Page 20 Thermo Scientific Barnstead Pacific TII Pure water System flow on the tank back and Put now the hose of the sterile overflow Ø 8 mm into the over- connect these with the drain Open the feedwater tap. Check that all connections are secure and do not leak.
-
Page 21: Mounting The Power Pack (Voltage Supply)
Thermo Scientific Barnstead Pacific TII Pure water System 11.1 Mounting the power pack (voltage supply) Whenever possible, mount the power pack on the wall to the left or right of the pure water system where it is freely accessible. -
Page 22: Operating Elements
Thermo Scientific Barnstead Pacific TII Pure water System 12. Operating elements Production 70% 10.0 MΩxcm 18.5°C UV/TC Switches the system on or off Increases a value on display Confirms the value shown in a menu point Switches the menu to the next menu... -
Page 23: System Control
Thermo Scientific Barnstead Pacific TII Pure water System 13. System Control General information When the ON/OFF key is pressed, the system starts running either in the operating state or the stand-by state, depending on the float switch. The operating state and the volume contained in the tank is shown in line1 of the display. -
Page 24: Pure Water Limiting Value
Thermo Scientific Barnstead Pacific TII Pure water System 13.1.2 Pure water limiting value: A second press on the menu-key allows the high purity water limiting conductivity value to be set in this menu. Should the limiting value be exceeded, then the "Lim. val. pure w." message... -
Page 25: Pretreatment Operating Hours
Thermo Scientific Barnstead Pacific TII Pure water System 13.1.4 Pretreatment operating hours: A fourth press on the menu-key brings the operating hours of the pre-treatment cartridge to display in this menu. The limiting value for this operating time is set in the UV menu. The fault message that is displayed when the limiting value is exceeded is "Pretreatment". -
Page 26: Disinfection
Thermo Scientific Barnstead Pacific TII Pure water System 13.1.6 Disinfection: (This function is not active in this system) The display shows: Disinfection Press enter 13.1.7 Fault storage: A seventh press on the menu-key calls the fault storage inquiry. Confirmation of this with Enter allows the fault storage to be examined. -
Page 27: Unlocking The System
Thermo Scientific Barnstead Pacific TII Pure water System 13.1.8 Unlocking the system: An eighth press on the menu-key brings you to the "Code" menu. To prevent unauthorized access to the settings in the system control, changes to the settings can only be carried out when the correct code from the assignment Table that follows is entered and confirmed with Enter. -
Page 28: Oem-Menu
Thermo Scientific Barnstead Pacific TII Pure water System 13.2 OEM-menu Basic settings and limiting values can be changed in this menu. To make changes in the OEM-menu, the system control must previously be unlocked (see 12.1.8) Calling the OEM-menu: Simultaneously pressing the INT-key and the Nonstop-Key calls the OEM-menu. Following this, the prompt "OEM-menu Press enter!"... -
Page 29: Disinfection Time
Thermo Scientific Barnstead Pacific TII Pure water System 13.2.2 Disinfection time: A second press on the menu-key: (This function is not active in this system) The display shows: OEM-Menu Disinfect. time 30 min. 13.2.3 Recirculation time: A third press on the menu-key: The recirculation time is set in this menu. -
Page 30: Rinse Interval Time
Thermo Scientific Barnstead Pacific TII Pure water System 13.2.5 Rinse interval time A fifth press on the menu-key: A fifth press on the menu-key: The rinse interval time is set in this menu. A rinse is carried out for this length of time when the operating state is changed, between stand-by and operation and every 12 hours. -
Page 31: Language
Thermo Scientific Barnstead Pacific TII Pure water System 13.2.8 Language: An eighth press on the menu-key: The language in which texts are to be displayed is set in this menu. Choice of English, German or French. Basic setting: English or German (Deutsch) -
Page 32: Adjusting The Circuit Hysteresis Of The Float Switch
Thermo Scientific Barnstead Pacific TII Pure water System 13.2.11 Adjusting the circuit hysteresis of the float switch: An eleventh press on the menu-key: Basic setting: Off: 100 % 70 % Setting range: Off: 25 - 100 % 0 - 70 % With a setting over 100 % for the upper switching point, the display of the tank level is switched off. -
Page 33: Maintenance
Thermo Scientific Barnstead Pacific TII Pure water System 14. Maintenance Regular maintenance of your system safeguards the value of it. We recommend that you close a service contract with the Service company responsible for your area. You then have the... -
Page 34: Maintenance Intervals
Thermo Scientific Barnstead Pacific TII Pure water System 14.1 Maintenance intervals Consumable materials are to be replaced at the intervals given in the following Table or when there is a drop in performance: Material Flow chart no. Article no. Interval* Pretreatment 09.4001... -
Page 35: Changing The Reverse Osmosis Membrane
Thermo Scientific Barnstead Pacific TII Pure water System 14.3 Changing the reverse osmosis membrane Pacific 3, 7, 12 TII / TII UV: 1 RO-Membrane Pacific 20 + 40 TII / TII UV: 2 RO-Membranes Ansicht von hinten - ohne Rückwand Back view, with back panel removed ... -
Page 36: Changing The Filter Cartridge
Thermo Scientific Barnstead Pacific TII Pure water System 14.4 Changing the filter cartridge For changing the filter cartridge, proceed as follows: 1. Switch off your device and turn off the feedwater supply. 2. Press pressure knob (1) to unlock and remove cover (2). -
Page 37: Disinfection
Thermo Scientific Barnstead Pacific TII Pure water System 14.5 Disinfection Your system should be cleaned and disinfected at least once a year to eliminate any bacteria that are possibly in the system. We recommend that you carry out cleaning and disinfection shortly before the time that the filter cartridge must to be replaced. - Page 38 Thermo Scientific Barnstead Pacific TII Pure water System Open the supply of feedwater. Switch the system on, produce two complete tank fillings of water and discard the water that is produced. Before dispensing water from the system, let water run out for approx.
-
Page 39: Waste Disposal
Thermo Scientific Barnstead Pacific TII Pure water System 15. Waste disposal When the packaging is no longer needed it can be disposed of as household waste. Systems are in conformity with EEC Guideline 2002/95/EC The system is not to be thrown away as household waste but must be properly disposed of. It can be returned to the manufacturer for safe disposal according to EEC Guideline 2002/96/EC. -
Page 40: Trouble Shooting
Thermo Scientific Barnstead Pacific TII Pure water System 16. Trouble shooting Fault Cause Remedy Cannot be started - No supply of power - Connect to the power supply Water cannot be drawn off - Feedwater tap is closed - Turn the water tap on... - Page 41 Thermo Scientific Barnstead Pacific TII Pure water System Fault message: - The max. operating hours - Replace the UV-lamp of the UV-lamp have been (Art.-no. 09.4002) and "UV time" exceeded reset the operating hours counter Fault message: - The max. operating hours...
- Page 42 Thermo Scientific Barnstead Pacific TII Pure water System The address to contact when your system requires service: Overview of Thermo Scientific International Sales Organization Postal address USA: Thermo Scientific 275 Aiken Road Asheville, NC 28804 Enquiries from USA/Canada Sales: +1 866 984 3766...
- Page 43 Thermo Scientific Barnstead Pacific TII Pure water System Belgium Sales: +32 53 73 4241 Service: +32 53 73 4241 Finland/Nordic/Baltic countries Sales: +358 9 329 100 Service: +358 9 329 100 France Sales: +33 2 2803 2180 Service: +33 825 800 119...
-
Page 44: Replacement Parts For Pacific Tii
Thermo Scientific Barnstead Pacific TII Pure water System 17. Replacement parts for Pacific TII Article Pos. R+I No. Designation Inlet solenoid valve 50131190* Rinsing solenoid valve 50131190* A-P1 Pressure boosting pump ( by 3-20 TII / TII UV) 19.0050* Pressure boosting pump ( by 40 TII / TII UV) 19.0050*... -
Page 45: Replacement Parts For The Optional Tank
Thermo Scientific Barnstead Pacific TII Pure water System 18. Replacement parts for the optional tank Pos. R+I No. Description Article no. A-B1 Tank, 30 L 18.0114 Tank, 60 L 18.0115 Tank 100 L 18.0159 A-P2 Pressure pump 19.0046* PS200 Pressure switch 15.0058*... -
Page 46: Consumables
Thermo Scientific Barnstead Pacific TII Pure water System 19. Consumables Designation Parts supplied Article no. Filter cartridge set 2 x Filter cartridges with Nuclear-grade resins 09.4012 Reverse osmosis membrane 1x at Pacific 3, 7, 12 TII / TII UV, 2x at 20 TII / TII UV 22.0046... -
Page 47: Terminal Assignment
Thermo Scientific Barnstead Pacific TII Pure water System 21. Terminal assignment 21.1 Pacific TII 3-20/TII 3-20 UV (24V) -
Page 48: Pacific Tii 40/Tii 40 Uv (48V)
Thermo Scientific Barnstead Pacific TII Pure water System 21.2 Pacific TII 40/TII 40 UV (48V) -
Page 49: Maintenance Record
Thermo Scientific Barnstead Pacific TII Pure water System 22. Maintenance record (Please keep this record carefully. This is one of the conditions for maintaining the validity of the guarantee) Address of customer: Location: System type: Serial no.: Year made: Date... - Page 50 Other Asian countries +852 2885 4613 Countries not listed: +49 6184 90 6940 © 2011 Thermo Fisher Scientific Inc. All rights reserved. All trademarks are the property of Thermo Fisher Scientific Inc. and its subsidiaries. Specifications, terms and pricing are subject to change. Not all products are available in all countries. Please consult your local sales...
