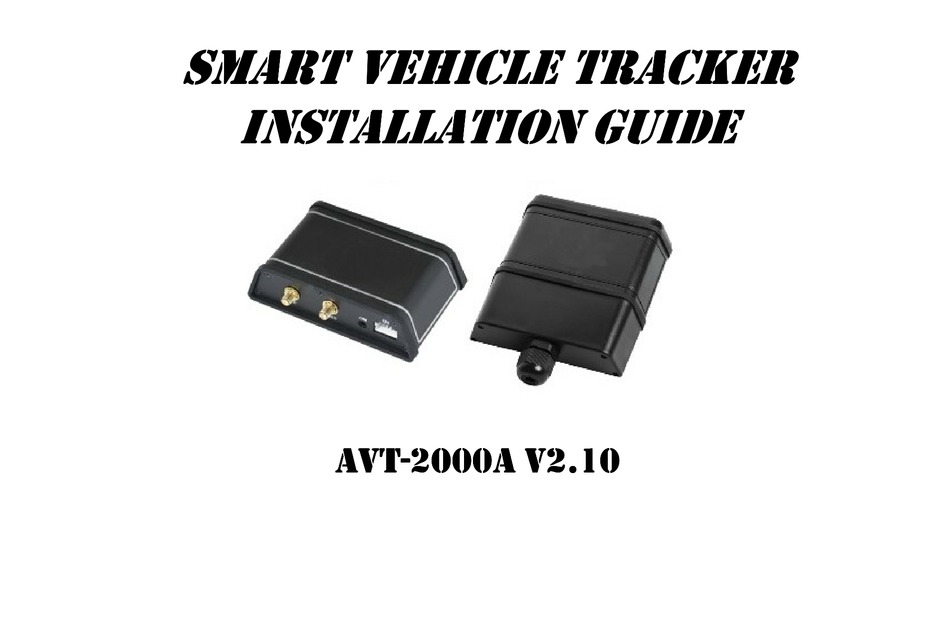

- Page 1 SMART VEHICLE TRACKER SMART VEHICLE TRACKER SMART VEHICLE TRACKER SMART VEHICLE TRACKER INSTALLATION GUIDE INSTALLATION GUIDE INSTALLATION GUIDE INSTALLATION GUIDE AVT- - - - 2000A V2.10 2000A V2.10 2000A V2.10 2000A V2.10...
-
Page 2: General Notes
General Notes: All materials contained on this documentation is protected by the copyright law and may not be reproduced, transmitted, published or broadcasted without the prior obtaining authorization of GPS Designer International CORP.The documentation is provided for testing, evaluation, integration and product information purpose and it may contain deficiencies or inadequacies information of products. -
Page 3: Table Of Contents
Table of Content 1. Introduction of Hardware:..............4 2. Insert the SIM Card:................6 3. Wire/Cable Installation ................7 3.1 Power/Input/Output Cable..............8 3.2 Connect GSM Antenna …………………………......9 3.3 Connect GPS antenna……………………………..…..………...9 3.4 Connect “Serial Port” Cable…………………………………..……9 3.5 Connect “USB” Cble:................9 4. Mount the Device...................10 5. -
Page 4: Introduction Of Hardware
1. Introduction of Hardware Front Panel... - Page 5 Back Panel...
-
Page 6: Insert The Sim Card
2. Insert the SIM Card 1.Please push the yellow button to reject the SIM card holder out. 2.Please place the SIM card into the SIM card holder then slide the SIM card holder back to the original place. 3.Please ensure the SIM card is well placed in the holder and well contacted, otherwise the device might not detect the SIM card successfully. -
Page 7: Wire/Cable Installation
3.Wire/Cable Installation 3.1 Power/Input/Output Cable:... -
Page 9: Connect Gsm Antenna
3.2 Connect GSM Antenna: Please connect the GSM antenna to the SMA connector with “GSM” text labeled. 3.3 Connect GPS Antenna: Please connect the GPS antenna to the SMA connector with “GPS” text labeled. 3.4 Connect “Serial Port” Cable: Serial port can be used for different purpose. Thus, it might need different cables; we have provided the PIN assignment and definition as below for reference: 3.5 Connect “USB”... -
Page 10: Mount The Device
4. Mountingt the Device Please bind the holding metal pieces to two sites of the device body. Then use screws to fix the device in a flat place. Please refer to the following:... -
Page 11: Led Indicators
5. Led Indicators Indicators Blinking Behavior Status 0.6 second on/ Not Ready or Searching GSM signal 0.6 second off GSM (Red) 100ms on / Registered to GSM network successfully 3 seconds off 1 second on / GPS not fixed 1 seconds off (Green) Solid on GPS fixed...
