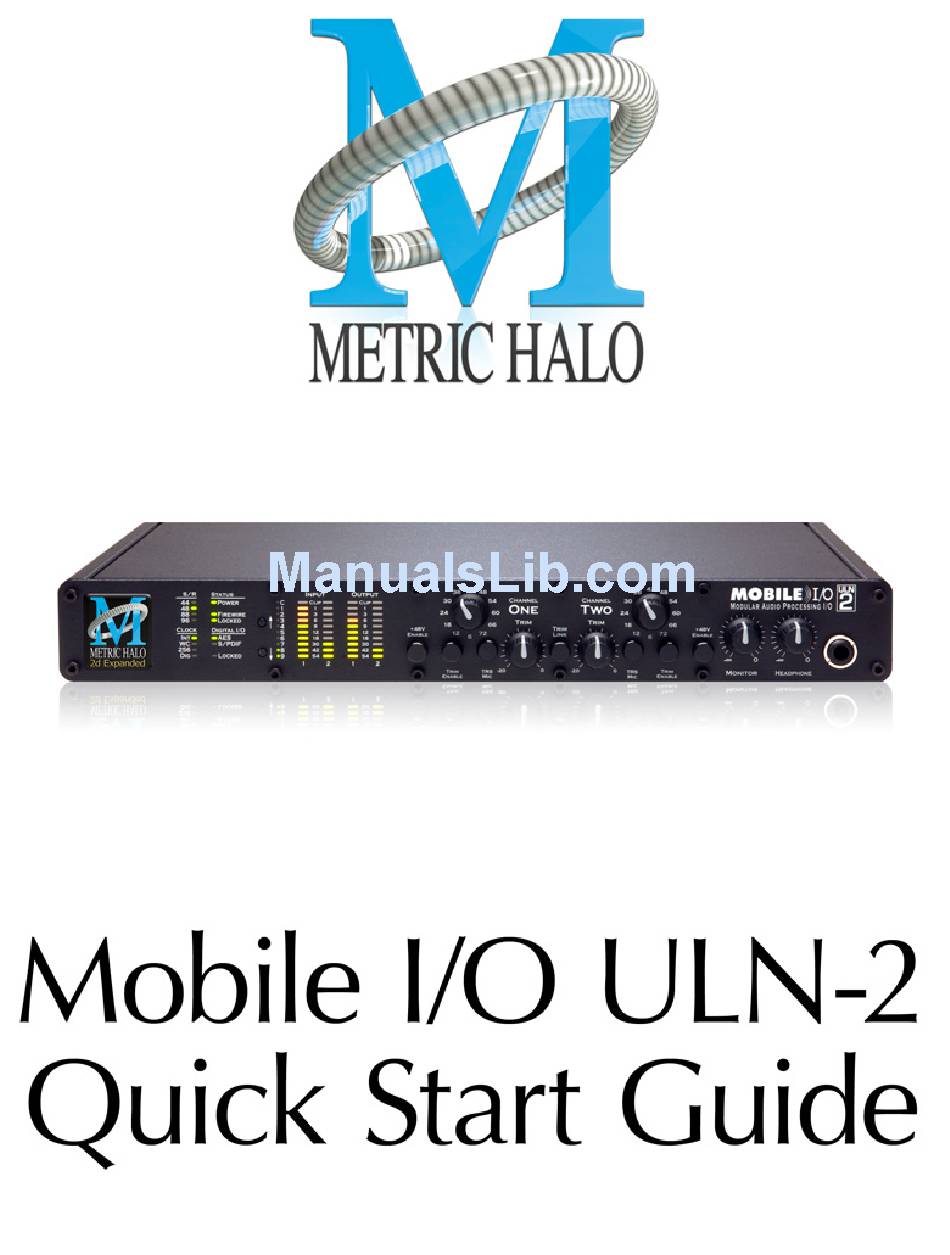

Metric Halo ULN-2 Quick Start Manual

Mobile i/o uln-2
Hide thumbs Also See for ULN-2:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ULN-2 and is the answer not in the manual?

Questions and answers

Related Manuals for Metric Halo ULN-2

Summary of Contents for Metric Halo ULN-2

  • Page 2 ULN-2 Quick Start Guide Metric Halo $Revision: 1532 $ Publication date $Date: 2011-08-08 12:42:12 -0400 (Mon, 08 Jun 2011) $ Copyright © 2010 Metric Halo...

  • Page 3: Table Of Contents

    Table of Contents 1. Mobile I/O ULN-2 Quick Start Guide .................... 5 Prepare the unit for use ......................5 Connect the ULN-2 to your computer ..................6 Take a listen ..........................6 The MIO Console ........................6 The Mixer window ........................8 The ULN-2 and surround ......................
  • Page 4 List of Figures 1.1. Mobile I/O ULN-2 ........................5 1.2. ULN-2 Routing ......................... 5 1.3. Template selection pane ......................6 1.4. Console window ........................7 1.5. Mixer window .......................... 8 1.6. Surround mixer ........................10 1.7. Configuring the Monitor Controller ................... 11...

  • Page 5: Mobile I/O Uln-2 Quick Start Guide

    • Two Rack Ears w/ fasteners • Rubber feet • MIO Software CD-ROM • Warranty/Registration Card Bask in the look and feel of the ULN-2! Connect the power supply, and connect your monitors to Monitor Out L/R. Monitor Green: Routable Inputs...

  • Page 6: Connect The Uln-2 To Your Computer

    Once you’ve listened for a while, quit iTunes and launch the MIO Console. You’ll be asked to select a template; select “ULN-2 Basic Setup” which will give us a simple starting point. Take a look at the panel on the right- it outlines what the templates do.

  • Page 7: Console Window

    ULN-2 is receiving a valid clock on the selected source. Toward the top of the window you will see the text “ULN-2/xxx” where “xxx” is the serial number of the box. By clicking on this you will get a menu of options for removal of offline boxes (you shouldn’t have any at this point).

  • Page 8: The Mixer Window

    Center. • Multichannel inputs (stereo and above) have no pan control. Keep in mind that the while ULN-2 is primarily a stereo device in the analog domain, it is possible to work in multichannel by using the optical I/O.

  • Page 9: The Uln-2 And Surround

    Monitor Controller. You should now be in a good position to fire up a native DAW and put the ULN-2 through its paces. Select the ULN-2 as your audio interface; the analog inputs will be inputs 1-2, AES/Spdif digital inputs will be 3-4 and ADAT will be 5-12 (as determined by the FW channel assignments).

  • Page 10: Surround Mixer

    Mobile I/O ULN-2 Quick Start Guide Figure 1.6: Surround mixer To make it easier to monitor in surround, let’s use the Monitor Controller. Click on the assignment pulldown at the bottom of the Main bus and select “N/C” to remove the assignment to the analog outs. Now hold down the shift key and click the pulldown again;...
  • Page 11 Mobile I/O ULN-2 Quick Start Guide Figure 1.7: Configuring the Monitor Controller Choose "OK" and you now have a surround monitor controller! Figure 1.8: The configured Monitor Controller...

  • Page 12: Unleash The Dsp

    Unleash the DSP Every ULN-2 is based on the 2d processing card and may be purchased with an optional +DSP license. The +DSP can be added by the user at any time; if you purchased a unit with the +DSP license, it is preinstalled in the hardware and ready to go.
