Summary of Contents for NetworX NX-1700E

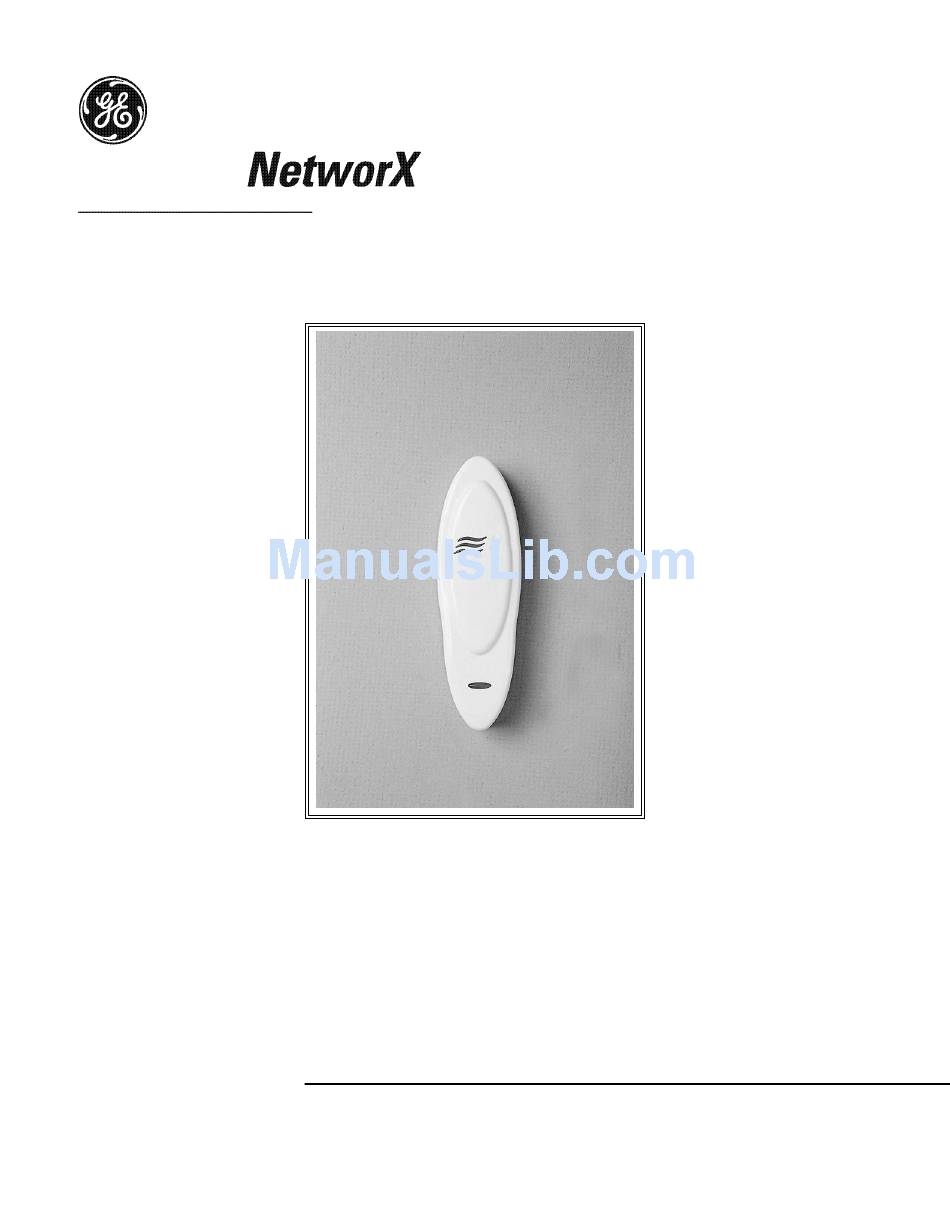

- Page 1 NX1700EIE03 (Supercedes NX1700EID03) ™ NetworX Series NX-1700E Proximity Card Reader Installation and Startup...
- Page 2 Indicates an essential or important procedure, instruction, condition, or statement. Note Indicates a user tip. Provides helpful information that is not normally defined in regular use, but from an experienced user. Indicates a key or button should be pressed to enter data. Enter NX-1700E Card Reader...
-
Page 3: Table Of Contents
Programming Activation Data for User Cards 1 through 120 ........... 15 Location 284 Programming Activation Data for User Cards 121 through 240 ..........15 VIII. PROGRAMMING WORKSHEETS..........................16 ORDERING INFORMATION ............................. 22 GLOSSARY..................................23 FCC INFORMATION..............................23 XII. UNDERWRITERS LABORATORIES INFORMATION..................23 XIII. SPECIFICATIONS................................ 24 NX-1700E Card Reader... -
Page 4: General Description
GENERAL DESCRIPTION The NetworX NX-1700E is a proximity card reader / door control module used to expand the capabilities of the NetworX control panels. $ Microprocessor-controlled $ Includes one (1) low current trigger output, which can be used to control a door strike relay... -
Page 5: Addressing
Once the reader is wired into the system, the module needs to be addressed. Unlike most Scan: To NetworX expanders, the address of any particular reader is determined by itself after installation “present” or is complete. Follow the procedures outlined under the section “PROGRAMMING”. When... -
Page 6: Programming A Location
(Do not enter data.) The next segment is displayed. Each time pressed, the data of the next segment will be displayed for review. Shortcuts: Previous location. Same location. Next sequential location. XITING THE ROGRAM EXIT EXIT Exits this programming level. NX-1700E Card Reader... -
Page 7: Using The Lcd Keypad
IMPORTANT NOTE Adding or de-activating user cards from a reader will cause the code for User Number 2 to become invalid. Therefore, it will need to be re-entered after all user cards are programmed into the readers. NX-1700E Card Reader... -
Page 8: Adding One User
By default, user cards are added and activated. In order to add a user card and de-activate it at the same time, scan and hold the card to be added until two beeps are sounded at the reader. NX-1700E Card Reader... -
Page 9: Activate One User (Single User)
After about 30 seconds, all the readers in the system will be updated. CTIVATING ACTIVATING ESETTING USERS If User Number 0 is entered, the desired function will be performed on the user associated with the card scanned. NX-1700E Card Reader... -
Page 10: Programming Locations
Program a number from 0 -15 to represent the corresponding X-10 Module Number from the following table. Default is 0. Module 9 10 11 12 13 14 15 16 Seg 1 9 10 11 12 13 14 15 NX-1700E Card Reader... -
Page 11: Location 242 Programming The Options And Reader Partition
LED5 - “On” if an RTE from a scanned card is to be logged as Code Entry. (Default is “On”) LED6 - “On” if reader is in NX-1700E Legacy Mode (Default is “On”) Refer to note below. LED7 - “On” if an RTE) from a zone or the Egress input is to be logged as Code Entry. -
Page 12: Location 243 Programming The Zones
Segment 2 Relay Active Time Enter the amount of time the onboard open collector output is energized once activated. This timer is timed in 1-second increments from 0 to 255 seconds. (Default is 10 = 10 seconds). NX-1700E Card Reader... -
Page 13: Location 245 Resetting The Reader Address
(2 segments of numerical data) Segment 1 Program the hour of the opening time in 24-hour format. (Default is 8 = 8:00 AM) Segment 2 Program the minutes after the hour of the opening time for Schedule 1. (Default is 0) NX-1700E Card Reader... -
Page 14: Location 248
For example, if the opening should not occur on January 1, program a “1” in Segment 1. This feature can be repeated up to a maximum of 8 holidays per location (month). (Default is No holidays) NX-1700E Card Reader... -
Page 15: Locations 272 - 282 Programming The Date Of Holidays From February To December
User Cards 161 - 168 Segment 14 User Cards 225 - 232 LED7 = Card 7 User Cards 169 – 176 User Cards 233 - 240 Segment 7 Segment 15 LED8 = Card 8 User Cards 177 - 184 Segment 8 NX-1700E Card Reader... -
Page 16: Programming Worksheets
X-10 ADDRESS Seg 1 MODULE NUMBER Seg 2 HOUSE CODE X-10 ADDRESS CODES (see chart) 12=M 13=N 10=K 14=O 11=L 15=P Seg 3 SINGLE SCAN FUNCTION (1Beep) All units off All lights on Bright All lights off NX-1700E Card Reader... - Page 17 5 = “On” if an RTE from a scanned card is to be logged as Code Entry 6 = “On” if reader is in NX-1700E Legacy Mode 7 = “On” if an RTE from a zone or the Egress input is to be logged as Code Entry.
- Page 18 Hour of Opening Time (24-hr format) 8 = 8 AM Seg 2 Minutes after Hour of Opening CLOSING TIME FOR SCHEDULE 1 Seg 1 Hour of Closing Time (24-hr format) 20 = 8 PM Seg 2 Minutes after Hour of Closing NX-1700E Card Reader...
- Page 19 Hour of Opening Time (24-hr format) 8 = 8 AM Seg 2 Minutes after Hour of Opening CLOSING TIME FOR SCHEDULE 4 Seg 1 Hour of Closing Time (24-hr format) 20 = 8 PM Seg 2 Minutes after Hour of Closing NX-1700E Card Reader...
- Page 20 Hour of Opening Time (24-hr format) 8 = 8 AM Seg 2 Minutes after Hour of Opening CLOSING TIME FOR SCHEDULE 7 Seg 1 Hour of Closing Time (24-hr format) 20 = 8 PM Seg 2 Minutes after Hour of Closing NX-1700E Card Reader...
- Page 21 10 = User Cards 73 – 80 11 = User Cards 81 – 88 12 = User Cards 89 – 96 13 = User Cards 97 – 104 14 = User Cards 105 – 112 15 = User Cards 113 - 120 NX-1700E Card Reader...
-
Page 22: Ordering Information
40VA Transformer NX-4 4 Zone Control Only NX-507E Seven Relay Module NX-4 Control, NX-148E LED Keypad, Eight Output Module NX-4-KIT-7 NX-508E 40VA Transformer NX-534E Two-Way Listen In Module These units are UL listed for residential use only. NX-1700E Card Reader... -
Page 23: Glossary
3. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC ID: CGGNX-1700E XII. UNDERWRITERS LABORATORIES INFORMATION The NX-1700E module has received the following UL listings: UL294 Access Control Systems Units NX-1700E Card Reader... -
Page 24: Specifications
SHIPPING WEIGHT < 1 lb. 1420 N. MAIN STREET GLADEWATER, TEXAS 75647 Main 800-727-2339 Technical Support 800-727-2339 Outside the US 903-845-6941 Tech Support Fax 903-845-8409 Main Fax 903-845-6811 Sales & Literature 800-547-2556 www.caddx.com www.ge-interlogix.com Revision E (Dec 2003) NX-1700E Card Reader...
