Sonic Research ST-200 Instruction Manual

ST-200 Strobe Tuner Instruction Manual
1
4
6
7
8
2

Table of Contents

Front Panel Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Quick Start Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Chromatic/Guitar Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tuning Presets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ST-200 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tuning Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Changing the Reference Pitch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Flat Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Resetting the Tuner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Custom Tunings & Temperaments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing An Open Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Editing A Temperament . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Capturing a Custom Tuning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Appendix A - Pre-Programmed Temperaments . . . . . . . . . . . . . . . . . . . . . .
2
3
5
9
. . . . . . . . .
. . . . . . . . .
. . . . . . . . .
. . . . . . . . .
. . . . . . . . .
. . . . . . . .
. . . . . . . .
. . . . . . . .
. . . . . . . .
. . . . . . . .
. . . . . . . .
. . . . . . . .
. . . . . . . .
. . . . . . . .
file-st2op1f

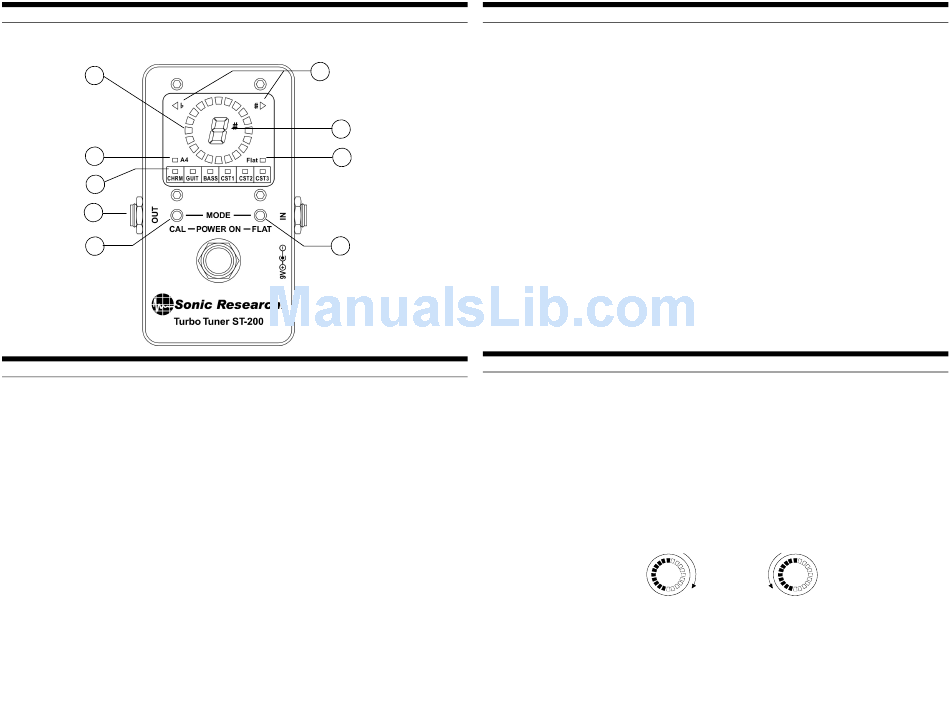

1. True Strobe Display Pattern in the ring of LEDs rotates left if the note is flat, and
rotates right if the note is sharp.
2. Sharp/Flat LEDs These activate if the note is more than 50 cents out of tune. These
are only active in "open tuning" mode.
3. LED Note Display Displays the note name in chromatic mode, or the string number
in open tuning mode.
≠ ≠
4. A4 440 Illuminates when the A reference is set to any value other than 440.0 Hz.
The range of A4 is 300.0 to 599.9 Hz in .1 Hz increments.
5. Drop Tuning Indicator You may drop the tuning up to 6 semitones.
6. Mode Indicator Six modes total. All except CHRM (chromatic) are fully
programmable. They may be set as an open tuning or chromatic, and each note may be
offset ±50.0 cents in .1 cent increments.
7. True Bypass, Muted Output
8. Mode/Calibrate Button Changes mode in normal operation. Hold down during
power on to change the A4 reference.
9. Mode/Drop Tuning Button Changes mode in normal operation. Hold down during
power on to change the number of semitones to drop.
1. Plug the ST-200 into your signal chain.
3
2. Optionally connect a 9 Volt external power source. The ST-200 will run for 12 hours
4
continuous on an alkaline battery, enough for about 1,000 tune ups.
5
3. Stomp on the foot switch. When the tuner is on, the output is muted. When the tuner is
off, the signal is passed straight through with absolutely no load on the signal. It is
6
100% true bypass.
8
4. Play a note and observe the pattern in the LEDs. The direction of rotation indicates
whether the note is sharp or flat. The farther out of tune, the faster the pattern will
10
rotate. When stationary, the note is perfectly in tune.
11
12
13
14
Battery Operation A battery was installed in the unit before it left the factory. There is
15
no battery drain when the tuner is off. You do not have to unplug your instrument.
19
22
When powered from an external 9 Volt source, the battery is automatically disconnected.
4
23
Front Panel Description
Using the Tuner - Quick Start
SHARP
FLAT
pattern rotates right
pattern rotates left
3
