Summary of Contents for Iguassu Ice CHP-5050S

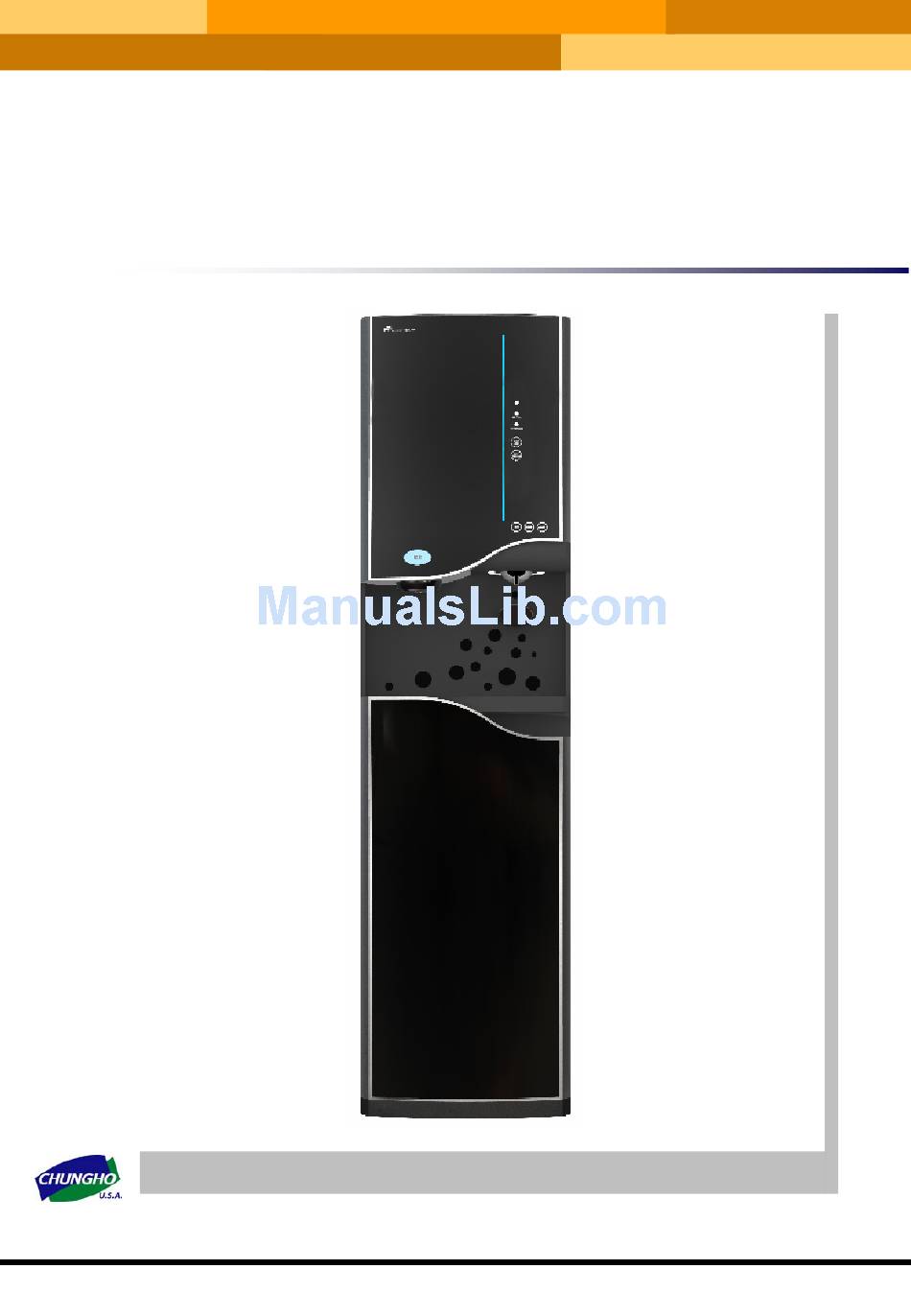

- Page 1 Technical A/S Manual for Technical A/S Manual for Iguassu Ice Iguassu Ice (Model : CHP 5050S) (Model : CHP 5050S) ChungHo Nais R&D Center ChungHo Nais R&D Center...
- Page 2 Iguassu Ice 1. Part names 1. Part names 1-1. Front side 1-1. Front side Light detection sensor Full ice display Full water display Hot water lock touch sensor button Hot water operation/Power saving button Hot water dispenser touch sensor button...
- Page 3 Iguassu Ice 1. Part names 1. Part names 1-2. Inside 1-2. Inside Upper covering Ambient water tank Ice making unit Front upper Cold water tank Ice storage house Waterspout Drainage valve Wire condenser Drainage switch Front lower Compressor Water purification filter...
- Page 4 Iguassu Ice 1. Part names 1. Part names 1-3. Back side 1-3. Back side Drainage Removed water(Brine) Source water - 4 - Research and Development Center...
- Page 5 2. Characteristics (1) Water purification system providing an integrated ice making function The Iguassu Ice is designed for both convenience and practicality, as it utilizes compact ice making system, designed to obtain cold water for the production of lice. With an ice making mechanism featuring an ice tray which utilizes the freezing point method as well as reverse osmotic water purification.
- Page 6 2. Characteristics (6) Touch sensor application Breaking away from traditional button applications, the Iguassu Ice has a built- in touch sensor application. This addition has been integrated into the already stellar system with customer convenience in mind. The easy-to-use sensor application allows for effortless and enjoyable drinking water with ice.
- Page 7 Another new development, found in the Iguassu Ice, is the automatic selection of cold water. In many circumstances, cold water is found to be the most desired temperature of water for drinking.
- Page 8 Function operations are designed as simply as possible in order to maximize convenience. (19) Beautiful design The Iguassu Ice has adopted an environmentally friendly cooling system in the new R-134a, a coolant that will not add to the problems of ozone layer destruction and global warming.
- Page 9 Iguassu Ice 3. Expanded drawing 3. Expanded drawing - 9 - Research and Development Center...
- Page 10 Iguassu Ice 3. Expanded drawing 3. Expanded drawing - 10 - Research and Development Center...
- Page 11 Iguassu Ice 3. Expanded drawing 3. Expanded drawing - 11 - Research and Development Center...
- Page 12 Iguassu Ice CHP-5050S PARTS LIST PART NAME Q'TY MATERIAL PART NAME Q'TY MATERIAL FRONT UPPER-DECO EVA. FIXATION BRACKET PC/ABS FRONT LOWER-DECO 46 TURN WATERSPOUT BUSHING (R) FRONT LOWER-BODY ICE GRILL LLDPE FRONT UPPER-BODY AMBIENT WATER TANK WATERSPOUT COVER-AMBIENT WATER TANK...
- Page 13 Iguassu Ice 4. Flow diagram 4. Flow diagram 4-1. Purification system 4-1. Purification system Water level sensor Ambient water tank Ice making unit Ambient selection valve Ice making Water Cold water tank Cold water inflow valve pump dispenser Cold selection valve...
- Page 14 Iguassu Ice 5. Specifications 5. Specifications Iguassu Ice Product name Model name CHP-5050S Dimension W14 X D18 X H56 (in) Rated voltage AC110V,220V / 50Hz,60Hz Rated consumed power 700W(hot water + ice making) Consumed Hot water/Cold water 500W/170W power Ice making...
- Page 15 Iguassu Ice 6. Installation method 6. Installation method Install the product on a level surface. (Change product level using the product leg adjustment and confirm the level surface a level.) Close off the water supply valve as supplied to each household. Then temporarily remove the connector part as provided from your given water source.
- Page 16 Iguassu Ice 7. Test Board 7. Test Board 1. Remove Top covering to reveal Test Board wire harness connection. 2. Test different parts of the product; when LED light is blinking, replace appropriate part. 3. Test Board Manual Functions - BYPASS : Used to move on to the next function on the checklist.
Need help?
Do you have a question about the CHP-5050S and is the answer not in the manual?
Questions and answers

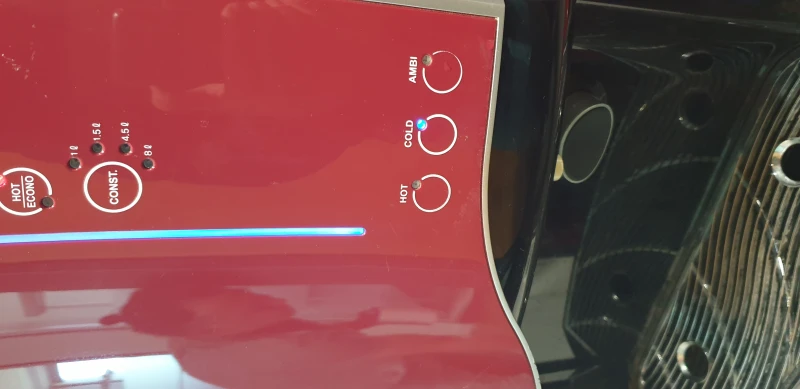

Wie schaltet mann die Kaltwasser aus? Was kann sein wenn die Anlage kein Kaltwasser mehr hergibt?
To turn off the cold water on the Iguassu Ice CHP-5050S, you can disable the cold water function through the system's safety control. When an abnormality is detected, the system automatically stops the cold water function along with ice making and water purification.
If the unit is not dispensing cold water, possible reasons include:
- A system abnormality has been detected, triggering an automatic stop of the cold water function.
- A flashing display icon may indicate such an error.
- A malfunction in components like the cold water inflow valve, cold selection valve, or cold water tank.
- Sensor or system error related to water level or temperature.
Check the display for error indicators and ensure components are functioning properly.
This answer is automatically generated
