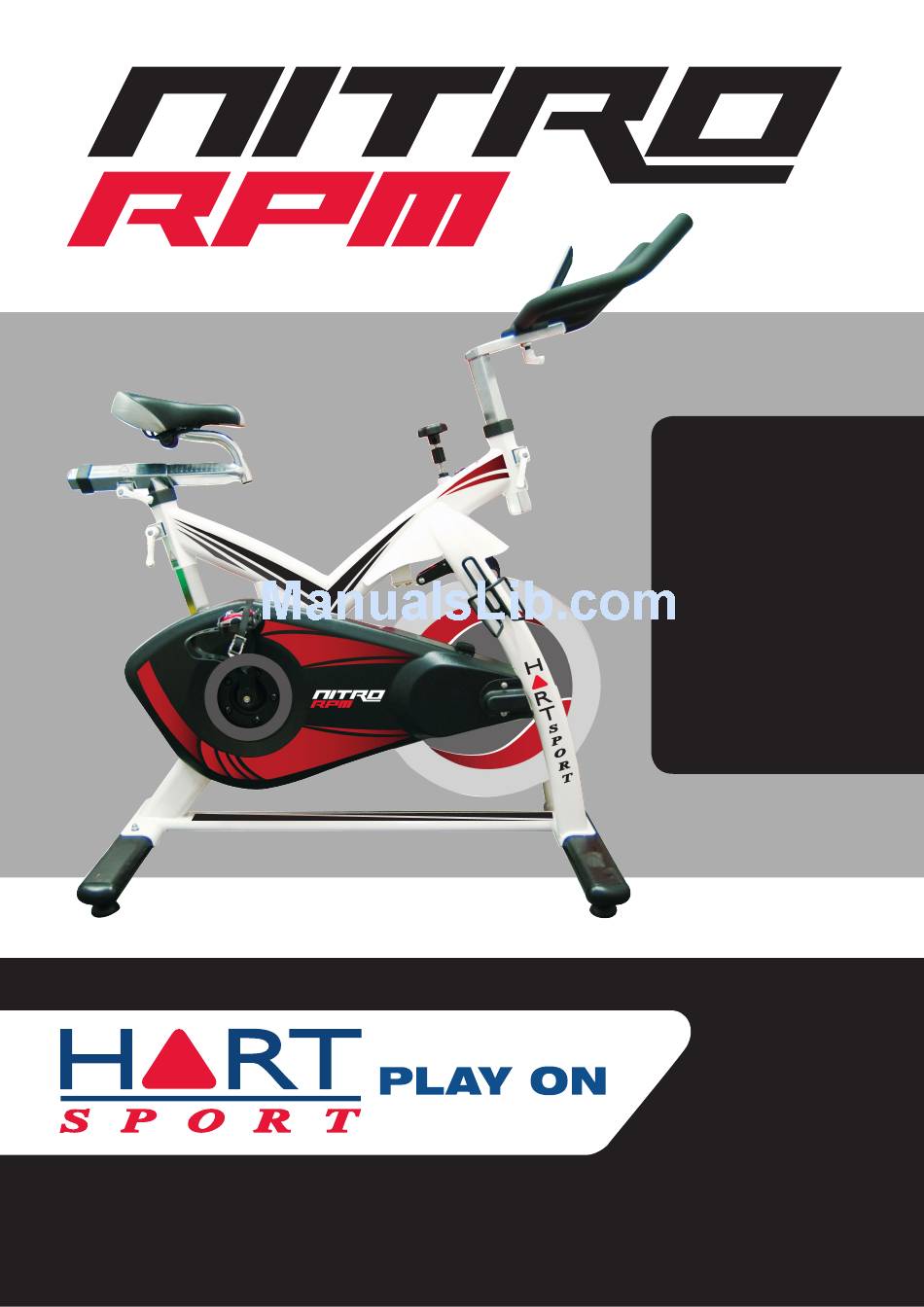

- Page 1 User Manual & Warranty PO Box 379 Virginia BC 4014 AUSTRALIA P 1300 764 719 F 1300 764 767 info@hartsport.com.au www.har tspor t.com.au...
- Page 2 Assembly Step 1 Attach the front (18) and rear feet (14) to the frame using the nuts (8), washer (9) and bolts (10). Step 2 Attach the handlebar post (22) by inserting it into the head tube on the frame. Use the knob to adjust and tighten the height to the desired position. Attach the handlebar slider (23) on the handlebar post (22), use release lever (40) to adjust and tighten the handlebar into position.
- Page 3 Exploded Drawing...
- Page 4 Parts List Name Unit Name Unit Saddle Flywheel axle Alloy bind clamp ( L ) Fixed wheel nut Spring for release lever Flywheel bearing Alloy bind clamp ( R ) Axle bolt for moving wheel Washer for release lever Front moving wheel with plate Release lever Release lever w/washer Crank bolt...
- Page 5 Instruction Use The bike is designed to be used as a “spin” cycle in fitness studios and health clubs. It has a fixed wheel driven flywheel and should only be used under professional supervision. Installation – it is important that the bike is correctly assembled and we recommend that suitably qualified personnel carry out installation and assembly.
- Page 6 Maintenance Chart DESCRIPTION Daily Weekly Monthly Quarterly Annually Keep machine clean: Wipe machine down with clean & dry fabric to clear dirt & sweat. Spray with WD40 or similar on the seat post set, handlebar set (Don’t spray on the main frame) Visual check Check security of handlebar post &...
- Page 7 Console - User Guide Changing the battery Open battery cover and insert 2 AAA or 2 UM-4 batteries, then replace cover. If the LCD shows partial display, please take out batteries, wait for 15 seconds and insert again. Previous exercise data will be removed if batteries are removed. Please follow local environment regulations when disposing of batteries.
- Page 8 Extended Warranty E X T E N D E D W A R R A N T Y 1. This product is covered by a Frame warranty for 2 years and a Component warranty for 1 year. (Consumables including but not limited to Brake Pads, Pedals, Pedal Straps, seat and water bottle holders are not covered by this warranty).
