Summary of Contents for SOUTHEASTERN MEDICAL Supply CONTEC08A
- Page 1 Advanced Blood Pressure and SpO2 SOUTHEASTERN MEDICAL SUPPLY, INC...

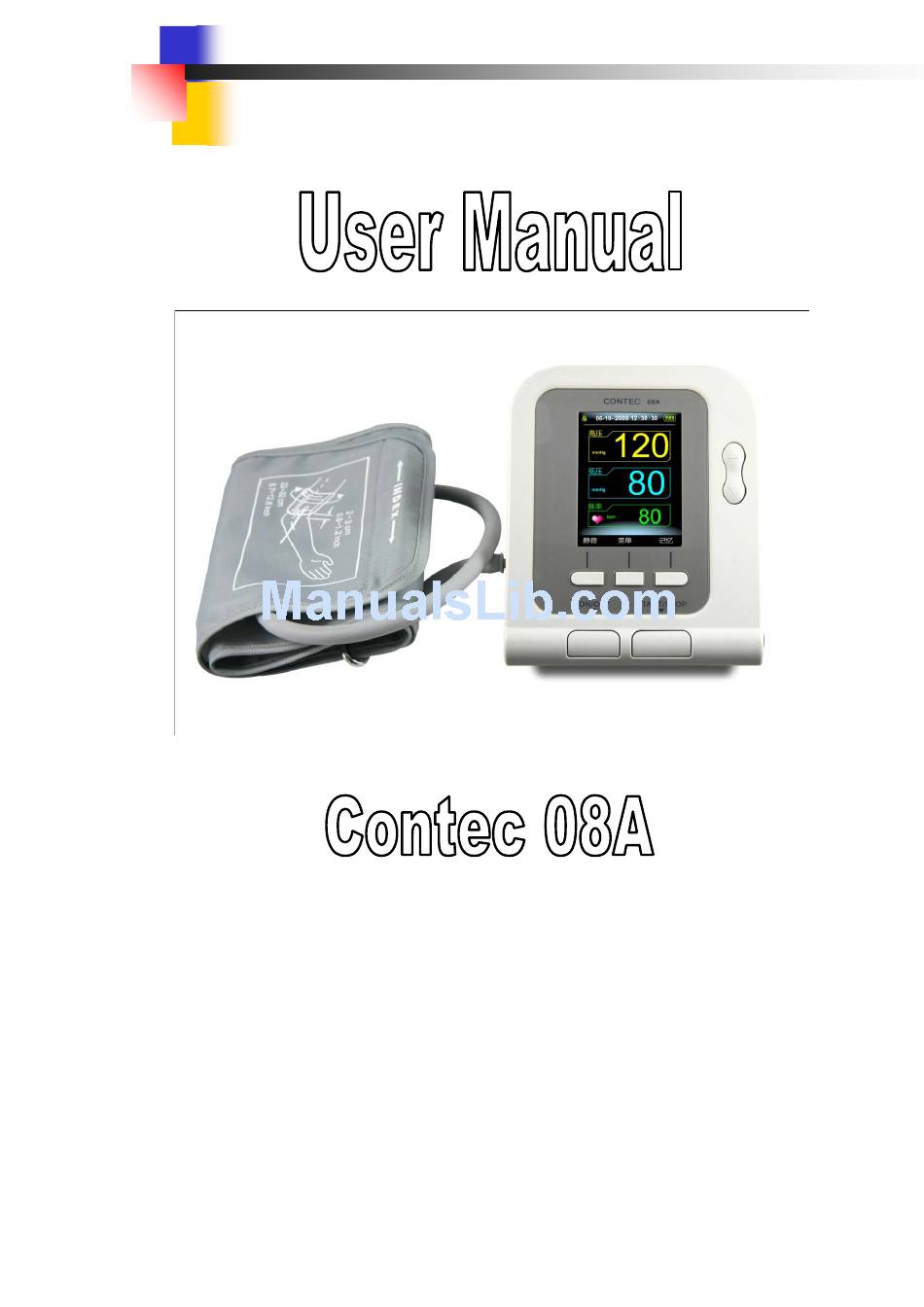

- Page 2 User Manual Blood Pressure Monitor Model CONTEC08A ■To assure the correct use of the product safety measures, please carefully read user manual before using. ■ After reading, please validly keeping to refer and consult at any moment.
-
Page 3: Table Of Contents
Contents Safety Precautions: ......................... 1 Main Unit ............................3 Button Functions ..........................4 External Interfaces .......................... 4 Dry Battery/AC Adapter Installation ....................5 Dry Battery Installation......................5 Using The AC Adapter ......................5 Setting The Date And Time ......................6 Unit .............................. -
Page 4: Safety Precautions
Safety Precautions: Before use, carefully read "Safety Precautions" for a correct use. To prevent users suffered hurt or damnification due to improper use, see "Safety Precautions", and use this product properly. For safety reasons, be sure to comply with safety precautions. Note If not to use correctly, it exists that a potentially hazardous situation which may result in injury to the user or patient or damage to the equipment or other property. - Page 5 Operation for AC Adapter (Separate Sale) Note Please use sold separately dedicated AC adapter. Otherwise it may cause trouble. Sold separately dedicated AC adapter be sure to use the AC 220V. Be sure to use a separate socket. Otherwise it may cause electric shock or injury. When there is breakage of sold separately dedicated AC adapter plug or wire , please immediately pulled the plug from the socket.
-
Page 6: Main Unit
Main Unit The production is in the package . Open the package and confirm whether the production is whole. Display Cuff Plug Cuff UP/DOWN Button MEMORY AC Adapter Jack MENU Button USB Plug Jack USER SWITCH ON/OFF Button START/STOP Button Adult Cuff Dry Battery ：... -
Page 7: Button Functions
Button Functions All the operations to the Electronic Blood Pressure Monitor are through the buttons. The names of the buttons are above them. They are: 【ON/OFF】 Hold the button to start or close the device. 【START/STOP】 Press to inflate the cuff and start a blood pressure measurement. When measuring, press to cancel the measurement and deflate the cuff. -
Page 8: Dry Battery/Ac Adapter Installation
Dry Battery/AC Adapter Installation The production can use dry battery or AC adapter as power source. Dry Battery Installation ① Press the▲indicator on the battery cover and slide the cover off in the direction of the arrow. ②... -
Page 9: Setting The Date And Time
Setting The Date And Time It is necessary to set date and time after turning on the device . The Blood Pressure Monitor automatically stores measurement results with date and time. If dry battery power exhausts or removed ,then, after the device turned on,the date resumes from the last setting value and the time from 00:00:00,set the date and time again. -
Page 10: Unit
Unit There are two units: "mmHg" and "kPa". The default is: "mmHg". To switch "mmHg" and "kPa" units, enter the 【SYSTEM SETUP】 submenu in 【SYSTEM MENU】, and complete switching in【UNIT】item. User Switch The Blood Pressure monitor stores the measure results of three users automatically, and up to 100 items for every user. -
Page 11: Applying The Arm Cuff
Applying the Arm Cuff The measurement can be carried out by applying the cuff on left or right arm. Remove tight-fitting clothing from your upper arms. Carry out the operation in a room with comfortable temperature. When measuring, take the thick clothes off instead of rolling up the sleeves. In order to measure accurately,pay attention to applying the cuff properly (left arm). -
Page 12: Bp Measurement
BP Measurement Accurate Measurement Way Measurement in quiet and relaxing state. 1.Place your arm on a table. 2.The cuff is level with your heart. 3.The palm of the hand is up, and the body relax. Try to measure your blood pressure at the same time each day with the same arm and the same pose for consistency. -
Page 13: Memory Function
Note Wait 4-5 minutes between measurements. When repeated measurements, because the arm appears congestion, it may not get correct blood pressure measurement. After the blood flow, take a measurement once again. When some factors affect the measurement results in measurement process, error messages hints will appear on the screen, you can obviate the malfunction and restart a measurement. -
Page 14: Delete Memory Values
3.Press 【LIST】 button to switch to data table interface. 4.Press 【TREND】 button to display trend interface. 5.Finish displaying the measurement values Press 【EXIT】 to return the main interface or hold 【ON/OFF】 button to turn the power off. *The monitor will automatically turn off after two minutes in which there is no operation to the device, even if you forget to turn the power off. -
Page 15: Alarm Function
Alarm Function Alarms are classified into two categories: technical alarm and physiological alarm. Physiological Alarm User can press 【MENU】 button to enter system menu, select 【ALARM SETUP】 item to enter its interface, and then set alarm on-off and the high and low alarm limits, when blood pressure is higher than the high limit or lower than the low limit, the physiological alarm will occur. -
Page 16: Monitoring Procedure
Warning ◎ Check if the sensor cable is in normal condition before monitoring. After unplugging the SpO2 probe cable from the socket, the interface will return. ◎ Do not use the SpO2 probe once the package or the sensor is found damaged. Instead, you shall return it to the vendor. -
Page 17: Maintenance And Cleaning
Significant concentrations of dysfunctional hemoglobin, such as carboxyhemoglobin and methemoglobin. SpO2 too low. Bad circular injection of the part being measured. It is required to use SPO2 probe which is provided by our company, contact with our sale department when changes SPO2 probe. -
Page 18: Installation Of The Software
Installation Of The Software Computer requirements Pentium IV 1.8G or more Operation System:Windows XP Pro or newer EMS memory: 256M more Hard Disk: 40G or more Display: 17 inch or more CD-ROM USB: 2.0 or newer Resolution of printer: 600 DPI Installation Of Software 1.Place the CD-ROM in the CD-ROM compartment located on your computer. -
Page 19: Error Message
Error Message Error message will be displayed in the screen if there is something wrong when measuring. The causes and solutions are shown as follows: Error Message Causes Solutions Self-test failure Function abnormal Please contact us System failure Cuff is not connected Loose cuff Correctly connect cuff (refer to 8 page) correctly. -
Page 20: Troubleshooting
TROUBLESHOOTING Abnormal Causes Solutions Phenomenons Correctly connect cuff (refer to 8 Cuff is not connected correctly. page) BP measurement Talk or move arms when Keep quiet and restart a values too high or measuring measurement too low. The turnup clothing presses the Take off the clothing which presses the arm, and restart a measurement Cuff leakage... -
Page 21: Clean And Maintenance
Clean And Maintenance *Please follow the instructions in the user manual. If you do not comply, our company will not assume responsibilities of the quality. Frequently clean the Blood Pressure monitor. If there is something dirty on the device, clean it with a soft dry cloth. ... -
Page 22: Specification
Specification Name Blood Pressure Monitor Model CONTEC08A Harmful liquid proof Ordinary equipment (sealed equipment without liquid proof) degree Display 2.8'' color LCD Display NIBP Specifications Measurement Method Oscillometric method Working modes Manual, Automatic Pressure：0~290mmHg（0~36.0kPa） Measurement Range Pulse：40~240/min Resolution Pressure 1mmHg... - Page 23 Spo2 Measurement Range: 35%~ 100 % Measurement Accuracy: 70% ~ 100% ±2 % Pulse Measurement Range: 30 ~ 250bpm Manufacturer: CONTEC MEDICAL SYSTEMS CO., LTD SOUTHEASTERN MEDICAL SUPPLY, INC Address: 1024 Wildwood Centre Dr. Ste A, Columbia, SC 29229 Tel: 803-233-3691 Fax: 803-233-6140 E-mail: inquiries@semedicalsupply.com...
