Summary of Contents for Theben PresenceLight 180A-KNX series

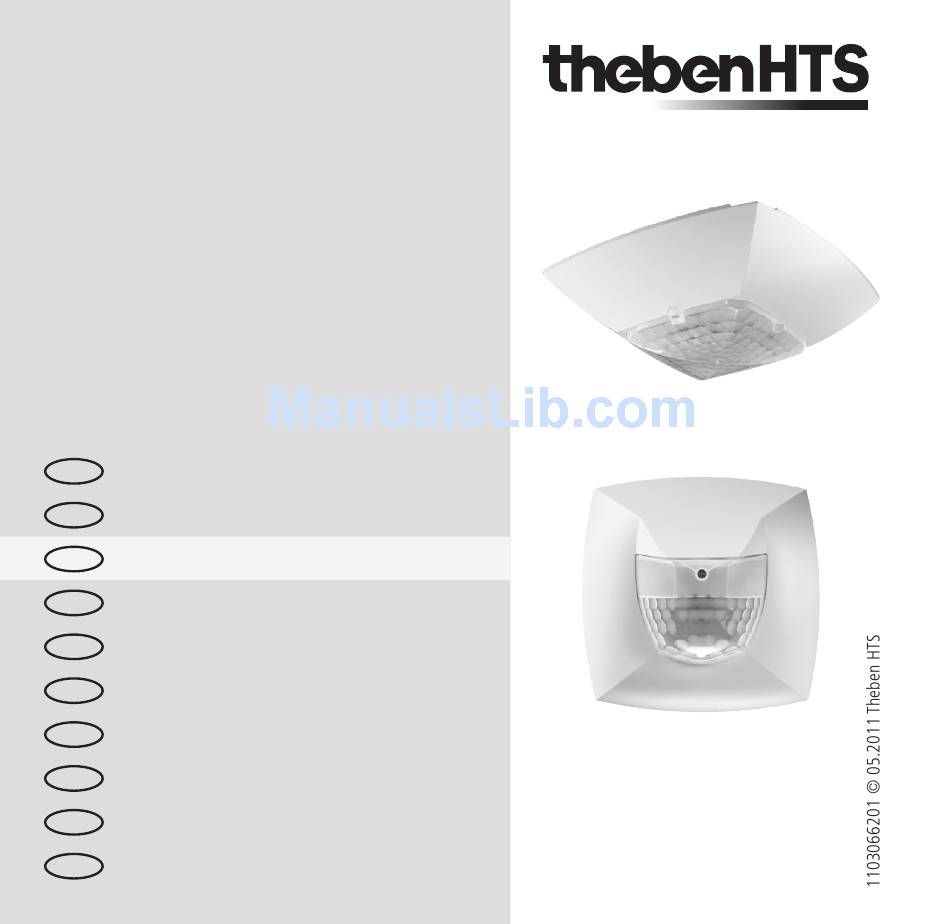

Page 1 Presence detector PresenceLight 180A-KNX .. PresenceLight 360A-KNX .. PresenceLight 180B-KNX .. PresenceLight 360B-KNX .. Bedienungsanleitung Notice d´utilisation Operating Manual Manual de instrucciones Istruzioni per l´uso Gebruikshandleiding Bruksanvisning Bruksanvisning Käyttöohje Betjeningsvejledning...
Page 2: Table Of Contents
English Operating Manual Presence detector PresenceLight 180A-KNX .. PresenceLight 360A-KNX .. PresenceLight 180B-KNX .. PresenceLight 360B-KNX .. Table of contents 1. Safety ....63 7.
Page 3: Safety
1. Safety Familiarise yourself with the presence detecors PresenceLight 360 KNX and Pres- enceLight 180 KNX before assembly and startup by reading this operating instruc- tions. CAUTION! The unit requires no maintenance. Opening the unit or inserting foreign bodies into it will invalidate the warranty. 1.1 Designated use The presence detector is intended for indoor installation.
Page 4 ● Control of one or two lighting groups ● Switching or constant light control with stand-by function ● Fully or semi-automatic function mode ● Presence channel with switch-off delay and switch-on delay time ● Channel monitoring with manipulation protection ● Channel brightness (Lux) ●...
Page 5 2.1 Control type Switching The lighting switches on in case of presence and insufficient brightness, and off in case of absence or sufficient brightness. Constant Light Control In Constant Light Control mode, the brightness is constantly maintained at th pre- set value.
Page 6: Location
3. Location 3.1 Detection Range PresenceLight 360x-KNX The ideal mounting height is 2,0–3,0 m. The sensitivity of the detector decreases with increasing mounting height. In order to ensure proper detection of persons, the PresenceLight 360x-KNX requires an unobstructed “view” of the persons. Of- fice equipment, plants, suspended lamps etc.
Page 7 PresenceLight 360x-KNX PresenceLight 180x-KNX 2,2 m...
Page 8 3.3 Light measurement The detector measures artificial and daylight that is reflected directly below the detector (aperture ± 30°). The surface brightness below the installation site is used as a lighting level reference. Switching With indirect lighting, the artificial light at the detector installation site must not exceed 2000 Lux (with brightness value >200 Lux ).
Page 9: Installation
4. Installation 4.1 General fitting Flush-mounting The presence detector will be flush mounted into a concealed housing. The enclosed set of seals is to be used for IP 54 installation. Surface-mounting A suitable frame for surface mounting is also available. If the surface-mounting seal set is used for surface mounting, the detector will also comply with protec- tion class IP 54.
Page 10 Surface-mounting IP 40 A suitable frame for surface mounting is also available. The surface-mounting frame is prepared for cable feed-through with metric cable glands (M16 or M20). 4.3 Protection Class IP 54 Device types: PresenceLight 180B-KNX .. , PresenceLight 360B-KNX .. ...
Page 11: Start-Up
5. Start-up 5.1 Settings All settings are adjusted using ETS. See ‘KNX handbook PresenceLight 180 KNX / PresenceLight 360 KNX’ document (application description). The management remote control SendoPro 868-A is optionally available for sup- port during the installation. The SendoPro 868-A can be used to adjust and op- timise parameters.
Page 12: Operation Mode
Activation Description Powerup Press and hold the program button while switching on the bus voltage. 5.5 Operation mode The PresenceLight 180x-KNX and PresenceLightx-360 KNX have 3 operation modes: ● Normal ● Test presence (page 75) ● Test light (page 77) 5.6 Switch-on behaviour After every time the bus voltage is switched or the parameters are downloaded by ETS, the detector runs through its start-up phase (indicated by LED).
Page 13: Alterable Parameters Via Remote Control
6. Alterable parameters via remote control The following parameters can be adjusted and optimised via the management re- mote control SendoPro 868-A for support during installation as well as servicing.  This adjustment of parameters does not change the settings in ETS.
Page 14 6.2 Brightness level channel A light Brightness level define the minimum brightness required. Current prevalent bright- ness is measured below the presence detector. If the prevalent brightness is below the setpoint value, the light will switch on as long as presence is detected (with function mode fully-automatic).
Page 15: Test-Mode
If setting values for brightness <= 2.5 AND switch-off delay time light <= 2 min: faster response to changes in actual brightness when in operating mode switching of one lighting row. 7. Test-Mode The PresenceLight has two test modes. ● Test presence, page 75 ●...
Page 16 LED display Description channel status With absence (LED off) open both channels after 15 sec. Test response - Deactivate brightness measurement, light output does not react to brightness - Detector does not respond as in fully-automatic function mode, also if semi- automatic is set.
Page 17 7.2 Test lighting The test mode test light serves to monitor the brightness set point value (bright- ness threshold). - Test lighting «On» with the management remote control SendoPro 868-A Activate - via bus object (34) The test lighting can always be activated. Terminate With subsequent restart: - Test lighting «Off»...
Page 18 remote control SendoPro 868-A: - Terminate test lighting - Change alternative brightness level A - Change brightness set point channel A light - Activate test presence The presence detector resets after the test mode has terminated. Do not get the presence detector to switch by means of a flash light. The presence detector will learn this and thus falsify the adaptive threshold settings and and the hysteresis.
Page 19: Control Commands
8. Control commands The following control commands are available with the management remote control SendoPro 868-A: Programming mode Activating the programming mode Teach-in channel A The actual measured brightness value is applied to the brightness level channel A. Transfer is made to current active brightness set point value. That is, if the alternative brightness set point value is switched to, the current measured brightness value [lux] is transferred to the alternative brightness set point value via the teach-in command.
Page 20: Troubleshooting
9. Troubleshooting Fault Cause Light does not switch on and/or off Lux value is set too low; detector set on semi-automatic; when presence and darkness light was switched off manually via push-buttonor or with SendoClic; person not within detection range; obstruction(s) interrupting detection;...
Page 21: Led Display
9.1 LED display Description Blinking in 1 second The presence detector is in the start-up phase. See page 72. tact Flickering during The command sent from the management remote via infrared is rejected by 3 sec the presence detector. Is the request consistent with the setting in the presence detector, the detector confirms.
Page 22: Technical Data
10. Technical data PresenceLight 360x-KNX Detection range horizontal 360º vertical 120º Recommended mounting height 2.0 m–3 m Maximum range 6 x 6 m (Mh 2.5 m) 8 x 8 m (Mh 3.5 m) PresenceLight 180x-KNX Detection range horizontal 180º Recommended mounting height approx.
Page 23 PresenceLight 360x-KNX, PresenceLight 180x-KNX All settings can be set remotely see KNX handbook Presence- Light 180 KNX / PresenceLight 360 KNX Light measurement Mixed light Brightness range approx. 5–2000 Lux Light measurement deactivated Measurement off Light switch-off delay time 30 s–60 min Presence switch-off delay time 10 s–120 min Presence switch-on delay...
Page 24 Article numbers PresenceLight 180A-KNX WH, IP 40, white IP 40 200 9 051 PresenceLight 180A-KNX BK, IP 40, black IP 40 200 9 821 PresenceLight 180A-KNX SR, IP 40, silver IP 40 200 9 822 PresenceLight 180B-KNX WH, IP 54, white IP 54 200 9 050 PresenceLight 180B-KNX BK, IP 54, black...
Page 25 Article numbers Surface frame PresenceLight 40WH, IP 40, white 907 0 606 Surface frame PresenceLight 40BK, IP 40, black 907 0 607 Surface frame PresenceLight 40SR, IP 40, silver 907 0 608 Surface frame PresenceLight, incl. gasket set IP 54, white 907 0 513 Surface frame PresenceLight BK, incl.
Page 26: Warranty Declaration
11. Warranty declaration Theben HTS presence detectors are manufactured and tested for quality with greatest of care and most modern technology. Theben HTS AG thus guarantees smooth function with correct use. Should a malfunction appear, Theben HTS AG guarantees within the scope of the General Terms and Conditions: Please notice specifically: ●...
Page 27 Dimensions PresenceLight 360x-KNX 45,7...
Page 28 Dimensions PresenceLight 180x-KNX 40,5...
Page 29 Dimensions surface Frame for PresenceLight 360x-KNX, PresenceLight 180x-KNX CE declaration of conformity This device complies with the protection regulations of the EMC direc- tive 2004/108/EC Subject to alteration and printing errors.
Page 30 Fax +49 (0) 74 74 692 - 207 hotline@theben.de Theben HTS AG Im Langhag 11, CH - 8307 Effretikon Tel. +41 (0)52 355 17 00 Fax +41 (0)52 355 17 01 www.theben-hts.ch Please find the contact addresses for additional countries on www.theben.de...
