Summary of Contents for GoShockFree F200

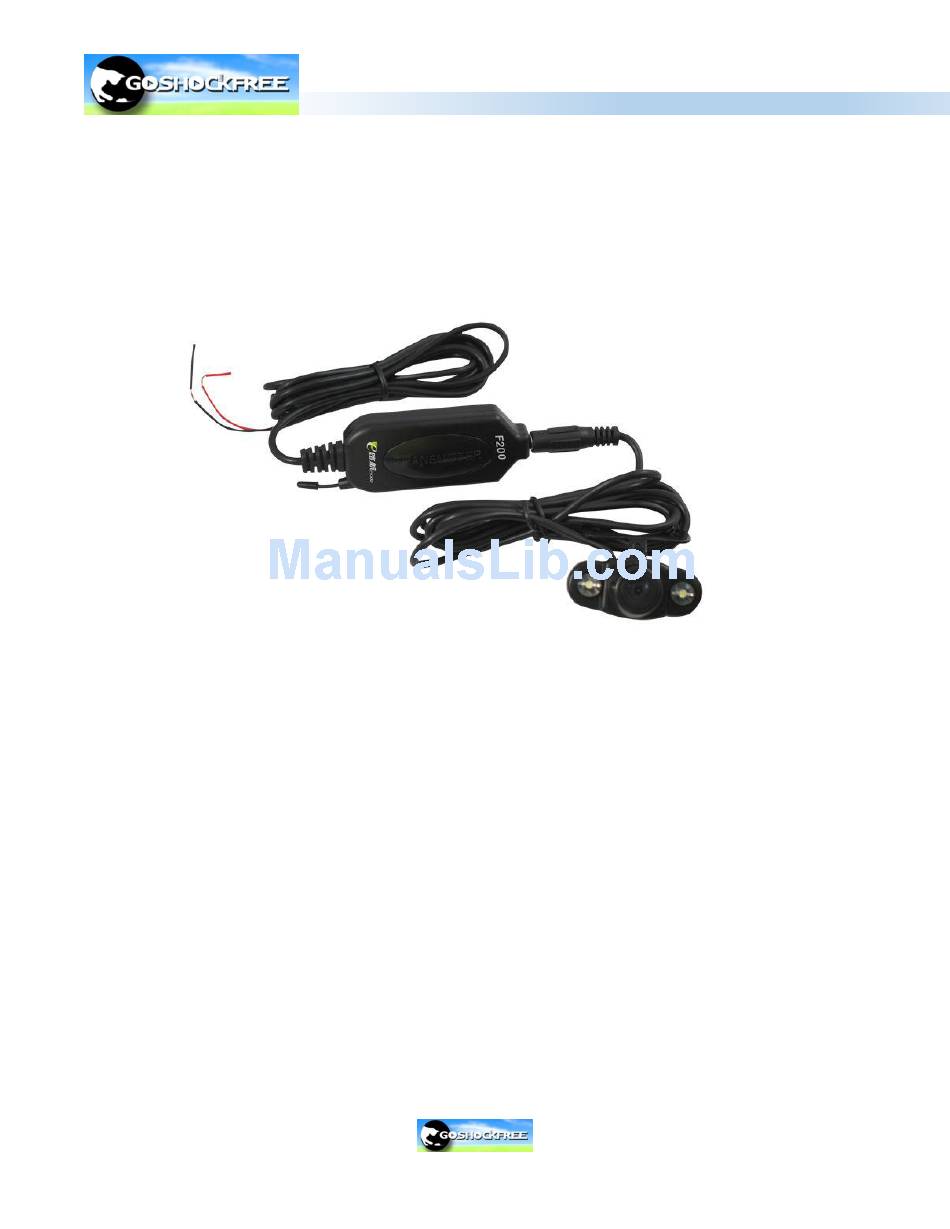

- Page 1 Installation guide for reverse camera http://www.goshockfree.com Reverse Camera Installation P a g e...
- Page 2 Contents Overview ............................ 3 Safety Information ........................3 Package Contents ........................4 Installation ..........................5 Positioning ..........................7 Reverse Camera Installation P a g e...
- Page 3 Overview —————————————————————— The Backup Camera System is intended to be installed as a supplement aid to your standard rear view mirror that already exists in your vehicle. The Backup Camera System should not be used as a substitute for the standard rear view mirror or for any other mirror that exists in your vehicle.
- Page 4 Package Contents —————————————————————— 1. Reverse Camera 2. Transmission Module 3. Receiving Module Reverse Camera Installation P a g e...
- Page 5 Installation IF YOU ARE UNSURE OF THE INSTALLATION PROCESS PLEASE SEEK PROFESSIONAL INSTALLATION. IT IS LIKELY THAT YOUR LOCAL AUTO ELECTRICS OR MECHANIC WILL INSTALL YOUR REVERSE CAMERA FOR A NOMINAL FEE. 1. Locate the reverse taillights wiring behind your reverse light. You may need to remove the interior panel in order to locate.
- Page 6 6. Connect the camera cable to the transmitter 7. Plug the receiver into the GPS/Monitor unit and ensure there is power running to this unit. 8. While sitting in the driver’s seat, place the car into reverse. The monitor should turn on and show an image of the reverse camera. Please ensure the camera has been placed in such a way that it is perpendicular to the centerline of the car.
- Page 7 Positioning —————————————————————— Figure 1 Reverse Camera Installation P a g e...
