Summary of Contents for NS FUZZ
- Page 1 FUZZ...
- Page 3 Integrated seat clamp installation Rear wheel mounting & cs length adjust Adjusting the brake adapter External cable routing Internal cable routing Accessories Tightening torque Maintenance & periodical safety checks Box contains NS BIKES warranty Proof of purchase – warranty card...
- Page 4 FUZZ WARNINGS AND IMPORTANT INFORMATION ATTENTION: Please read this manual carefully. It contains important safety information! WARNING: Extreme riding is a very dangerous sport; it requires an amazing amount of skill. By engaging in this type of activity, you are accepting the risk of possible injury or even death. Even the best bike will not help you land a clean trick if you lack the skills.
- Page 5 Improving skills takes time and practice. Protect your bike from theft. Purchase a lock and never leave your bike unlocked while unattended, even if you are planning to be away from it for just a few minutes. MACIEK KUCBORA NS PRODUCT DEVELOPER PLANAI, AUSTRIA...

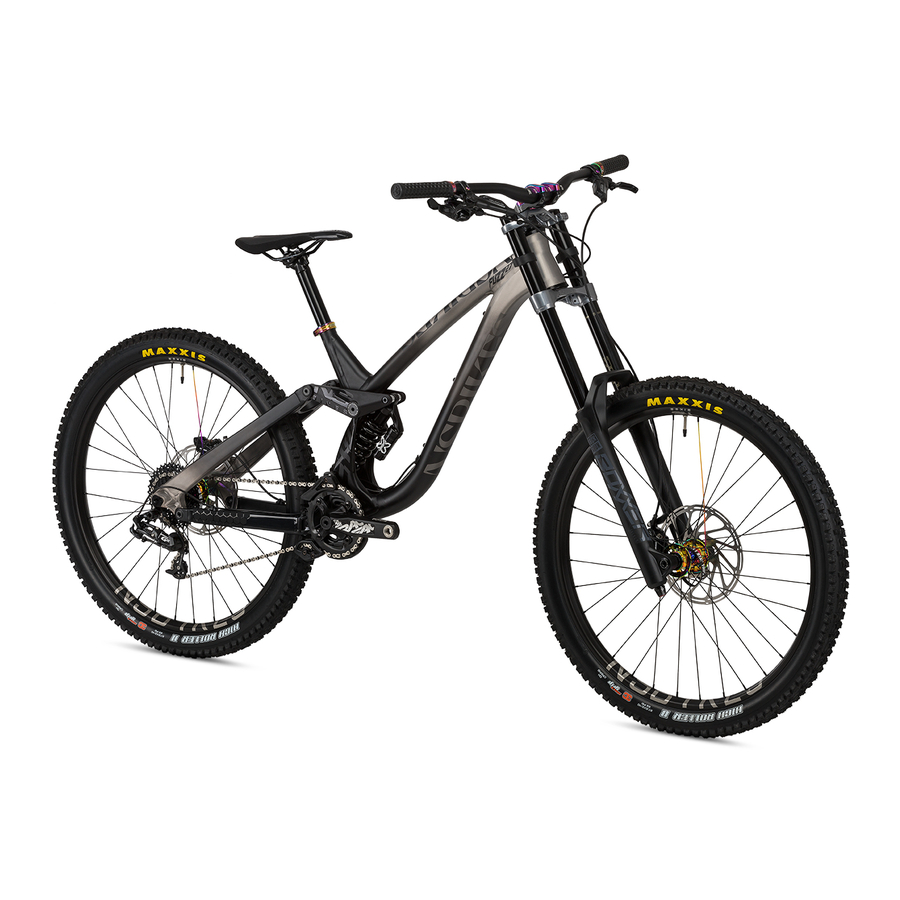

- Page 6 FRAME CONCEPT & INFORMATION The Fuzz is a true DH machine build to compete with the best in the pits, yet it is still a modern do-it-all rig for any gravity as- sisted riding. The frame has been raced by our specially assigned R&D team, thrashed by one of the most vicious freeriders - Jaws, and then fl...
- Page 7 FUZZ GEOMETRY METRIC EFFECTIVE TOP TUBE S: 595mm/M: 620mm/L: 640mm REACH S: 405mm/M: 430mm/L: 450mm SEAT TUBE S: 399mm/M: 399mm/L: 420mm SEAT TUBE EFFECTIVE ANGLE HEAD TUBE ANGLE 63.5° 72° BB HEIGHT +10.0mm CHAIN STAYS 420-438mm WHEEL BASE S: 1173mm-1188mm/M: 1198mm-1213mm/L: 1218mm-1233mm...
-
Page 8: Exploded View
FUZZ EXPLODED VIEW Integrated seatclamp Seat stay Rocker arm Front triangle Chain stay Frame main parts Kit 7 Kit 6 Dropouts parts... - Page 9 FUZZ Kit 4 Kit 4 Kit 3 Kit 4 #6801 Kit 4 #6801 #6801 #6801 Kit 3 Kit 1 Kit 1 Kit 5 #6801-12x21x5 #6002 #6002-15x32x9 Rear triangle parts #6002 Kit 5 Kit 4 Kit 4 Kit 4 Kit 3...
-
Page 10: Suspension Settings
*Please note that headsets with OD55 mm bottom cups or other internal headsets won’t fit. Only headsets with a bottom cup with 56m OD will work with the FUZZ frame. The use of a wrong type of headset can be dangerous & can damage the frame. - Page 11 Edges parallel with seat post REAR WHEEL MOUNTING AND ADJUSTING THE CS LENGHT The FUZZ frame is compatible with 157x12 thru-axle hubs that work with adjustable chainstay length systems. For proper rear wheel installation and adjustment of the chainstay length please follow the instructions: - choose the chainstay length by fl...
-
Page 12: Internal Cable Routing
The rear shock has to be disassembled for this operation. INTERNAL CABLE ROUTING The Fuzz frame has an option of running the cables inside the frame. In order to avoid damage of the cables and the steertube we added a kit of protectors for internal routing (see Fig. 1): -Headtube groomets (2pcs) -Steertube protectors (2pcs: each one working with specific standard:: 1&... - Page 13 FUZZ internal external both Fig. 4 Internal routing brake outlet and routing/ External routing internal external both Fig. 5 Internal routing derailleur outlet and routing/ External routing...
- Page 14 FUZZ ACCESORIES: The Fuzz comes with: - neoprene Chain Stay protector - set of self-adhesive protective foil - shock fender The neoprene CS protector should be placed over the rear-derailleur cable to protect it and the frame from the chain.
-
Page 15: Tightening Torque
FUZZ TIGHTENING TORQUE Correct tightening forces on fasteners, nuts, bolts, screws on your bicycle are crucial. Too little force, and the fastener may not hold securely. Too much force, and the fastener can strip threads, stretch, deform or break. Either way, incorrect tighten- ing force can result in component failure, which can cause you to loose control and fall. - Page 16 FUZZ MAINTENANCE & PERIODICAL SAFETY CHECKS DO NOT RIDE THE BICYCLE IF IT YOU SEE ANY DEFECTS. Take care of your frame and you will enjoy it for a longer time. Before every ride you should always make a pre-ride check. It...
-
Page 17: Box Contents
FUZZ BOX CONTENTS: - FUZZ frame - 157mm NS thru axle - headset (2 crown races, 2 top caps) - NS shock hardware - internal cableguide kit - shock fender - neoprene CS protector - set of self-adhesive protective foil... - Page 18 FUZZ NS BIKES WARRANTY 1. 7ANNA sp. z o.o. sp. k. (hereinafter on referred to as 7ANNA), manufacturer of NS Bikes, warrants all new full suspension frames for a period of 3 years. 2. If any defects are noticed in the product, the Customer must stop using it immediately and should report this to the dealer that sold it within 14 days.
- Page 19 FUZZ Frame model : ....................PROOF OF PURCHASE - WARRANTY CARD Frame serial number : ....................Shock serial number (if any) : ....................Price : ....................Date of purchase : ....................Dealer’s stamp I certify that I am acquainted with the actual specifi cation of the bicycle (this can be slightly diff erent than that published by the distributor).
- Page 20 FUZZ...
