Summary of Contents for Romet 4E

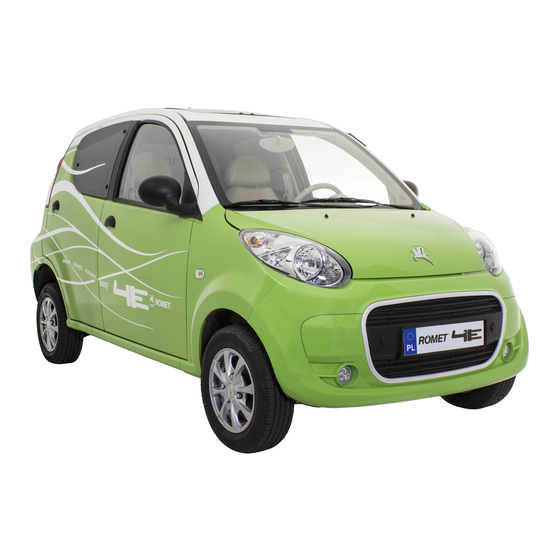

- Page 1 ROMET 4E Electric Vehicle Instruction Manual ROMET 4E Electric Vehicle Instruction Manual...
- Page 2 ◆ The nonstop improvement of the car structure, configuration and part performances ensures safety and high quality of Romet products. Although due care has been taken to make this publication as complete and accurate as possible, it can still be subject to alteration. ROMET MOTORS reserves the right of changes without any notices, and special attention is required for the fact that any data, illustrations or descriptions in this Manual are prohibited to be regarded as evidence for indemnity claim.
- Page 3 ROMET 4E Electric Vehicle Instruction Manual Contents Main Technical Parameters General Indicating Diagram and Instrument Cluster of Entire Car III. Operation Procedures for New Car Instrument Cluster Appearance Seat and Door On/Off Operations of Front & Rear Engine Bonnet VII.
- Page 4 ROMET 4E Electric Vehicle Instruction Manual Key Notes I. Important notes for this Manual The symbols used in this Manual represent as follows： This symbol represents a special device or a kit or attachment for the other purposes, while it may not be installed in this product;...
-
Page 5: Specifications
ROMET 4E Electric Vehicle Instruction Manual Main Technical Parameters SPECIFICATIONS ㎜ OVER-ALL DEMENSIONS (L*W*H) 3090 × 1420 × 1480 ㎜ WHEELBASE 2170 ㎜ TRACK FRONT/REAR 1215/1235 ㎜ MIN GROUND CLEARANCE（FULL LODED） ㎜ MIN TURNING RADIUS 4440 APPROACHING ANGEL DESCENT ANGEL... - Page 6 ROMET 4E Electric Vehicle Instruction Manual Power assembly 1. Type of drive: rear axle drive 2. AC motor parameter as follows: Model No. YJM-XYQ-5-4 Power 5 kw Voltage Quota 60 min Current 104A Speed 3000r/m Excitation Insulation Class AC asynchronous...
- Page 7 ROMET 4E Electric Vehicle Instruction Manual 4. The arrangement of the battery pack in the car body is as follows: 5. Batteries are supplied in the front compartment tray while 4 in the rear compartment. 6. The model no. of AC motor controller: G8035, voltage 72V and in series Model No.
- Page 8 ROMET 4E Electric Vehicle Instruction Manual General Indicating Diagram and Instrument Cluster of Entire Rear combination light 16 Rear view mirror Rear window 17 Rear wheel Front seat 18 Exterior door handle Antenna 19 Door ourer handle Sun roof 20 Hook hole...
- Page 9 ROMET 4E Electric Vehicle Instruction Manual Right ventilation adjustment knob (for decoration) Right loudspeaker Inner rear-view mirror and reading light Radio Windscreen wiper and washing switch Combination instrument Left loudspeaker Left ventilation adjustment knob (for decoration) Front light combination switch and turn signal light...
- Page 10 ROMET 4E Electric Vehicle Instruction Manual 1 Preparing switch 2 Preparing switch 3 Emergency warning flasher switch 4 Heater switch 5 Ignition switch 6 Parking lever 7 Assistant instrument cluster 8 Shifting lever 9 Power socket 10 High vs low speed switch...
- Page 11 ROMET 4E Electric Vehicle Instruction Manual III. Operation Procedures for New Car Notes before using the new car For a new car, large friction force occurs among running components as car traveling. As running-in of the components, the friction force will gradually reduce. The following notes are proposed for traveling under 3000km and with the use of these notes, better operational capacity and economy will be gained after the car running-in.
- Page 12 ROMET 4E Electric Vehicle Instruction Manual voltmeter and electricity meter are ample or not. The key shall not be left in the car with no one or only kids. 3. Start-up operation of Electric Vehicle The Electric Vehicles can be divided into two pursuant to high and low speeds: one is Electric Vehicle with low-gear transmission;...
- Page 13 ROMET 4E Electric Vehicle Instruction Manual it is neutral position. At this time, even slowly position, and the car will travel after engaging the And this gear can realize reversing the car (the engaging the accelerator, this car cannot travel.
- Page 14 ROMET 4E Electric Vehicle Instruction Manual Do not shift into high gear or low gear during accelerating. The transmission will be damaged unless you move your foot away from the accelerator pedal before change gear. Forwarding and reversing of the car are subject to the switch of “forward” and “reverse”. Move your foot away from the accelerator pedal during switching forward gear and reverse gear! Otherwise an accident will take place.
- Page 15 ROMET 4E Electric Vehicle Instruction Manual III. Instrument Cluster Appearance 1. Speedometer and odometer The speedometer shows the speed in km/h, while the odometer shows the traveled mileage of the car in km. The LED odometer is installed in the car, with the upper line of mileage and the lower line of traveled distance.
- Page 16 ROMET 4E Electric Vehicle Instruction Manual LEFT/RIGHT TURN INDICATOR The turn signal indicator is a green signal light installed on the instrument cluster; the blinking represents the turn signal light is working. If the blinking frequency is too high or no blinking, please repair the light; if no illumination as the turn switch is open, please repair fuse, lamp and flash relay.
- Page 17 ROMET 4E Electric Vehicle Instruction Manual Voltmeter Scale Value Permissible ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± ± tolerance Ampere meter Scale (from 5 (alarming left to right) point) Percentage 100% 1. When the value in the voltameter is above 85%, this car can be traveling on the road;...
- Page 18 ROMET 4E Electric Vehicle Instruction Manual This condition means turning off all This condition is to turn on the lights. This condition is to turn on the This condition is to turn on the lights. headlight, switching between parking light.
- Page 19 ROMET 4E Electric Vehicle Instruction Manual Vertically swing the control lever in the left-right direction as shown in above figures can realize: 1. Turn off the current headlight; and when the left lever is pushed upward, the temporary high-beam will light up (giving the overtaking signal). As the signal pole is released, the signal will stop.
- Page 20 ROMET 4E Electric Vehicle Instruction Manual Alarming flasher switch If this switch is turned on, all the turning signal lights will blink and light up; press this switch to turn off all lights. When parking the car in the place of potential accidents, if necessary, the alarming flasher must light up to...
- Page 21 ROMET 4E Electric Vehicle Instruction Manual Steering wheel Rearview mirror When you want to change the angle of To adjust the rearview mirror just for viewing the sides the steering wheel, clench the steering of the car in the exterior rearview mirror.
- Page 22 ROMET 4E Electric Vehicle Instruction Manual Automotive radio / MP3 player 1.Power switch/tone mode button Shortly press the power switch to start up; another press to shut down; long press the button to switch among the following five tone modes: BAS/TRE/BAL/DSP OFF/VOL. Use this button with volume button to regulate the tone mode.
- Page 23 ROMET 4E Electric Vehicle Instruction Manual Main electric switch The Main electric switch is in the storage box, to the bottom, of the passenger seat. Please cut off the power source when checking the electric vehicle electric appliances or short circuit suddenly happens. When the main electric switch trips, and no malfunction is found after the emergency maintenance, please wait for 3—5...
- Page 24 ROMET 4E Electric Vehicle Instruction Manual V. Seat and Door 1. Seat Adjust the driver’s seat manually. Try to move the seat with your own body to make sure that the seat is fixed in place. The back seat adjusting handle is on one side of the...
- Page 25 ROMET 4E Electric Vehicle Instruction Manual the sudden move of the seat. Thus, do adjust the driver’s seat only when the car is out of driving. 2. Safety belt (optional) If you run into car accident without wearing the safety belt, you may get serious hurt. You may run into some part of the car, or be kicked back, or get serious hurt, or even die in the similar car accident.
- Page 26 ROMET 4E Electric Vehicle Instruction Manual d. Push the buckle into the retaining ring until a “clatter” is heard. Pull the buckle to make sure that the belt is fixed in place. The release button shall be in such a convenient position where you can pull the buckle out at any time.
- Page 27 ROMET 4E Electric Vehicle Instruction Manual Dead lock Front and rear door glass 1. Front door glass The front door glass can be lifted manually. Turn the lifter handle in clockwise and the glass will rise; or vice versa. 2. Rear door glass The rear door glass is only of open/close type which cannot be lifted and only the ventilation seam can be opened.
- Page 28 ROMET 4E Electric Vehicle Instruction Manual VI. On/Off Operations of Front & Rear Engine Bonnet 1. The buckle of the front engine bonnet is on the bottom 2. Gently pull up the buckle of the front bonnet 3. The spring hook inside the front bonnet is still left of the steering wheel.
- Page 29 ROMET 4E Electric Vehicle Instruction Manual 4. It is the front engine bonnet and must be lifted up with 5. Insert the end of the carriage into the socket of immediately and close the engine bonnet. both hands to detach the support bracket.
- Page 30 ROMET 4E Electric Vehicle Instruction Manual VII. Charging The charging machine is under the tail lamp. Open the covering of the charging port. Open the cover of the charging machine. 1. When you need charging, insert the plug into the plug base and then connect the power plug to the 220V power.
- Page 31 ROMET 4E Electric Vehicle Instruction Manual VIII. Motor and Controller 1. Motor (1) A part of the motor heat is transmitted through the motor case. So keep the motor case clean. (2) The motor must cool down naturally if it is too hot.
- Page 32 ROMET 4E Electric Vehicle Instruction Manual temperature will be too high which will influence the charging process. The air ventilation must be smooth. Don’t cover anything to avoid temperature rise and damage of the internal components. Don’t charge the bad battery or non-chargeable battery.
- Page 33 ROMET 4E Electric Vehicle Instruction Manual 2. Please go to the authorized sales service store to replace the wiring harness of the controller if there is abrasion. 3. If the car will be parked for a long time, charge and release for a time every week and it will increase the battery life.
- Page 34 ROMET 4E Electric Vehicle Instruction Manual X. Basic Maintenance & Parts Replacement 1. Personal maintenance If you repair your car without knowing much about the car, your car may be damaged. Make sure that you have adequate knowledge and experience to replace the parts or use tools correctly before trying to do any maintenance by yourself.
- Page 35 ROMET 4E Electric Vehicle Instruction Manual 5. Replacement of bulbs (1) Headlamp bulb replacement steps: a. Open the front chamber cover b. Loose the compressed spring of the lamp bulb covering cap and take off the cap c. Loose the fixed snap ring on the lamp d.
- Page 36 ROMET 4E Electric Vehicle Instruction Manual 7. Replacement of windshield wiper blade a. Cut off the ignition switch when the wiper is in the most outside position where will be easier for the removal or replacement of the blade. b. Pull away the wiper from windshield c.
- Page 37 ROMET 4E Electric Vehicle Instruction Manual The name plate is in the place as shown in the picture. 11. Emergency 1. tire burst When the tire-changing is needed because of puncturing first of all, we need to follow the safety cautions: turn on the hazard warning flashlight. Pull the car over the non-vital communication line, or over the level area where will not cause any damage to you and your car.
- Page 38 ROMET 4E Electric Vehicle Instruction Manual 2. The use of jack (1) Place the jack under the strong point of the vehicle, and hook one end of the screw rod with the hook at front-end handle, then one hand on the jack handle, the other cranking, ultimately the jack will raise gradually.
- Page 39 (1) Hauling premise Hauling must be in accordance with the relevant local regulatory. Romet motors suggest you haul your car by the maintenance personnel; incorrectly hauling will increase the risk of accidents. (2) Hauling cautions Use proper facilities so as to prevent any damage to the vehicle while hauling. The transmission and steering mechanism must be able to function properly. Use applicable haulage chain.
- Page 40 ROMET 4E Electric Vehicle Instruction Manual b. Do not add extra vehicles to haul one vehicle. The traction of hauling vehicle include the traction of the trailed vehicle, the total traction is larger than the weight of the trailed vehicle, the pot hole or wallow will put drag on the hauling, therefore, the traction load increased. The traction load must be minimized.
- Page 41 ROMET 4E Electric Vehicle Instruction Manual c. Hauling as the front wheels off the ground (type D), move the shift (manual transmission) into the “N” (neutral gear). Loosen the hand lever parking brake. D. Hauling as the back wheels off the ground (type E), turn the ignition switch into “ACC”, fix the steering wheel in the middle. Do not turn the ignition switch into “LOCK”.
- Page 42 It had better buy one set of spare fuse for emergency. If the brand new fuse is burst out immediately, then there is a potential problem in the electric system. You need to go to Romet motors special service station to conduct maintenance.
- Page 43 Checking and replacing the fuse can refer to the relevant content of the “check and replace the fuse”. If both the fuse and the bulb are in good condition, please drive your vehicle to the Romet motors special service station to conduct maintenance. Check the maintenance of instrumentation, indicator light/ warning lamp, start the engine to check the function of all instrumentation, indicator light/ warning lamp.
- Page 44 (4) The interior side of headlamps will be covered with a layer of thin mist: this is not an abnormal phenomenon, but very normal under moisture conditions and in low temperature. The light of headlamps will immediately disappear when they are lit. When water drops appear on the inside of headlamps, which indicates the entering of water, ask Romet motors special service station for immediate help.
- Page 45 ROMET 4E Electric Vehicle Instruction Manual (5) Do not use your hand or wear dirty gloves to hold bulbs. The greasy on your hands will affect the next replacement of each bulb. If the surface of bulb glass is stained, alcohol, ethylene etc. is necessary to clean. Remount after it completely dries.
- Page 46 Daily use of the vehicle, general maintenance should be conducted regularly, if you notice any abnormal sound, vibration or odor, check the reasons or rapidly call in the special service station to check. In addition, if you think your vehicle needs repair, please notify Romet motors special service station Unless there are special provisions, the maintenance of items listed as follows should be timely carried out.
- Page 47 ROMET 4E Electric Vehicle Instruction Manual (6) Lamps Check the front combined lamps, rear combined lamps, fog lamps, and other lamps work normally and are securely installed, and check headlamp light beam is aimed. The maintenance mentioned here should be conducted regularly, such as during regular maintenance and vehicle washing and so on.
- Page 48 ROMET 4E Electric Vehicle Instruction Manual (16) Lower parts of car body The lower parts of the car body are often exposed to such things like corrosive materials and sands used to deice the road. Therefore, it is very important to remove these things from the lower car body and otherwise these things will be accumulated on the floor bottom, frame, oil tube and discharge system.
