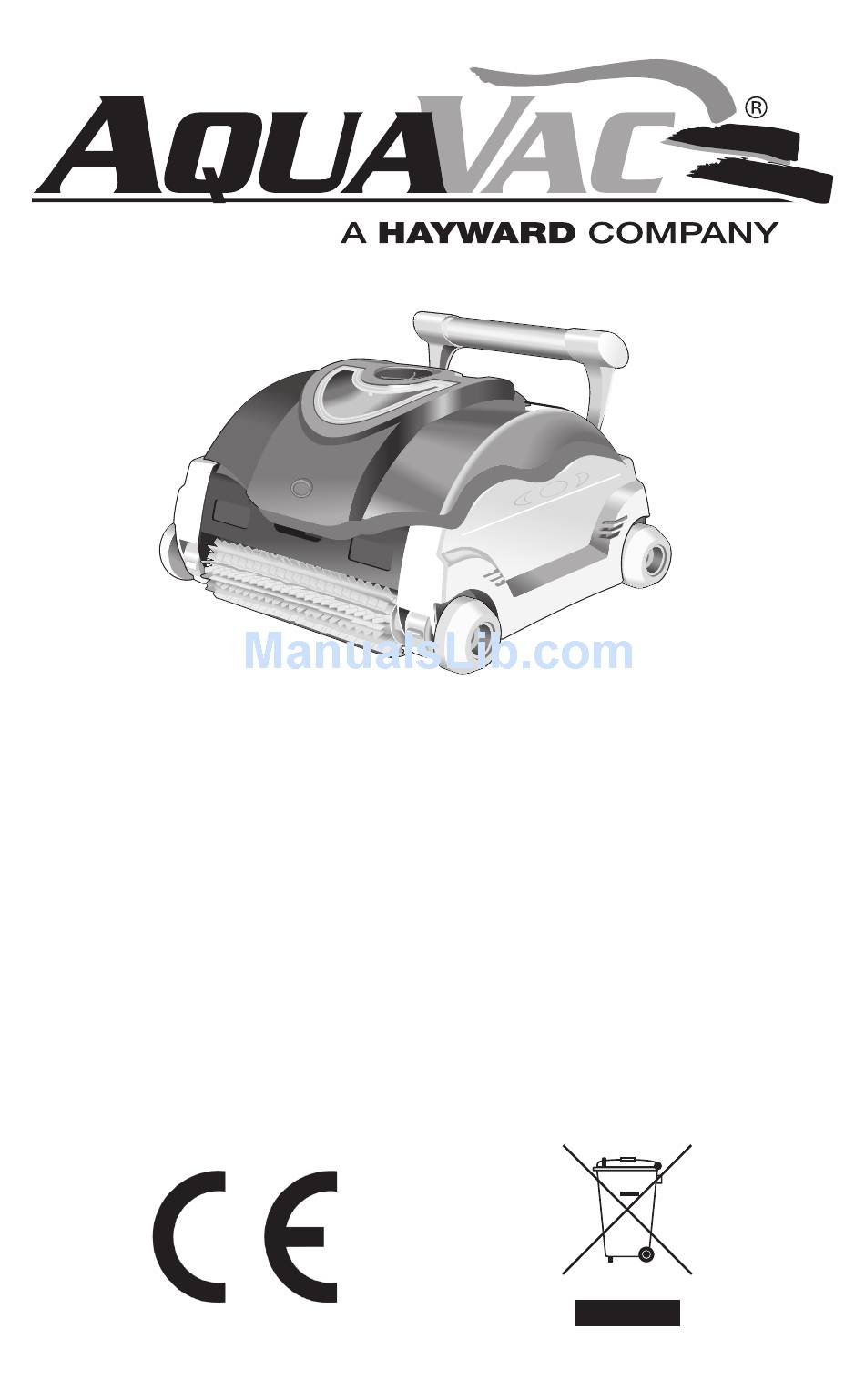

  • Page 1 ISRC9740 - RevA - 09 GUIDE DE L’UTILISATEUR USER’S GUIDE ANWENDER - HANDBUCH GUÍA DEL USUARIO MANUALE PER L’USO GEBRUIKERSHANDBOEK GUIA DO UTILIZADOR BRUKERVEILEDNING ÐÓÊÎÂÎÄÑÒÂÎ ÏÎËÜÇÎÂÀÒÅËss HAYWARD POOL EUROPE - Parc Industriel de la Plaine de l’Ain - Allée des Chênes - 01150 Saint Vulbas - France...

  • Page 2: Important Safety Precautions

    Important Safety Precautions Attention User: This manual contains important information that will help you in operating and maintaining this pool cleaner. Please retain it for reference. WARNING – Before installing this product, read and follow all warning notices and instructions which are included. Failure to follow safety warnings and instructions can result in severe injury, death, or property damage.
  • Page 3 TIPS BEFORE USING YOUR UNIT! Dear AquaVac Owner: Thank you for choosing AquaVac. In order to achieve optimal performance, please read and follow these steps: 1. Allow the cleaner the first 10 minutes of each use to calculate pool size and configuration.

  • Page 4: General Information

    GENERAL INFORMATION. Congratulations on your purchase of a microprocessor controlled, fully automatic pool cleaner. AquaVac represents the highest standard in design, performance, and quality. This manual contains important information regarding the operation and maintenance of your cleaner. PLEASE READ AND fOLLOW ALL INSTRUCTIONS CAREfULLY BEfORE PUTTING YOUR CLEANER INTO USE.
  • Page 5 GENERAL OPERATING INSTRUCTIONS. Take a moment to get familiar with the cleaner using the figure 3. Throughout this manual reference to this figure is made when referring to different components of the cleaner. Fig. 1 Remove the cleaner by placing the carton down and removing it from the box as shown.
  • Page 6 Should a second cleaning cycle be required, switch OFF the power supply for 10 seconds and restart. 7. After the pool has been cleaned, switch OFF the power supply before removing the cleaner from the pool. 8. Remove the cleaner from the water at the shallow end of the pool by pulling the cable until the cleaner reaches the surface.
  • Page 7 Fig. 3 1. Power Supply 8. Wheel Brush 2. Floating Cable 9. Sealed Motor Unit 3. Handle 10. Side Panel 4. On/Off Switch 11. Dome Assy 5. Filter Cartridge 12. Filter Bucket 6. Drive Track 13. Wheel 7. Wheel Tube 14.
  • Page 8 Caddy Cart Instructions - See Diagram - Caddy Cart will come partially assembled in the carton less the handle & tube. - Insert the screw into the tube at the base of the caddy cart & secure with bolt (3) - Insert the handle into the top of the tube &...

  • Page 9: Maintenance

    Maintenance Clean the filter cartridge after each use: Open the cleaner by pressing the lid button and lifting up the dome cover. Remove the filter bucket assembly by lifting it up out of the cleaner with both hands from each side. Flip the bucket assembly over to remove the debris and then rinse with a garden hose to remove small particles.
  • Page 10 To Remove the filter cartridges: Unsnap and lift up both filter door latches Pull out the filter cartridges. Using a garden hose with a spray nozzle, wash the filter elements to remove debris. Hold the filter elements as shown to allow the debris to fall out. Wash the entire filter bucket assembly.
  • Page 11 Snap the filter door latches into place. Return the filter bucket assembly into the cleaner using the diagram shown to determine the front and back. Close the dome and press the lid button to snap dome into place. • Filter cleaning solution can be used to remove excessive dirt and/or sand. Remember: The cleaner your filter is, the more cleaning will be effective.

  • Page 12: Important Tips

    Important Tips • Cleaning the filter cartridge after every use maximizes the unit's performance. • Replace worn brushes. • To avoid clogging the cleaner's filter elements, be sure all chemical powders are fully dissolved before operating the cleaner. • In a pool with usually high calcium content, more frequent cleaning of the filter is recommended.
  • Page 13 Troubleshooting (continued) • The filter bucket is designed to be cleaned with the filters installed for normal clean up. For deep cleaning, the user can remove each filter cartridge and clean separately. • During the normal operating cycle of the cleaner, the handle side of the unit will rise from the pool bottom to allow the unit to clear obstacles, such as elevated main drains and stair steps.

  • Page 14: Specifications

    Specifications Current Consumption 0.78 amp Weight (w/o cable) 9.75 Kg Cable Length, Type 15.24 m Materials High Impact ABS - Metal Parts of Non-Ferous Stainless Steel Motor Unit Pump Drive Speed (rpm) 2 700 Voltage 24 V DC 22 V DC 5 V DC Current (amp) 2.62 A...

  • Page 15: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS This robotic swimming pool cleaner has been manufactured with the highest degree of care and concern for safety. We suggest the following safety precautions become part of your pool safety regulations: SAVE THESE INSTRUCTIONS 1. ALWAYS PUT THE MACHINE INTO THE WATER BEFORE CONNECTINg IT TO THE ELECTRICAL OUTLET.

  • Page 16: Limited Warranty

    Limited Warranty All HAYWARD products are covered for manufacturing defects or material defects for a warranty period of 2 years as of date of purchases. Any warranty claim should be accompanied by evidence of purchase, indicating date of purchase. We would therefore advise you to keep your invoice. The HAYWARD warranty is limited to repair or replacement, as chosen by HAYWARD, of the faulty products, provided that they have been subjected to normal use, in compliance with the guidelines given in their user guides, provided that the products have not been altered in any way, and provided that they have been used exclusively with...
  • Page 17 LARGE TAPERED HOLE SIDE. DETAIL RCX97421 RCX97447 RCX97427 RCX97409 RCX12301 RCX97419 RCX97449 RCX97413 RCX97429 RCX97462 RCX97431 RCX97411 RCX97400 RCX70101 RCX12302 RCX97433 RCX97435 RCX97455 RCX26008 RCX59004 RCX97423 RCX97437 RCX97403 RCX23002 RCX59006 RCX97415 RCX97439 RCX97459 RCX11000 RCX12011 RCX97417 RCX97441 RCX97457 RCX40117 RCX97440 RCX97405 RCX97433 RCX97461...
  • Page 18 HAYWARD POOL EUROPE Parc Industriel de la Plaine de l’Ain Allée des Chênes - 01150 Saint-Vulbas www.hayward.fr France -...
