Summary of Contents for Clare Controls CM-BT10-RX70

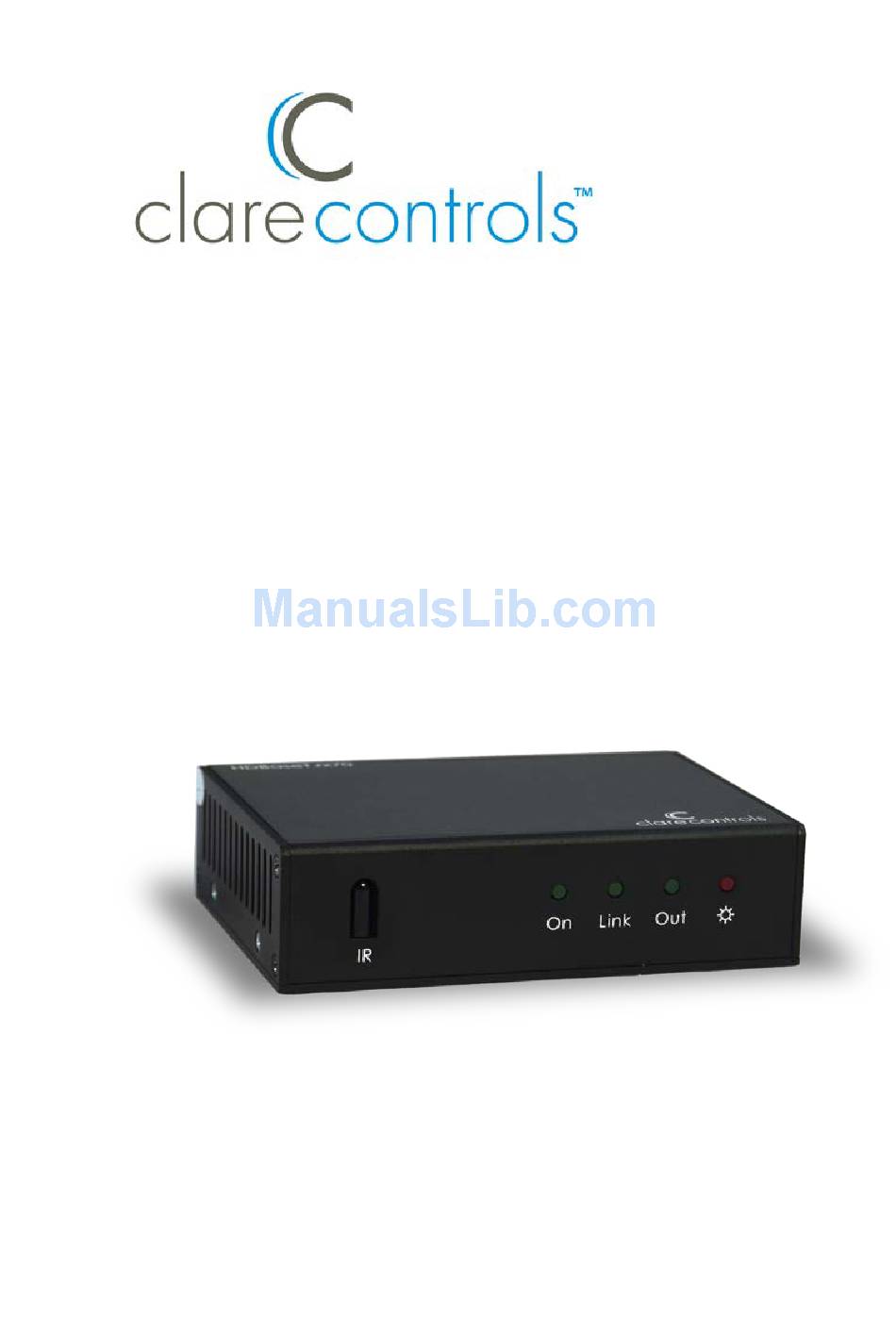

- Page 1 HDBaseT Receiver 70m User Guide Model CM-BT10-RX70 Doc ID 2013-12-351 • Rev 01...
- Page 2 © 18DEC13 Clare Controls, Inc. All rights reserved. This document may not be copied in whole or in part or otherwise reproduced without prior written consent from Clare Controls, Inc., except where specifically permitted under US and international copyright law.
-
Page 3: Table Of Contents
Content Limitation of liability...ii Introduction...1 Features...1 Package contents...1 Product appearance...2 System connection...3 Usage precautions...3 Application examples...3 Connection procedure...5 Application...5 Twisted pair cable connection...6 Specifications...7 Panel drawings...8 Troubleshooting and maintenance...9 ... -
Page 4: Limitation Of Liability
In any event the total liability of Clare Controls, Inc. shall not exceed the purchase price of the product. The foregoing limitation will apply to the maximum extent permitted by applicable law, regardless of whether Clare Controls, Inc. -
Page 5: Introduction
Introduction The CM-BT10-RX70 HDBaseT receiver is designed to work in conjunction with the CM-BT10-TX70 HDBaseT transmitter or an HDBaseT matrix switch, such as the CM-MT4410-BT-70. HDMI signals are input into the transmitter or switch, and HDBaseT technology is used to transmit the signals to the receiver up to 230 ft. (70 m) via a Cat5e/Cat6 cable. -
Page 6: Product Appearance
Note: When an IR receiver connects to this port, the front IR port (1) is unavailable. (9) IR OUT: IR signals received by the CM-BT10-TX70 or CM-MT4410-BT-70 and sent via HDBaseT to the CM-BT10-RX70 are available for IR emitter use from this port. (10) RS232: RS232 connector. Supports bi-directional RS232 communication. -
Page 7: System Connection
CM-BT10-RX70 receiver. Note: When using a control system, such as Clare Controls, Crestron, or URC to transmit IR control to the receiver via HDBaseT, a 3.5mm female mono to 3.5mm male stereo adapter cable must be used. The female mono end connects to the control system;... - Page 8 Example 1: CM-BT10-TXRX70 - HDBaseT Extender Set Example 2: CM-MT4410-BT-70 with CM-BT10-RX70 HDBaseT Receiver 70m User Guide...
-
Page 9: Connection Procedure
HDMI cables. It can be used in both residential and commercial applications when centrally locating the source equipment and displaying HD video in remote locations. The CM-BT10-RX70 must be used in conjunction with a CM-BT10-TX70 transmitter or an HDBaseT matrix switch (such as the CM-MT4410-BT-70), allowing the sharing of source content across multiple displays. -
Page 10: Twisted Pair Cable Connection
Twisted pair cable connection The Cat5e/Cat6 terminations for HDBaseT devices should be a straight thru TIA/EIA T568B standard, as shown below. Table 1: T568B cable standards TIA/EIA T568B Cable color orange white orange green white blue blue white green brown white brown 1st Ground 2nd Ground... -
Page 11: Specifications
Specifications Input Input signal 1 IR, 1 RJ-45 and 1 RS232 Input connector 3.5 mm mini jack, RJ-45, 3p captive screw connector Video signal HDMI 1.4 Audio Digital audio, transmit through HDMI audio Output Output 1 HDMI, 1 IR, 1 RS232 Output connector HDMI female, 3.5 mm mini jack, 3p captive screw connector Video signal... -
Page 12: Panel Drawings
Panel drawings HDBaseT Receiver 70m User Guide... -
Page 13: Troubleshooting And Maintenance
IR signal problems. • When using a control system, such as Clare Controls, Crestron, or other system, a 3.5 mm female mono to 3.5 mm male stereo adapter cable must be used. Connect the female mono end to the control system. Connect the male stereo end to the CM-BT10-TX70 or CM-4410-BT-70. -
Page 14: Safety Operation
Do not locate the device in a place that is abnormally hot or cold or does not have proper temperature control and ventilation. • The CM-BT10-RX70 generates heat when operating. Its environment should be well ventilated to prevent damage caused by overheating. •... -
Page 15: After-Sales Service
After-sales service • If there appears to be problems when using the device(s), refer to the “Troubleshooting and maintenance” section in this manual. Return shipping costs are not covered by this warranty. • You can contact Customer Support at claresupport@clarecontrols.com. Please be ready to provide the following information.
