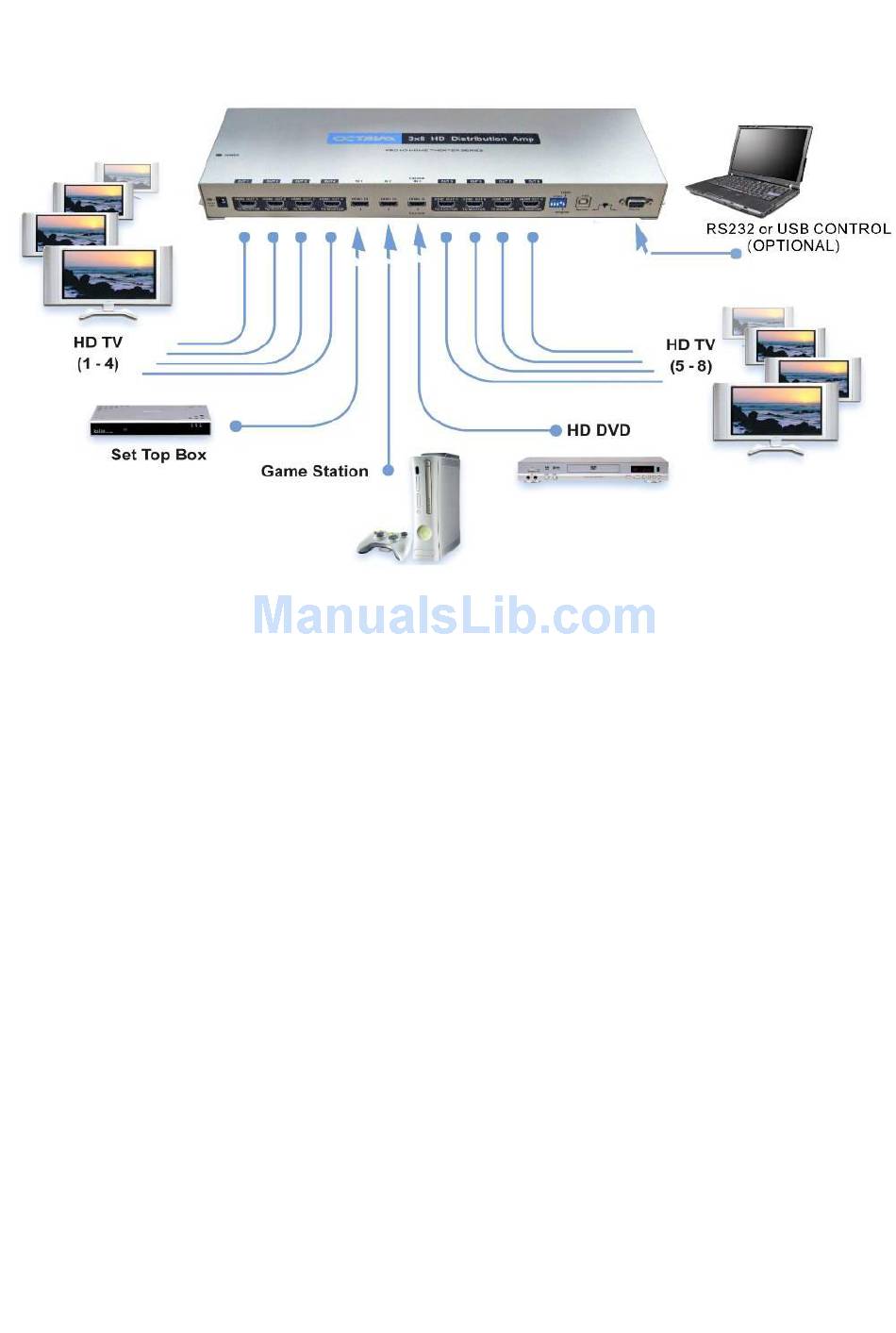

Application Diagram
Installation:
1) Connect the Monitors to the HDMI OUT ports
2) Connect the HDMI sources to the HDMI INPUTS
3) Connect the DC power adapter
Cascading 3x8 Amp:
The 3x8 HD distribution amp can be cascaded to distribute to more
than 8 displays.
For best performance when cascading amps, please connect
using the port labeled "cascade" (see page 14 for cascade
diagram)
