Summary of Contents for Bebob Lux-Led-dv

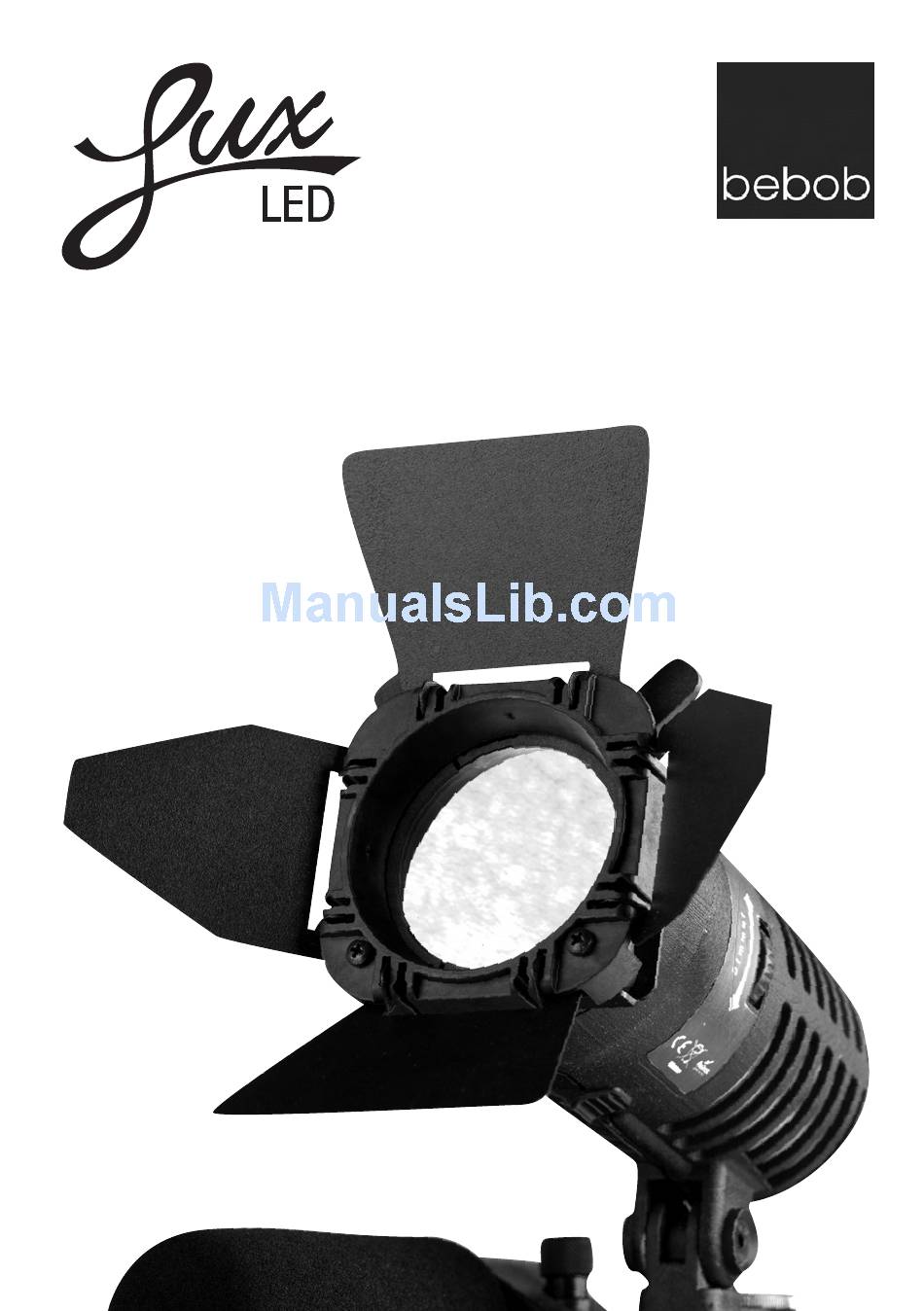

- Page 1 OPERATION INSTRUCTIONS Lux-Led-dv...
-
Page 2: Table Of Contents
I. Safety information ....... . 3 II. Features of the Lux-Led-dv ......4 III. -
Page 3: Safety Information
SAFETY INFORMATION Before using this product with your camera, please note the following general safety information. All persons installing, operating or servicing this product should familiarize themselves with the following information: It is mandatory to follow the instructions in this manual. •... -
Page 4: Features Of The Lux-Led-Dv
FEATURES OF THE LUX-LED-DV When using shoulder and handheld cameras, head lights are indispensable. The latest development from bebob is the Lux-Led-dv, a stepless focusable LED camera light. A completely new concept makes this light unique! With a sophisticated arrangement of five integrated LEDs, the illumination angle can be adjusted anywhere between 40°... -
Page 5: Set-Up And Operation
FEATURES OF THE LUX-LED-DV The LUX-Led-dv is designed for mini HD/SD cameras [handheld camcorders; MiniDV, HDV, DVCPROHD]. It is however also suitable for all camcorders with a mounting attachment. Standard Lux-Led-dv package: Lux-Led-dv [incl. connection cable] • Operation instructions •... - Page 6 The illustration shows an AB plug connection on a Sony camera as an example. Lux-Led-dv [connection to D-Tap e.g. Coco or Ensure that the cable does not touch other voltage adapter] parts of the light that become hot.
- Page 7 If a head light is connected and the dimmer is switched on, the brightness is controlled by the dimmer wheel on the side of the Lux-Led-dv. Turning the dim- mer up will make the head light brighter, while turning the wheel downwards reduces the intensity of the light.
-
Page 8: Cleaning, Maintenance And Care
Caution: The barn doors may become hot during use! Filter Lux-Led-dv-ft [2-leaf barn doors] The 2-leaf barn doors come with an integrated diffuser as standard. The 4-leaf barn doors come with a diffuser and artificial light filter as standard. CLEANING, MAINTENANCE, AND CARE All system parts require zero maintenance. -
Page 9: Available Accessories, Replacement Parts
• For these models, a camera-specific adapter and a 2-leaf barn door system is supplied. For JVC models and other ENG cameras, the light is available with a 4-leaf barn door system. Lux-Led-dv – by bebob Canon Adapter Lux-Led-BP Lux-Led-ft-dv... -
Page 10: Technical Specification And Connections
Coco II-dvl Voltage transformer for Sony cameras Box VM Holder for Endura 7S batteries For prices and further accessories, visit www.bebob.de or call + 49 [0] 89/27 81 82 82 TECHNICAL SPECIFICATION AND CONNECTIONS Input voltage 6.5 – 28V Power Ambient temperature 20°C normal... -
Page 11: Troubleshooting
We assume no liability for injury to property or persons cau- sed by incorrect handling, or for consequential losses. For reasons of safety and conformity (CE), you are not permitted to modify and/or alter the light. In this case, warranty claims are void. Last updated 08/07 © bebob GmbH 2007...
