EBASS (ARCO) DB 510
Instructions for Use

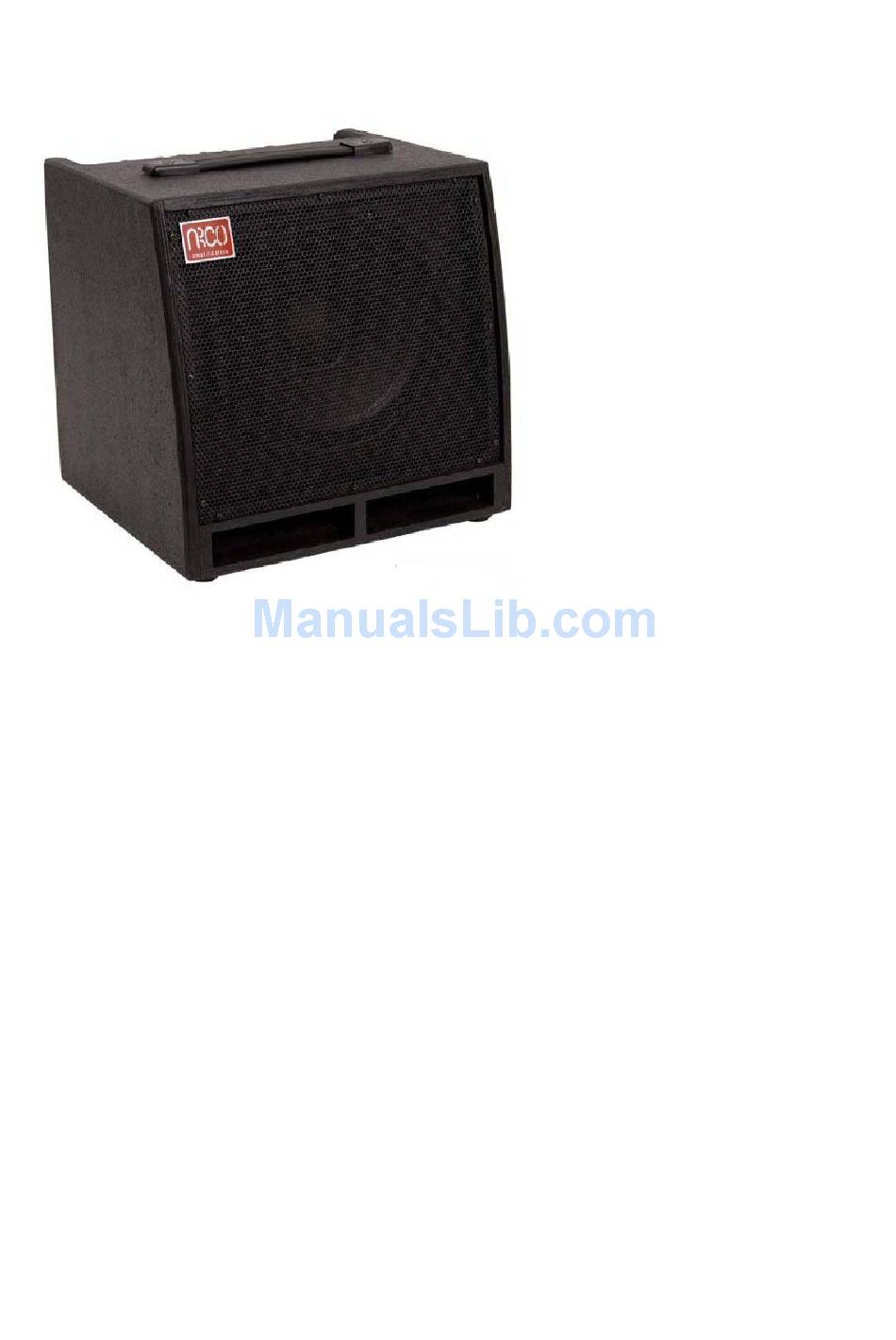

Congratulations on your new EBASS-DB510! (formerly ARCO)
Your new amplifier is hand built in Denmark.
It is built of quality components and is designed and built to serve
you in a long time to come.
Our aim is to produce amplifiers giving very high performance for
Bassist in particular and musicians in general.
We combine the latest technologies with sound and proven principles,
to give the user powerful quality sound from a small and lightweight
amplifier.
We use knowledge and experience from across the audio business.
Circuits that sounded good 50 years ago, sounds good today, but new
techniques saves size and weight. Most important is the feeling, when
you are playing.
We have designed an amplifier which is not filled with secondary
Features, but have concentrated on the basic needs for the pro bass
player. Of course you can connect outboard equipment.
We have made the signal path from your fingers on the strings and
Advertisement
Table of Contents
Summary of Contents for EBASS DB 510
- Page 1 EBASS (ARCO) DB 510 Instructions for Use Congratulations on your new EBASS-DB510! (formerly ARCO) Your new amplifier is hand built in Denmark. It is built of quality components and is designed and built to serve you in a long time to come.
- Page 2 into the loudspeaker, as short as possible making the amplifier more vibrant and responsive. This improves your feeling of playing a great deal. Some Tech: Tone Controls in DB510 are soft, but effective, and you can use them to create the sound of your choice and to adapt to the sound character of the room and to the instrument used.
- Page 3 TOP PANEL The DB510 is designed to have a good basic sound when the tone controls are at "12 o'clock". In this setting it is pretty linear. Tone controls are intended to color or adjust the basic sound, according to needs and taste. INPUT 1: This input is designed for most types of passive electric basses, and acoustic basses with piezo pick-ups.
- Page 4 HI MID: this button raises or lowers the frequencies around 800 Hz. This helps controlling the attack of the sound. You can use this to control also fingering sound and overall softness of the sound. TREBLE: This button raises or lowers frequencies form 4000 Hz and up. You can use this to control overtones, transparency and openness of the sound , the controls interact, If, for example, you want a silky treble, you can dampen HI MID slightly and raise TREBLE.
- Page 5 115/230 VOLTE: switch to select 100-115 V AC (Japan, North America ..) of 220/240V AC (Europe etc) ARCO DB 510 can be used anywhere in the world. WARNING! ! ! Must be used with care! ! ! ! Connect 230 volts to 115 volts switch in position, the amplifier can be damaged.
- Page 6 WARNING! ARCO DB510 contains components and circuits with high voltage. It is associated with life-threatening risk to remove the back panel, and warranty is void if doing so. Make sure to choose and connect correct ac voltage, in case of service repair, please have a qualified service technician perform this.
