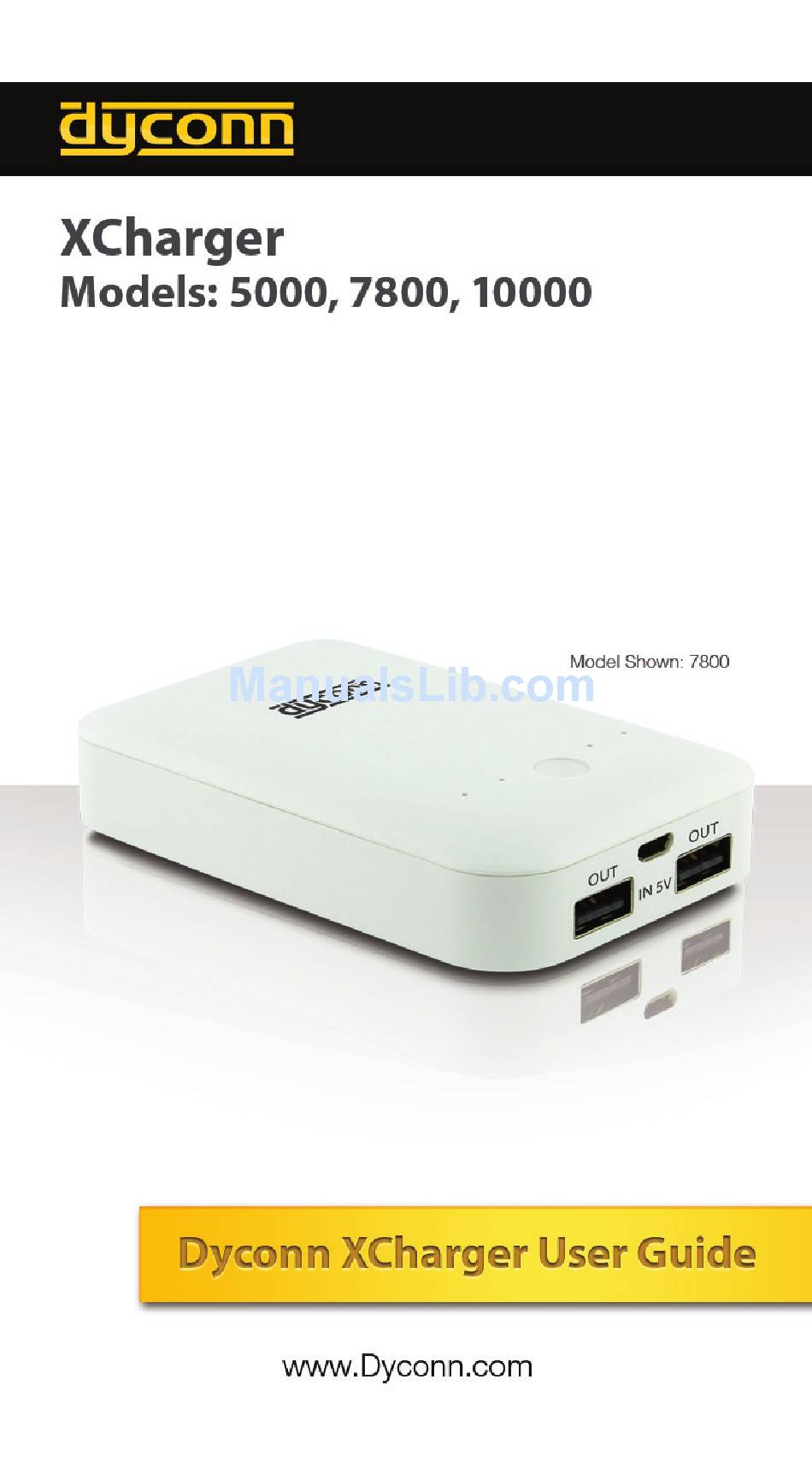

Dyconn XCarger 5000 User Manual

Battery bank
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
1
TM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XCarger 5000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dyconn XCarger 5000

  • Page 2: Package Contents

    Introduction The Dyconn XCharger is a portable battery bank for all your mobile devices and accessories. The XCharger has the impressive capability of charging two devices at the same time. As a measure of convenience, the XCharger features four bright LED lights that serve as a battery indicator to show the amount of charge left in the unit.

  • Page 3: Specifications

    Specifications: Model: 5000mAh • USB 1 Output 5V/1A • USB 2 Output 5V/1A • Input 5V/1A max • Capacity 5000mAh • Cell Type Polymer Lithium-Ion Battery • Dimension (W*H*D) 3.75” x 2.45” x 0.8” (95 x 62 x 21mm) •...
  • Page 4 Specifications: Model: 7800mAh • USB 1 Output 5V/1A • USB 2 Output 5V/1A • Input 5V/1A max • Capacity 7800mAh • Cell Type Polymer Lithium-Ion Battery • Dimension (W*H*D) 3.75” x 2.45” x 0.9” (95 x 62 x 23mm) • Weight 6.34 oz.
  • Page 5 Specifications: Model: 10,000mAh • USB 1 Output 5V/1A (Dedicated Port) • USB 2 Output 5V/2.1A (Dedicated Port) • Total Max Output 3.1A (Dual Ports) • Input 5V/2A max • Capacity 10,000mAh • Cell Type Polymer Lithium-Ion Battery • Dimension (W*H*D) (5.23”...
  • Page 6 Therefore, the following information provides insight as to the charging capability of the XCharger based on product type. The extended usage of the Dyconn XCharger is dependent upon your device. Due to the diversity of electronic devices, they inherently possess variances of mAh (1000-11000mAh) which determines charging capacity.

  • Page 7: Getting Started

    2.1A. You can use either port to charge your iPad or tablet. The Dyconn 10000 charges two devices at the same time with a maximum output of 3.1A. Use either of the designated ports (1.0A or 2.1A) based on your preferred charging method.
  • Page 8 Getting Started Product Part Identification (Continued) XCharger Cables 1. USB Sync/Charge Cable 2. Micro USB Cable (compatible with Apple devices) 3. Mini USB Cable 4. Power Adapter (sold separately)

  • Page 9: Checking Battery Life

    You have the option of checking the remaining battery life (charge) left in the XCharger. To check the remaining battery life, simply push the Power button while the Dyconn XCharger is connected to any device. 1. One LED indicate 0% - 25% power 2.
  • Page 10 USB wall plug style adapter or a USB car adapter, you can use these as well. The LED status indicators show the current charging status of the Dyconn XCharger. The 4th LED will show a solid blue light when charging. (Waiting on complete charge LED).

  • Page 11: Dyconn Limited Warranty

    Dyconn, including but not limited to purchases from internet auction sites. This warranty does not affect any other legal rights you may have by operation of law.

  • Page 12: Technical Support

    Dyconn technical support at support@dyconn.com. © 2012 Dyconn. All rights reserved. Dyconn, the Dyconn Logo and XCharger are trademarks of Dyconn. iPhone® and iPad® are registered word marks of Apple, Inc., registered in the U.S. and other countries. All other trademarks are the...

This manual is also suitable for:

Xcarger 7800Xcarger 10000
