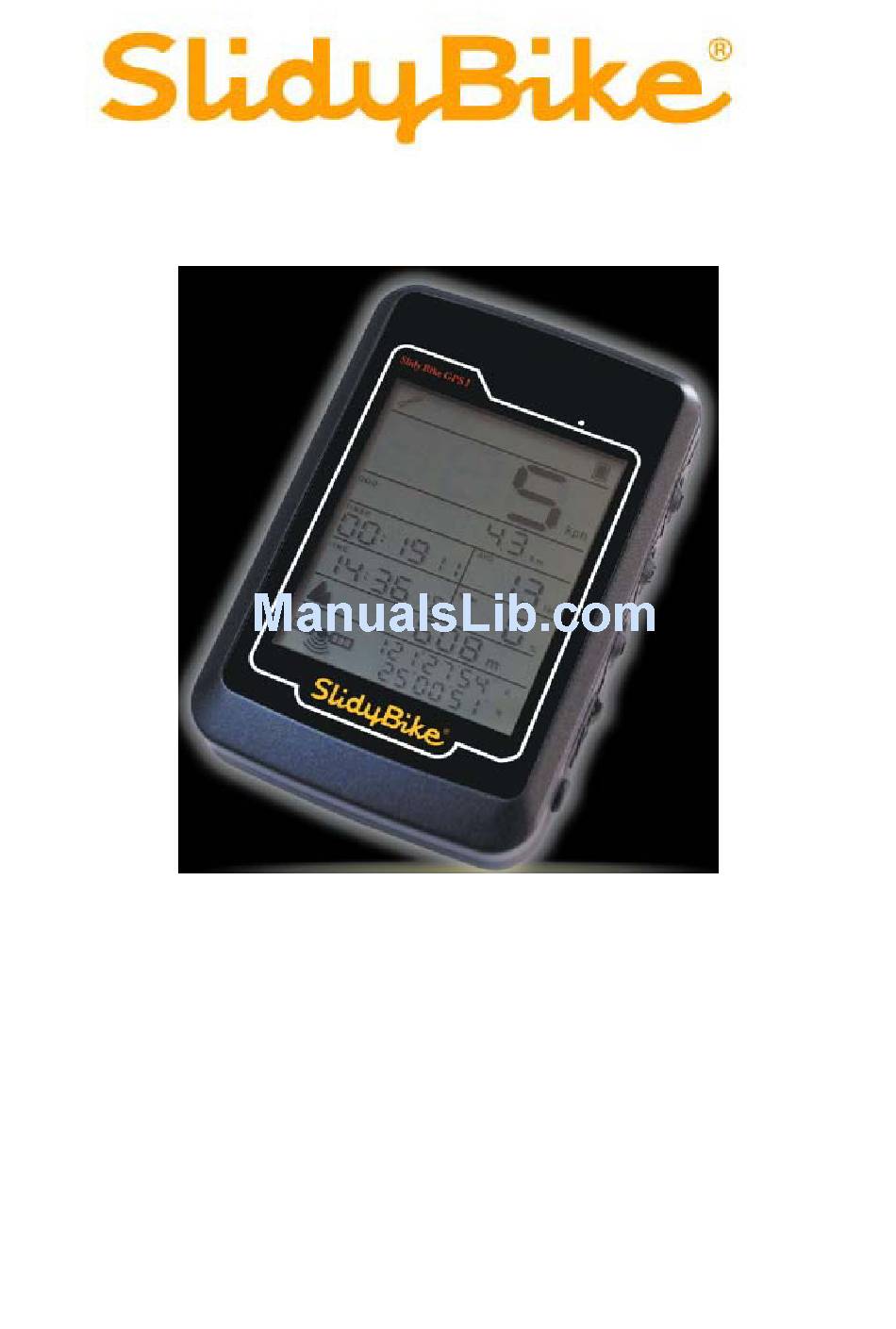

  • Page 1 SLIDY BIKE GPS Sport data logger...

  • Page 2: Table Of Contents

    Table of content A. Quick Use ---------------------------------------------------------------------------- B. Introduction ---------------------------------------------------------------------------- C. Feature ---------------------------------------------------------------------------------- D. Specification -------------------------------------------------------------------------- Physical Dimension------------------------------------------------------------------------ Environmental Characteristics---------------------------------------------------------- GPS-------------------------------------------------------------------------------------------- LED Status ---------------------------------------------------------------------------------- Bluetooth ------------------------------------------------------------------------------------ Position accuracy -------------------------------------------------------------------------- Interfaces------------------------------------------------------------------------------------- Connector------------------------------------------------------------------------------------ Battery---------------------------------------------------------------------------------------- Accessory ----------------------------------------------------------------------------------- Certification: -------------------------------------------------------------------------------- Warranty ------------------------------------------------------------------------------------- E. Operational characteristics-------------------------------------------------------- F.

  • Page 3: Quick Use

    “Outbound COM port “. The pass word for paring is “0000”. 6. GPS data logger Turn on the SLIDY BIKE GPS I and press Power button then enter data logger recorded system, start to record your journey. Stop the data logger function, press “Power” button, it will turn off.
  • Page 4 GPS signal Bluetooth on Data logger on Memory full Power 9.Button intro USB connector Setting Backlit Power...
  • Page 5 Operation Signal display Definition Press Power button 1 seconds Power on and GPS start to get signal ( Bluetooth is on too) Power on after 42 sec , the GPS GPX fixed will fix signal Press Power button for 3 Power off seconds –power off Power on –press power button...

  • Page 6: Introduction

    Unlike most other Sport GPS gadget, SLIDY BIKE GPS I could double as a Bluetooth GPS receiver so you can pair it with your PDA phone and laptop to turn them into a GPS navigation system.

  • Page 7: Feature

    C. Feature Store up to 260,000 waypoints Large LCD display Automatically change to next page Absolutely cycle computer upgrading SiRF Star III Hot start 6 sec, warm start 38sec, cold start 42 sec Calculates precise speed and distance while you biking Record track-logs of vehicle movement User can select among Google earth, Satellite or Hybrid to show the track Built-in GPS application software, could save as KMZ, CSV, GPX and NMEA...

  • Page 8: Environmental Characteristics

    Mini USB connector Store up to 260,000 waypoints Weather Proof IPX6 Bluetooth 2.0 Environmental Characteristics 1. Working temperature: -20 C to +75 C (internal temperature). 2. storage temperature: -55 C to +90 3. input voltage: 5.5 ± 0.5VDC 4. Backup power: 3.7V Rechargeable Li-ion Battery 850mAh, 1) Acquisition:20 channel parallel 2) Tracking: up to 12 satellites 3) Update rate: 1 second...

  • Page 9: Interfaces

    Jerk: 20 meters/second, max Acceleration: 4 G, max Interfaces 1) USB 2.0 Bluetooth 2.0 2) NMEA 0183 Version 2.2 ASCII output (GPGGA, GPGLL, GPGSA, GPGSV, GPRMC, GPVTG). 3) Real-time Differential Correction input (RTCM SC-104 message types 1, 5 and 9). (Optional model) SiRF protocol.

  • Page 10: Warranty

    After a position fix has been calculated, valid position, velocity and time is transmitted over the output channel. Also, our SLIDY BIKE GPS I records NMEA position data from a GPS. It is really convenient, economical alternative to using a laptop computer, especially on long road.

  • Page 11: Safety Statement

    5) Satellite and receiver status F. Safety Statement R&TTE / CE This device complies with ETSI EN 300 328-1, ETSI EN 301 489-1 / 17, EN60950. This device complies with Part 15C, Part 15B and ID Application of the FCC rules. Operation is subject to the following two conditions: This device may not cause harmful interference.
  • Page 12 Longitude 12158.3416 dddmm.mmmm E/W Indicator E=east or W=west Position Fix See Table 5-3 Indicator Satellites Used Range 0 to 12 HDOP Horizontal Dilution of Precision MSL Altitude Meters Units Meters Geoid Separation Meters Units Meters Age of Diff. Corr. second Null fields when DGPSIs not used Diff.
  • Page 13 End of message termination H. World GMT Time zone setting SLIDY BIKE GPS I time zone setting is from 1~24 hour but in GMT time zone is from +1~+12 and -1~-12. For Slidy device, time zone from -1~-12 will be deducted from 24 hours.
  • Page 14 set 20. After setting time zone, the GPS will record correct time. North America Country Time zone Newfoundland(NST) -3:30 (St. Johns) -2:30 UTC-4 AST (Goose Bay) Toronto Canada Winnipeg Calgary Vancouver Nicaragua Guatemala Honduras New York Chicago Salt Lake City U.S.A.
  • Page 15 El Salvador Oceania Area Country Time zone GMT time zone New Zealand 13 ( October ~ March is daylight saving time ) AEST 11(from Apr to Oct , from Oct Sydney to March is daylight saving time (Australia) ACST +9:30 Adelaide +10:30 Perth...
  • Page 16 European Country Country GMT time zone (Denmark) 2(Mar to Sep is daylight saving Belgium) 2(Mar to Sep is daylight saving) (Iceland) (Hungary 2(Mar to Sep is daylight saving) (Spain 2(Mar to Sep is daylight saving) Greece 2(Mar to Sep is daylight saving) Poland 2(Mar to Sep is daylight saving) France...
  • Page 17 Austria 2(3-9 is daylight saving time) Switzerland 2(3-9 is daylight saving time) Sweden 2(3-9 is daylight saving time) Italy 2(3-9 is daylight saving time) Germany 2(3-9 is daylight saving time) Monaco 2(3-9 is daylight saving time) Luxembourg 2(3-9 is daylight saving time) Asia Area Country GMT time zone...
  • Page 18 Attachment for Bike mount 1 find a position to fix on Handle bar 2 Using screw Combine these two together 3.Fix the rubber under the holder 4. put string through the holder 5.Fix on the handle bar – circle on the handle bar...
  • Page 19 6. tight on the handle bar and cut the over string part 7.Put the device on bike mount and finish attachment...
