ArrowVision Shepherd 210 Installation Manual

Fingerprint door lock
Hide thumbs Also See for Shepherd 210:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operating Manual

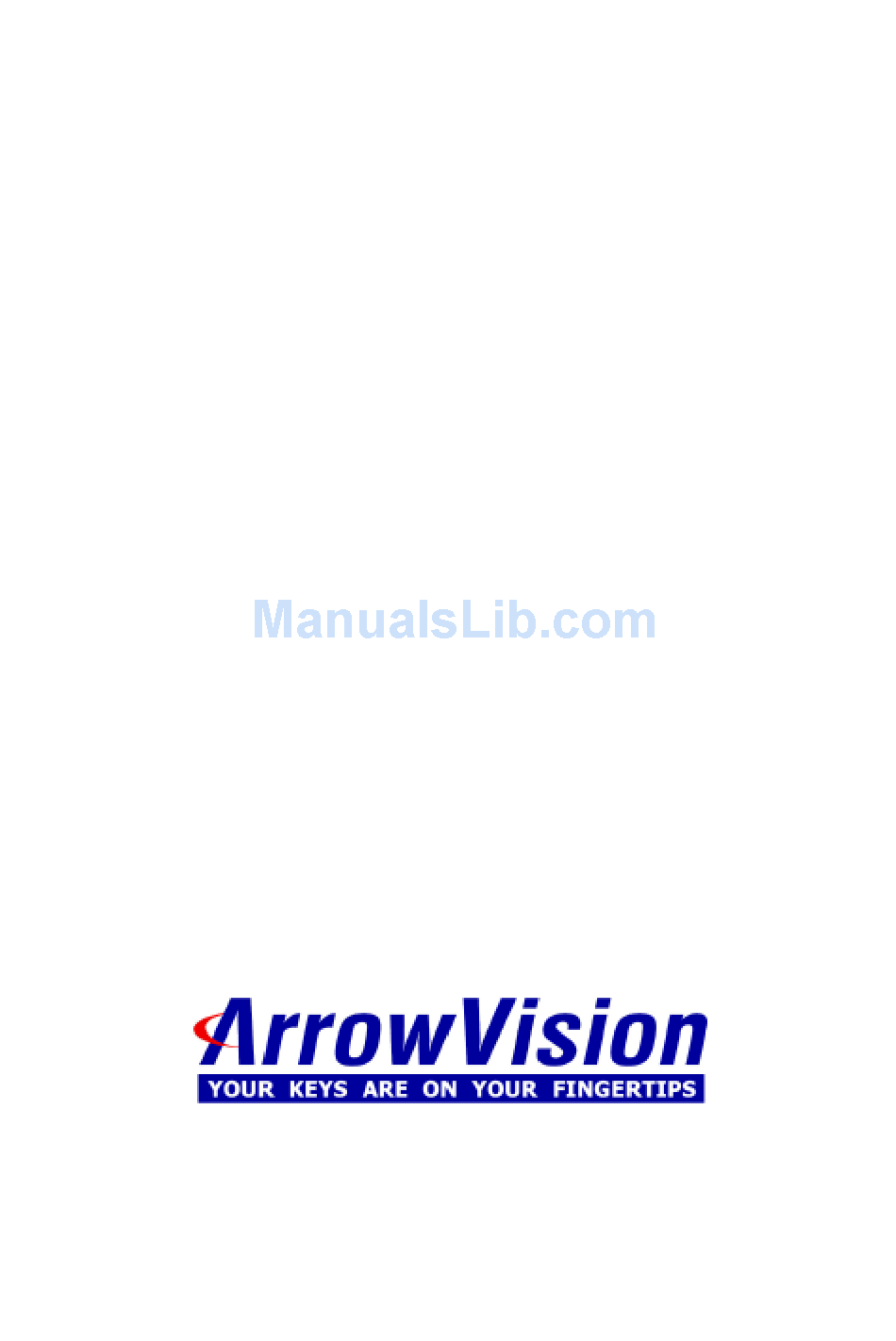

Shepherd 210
Fingerprint Door Lock
Installation Manual
V3.1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Shepherd 210 and is the answer not in the manual?

Questions and answers

Related Manuals for ArrowVision Shepherd 210

Summary of Contents for ArrowVision Shepherd 210

  • Page 1 Shepherd 210 Fingerprint Door Lock Installation Manual V3.1...

  • Page 2: Table Of Contents

    Table of Contents 1. Product and Accessories …………………………………………………..2 1.1 Parts List……………………………………………………………….2 1.2 Parts Identification…………………………………………………..3 2. Installation………………………………………………………………….5 2.1 Preparation before Installation…………………………………………5 2.2 Drill Holes……………………………………………………………...6 2.3 Adjust Latch’s Backset………………………………………………..6 2.4 Adjust Deadbolt’s Backset……………………………………………...7 3 Install Latch, Deadbolt and Strikes ………………………………………...9 3.1 Install Latch and Deadbolt ……………………………………………..9 3.2 Install Strikes and Lining Boxes………………………………………10 4 Install the Lock Units………………………………………………………11 4.1 Adjust Torque Bar Length…………………………………………..11...

  • Page 3: Product And Accessories

    1. Product and Accessories 1.1 Parts List After opening the package, please check the product and accessories. If any are missing or damaged, please contact your dealer for replacement. Inside unit Outside unit Pinch screws Deadbolt Deadbolt strike Deadbolt strike lining box Latch Latch strike Latch strike lining box...

  • Page 4: Parts Identification

    The Manual Cutout template 1.2 Parts Identification DL210 Installation Manual V3.1...
  • Page 5 1. Decoration plate 14. LED display 2. Sliding dust cover 15. Inside unlocking button 3. Green LED indicator 16. Inside locking button 4. Red LED indicator 17. Battery compartment knob 5. Fingerprint scanning window 18. Battery compartment 6. Power on switch 19.

  • Page 6: Installation

    2. Installation 2.1 Preparation before Installation Your lock must correspond to your door being left-handed or right-handed. If not, you should ask your seller to exchange it. (Refer to Figure1) Hinge Hinge Left-Hand Door Right-Hand Door Fig 1: Viewing from the outside; definition of doors ¤...

  • Page 7: Drill Holes

    2.2 Drill Holes (1) Paste the provided cutout template on the door as shown in the figure. Mark 1” holes at center of door edge and make 2” holes at the surface of the door (the offset is 2 3/8” or 2 3/4” from door edge to the center of the 2” hole). (2) Drill two 1”...

  • Page 8: Adjust Deadbolt's Backset

    The clip of regulator pin Regulator pin Pull regulator pin to the right edge. Pull The right edge of adjust hole backset been adjusted to 2 3/4” position. Screw-post hole Make sure the regulator pin is at the correct angle as shown.
  • Page 9 Pull regulator pin up, firmly hold driving board and driving spring and pull right until the 2 3/4” screw hole coincides with driving board hole. Driving 2 ¾” Pinch Screw Holes Board Figure shows the backset is in Regulator 2 3/4” position. Driving Driving spring...

  • Page 10: Install Latch, Deadbolt And Strikes

    3 Install Latch, Deadbolt and Strikes 3.1 Install Latch and Deadbolt Insert the lock bolt into the hole, Dig a support notch 1/8” in depth. mark the frame lines of foil board. The notch edge lines should be The frame lines should be parallel parallel with the door edge.

  • Page 11: Install Strikes And Lining Boxes

    3.2 Install Strikes and Lining Boxes Close the door; use pencil to mark Cut out a square cavity to accept strike hole in the doorjamb from face the strike box at the marked hole. location in the doorjamb. Draw strike plate line and screw holes Cut 1/16”...

  • Page 12: Install The Lock Units

    4 Install the Lock Units (Note: The Shepherd 210 fits standard door thicknesses of 1 1/2” to 2 1/8”. It is possible to fit doors down to 1” and up to 2 1/4” in thickness door by ordering special length of torque bars and square axes from manufactory.

  • Page 13: Install Inside Unit

    stretched out. Hold Outside unit close on the door surface, then insert the torque bar into the crossed slot of deadbolt. (3) Pass the square axle through the square hole of regulator pin of the latch and the outside lever connecting with the Outside unit. 4.3 Install Inside Unit Torque Bar Inside Unit...

  • Page 14: Check And Adjust After Installation

    ¤ Tip: If the deadbolt does not moves smoothly, loosen pinch screws a little and adjust the lock body position until the deadbolt moves smoothly. 5 Problems or Feedback In case of problems, contact your dealer or ArrowVision: Email: support@arrowvision.us Phone: 510-264-9151 Feedback –...
  • Page 15 ArrowVision Technologies, Inc. 2557 W. Winton Ave., Suite 7E, Hayward, CA 94545, USA Phone: (510) 264-9151 ? Fax: (510) 751-5386 email: support@arrowvision.us website: www.arrowvision.us...
