The Bullseye
User Manual
P a g e
1 | 20

Advertisement

loading
Need help?

Need help?

Do you have a question about the The Bullseye and is the answer not in the manual?

Questions and answers

Summary of Contents for crashdiary The Bullseye

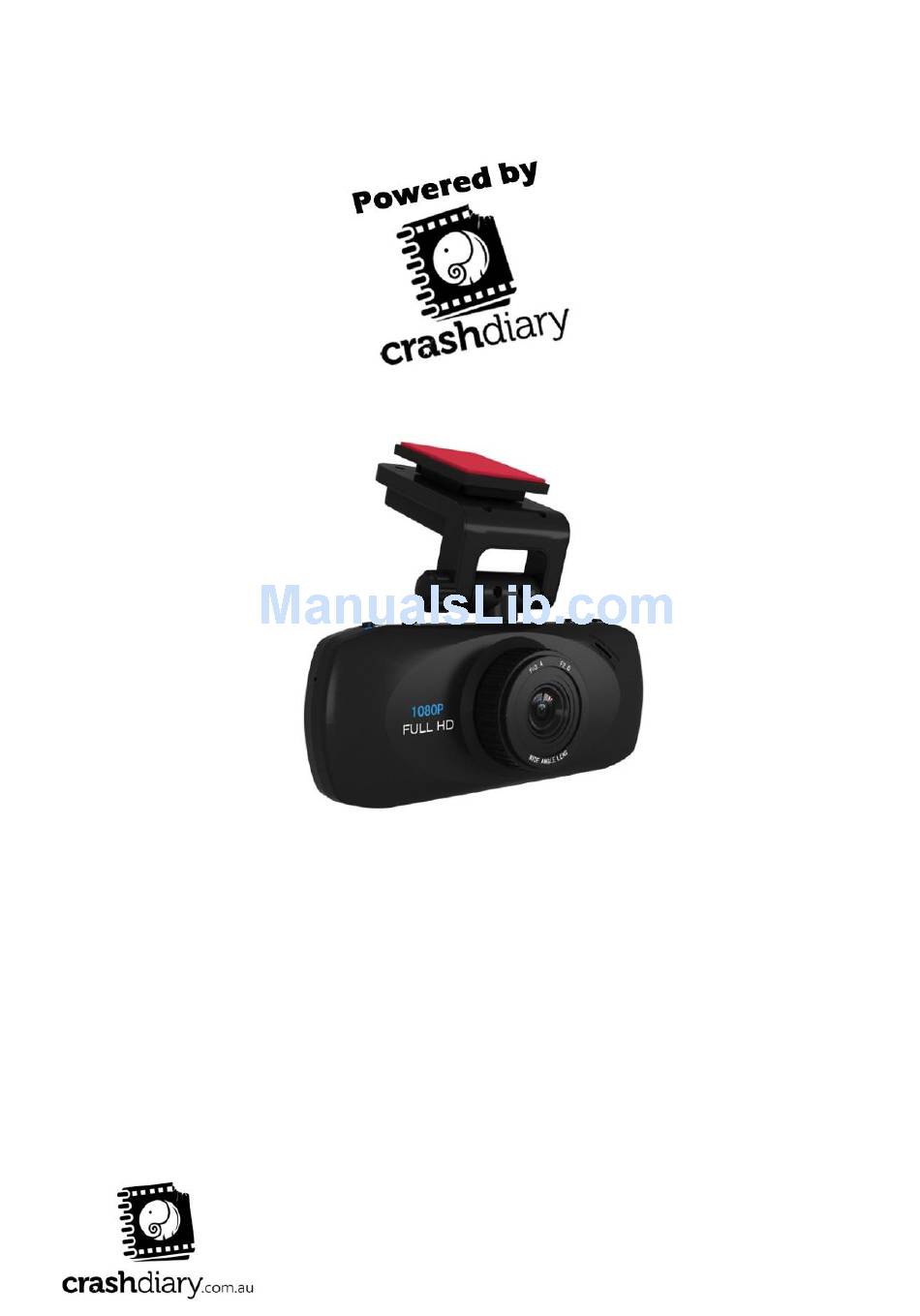

  • Page 1 The Bullseye User Manual P a g e 1 | 20...

  • Page 2: Table Of Contents

    Contents Getting Started…………………………………………………………………3 Overview………………………………………………………………………….3 Technical Specification……………………………………………………..5 Key Function……………………………………………………………………..7 Battery and charging………………………………………………………….7 Operation…………………………………………………………………………..9 Menu Options…………………………………………………………………….11 Instructions for Viewing The Video Files With GPS……………..14 P a g e 2 | 20...

  • Page 3: Getting Started

    Overview ——————————————— ——————— The Bullseye is a high definition dash mounted video recording device integrated with in built GPS tracking and accelerometer readings. It can record full high definition at 1920 x 1080 pixels with a 5 mega pixel sensor.
  • Page 4 Disclaimers ———————————————  Do not operate or view the display of this product whilst driving. Such action may result in a car accident. The Crash Diary is here to increase road safety, not the opposite.  Depending on your g-sensor sensitivity settings, an accident with impact lower than a certain degree of acceleration may not result in a locked video file.

  • Page 5: Technical Specification

    Technical Specifications ———————————————  Ambarella A2S60 chipset  5100 CMOS sensor  Product Size(LxWxH) 115.6mmx50.2mmx31.6mm  Video Image Resolution: 1920×1080 full high definition (FPS30) 720P60:1280x720 (FPS60)  Built in GPS tracking chipset  Built in Accelerometer sensors  Crash protection ...
  • Page 6 Technical Specifications ———————————————  Shutter Speed: 1/2~1/4000s  USB Port: USB 2.0  HDMI: Supported  Support system: Windows 7/XP SP3/Vista/8 & Mac 10.4 or above  500mAh Li-ion battery  Language: English/Chinese/Russian/Korean/Japanese P a g e 6 | 20...

  • Page 7: Key Function

    Key Function P a g e 7 | 20...

  • Page 8: Battery And Charging

    Battery and charging ——————————————— This device uses a miniUSB cable to charge. This may be from the 12V/24V cigarette lighter port in your vehicle or also from a computer using a USB port or a common phone/digital camera charger with the same plug. When using the device in the car it is recommended to use the car charger at all times as recording in 1080p drains a lot of power.
  • Page 9 Battery and charging Plug the charger into the DC IN port on the mount. P a g e 9 | 20...

  • Page 10: Operation

    Operation ——————————————— Pre-Start Check 1. Ensure the window mount is properly secured onto the window and that it has been placed in an area which will not have objects hindering vision. 2. The memory card in the device should be Class 6 or above and has been formatted prior to inserting into the device.
  • Page 11 Operation (continued) ——————————————— P a g e 11 | 20...
  • Page 12 Operation (continued) ——————————————— If the recording position is not appropriate, it can be adjusted up and down or left and right. P a g e 12 | 20...

  • Page 13: Menu Options

    Menu Options P a g e 13 | 20...
  • Page 14 Menu Options (continued) P a g e 14 | 20...
  • Page 15 Menu Options (continued) P a g e 15 | 20...
  • Page 16 Instructions for Viewing The ‘Bullseye’ Video Files With GPS Trackback This manual has been written for users of Windows OS. If you wish to view the standalone video footage without GPS playback we recommend viewing the videos using VLC player. VLC can be downloaded for free from http://www.videolan.org/vlc/.
  • Page 17 video formats. K-lite is constantly improving its codec pack and fixes compatibility. It is not recommended to install any more codecs, because they may conflict with each other and video can stop playing completely. http://codecguide.com/download_kl.htm If you have a 64-bit system, you still need to install the 32-bit version of the codecs.
  • Page 18 4. Find the SD memory device in ‘my computer’. You may see an automatic notification asking if you would like to open the folder, in this case press yes. At this point you will need to have an active internet connection.
  • Page 19 GPS Menu options P a g e 19 | 20...
  • Page 20 P a g e 20 | 20...
