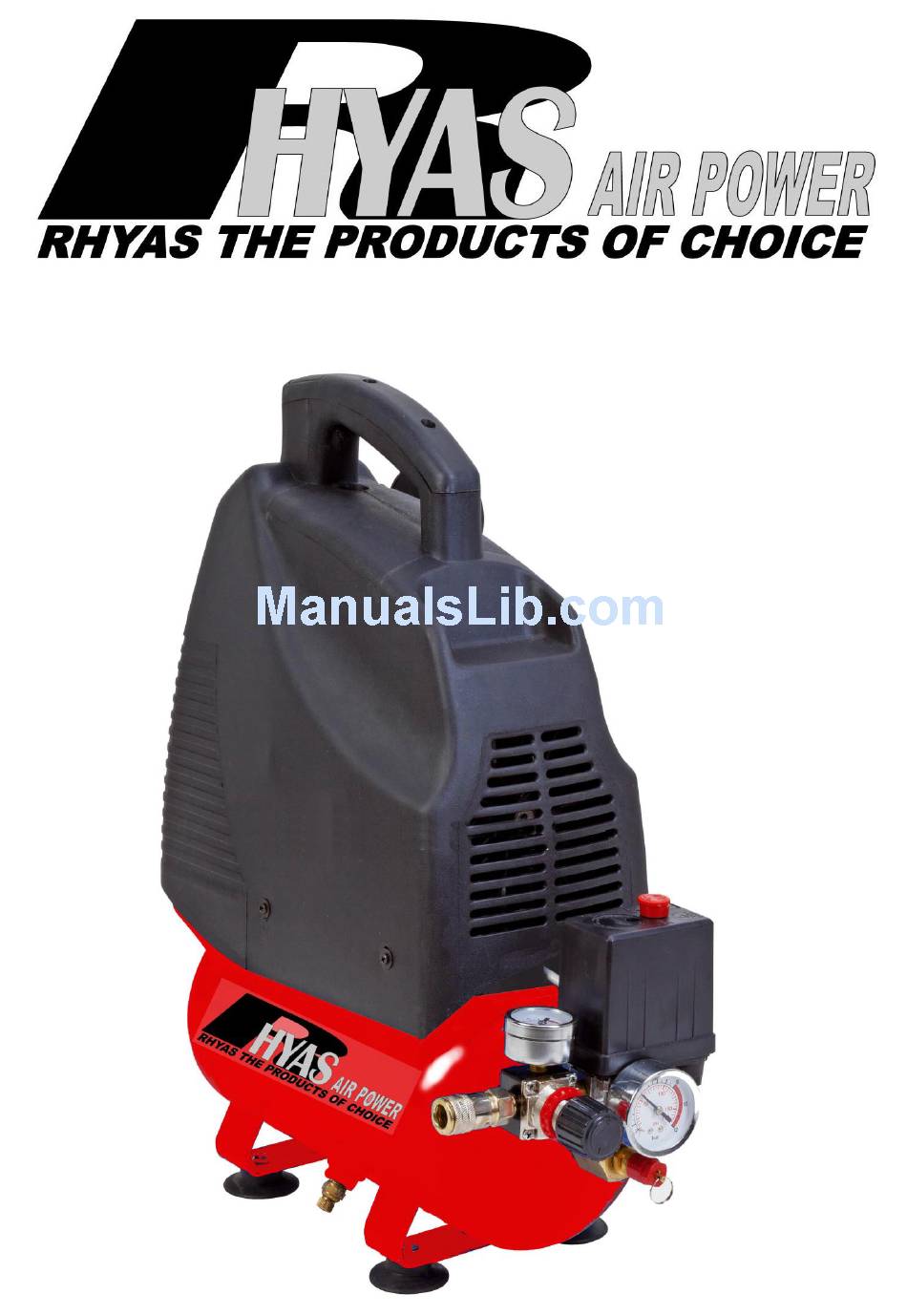

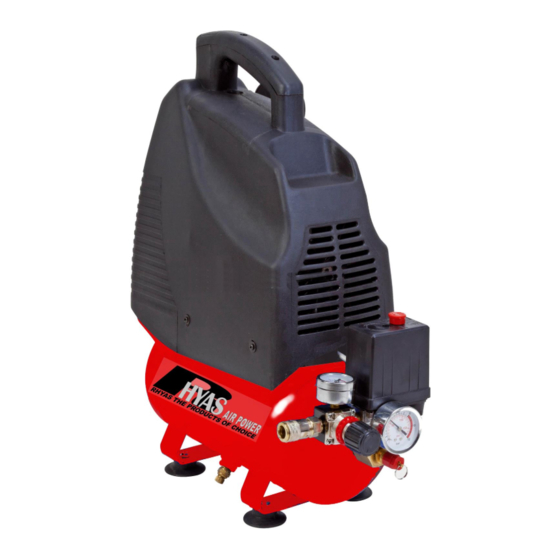

- Page 1 6L Oil-less Air Compressor 53103...
-
Page 2: Operating Instructions
Operating Instructions Please read and save these instructions before attempting to assemble, install, operate or maintain the product. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in injury and/or damage! damage, deterioration, weakness or DESCRIPTION leakage, Repair or replace defective items Oil-less compressors are designed for DIY... - Page 3 clockwise increases the pressure, MAIN TECHNICAL DATA anticlockwise decreases the pressure to Power 1100w/1.5HP the required level for the tool being used. Voltage 220V/230V/240V The safety valve automatically releases air Frequency 50Hz if the tank pressure exceeds the preset Speed 2850r/min Displacement 161L/min...
-
Page 4: Troubleshooting Chart
TROUBLESHOOTING CHART Symptom Possible Cause (s) Corrective Action 1. Plugged in? Check fuse/breaker or motor 1. No electrical power overload 2. Blown fuse 2. Replace blown fuse Compressor will not run 3. Breaker open 3. Reset, determine cause of problem 4. - Page 5 PARTS DIAGRAM...
-
Page 6: Parts List
PARTS LIST PART PART bolt M6×25 tooth washer 4 bolt M6×35 screw M3×6 spring washer 6 spring washer 3 cylinder head nut M3 O-ring capacitor valve plate subassembly tooth washer 8 Cylinder seals Discharge pipe D10mm cylinder Φ60 elbow connecter Connection Stud air filter screw M5×16... - Page 7 Signed: A M Riga Authority: Director Date: April 2014 Rhyas Products, Leominster. HR6 0QF. England. UK. Subject to change. Document Ref: 6Ltr Air Compressor 53103 Product code: 53103 Copyright: These instructions are the sole property of Rhyas Products and may not be reproduced.
