T110 Data Terminal
User Manual.
Canmax Technology
Copy right 2011©

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T110 and is the answer not in the manual?

Questions and answers

Summary of Contents for Canmax Technology T110

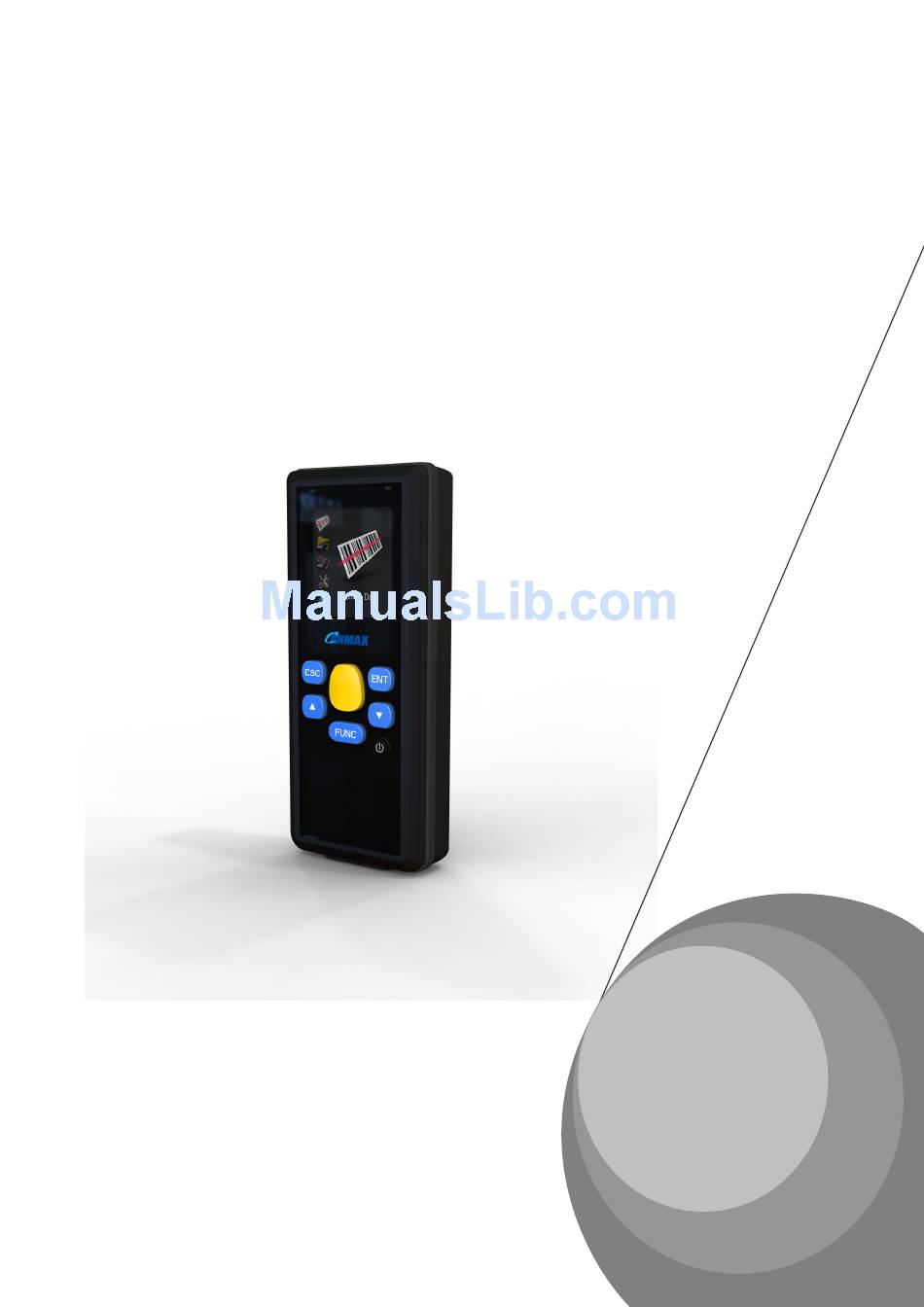

  • Page 1 T110 Data Terminal User Manual. Canmax Technology Copy right 2011©...

  • Page 2: Table Of Contents

    1. Important Notice Chapter 1: Important Notice ................3 Important Notice: ................... 3 1-1 Regulations ..................4 1-4 RoHS DIRECTIVE ................5 1-5 SAFTY PRECAUTION ............... 6 Chapter 2: Introduction ................. 7 Introduction: ....................7 2-1 PRODUCT FEATURES ..............8 2-2 PRODUCT SPECIFICATION .............

  • Page 3: Chapter 1: Important Notice

    1. Important Notice Chapter 1: Important Notice Important Notice: 1-1 Regulations 1-2 RoHS DIRECTIVES 1-3 SAFETY PRECAUTION...

  • Page 4: Regulations

    1. Important Notice 1. Important Notice: 1-1 Regulations 1-1 REGULATIONS This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Rohs Directive

    These Materials must be reduced to their appropriate level (as announced by the directive) by July 1, 2006. Canmax Technology committed to the environment, which makes the necessary changes to our products in order to comply with the directive. This involves converting most of the non-compliant components (electronics, PC boards, etc.) of our products to the compliant equivalent.

  • Page 6: Safty Precaution

    1. Important Notice 1- 3 SAFTY PRECAUTION 1-5 SAFTY PRECAUTION Do not stare the scanning light source beam. Do not touch the device transparent window, reading performance might decrease if transparent window is dirty or scratch. Do not disassemble or modify the internal components from the data terminal.

  • Page 7: Chapter 2: Introduction

    2. Introduction Chapter 2: Introduction Introduction: 2-1 PRODUCT FEATURES 2-2 PRODUCT SPECIFICATION 2-3 PACKAGE INFORMATION 2-4 DEFAULT SYMBOLOGIES 2-5 FUNCTION KEYS AND LED INDICATOR 2-6 QUICK START GUIDE...

  • Page 8: Product Features

    2. Introduction 2. Introduction 2-1 PRODUCT FEATURES 2-1 PRODUCT FEATURES Ergonomic and lightweight Laser type, CCD type and RFID (support Mifare 13.56Mhz) available. With 128 x 128 Color Display Screen. 7 Keys for easy operation and user interface friendly. Build in memory for easy data transmission, and no extra software needed for data transmission.

  • Page 9: Product Specification

    2. Introduction 2-2 PRODUCT SPECIFICATION 2-2 PRODUCT SPECIFICATION Model No. T110 Data Terminal 32 bits CPU Microprocessor Main battery operation 15,000 scans in Bluetooth Mode times ( 5 sec /per scan) Code 39, INT 25, Industrial 2 of 5, Matrix 2 of 5,...

  • Page 10: Package Information

    2. Introduction 2-3 PACKAGE INFORMATION 2-3 PACKAGE INFORMATION The package included: Data terminal, , power adaptor (optional), Lanyard, USB cable, Quick start guide, product CD. Note: The product CD includes: Quick start guide, user manual, Bluetooth setting software, barcode scanner setting software. (Optional)

  • Page 11: Default Symbologies

    2. Introduction 2-4 DEFAULT SYMBOLOGIES 2-4 DEFAULT SYMBOLOGIES Symbologies Default setting EAN/ UPC UPC-A Enabled UPC-E Enabled EAN-8 Enabled EAN-13 Enabled EAN-13(ISBN) Disabled Code 39 Enabled Interleaved 2/5 Disabled Industrial 2/5 Disabled Matrix 2/5 Disabled Codabar/ NW7 Enabled Code 128 Enabled Code 93 Disabled...

  • Page 12: Function Keys

    2. Introduction 2-5 FUNCTION KEYS 2-5 FUNCTION KEYS LED display Screen: 128 x 128 LED screen Escape Key: return to upper Enter Key: Option Selection page. UP Key: Scrolling Up Down Key: Scrolling Down Scan Key: Collect barcode data Power Switch: 1) Press and hold for few seconds: Power ON / OFF.

  • Page 13: Chapter 3: Data Collector Operation

    3. Data Collector Operation Chapter 3: Data Collector Operation Data Collector Operation 3-1 Data Collector Operation Mode 3-1-1 Collect Data 3-1-2 Mass Storage 3-1-2-1 How to access and back up the barcode data. 3-1-3 Cabled Reader 3-1-4 Setting 3-1-4-1 Display mode 3-1-4-2 Color Theme 3-1-4-3 Beep Volume 3-1-4-4 Key Tone...

  • Page 14: Data Collector Operation Mode

    3. Data Collector Operation 3. Data Collector Operation 3-1 Data Collection Mode 3-1 Data Collector Operation Mode 3-1-1 Collect Data 3-1-1 Collect data Select “Collect Data” option, the data collector will be able to collect the barcode data by pressing “Scan” key and save the data in the memory. When collecting barcode data, user can also use function key to erase the mistaken scanned barcode data from the...

  • Page 15: Mass Storage

    3. Data Collector Operation 3-1-2 Mass Storage 3-1-2 Mass Storage Select 1. Mass Storage 2. Connect the USB cable between data terminal and PC. 3. When USB connection succeeded, the PC will display the external removable disk. After collecting the barcode data and access to mass storage option, the PC will display the external “removable disk”, which contains your saved barcode data.

  • Page 16: How To Access And Back Up The Barcode Data

    3. Data Collector Operation 3-1-2-1 How to access and back up the barcode data 3-1-2-1 How to access and back up the barcode data. (1) Access to 1. Mass Storage 2. Connect the USB cable between data terminal and PC. (2) Click the “Auto.Bat”...

  • Page 17: Cabled Reader

    3. Data Collector Operation 3-1-3 Cabled Reader 3-1-3 Cabled Reader Select Cabled reader option, and plug in the USB cable, the data terminal can switch into a USB type barcode reader. Simply open any word processing software for example, Notepad, or Word to received the barcode data.

  • Page 18: Color Theme

    3. Data Collector Operation 3-1-4-2 Color Theme 3-1-4-2 Color Theme There are four different color themes that can be choosing. 3-1-4-3 Beep Volume 3-1-4-3 Beep Volume Beep Volume is adjustable according to different environment. Use up or down scrolling key to adjust the volume.

  • Page 19: Vibration

    3. Data Collector Operation 3-1-4-5 Vibration 3-1-4-5 Vibration This option enables to configure the vibration function, Please note that this function is only available when optional purchased vibrator installed. 3-1-4-6 Back Light 3-1-4-6 Back light This option enables to configure the LED backlight timing.

  • Page 20: Language

    3. Data Collector Operation 3-1-4-9 Language 3-1-4-9 Language There are four different kinds of language option for data collector display language. Language: English Chinese Simplified Chinese Japanese 3-1-4-10 Return to default 3-1-4-10 Return to default This option enables the data collector configuration settings reset to default setting.

  • Page 21: Information

    3. Data Collector Operation 3-1-5 Information 3-1-5 Information 3-1-5-1 Memory 3-1-5-1 Memory This displays the current memory used by the user. 3-1-5-2 Battery 3-1-5-2 Battery This displays the current battery level. Please be aware, flat battery will cause for data lost in the memory.

  • Page 22: Last Connection Time

    3. Data Collector Operation 3-1-5-4 Last Connection time 3-1-5-4 Last Connect Time This displays the record of last USB cable connection time. 3-1-5-5 Delete All Data 3-1-5-5 Delete All data This function enables to delete all barcode data saved in the memory.

  • Page 23: How To Update Kernel File

    Kernel update process. Follow the instruction on the screen and press “ENT” Key to access to next step. Access to the folder on your computer, select the folder T110. and select “ENT” key on the Data terminal to access to “Copy Kernel”.
  • Page 24 3. Data Collector Operation Copy the T110.bin file into T110 folder. and select “ENT” key on the Data terminal to access to update stage. Note: Aborting kernel file update during the process, press “Power” key to return to main page.
