POSline VE5850/VE5855

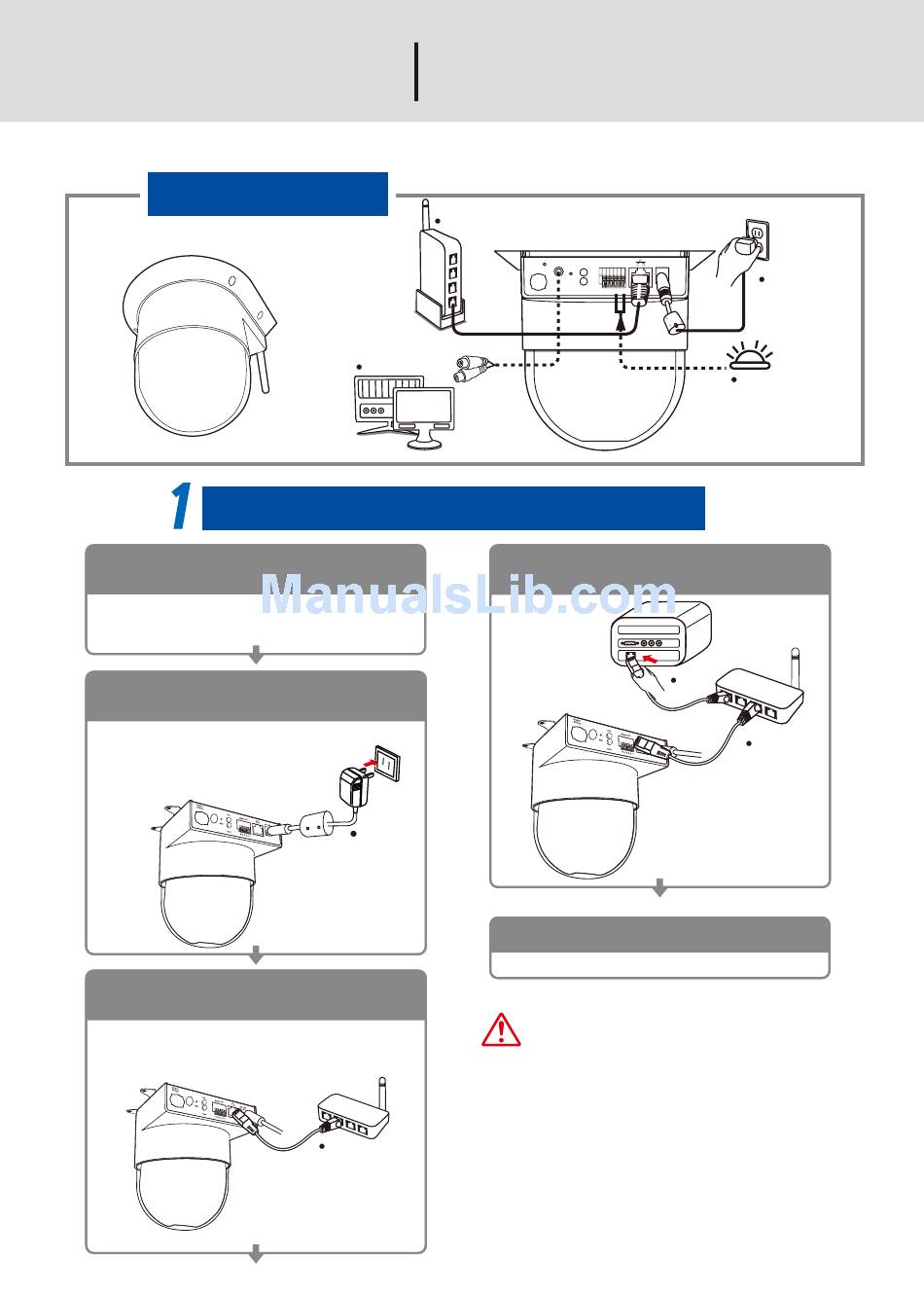

Connection diagram
Step
Connect the product to the switch hub and PC.
1
Prepare the product, your PC and
switch hub ready for connection.
Make sure that your PC has a LAN port
available for connection to the network cable
of the product.
2
Connect the product to the power
source (as shown in the figure).
When you connect the product to
the power source, the camera rotates
once and the green LED on the right
side of the camera lights up.
3
Connect the product to the switch
hub (as shown in the figure).
Use a network cable and plug it in the LAN port
of the product. Plug the other end of the cable
in the LAN port of the hub.
Quick Guide
HUB
TV/ LCD TV
4
power
5
1. Where no switch hub is available, you can
HUB
2. Don't tilt the camera to avoid disrupting
A V o u t
A l a r m I / O
DC 12V
Link
Default
S et t i n g
M I C
Alert
6 5 4 3 2 1
Connect the switch hub to your PC
(as shown in the figure).
PC
Turn on the power.
Turn on the power of the PC and hub.
Attention
search and set up the camera using the
network peering approach. However, you may
need a jumper and need to change the LAN
configuration on your PC for this purpose. It is
recommended to request a qualified engineer
for the connection or execute the network
peering referring to the user's manual.
operations.
Power
Alarm
HUB
