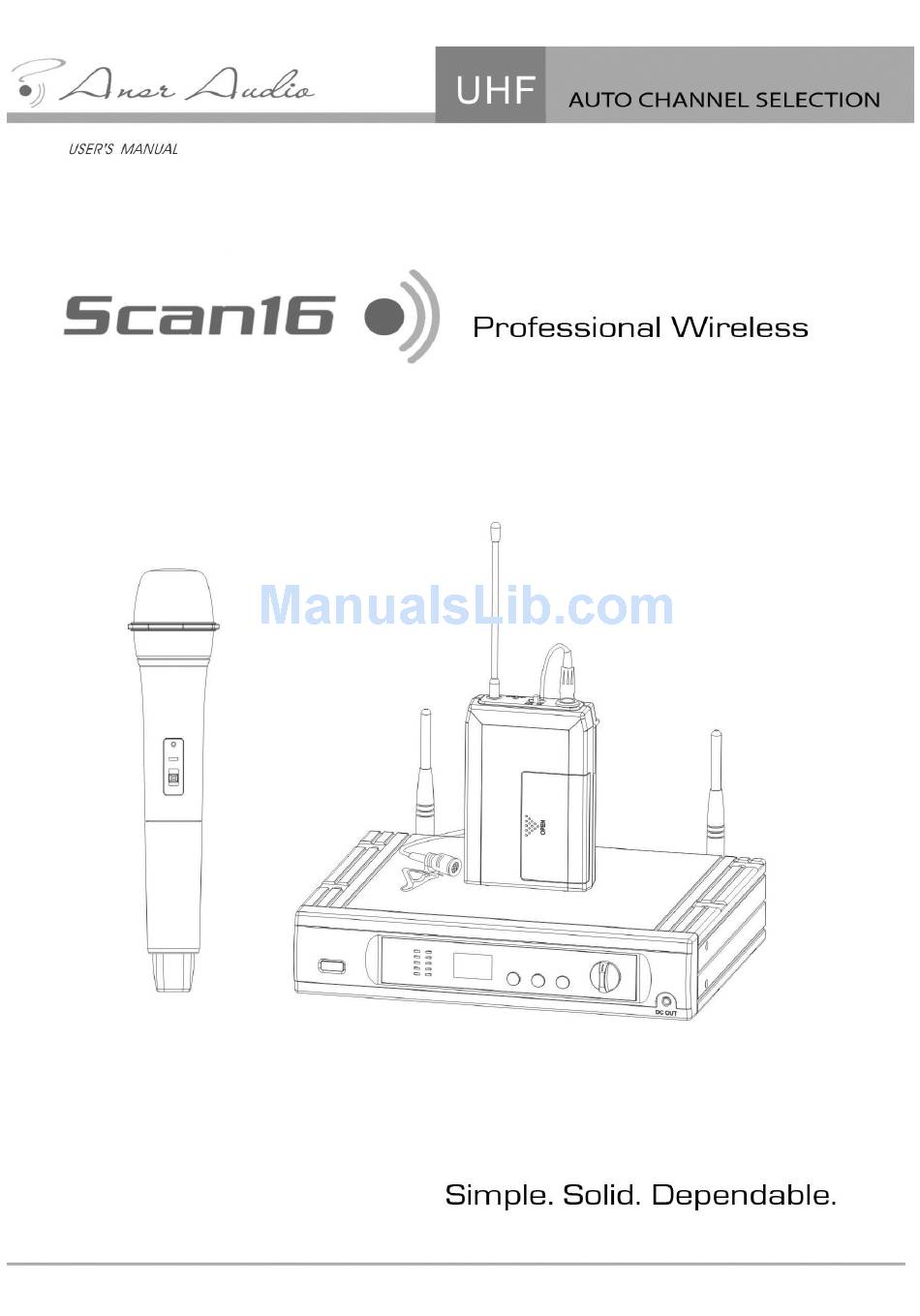

Summary of Contents for Ansr Audio Scan16
-
Page 2: Table Of Contents
Ansr Audio Scan16 Professional Wireless Table of Contents Page 1. Introduction 2. Safety 3. Environment 4. Wireless Note 5. Quick Start Guide 6. Product Description 6.1 Receiver 6.2 Handheld Transmitter Microphone 6.3 Bodypack Transmitter 7. Setting Up 7.1 Connecting the receiver to power 7.2 Connecting the receiver to an audio mixer or amplifier... -
Page 3: Introduction
RF exposure requirements and void user’s authority to operate the device. 1. Introduction Thank you for purchasing the Scan16 Professional Wireless Microphone System. This PLL synthesized wireless microphone system operates in an FCC approved UHF band frequency with 16 selectable channels. Please read this instruction manual carefully before operating the system. -
Page 4: Quick Start Guide
QUICK START WIRELESS 5. Quick Start Guide Insert fully charged batteries into the transmitter. Your Ansr Audio transmitter will operate on either rechargeable or alkaline batteries. Make audio output and power connections as described in Section 7. If connecting to a mixer MIC input, set the AW-25 volume to the one o'clock position. If connecting to a mixer LINE input, set the AW-25 volume to MAX position. -
Page 5: Product Description
WIRELESS PRODUCT DESCRIPTION 6. Product Description 6.1 Receiver The AW-25 receiver is designed for use only with Ansr Audio 16-channel selectable channels transmitters. The receiver operates in UHF 682-697 MHz frequency band with PLL synthesized control. Powered by 12V DC. - Page 6 PRODUCT DESCRIPTION WIRELESS Power: Press for 4 seconds to power the receiver on or off. Channel Display: LED channel displays the channel number. Button △: When the LED display starts flashing, press this button to change the channel forward. Button ▽: When the LED display starts flashing, press this button to change the channel in backward Set / Scan Button: ...
-
Page 7: Handheld Transmitter Microphone
WIRELESS PRODUCT DESCRIPTION 6.2 AW-1 Handheld Microphone The handheld microphone operates in UHF band frequency with PLL synthesized control. UHF 16 pre-programmed selectable frequencies to avoid interference. Uni-directional dynamic element provides excellent sound and durability. Use 2 x DC1.5V AA size dry or rechargeable batteries for low operating cost. -
Page 8: Bodypack Transmitter
16 preprogrammed selectable frequencies to avoid interference. Use 1.5V x 2 AA size dry or rechargeable batteries for low operating cost. 1. Mini XLR connector: Note that any Ansr Audio wireless microphone can be used with the AW-6 transmitter. Never attempt to use a non-Ansr Audio microphone with the AW-6. -
Page 9: Setting Up
WIRELESS SETTING UP 7. Setting Up NOTICE: Prior to setting up, please check that the transmitter and receiver are tuned to the same frequency. Two or more transmitters operating in the same frequency can not be used at the same time and area. So for each extra transmitter, please select a different frequency which can be used simultaneously at local area. -
Page 10: Channel Setup: Auto Or Manual
SETTING UP WIRELESS 7.3 Setting up channel on receiver Notice: Do not put two or more transmitters operating nearby when setting up the frequency channel. Please keep transmitter at least one meter away from receiver. 7.3.1 Manual Mode Setting interference-free channel by manual operation. ... -
Page 11: Setting Up The Bodypack Transmitter
WIRELESS TROUBLESHOOTING 7.6 Setting up the bodypack transmitter A. Connecting a microphone Open the battery cover. Push the MIC/LINE switch to “MIC” and use the supplied screw- driver to adjust the GAIN at appropriate position. Plug the mini XLR connector of the microphone cable into the audio input connector on the bodypack transmitter. -
Page 12: Basic Connections
BASIC CONNECTIONS WIRELESS 9. Basic Connections Connect the receiver output to the audio mixer or amplifier input, using a standard audio cable with 6.3ϕ phone plugs. Never use the balanced and unbalanced audio outputs at the same time! This may cause signal loss or increased noise. AUDIO OUTPUT DC ONLY UNBALANCED... - Page 13 WIRELESS BASIC CONNECTIONS To combine two receivers in a 19” standard rack by using 2 short L type plastics racks (L2) and 2 metal connecting plates (C1). (Each system includes a L2 and a C1.) To mount a receiver in a 19” standard rack by using 2 L type long metal racks (L1). (L1 is an optional product, so please see your dealer.) Charging Connecting Diagram Connect the supplied DC1.5 cable to the receiver and the transmitter, and it takes around...
-
Page 14: System Features
FEATURES & SPECIFICATIONS WIRELESS 10. System Features Operating in an FCC-safe UHF frequency band – 16 operating frequencies over 3 television channels (49, 50, 51). Automatically scans upward to the next open frequency at the touch of a button. ... -
Page 15: Microphones
WIRELESS MICROPHONES The Ansr Audio AW-6 bodypack transmitter will accept any properly wired Ansr Audio or Special Projects microphone. A wide variety of headworn and lavalier microphones are available from your Ansr Audio / Special Projects dealer. AM-17 / AM-17T The ultimate in headworn wireless. Unlike other single ear head worn microphones which tend to have difficulty staying in place, the AM-17 incorporates a soft moldable plastic earpiece which is flexible and can be formed to fit every ear.
