Page 1: Installation And Maintenance

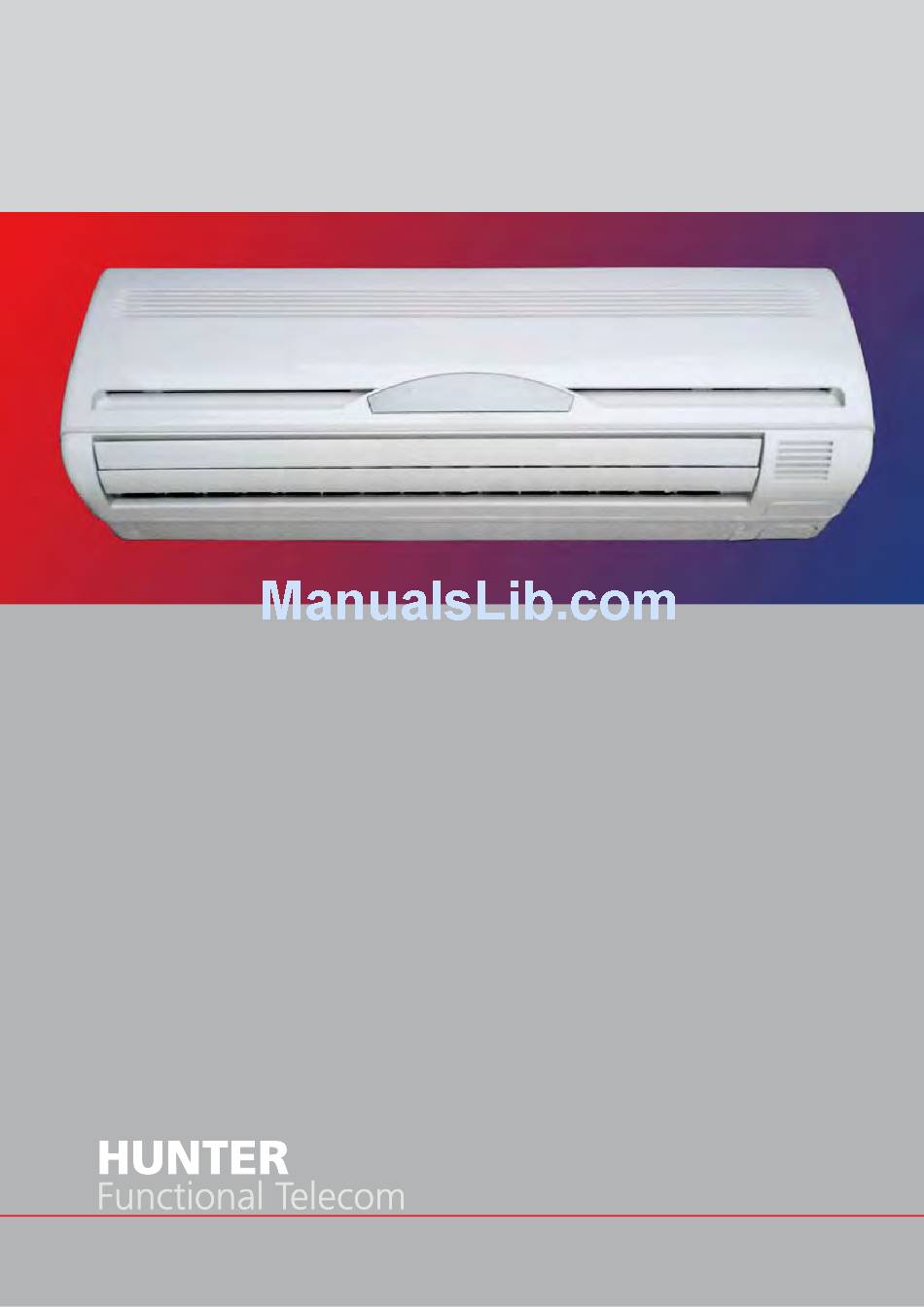

R410 SPEED AND CONTROLLED TELECOM AIR-CONDITIONOR Installation and Maintenance Instruction Manual COOL-VERVE 5000-18000 Btu-48VDC With low start and running current Hunter International AB, SE 181 24 Lidingö, Sweden Tel: +46 (0)8 767 54 74 www.hunter.se... -
Page 2: Table Of Contents
CONTENTS 1. Features ................1 2. Name of each part ............…..2 3. Remote Controller funktions ........……..3 4. Ionizer Introduction ..........…...9 5. Installation Instruction ........…....9 6. Outlines and Dimensions ........…....10 7. Specifi cation ............…....11 8. Partlist ............…....15 9. Wiring Diagram .............…..16 10. Operation features and precaution ......…..…..17 11. -
Page 3: Features
1. Features Our DC Speed and capacity controlled type air conditioners use environmentally friendly refrigerant R410A, lso prvides one of the highest energy ef ciency ratings in the industry. Output of the compressor and therefore the energy input requirements are constantly monitored and adjusted at the most optimum level for the given indoor and outdoor environmental conditions and the users’... -
Page 4: Name Of Each Part
2. Name of each part INDOOR UNIT OUTDOOR UNIT... -
Page 5: Remote Controller Functions
3. Remote controller functions REMOTE CONTROLLER HEAT&COOL SERIES... -
Page 6: Current Time Setting
3. Remote controller functions CURRENT TIME SETTING Signal Transmitting Sleep Function Auto Mode Cooling Mode Dehumidify Mode Auto Speed Low Speed Timing ON (and Time) Medium Speed High Speed Timing OFF(and Time) Fix Louver Position Auto Swing Swing Setting Temp. Heating Mode... - Page 7 3. Remote controller functions A. I FEEL" AUTO-OPERATION...
- Page 8 3. Remote controller functions B. OPERATION MODES...
- Page 9 3. Remote controller functions C. FAN SPEED AND AIRFLOW DIRECTION CONTROL...
- Page 10 3. Remote controller functions E. SWING OPERATION F. TIMER OPERATION (ON/OFF TIMER)
-
Page 11: Ionizer Introduction
4. Ionizer Introduction 5. Installation Instruction... -
Page 12: Outlines And Dimensions
6. Outlines and Dimensions INDOOR UNIT OUT DOOR UNIT... -
Page 13: Specifi Cation
7. Specifi cation COOL VERVE TELECOM AIR-CON R410A DC SPEED AND CAPACITY CONTROLLED COOLING ONLY Model COOL VERVE 3-12000 COOL VERVE 5-18000 COOL VERVE 12-24000 Power supply Ph-V-Hz 1, 220-240V~, 50Hz 1, 220-240V~, 50Hz 1, 220-240V~, 50Hz 9000(3500-12000) 12000(4000-18000) 18000(12000-24000) -
Page 14: Parts List
8. Parts List INDOOR UNIT... - Page 15 8. Parts List OUTDOOR UNIT...
-
Page 16: Wiring Diagram
9. Wiring Diagram A. INDOOR UNIT B. Outdoor unit... -
Page 17: Operation Features And Precaution
10. Operation features and precaution OPERATION FEATURES Precaution... - Page 18 10. Operation features and precaution...
-
Page 19: Failure Codes
11. Failure Codes... -
Page 20: Vdc Power Supply (Optional)
12. 48VDC Power Supply (Optional) By equipping the built-in DC-AC Power Converter Module for the outdoor body, the machine can serve the 48VDC Power Supply. COOL VERVE 3-12000 COOL VERVE 5-18000 COOL VERVE 12-24000 Model Power supply Ph-V-Hz DC 48V... - Page 21 The actual products may be slightly different from those images shown in this manual. Specifications are subject to change without notice for further inprovement. Please refer to the name plate on the unit for the uppdated specifications. Hunter International AB Box 1217 SE 181 24 Lidingö...
