Summary of Contents for Bischoff & Bischoff RMS - 20

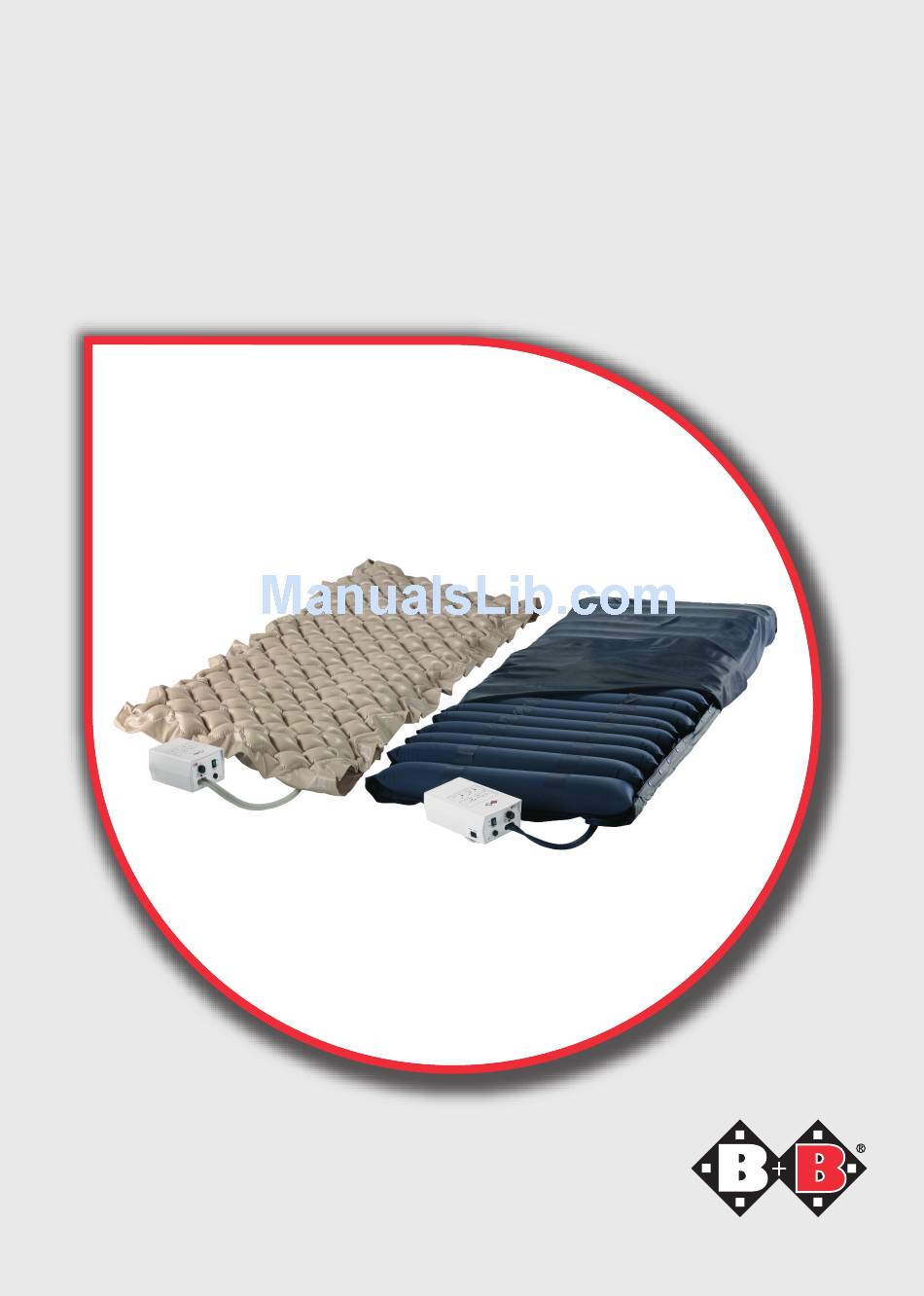

- Page 1 Bischoff & Bischoff Instruction manual RMS - 20 WMS - 5 Enjoy mobility.
-
Page 2: Table Of Contents
RMS-20 (Mattress pad with tube system) WMS-5 (Mattress pad with honeycomb structure) Contents: 1| Foreword 1.1 Signs and symbols 2| Important safety instructions 2.1 General safety instructions 2.2 Purpose 2.3 Indications 2.4 Contraindications 2.5 Responsibility 2.6 Declaration of Conformity 3| Overview of product and accessories 3.1 Checking the delivery 3.2 Package 4| Installation and use... -
Page 3: Foreword
RMS-20 WMS-5 1. Foreword Dear user, You have selected a high-quality product from Bischoff & Bischoff. Thank you for your trust in our products. The mattress pad with micropores is used on the existing hospital mattress and does not replace it. The continuous controlled exchange of air provided by the micropores creates a favourable microclimate in the area between the pad and the patient. -
Page 4: Signs And Symbols
1.1 Signs and symbols Caution! Indicates specially safety-relevant instructions. Follow instruction manual. Important! Indicates particularly useful information in the specific context. Do not dispose of product with domestic waste. The product will be accepted by a recycling centre free of charge. Suitable for indoor use only Safety Class II (double insulation) Type BF Applied Part... -
Page 5: General Safety Instructions
RMS-20 WMS-5 2. Important safety instructions 2.1 General safety instructions Before using the alternating pressure system check that the pad is correctly fastened in position and all parts are correctly connected. Note that the position of the patient must still be changed when using alternating pressure systems. -
Page 6: Purpose
This may occur even with full compliance with current laws and standards. Devices such as mobile telephones may interfere with the system. If problems with interference are encountered disconnected the system from the mains and contact the technician. If resuscitation is required, disconnect the hoses from the pump immediately. -
Page 7: Responsibility
RMS-20 WMS-5 2.5 Responsibility A warranty claim can only be accepted if the product is used under the specified conditions and for the specified purposes. - changes, extensions, repairs and maintenance work must be carried out only by technicians authorised by Bischoff & Bischoff - the alternating pressure system must be used as directed by all manuals and instructions for use 2.6 Declaration of Conformity... -
Page 8: Overview Of Product And Accessories
3. Overview of product and accessories 3.1 Checking the delivery The alternating pressure system is delivered fully assembled in a carton. The authorised dealer provides instruction in its use. If the goods are delivered by rail or road transport they must be inspected for shipping damage in the presence of the delivery person. -
Page 9: Installation And Use
RMS-20 WMS-5 4. Installation and use 4.1. Place the control unit on a stable and horizontal sur- face or hang the pump on the hook provided at the end of the bed. Fig. 1 4.2. Position the deflated pad on the mattress with the hose connections towards the end of the bed. - Page 10 4.4. Turn the rotary switch to 5 MAX and switch on the pump. The red indicator light comes on and the alarm sound is activated. For more information see Section 5. Fig. 4 4.5. If the alarm sound is disturbing, press the button the case to the right until the pad is fully inflated.
-
Page 11: Technical Data
RMS-20 WMS-5 5. Technical data RM-20 mattress pad Model: tubes Material: mattress pad / Nylon cover / Nylon Number of cells: Micropores: 4 x 3 laser-cut Dimensions: (LxW) 200 x 90 cm Height, inflated: 10 cm Weight: 3.8 kg WM-5 mattress pad Model: honeycomb Material:... - Page 12 WMK - 10 control unit Voltage: 230 V AC Frequency / power: 50-60 Hz / 8W Max. pressure: 120 mmHg Pressure adjustment: automatic depending on specified patient weight Alternating cycle: two-chamber system Total / relaxation time: 10 / 5 minutes Weight: 1.8 kg Dimensions: (LxWxH) 13.5x 27x 11.5 cm...
-
Page 13: User Care Instructions
RMS-20 WMS-5 6. Care instructions for the user 6.1 Cleaning and disinfection Cover: the cover can be machine-washed at 65°C. Use a mild detergent and rinse with clean water after. For disin- fection add a standard disinfectant detergent to the rinse cycle that will eliminate bacteria and germs reliably at a wash temperature of 65°C.Leave the cover to air-dry. -
Page 14: Disposal
The dealer can receive the required information, documentation and circuit diagrams for repair and service on request. 8. Disposal If your alternating pressure system is no longer used and you wish to dispose of it, please con- tact your dealer. If you wish to dispose of it your- self, please contact a local recycling company for the disposal regulations of your jurisdiction. - Page 15 RMS-20 WMS-5 Warranty certificate (Please note our general business terms and conditions) Model: RMS-20 / WMS-5 Serial number:* (to be entered by dealer) Dealer Date and stamp * See the side frame for information stickers Bischoff & Bischoff GmbH • 04.05.2011...
- Page 16 Bischoff & Bischoff GmbH Becker-Goering-Strasse 13 • D-76307 Karlsbad Tel.: +49 700/6000 7070 • Fax: +49 700/6000 8080 www.bischoff-bischoff.com info@bischoff-bischoff.de...
