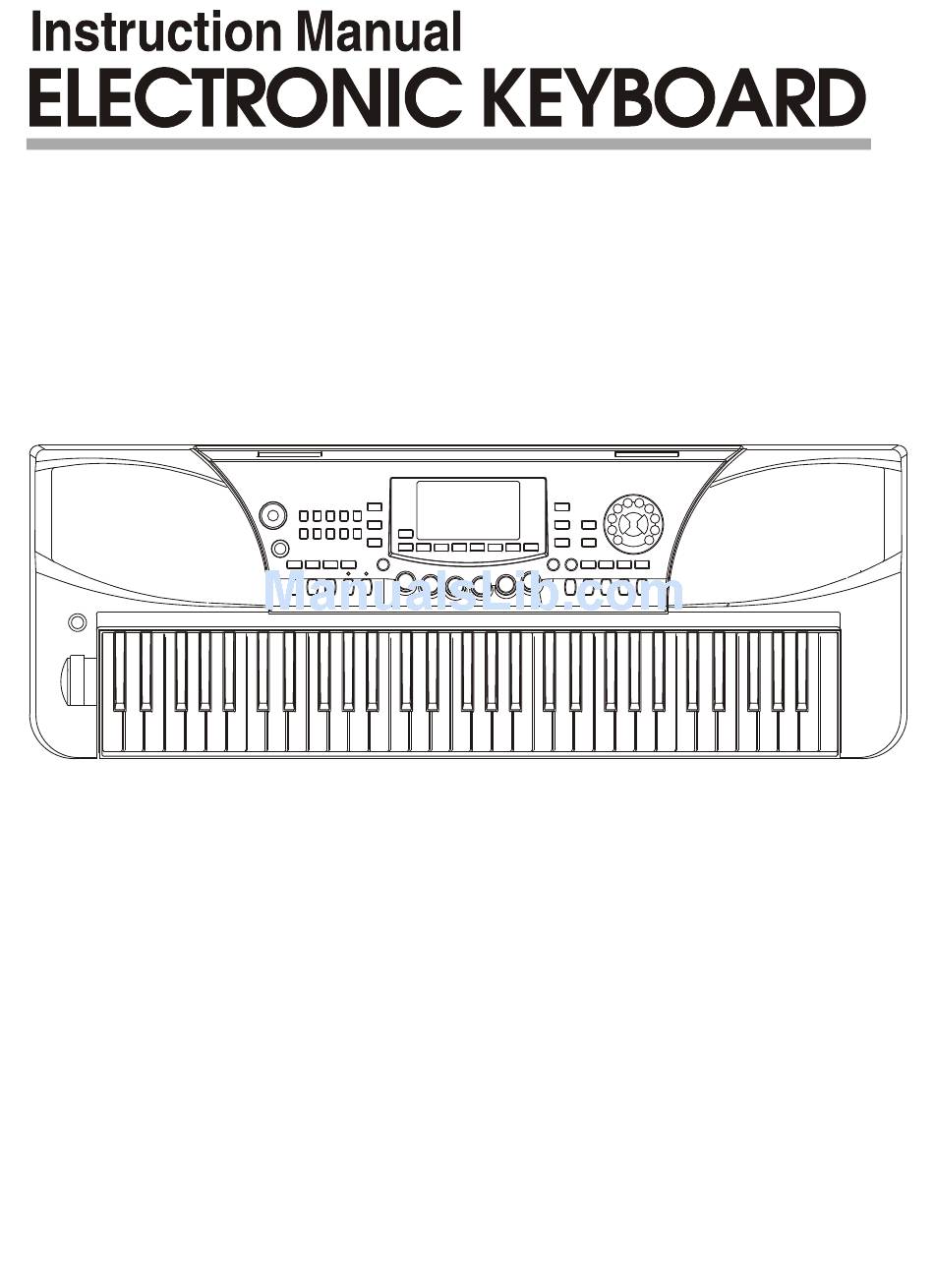

MTS Systems Electronic keyboard Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Electronic keyboard and is the answer not in the manual?

Questions and answers

Summary of Contents for MTS Systems Electronic keyboard

  • Page 2 Congratulations! Thank you for choosing this is user-friendly but professional keyboard. This keyboard is produced in high-powered, large capacity and large-scale integrated circuit. It includes 310 voices, 160 styles, 120 songs and 5 demo songs with hi-quality PCM voices that could perfectly express your performance.
  • Page 3 Main Features Keyboard: 61 keys touch keyboard, 3 touch levels. Display: 8 characters, segment code, icon and white backlit. Operation system: User-Friendly interface, numeric keypads or [+/YES] / [-/NO] button for selection of styles, songs and voices. No of Voices: 310 with 10 groups of percussive voices.

  • Page 4: Table Of Contents

    Contents General Guide Mixer 15-16 Power supply 1.Using the AC adaptor Metronome 2.Using batteries Piano Connectors Memory 17-18 1.The headphones jack 1.Memory bank 2.The Aux.Out jack 2.Store/load parameter 3.The sustain pedal 3.Memory data 4.The volume pedal O.T.S function 5.The USB jack Recording Selecting &...

  • Page 5: General Guide

    General Guide DEMOS SONGS STYLES VOICES 001 FUNK 001-031 CLASSICAL 001-010 8 BEAT 076-090 SOUL & FUNK 001-008 PIANO 049-056 STRING ENSEMBLE 097-104 EFFECTS AMERICAN PATROL 032-041 FOLK & COUNTRY 011-020 16 BEAT 091-100 JAZZ 009-016 MALLET 057-064 BRASS 105-112 ETHNIC GUITAR &...

  • Page 6: Power Supply

    Power Supply This electronic keyboard can be powered by current from a standard household wall outlet (using the specified AC adaptor) or by batteries. Using The AC Adaptor Make sure that only the AC adaptor specified for this electronic keyboard is used. The adaptor shall be 12V DC output, and center positive type.

  • Page 7: Connectors

    Connections The Headphone Jack If you prefer to play with headphone for high quality personal monitoring, plug a stereo headphone set into the rear panel PHONES jack. Plugging a set of headphones into the PHONES jack will shut off the speakers automatically. The Aux.

  • Page 8: Selecting & Playing Voices

    Selecting & Playing a Voice Voice number 310 voices (see Appendix). Voice setting When the power is on, the default (VOICE R1) is 001, VOICE R1 flag and the voice name appear on VOICE the LCD. You can select the voice number by pressing the [+/YES / -/NO] button or with the numeric keypads.

  • Page 9: Split/Lower Voice

    Split/Lower Voice Split Point (#F3) This function will split the keyboard into left (lower) and right sections. When the function is on, the left (low) section of the keyboard will be used to accompany the melodies played at the right (high) section of the keyboard. The separation note for the 2 sections is the #F3 Voice L Voice R1/R2...

  • Page 10: Transpose

    Transpose Transpose switches the pitch of the notes that you play; for instance, you will be able to switch the key of a C note to G note by adding up the transpose TRANSPOSE level. Press [TRANSPOSE +] / [TRANSPOSE- ] to adjust the pitch level.

  • Page 11: Selecting & Playing A Style

    Selecting & Playing a Style Style Number The keyboard has 160 styles in total, from 001 to 160. The default style is 001. Press [STYLE] button to enter to the style mode. LCD lights the STYLE flag and displays the style number. STYLE Style Setting When the power is on, the style number will be...

  • Page 12: Fill In A/B

    INTRO/ENDING This function is applicable to add in the beginning / Flashing ending of a style. Its length varies in different styles. When the INTRO/ENDING mode is processing, " " START/STOP INTRO/ENDING FILL-IN A FILL-IN B SYNC the indicator above FILL A or FILL B will be "...

  • Page 13: Tempo

    Tempo Press the [TEMPO+] or [TEMPO-] button, the tempo can be adjusted up or down within the range of 30-280. TEMPO Hold either [TEMPO+] or [TEMPO-] button allows you to speed up the selection. Press [TEMPO+] and [TEMPO-] simultaneously to set the tempo back to the default value.

  • Page 14: Function Menu

    Function Menu Press [FUNCTION/BACK] or [FUNCTION/NEXT] Range Content LCD Display Default Value button to enter this function menu; when power is Tune Tune -50...50 Beat Type Beat 0 2...9 on, the first item of this function is Master tune , "...

  • Page 15: Midi Channel

    FUNCTION / BACK FUNCTION MIDI Channel / NEXT Press [FUNCTION/BACK] or [FUNCTION/NEXT] button to set the MIDI channel function. Press [+/YES] / [-/NO] button to adjust its parameter; the FUNCTION / BACK MIDI IN/OUT channel is from number 1 to 16. FUNCTION / NEXT Portamento and Modulation...

  • Page 16: Dsp Effect

    DSP Effect Reverb Type Press [FUNCTION/BACK] or [FUNCTION/NEXT] FUNCTION button to enter the reverb type setting function, the / BACK number of Rvb Type will appear on the screen. FUNCTION / NEXT Press [+/YES] / [-/NO] to select one of the 8 types of reverbs.

  • Page 17: Dsp

    MIXER Press [ACCOMP +] / [ACCOMP -] button, you can adjust the track volume of accompany chord. RHYTHM BASS ACCOMP LOWER UPPER Press [LOWER +] / [LOWER -] button, you can MIXER adjust the volume of the left keyboard section. RHYTHM BASS ACCOMP...

  • Page 18: Piano

    Piano Press [PIANO] button to enter the piano mode. The character PIANO will appear on the display and " " the keyboard voice will be piano. PIANO Press [PIANO] again to exit the piano mode. If you enter the piano mode, the A.B.C. function will be turned off.

  • Page 19: Memory Data

    Memory Date The memory data can store main voice, dual voice, left-hand voice, sustain on/off, styles, tempo, function, mixer, ACCOMP parameter and octave parameter to any of the 'M' buttons. O.T.S. Function One Touch Setting is a powerful and convenient function that allows you to reconfigure all settings instantly with the touch of a single button.

  • Page 20: Recording

    Record Record Waiting Press [RECORD] button. Four counting beats on Flashing the LCD will flash simultaneously. It indicates ''record waiting status''. Voice, style, memory and recording tracks can be selected from this status. The ACCOMP and MELODY tracks can be recorded together but also separately.

  • Page 21: Demo

    Demo There are 5 Demos in total (see Appendix) DEMO Press [DEMO] to play demo songs, press [DEMO] again to stop playing. Press [+/YES] / [-/NO] or the numeric buttons to select a demo song. The name of demo song will appear on the display.
  • Page 22 LESSON 2 (Waiting): Press [LESSON] button again to enter lesson 2. The ''FOLLOW'' sign shows up. In this mode, you can learn the tones of a demo song. The song continues to play only if you have pressed the correct keys according to the keyboard displays. A "waiting status "...

  • Page 23: Chord Dictionary

    Chord Dictionary Chord dictionary is a function that helps you to check the chord notes. CHORD DICTIONARY RIGHT Press [RIGHT] button continuously for two seconds to enter the dictionary mode, the flag is lightened on CHORD DICTIONARY the screen and "Dict" is displayed. Specify and play the Chord type and the Chord root that you want on the keyboard as follows: Chord Type:...

  • Page 24: Midi Function

    MIDI Function How to Use the USB MIDI stands for Musical Instrument Digital Interface. The standard interface between PC and other electronic instrument(s). Now you can choose the USB interface for transferring midi data. The USB interface allows you to connect the computer and to transfer messages conveniently.

  • Page 25: Specifications

    Specifications Keys: 61 keys with Touch Response LCD Display: Multi-functional LCD Polyphony: 64-note polyphony (max) Voices: 310 voices with 10 groups of percussive voices Styles: 160 styles Song: 120 songs of different style Demo: 5 demo songs Tuning split point, Modulation/Portamento, Overall Control: Dsp,Dual, Low voice, Sustain,Touch, Piano, Demo, Transpose,Octave,Metronome,Mixer...

  • Page 26: Appendix 1-Voice List

    Appendix 1- Voice List DRUM SET BRASS PERCUSSIVE 173 Accodin2 236 Strings1 PIANO 301 Standard Drum 1 57 Trumpet 113 Tinkle Bell 174 Softacc 237 Slwstrzz 01 Acoustic Grand Piano 302 Standard Drum 2 58 Trombone 114 Agogo 175 Accowaa 238 Synthst1 02 Bright Acoustic Piano 303 Room Drum...

  • Page 27: Appendix 2-Style List

    Appendix 2- Style List Name Name Name 8 BEAT BALLROOM COUNCTRY Sweet Beat Rhumba 1 Country 8 Beat Miami Beat Slow Waltz 1 Modern Country Fox Trot Rhythm & Beat Country Ballad 2 Guitar Pop 1 Samba Country Pop 8 Beat Dance Cha Cha 2/4 Country Quick Step...

  • Page 28: Appendix 3-Demo List

    Appendix 3- Demo List Name Funk American Patrol Guitar&Saxphone I Can..Alise Appendix 4- Song List CLASSICAL 001-031 GOLDEN & POP 042-071 ORIENTAL 088-090 Aida On London Bridge South Mud Bay Annen Polka Are You Lonesome Tonight Give You A Rose Auf Flugeln Dec Gesanges Only You Flowing Rill...

  • Page 29: Appendix 5-Chord List

    Appendix 5- Chord List Chord Name/[Abbreviation] Normal Voicing Chord(C) DISPLAY Major [M] 1-3-5 1-(3)-5-6 Sixth [6] Major seventh[M7] 1-3-(5)-7 Major seventh add sharp Eleventh 1-(2)-3-#4-5-7 CM7(#11) CM7(#11) [M7(#11)] or 1-2-3-#4-(5)-7 Major add ninth [M(9)] CM(9) CM (9) 1-2-3-5 Major seventh ninth [M7(9)] CM7(9) CM7 (9) 1-2-3-(5)-7...

  • Page 30: Appendix 6-Midi List

    Appendix 6- MIDI List Function Remarks Transmitted Recognized Basic Default 1-16ch Channel Changed 1-16ch Default Mode Messages Altered *********** Note 0-127 0...127 Number True voice *********** 0...127 Velocity : Note on O 9nH,V=1-127 O 9nH,V=1-127 Noteoff (9nH,V=0) X (9nH,V=0; 8nH,V=0-127 After Keys Touch...
  • Page 31 Version:V005...
