- Page 1 7-Day Digital Timer Model Number: PS42309C INSTRUCTION MANUAL After Sales Support - Help Desk Telephone: 1300 663 907 Internet: www.winplus.com.au...
-
Page 2: Warranty
Description goes here 7-Day Digital Timer Warranty Details The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws. -
Page 3: Table Of Contents
Contents Warranty Contents Welcome General Safety Instructions Product Features Parts List / Technical Specifications Product Setup Product Operation FAQ’S Repair and Refurbished Goods or Parts Notice After Sales Support - Help Desk Telephone: 1300 663 907 Internet: www.winplus.com.au... -
Page 4: Welcome
Welcome Congratulations on choosing to buy a BAUHN product. By doing so you ® now have the assurance and peace of mind that comes with purchasing a product made by one of the leading manufacturers. All products brought to you by BAUHN are manufactured to the highest standards of performance ®... -
Page 5: General Safety Instructions
General Safety Instructions Read this manual thoroughly before first use and keep it in a safe place for future reference, along with the warranty card, purchase receipt and carton. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. -
Page 6: Product Features

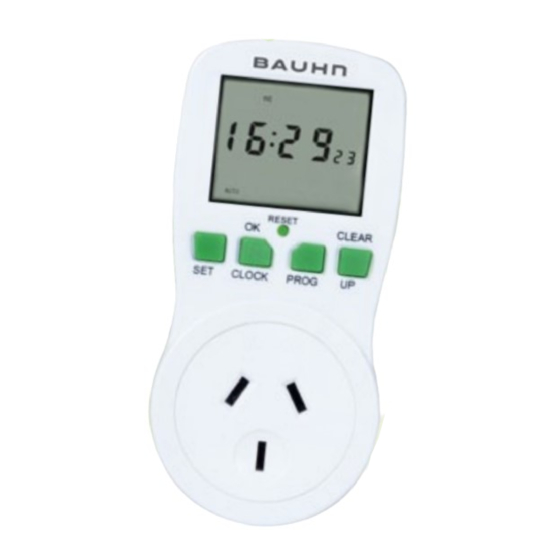

Product Features Day of the Week Large LCD Display Time Display Reset Button Control Buttons Power Socket • 4 big buttons for easy operation • Large LCD display • 24 hour, 7 day programming • 16 Programmable On/Off cycles, up to 112 cycles per week •... -
Page 7: Parts List / Technical Specifications
– Total load must not exceed 2400W – Working temperature: 0-50°C – Timer range: 1 minute – 168 hours (7days) Parts List • BAUHN 7-Day Digital Timer • Getting Started Guide • Warranty Card • Warranty Stickers • Instruction Manual... -
Page 8: Product Setup
Product Setup Installation Plug the BAUHN 7-Day Digital Timer into an available power outlet. Plug the desired appliance into the BAUHN 7-Day Digital Timer. Switch the power point on. Note: You may find it easier to set the unit’s time and timer programmable functions before plugging it into the wall. -
Page 9: Setting The Time
Setting the Time Press the CLOCK button for 3 seconds to enter clock mode. Press the SET button, the arrow next to HOURS will begin to flash. Press the UP button to set the hour. Press the SET button again to confirm, the arrow next to MINUTES will begin to flash. - Page 10 Daylight Savings Time Press the SET and CLOCK buttons at the same time to set SUMMER or WINTER time. Note: During daylight savings, SUMMER is displayed on the bottom right of the screen. In winter mode, there is no special indicator on screen.
-
Page 11: Product Operation
Product Operation Operating Modes The current operating mode is displayed on the bottom left of the screen. Press the SET button to cycle through the operating modes. The digital timer has 3 operating modes: a. On: Always on mode, no timers are active. Power will run to connected device. - Page 12 Timer Settings Press the PROG button to enter timer mode. You can set up to 16 timers (on/off cycles). The program cycle number will be displayed at the bottom of the screen. Press the PROG button repeatedly to scroll through all timers. Current settings for each timer are displayed on the screen.
- Page 13 When your desired day cycle is shown on the screen, press the PROG button to exit the programming mode. 10. You can set the next timer function by repeating steps 2 – 9. 11. Once you have set all your timers, press the OK button to return to the main screen.
- Page 14 Random Function When the Random Function is active, the Digital Timer will automatically turn the connected device on or off during the hours of 6pm to 6am. Press the SET & UP buttons at the same time to turn ON the random function.
-
Page 15: Countdown Timer
Countdown Timer The Digital Timer can be programmed to turn a device ON or OFF after a specified time using the Countdown Timer function Note: Countdown timer only works in ON or OFF mode. Random function should be turned OFF. If the digital timer is in ON mode when the countdown is activated, at the end of the countdown, the power will be switched to OFF. - Page 16 Resetting the Timer If you experience any problems or there is no response from the Digital Timer press the RESET button using a pen or pencil tip. After Sales Support - Help Desk Telephone: 1300 663 907 Internet: www.winplus.com.au...
-
Page 17: Faq's
Set the timer to OFF mode. Press the SET timers? button to cycle through ON/OFF/AUTO modes. Can I use the BAUHN 7 Day Digital Yes, you can use the BAUHN 7-Day Timer with a power board? Digital Timer with a power board as long as the total rated maximum load through the timer does not exceed 2400W. - Page 18 Notes After Sales Support - Help Desk Telephone: 1300 663 907 Internet: www.winplus.com.au...
-
Page 19: Repair And Refurbished Goods Or Parts Notice
Description goes here 7-Day Digital Timer The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. The benefits conferred by this warranty are in addition to all rights and remedies in respect of the product that the consumer has under the Competition and Consumer Act 2010 and similar state and territory laws.
