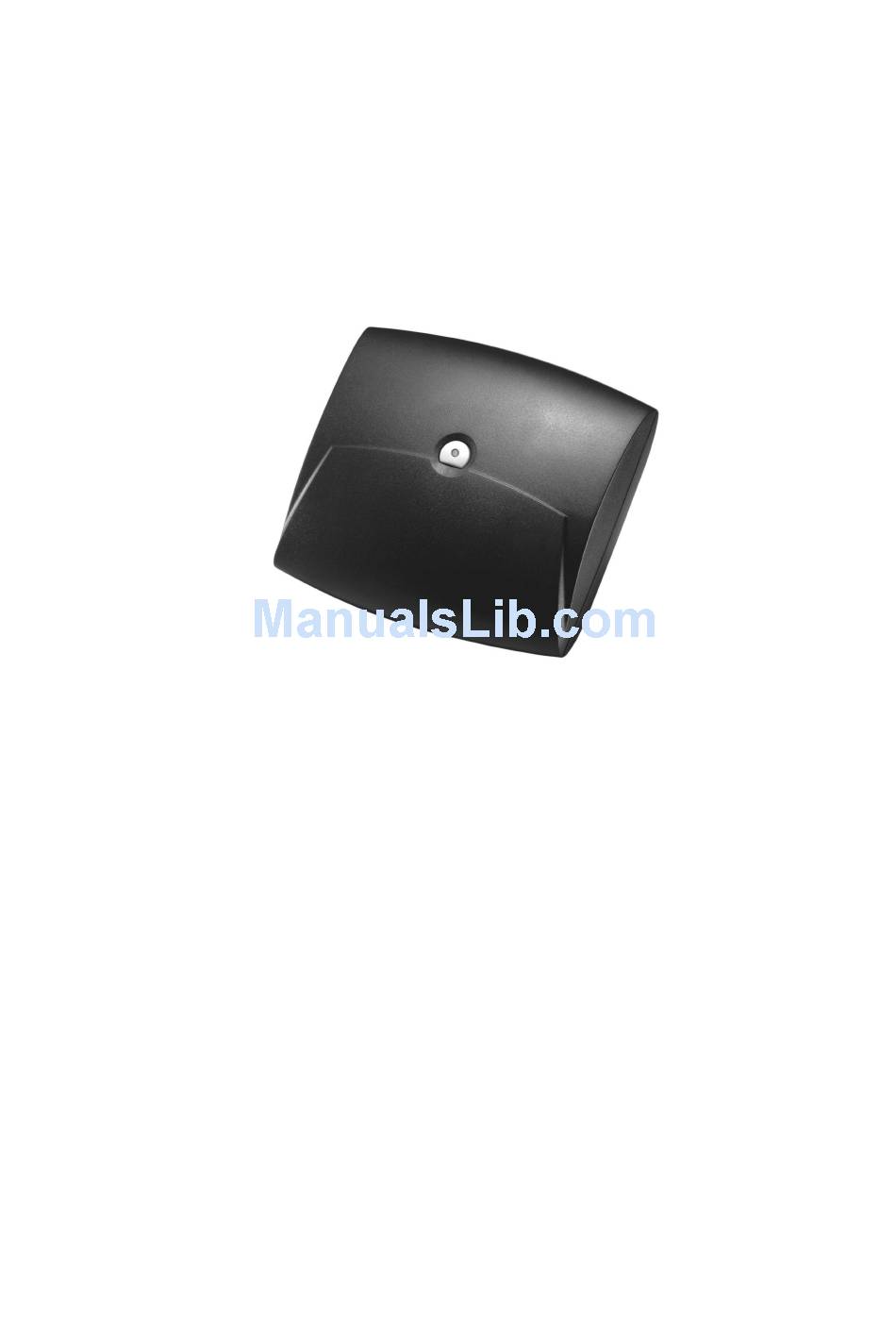

R-168 DECT Repeater
User Manual
l l l l
N N N N
e e e e
t t t t
w w w w
l l l l
N N N N
e e e e
t t t t
w w w w
Nunawading. Victoria. 3131
o o o o
r r r r
k k k k
s s s s
o o o o
r r r r
k k k k
s s s s
Aristel Networks Pty Ltd
Unit 3A, 100 Station Street
Telephone: 03 9837 2300
Facsimile: 03 9872 4433
Advertisement
Table of Contents
Summary of Contents for Aristel R-168
-
Page 1: User Manual
R-168 DECT Repeater User Manual Aristel Networks Pty Ltd Unit 3A, 100 Station Street Nunawading. Victoria. 3131 Telephone: 03 9837 2300... - Page 2 Warning! Each Repeater installed reduces the maximum number of handsets by 1. (Aristel DC209 has a maximum of 15 handsets). See your system manual for information regarding your particular system...
- Page 3 Important notes: 1. The Aristel DC209 model does not support the use of repeaters. The R-168 Repeater will work only with the DC209 model. e.g. Base Serial Number C209003431000113 2. It is possible that not all the features of your particular base station that this Repeater is registered to, will be available due to variations of different brand base station protocols.
- Page 4 2. Registration of Repeater, Before the Repeater is installed, it must be registered to your base station. You will require a previously registered handset. The handset as well as the base must be powered on and ready for operation. The system should be in idle condition.
- Page 5 Registration Procedure for Aristel DC209: 1. Make sure the Repeater power is turned off. 2. Set the base station to registration mode by:- a) Using a registered handset, press down arrow until BS setting is selected b) Press INT/OK c) Enter the PIN (default=1590)
- Page 6 3. Placement of the Repeater. o have the best coverage, it is important to place the Repeater at the best location. Avoid obstacles like thick walls and radio transmitting devices that can interference the Repeater operation. Keep at least 10 metres spacing between Repeaters when you wish to overlap the coverage areas of multiple repeaters.
-
Page 7: Technical Data
4. TECHNICAL DATA 1. Interface: DECT 2. Standard: ETS 300 700 3. Support mode 0 (without encryption) 4. Operation of 2 simultaneous handset calls per repeater (2 calls) depends on the type of base station in use 5. Supports intra-cell handover 6.
