ALEX359 LTD.
contact information
http://www.emporion359.com
Vivatel: +359878271997
Globul: +35989822919
INSTRUCTIONS FOR USE

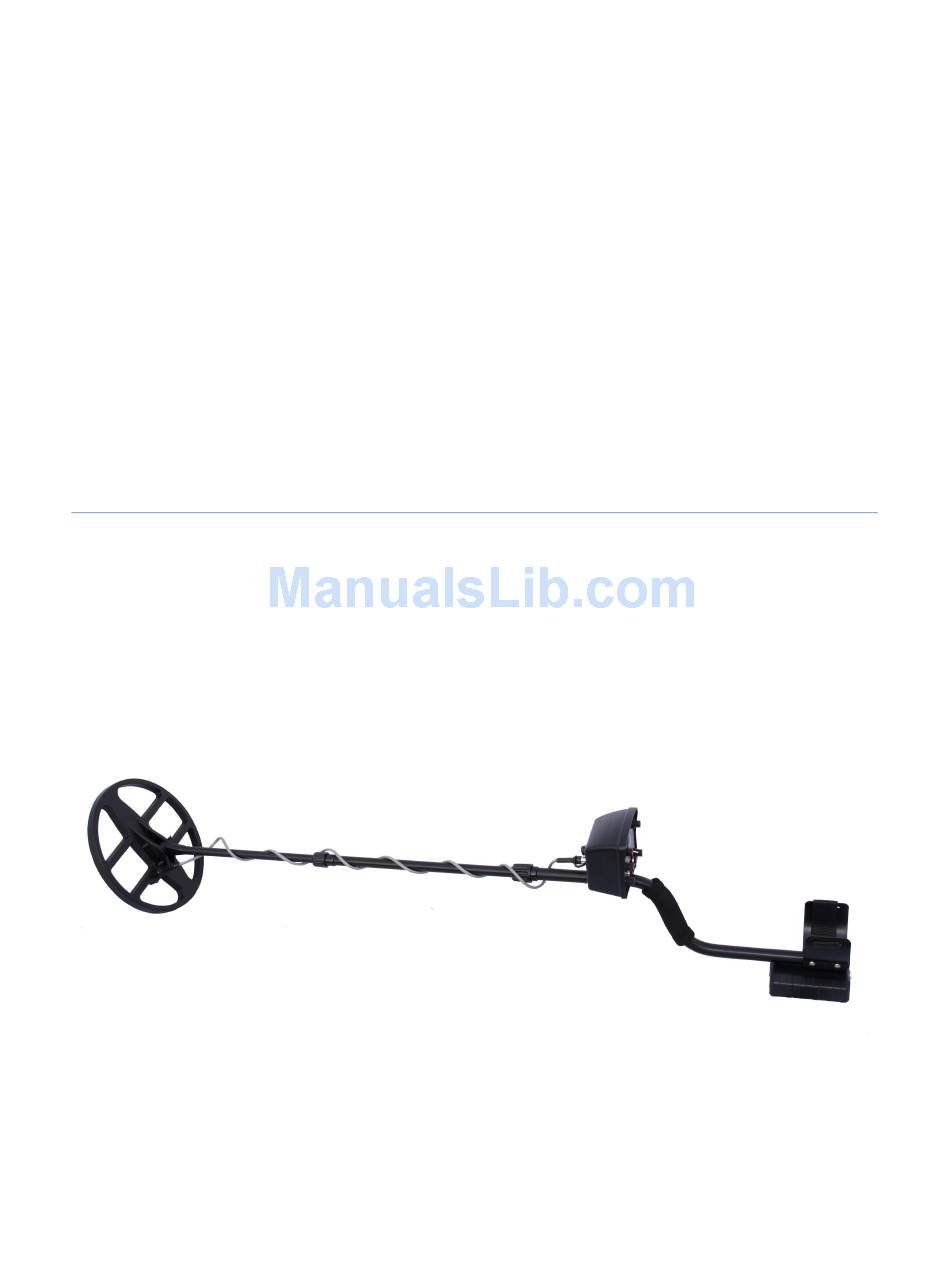

GOLDEN MASK 4
METALDETECTOR
18KHZ
Before using your detector for the first time, we strongly recommend that you read this
instruction manual carefully un order to make full use of its abilities for a longer time.
DO NOT USE THE DEVICE INDOOR!
Advertisement
Table of Contents
Summary of Contents for ALEX359 GOLDEN MASK 4
- Page 1 Vivatel: +359878271997 Globul: +35989822919 INSTRUCTIONS FOR USE GOLDEN MASK 4 METALDETECTOR 18KHZ Before using your detector for the first time, we strongly recommend that you read this instruction manual carefully un order to make full use of its abilities for a longer time.
-
Page 2: Table Of Contents
6. How to Use the Metaldetector ………………………………........6 Setting the metaldetector in a “manual ground balance” mode (GB MAN)........................6 Setting the metaldetector in an “automatic ground balance” mode (GB AUTO)........................7 7. Audio Discriminators.....................7 8. Charging the batteries...................8 9. Warranty and Service………………..............10 Golden Mask 4... -
Page 3: Qualities
2. Specifications DO NOT USE THE DEVICE INDOOR! Operating frequency – 18 kHz Operation mode – motion Golden Mask 4 is specifically designed to Automatic ground balance provide maximum effectiveness on all types Manual ground balance of soils. -
Page 4: Assembly/ Disassembly
1. Standard coil 4. Assembly/ Disassembly Golden Mask 4 features a standard 10.5” Take the lower rod (the carbon part), place (27 cm) DD search coil. The coil is made the rubber sealing in the openings of the from ABS plastic and its lower end is... -
Page 5: Control Panel And Devices
“DISC. LEVEL” potentiometer – sets the rejection level of iron objects; “AUDIO FREQ.” potentiometer – adjust the audio tone; potentiometer – “VOLUME” switches on the metaldetector and sets the audio volume; Golden Mask 4... -
Page 6: How To Use The Metaldetector
“AUDIO FREQ.” potentiometer to choose the preferred audio tone fig. 2 Start moving the search coil slowly up and down (Figure 1) and slowly turning the “GROUND BALANCE” potentiometer. Golden Mask 4... -
Page 7: Setting The Metaldetector In An "Automatic Ground Balance" Mode (Gb Auto)
“ALL 7. Audio Discriminators METAL” mode without metal discrimination! Metal discrimination is obtained through two Recovery Speed of the Metal detector audio discriminators. Golden Mask 4 incorporates electronics, 1. Operation of the Audio Discriminator. specifically designed provide high recovery speed to enhance the productivity... -
Page 8: Charging The Batteries
To attain maximum objects. recovery speed of Golden Mask 4, set the “DISC LEVEL” potentiometer to position 2 6. Time object buried and the “DISC” switch to “MULTI TONE”. - Page 9 Operating the metal detector in residential excavating, because the manufacturer is and industrial areas may be hampered by not liable for your actions. Golden Mask 4...
-
Page 10: Warranty And Service
Warranty card №_______________________ / Date: _______________________ User: _________________________________________ Dealer:________________________________________ The Golden Mask 4 metaldetector has a 5-year warranty of the electronics covering the labor costs and materials, and damages not resulting from deliberate or negligent actions. The warranty is voided in the cases of mechanical damage to the respective...
