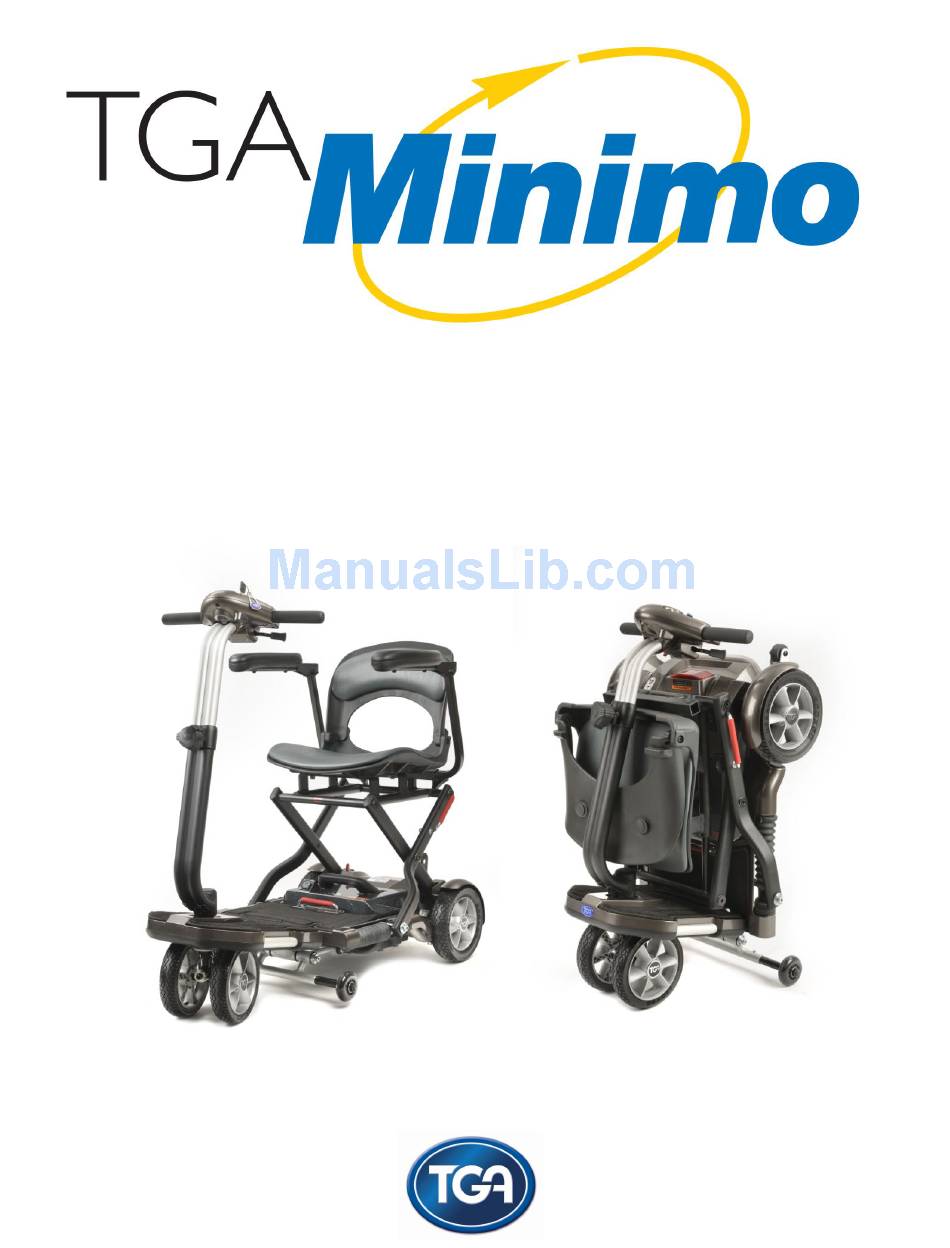

- Page 1 Operating Instructions and Owner’s Handbook...
-
Page 2: Table Of Contents
Contents Page Introduction Your Minimo Controls & Instrument Panel Adjusting Your Minimo Tiller Removing Your Minimo Battery Pack Folding Your Minimo Unfolding Your Minimo Charging your Minimo Driving Your Minimo Parking Brake Release Maintaining Your Minimo Technical Specifications Warranty Tips, Cautions, Problems and Additional Features... -
Page 3: Introduction
Do not sit on your Minimo while being transported in a moving vehicle. Always restrain your Minimo so that it cannot move in the vehicle and transfer yourself to a vehicle seat. Do not drive your Minimo through deep water or clean with a high pressure hose. -
Page 4: Your Minimo Controls & Instrument Panel
A. Horn – Press the Horn button to sound the horn. B. Key – Insert the key and rotate it clockwise to power on your Minimo. To turn off your Minimo rotate the key anti clockwise. Should you require additional or replacement key your Minimo uses a 606 key. -
Page 5: Adjusting Your Minimo Tiller
3. Adjusting Your Minimo Tiller If you’d like to adjust the height of your Minimo tiller simply turn the adjustment wheel anti clockwise until the top part of the tiller moves freely up and down. Then just move the top half of the tiller to the height you would like and tighten the adjustment wheel by turning it clockwise until tight. -
Page 6: Removing Your Minimo Battery Pack
5. Folding Your Minimo To fold your Minimo in order to put it into a car boot or stand it up and store it follow these 4 simple steps: 1. - Page 7 2. Fold the back of the seat down. 3. Use one hand to push the seat down towards the floor pan and the other to move the tiller towards the seat which will lift the front wheels off the floor and fold your Minimo.
- Page 8 4. Finally push the tiller against the seat and the front of the floor pan towards the rear wheels to ensure your Minimo is locked into the folded position. Once folded you can then lift your Minimo using the handle at the rear and stand it on its front wheels to move around in the folded position.
-
Page 9: Unfolding Your Minimo
To unfold your Minimo follow these 3 simple steps: 1. Pull the red handle on the left hand side of your Minimo towards you until you feel it click. 2. Pull the tiller away from the floor pan until the front wheels of your Minimo touch the floor. -
Page 10: Charging Your Minimo
3. Ensure your Minimo is locked in the unfolded position by pulling the chair away from the floor pan with one hand and pushing the tiller away from the seat with the other until you hear a click and feel you Minimo lock into this position. Once your Minimo is locked in position you will no longer be able to move the tiller towards and away from the seat so use this as a simple test to find out if you Minimo is locked in the unfolded position. - Page 11 6. After a period of time the light on the charger will turn Green indicating the battery is fully charged 7. At this time the charger can be disconnected and your Minimo is ready for use. NB At the point the Green light comes on the charger will automatically stop charging although the light will still be on.
-
Page 12: Driving Your Minimo
8. Driving Your Minimo Care! Warning The Minimo is easy to drive but it is essential that you familiarize yourself with the controls and learn to drive it in a safe area with sufficient room to maneuver for your safety and that of others. -
Page 13: Parking Brake Release
Remove the Key for security. 2. If your Minimo has been used in the Free Wheel mode (see Parking Brake Release), it is VERY IMPORTANT to re-engage the drive to ensure that the scooter brake is on before you get 9. - Page 14 Driving Brake When you drive your Minimo and let go of the speed control lever, it should reduce speed very quickly. If you notice a change in the normal driving/slowing condition and your Minimo does not slow down quickly then do not use your Minimo and contact your Minimo dealer or TGA.
-
Page 15: Technical Specifications
2" 12. Warranty This is to certify that your Minimo is warranted by TGA for a period of twelve months from the date of purchase subject to the following conditions: 1. This warranty is available only to the original purchaser/user of the Minimo. The Minimo is identified by the unique serial number located on the frame. -
Page 16: Tips, Cautions, Problems And Additional Features
This warranty does not cover commercial or rental use of the Minimo or if it is being used for anything other than its intended use ... -
Page 17: Safe Driving Tips For Scooter Users
Watch Your Brakes Never try to drive, or even sit on your Minimo while it is in “free wheel”. The parking brake will be out of action and your Minimo could run away with you. Maintenance Carry out the checks listed in this manual regularly and also have your Minimo serviced by your Minimo dealer or TGA at least once a year. - Page 18 In a crowded precinct, market area, or footpath It is your responsibility to ensure you do not run into anyone or do any harm with your Minimo. While many people will make way for you, you cannot expect everyone to do so. Some will appear to not even realize you are there.
-
Page 19: Notes
TGA Electric Leisure Ltd reserves the right to change specification and/or prices without prior notification or warning INS01v1...
